Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai)

Export reference
MSRP N/A
Horsepower: 190
Emission: China VI
Fuel: Diesel
Engine: WeichaiWP4.1N
Curb Weight:: 4.65ton
Wheelbase:: 4200mm
Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 6.355ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) is a Medium-duty truck featuring 5.2m cargo length, Stake type cargo body, 3Personnel volume and 6.355t payload. On the powertrain side, it comes with a WeichaiWP4.1N engine, 190 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD5110CCYW78K6-1
Type: stake truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: WeichaiWP4.1NQ190E61
transmission: 6-speed transmission
Cab length: 7.36m
Cab width: 2.4/2.55m
Cab height: 3.19/3.39m
Front track width: 1780mm
rear track: 1800mm
Curb Weight: 4.65ton
Rated payload: 6.355ton
GVWR: 11.2ton
Max. speed: 110km/h
Origin: Rizhao, Shandong
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
Front/rear suspension: 1.11/2.09m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1NQ190E61
Engine info: WeichaiWP4.1N
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 680N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.2m
Cargo box width: 2.3/2.45m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Leaf spring count: 3/3+3,3/8+6,3/4+3
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster: Yes
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

Exterior3

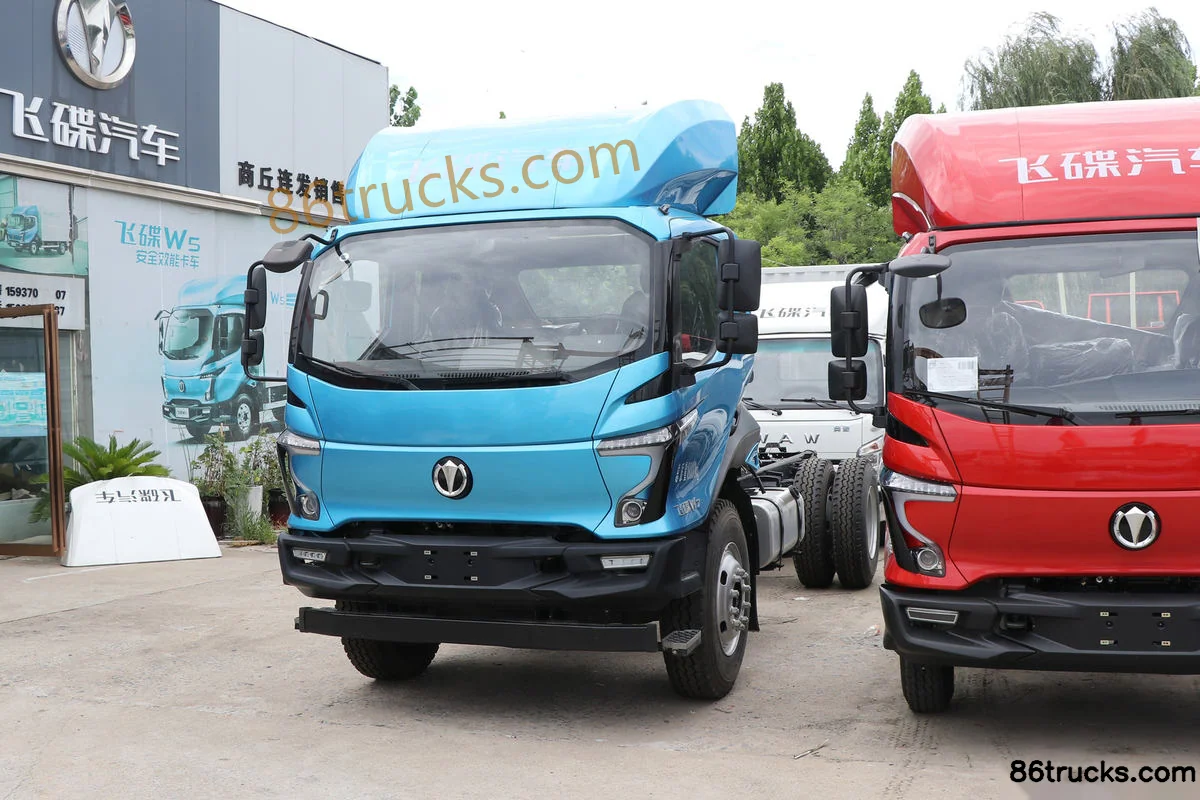

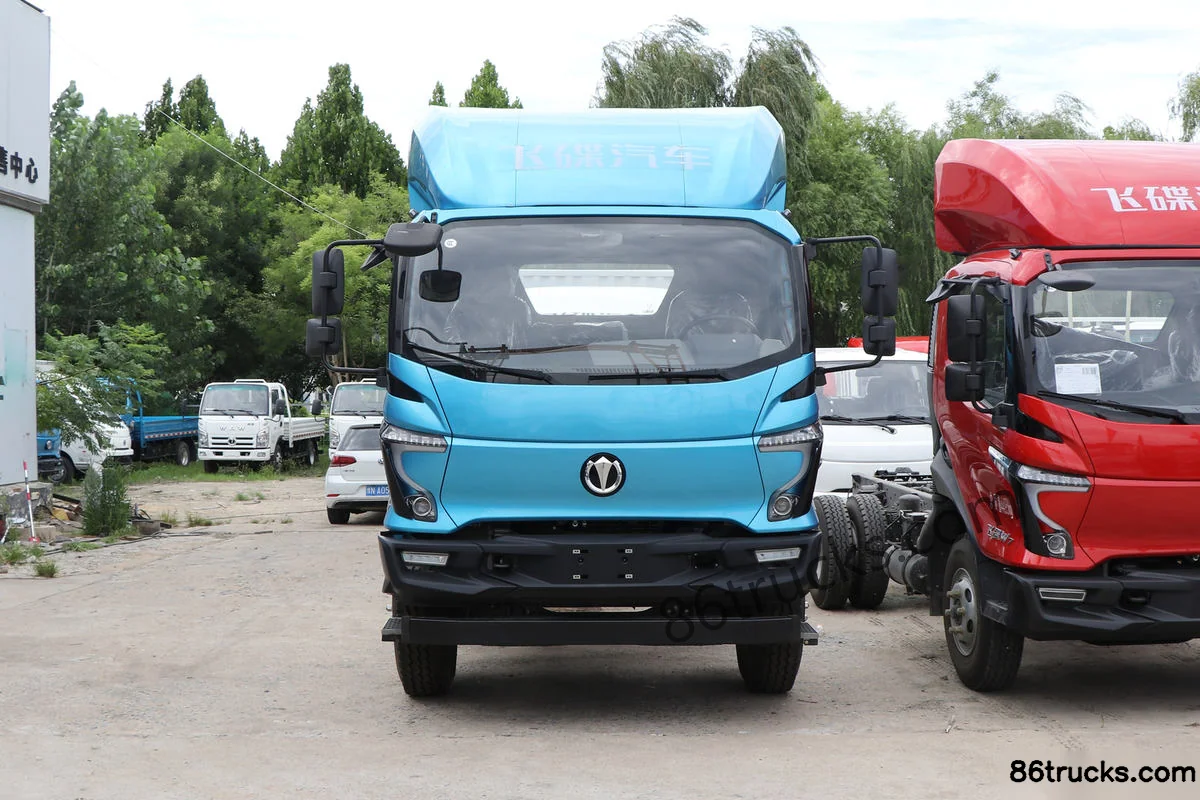

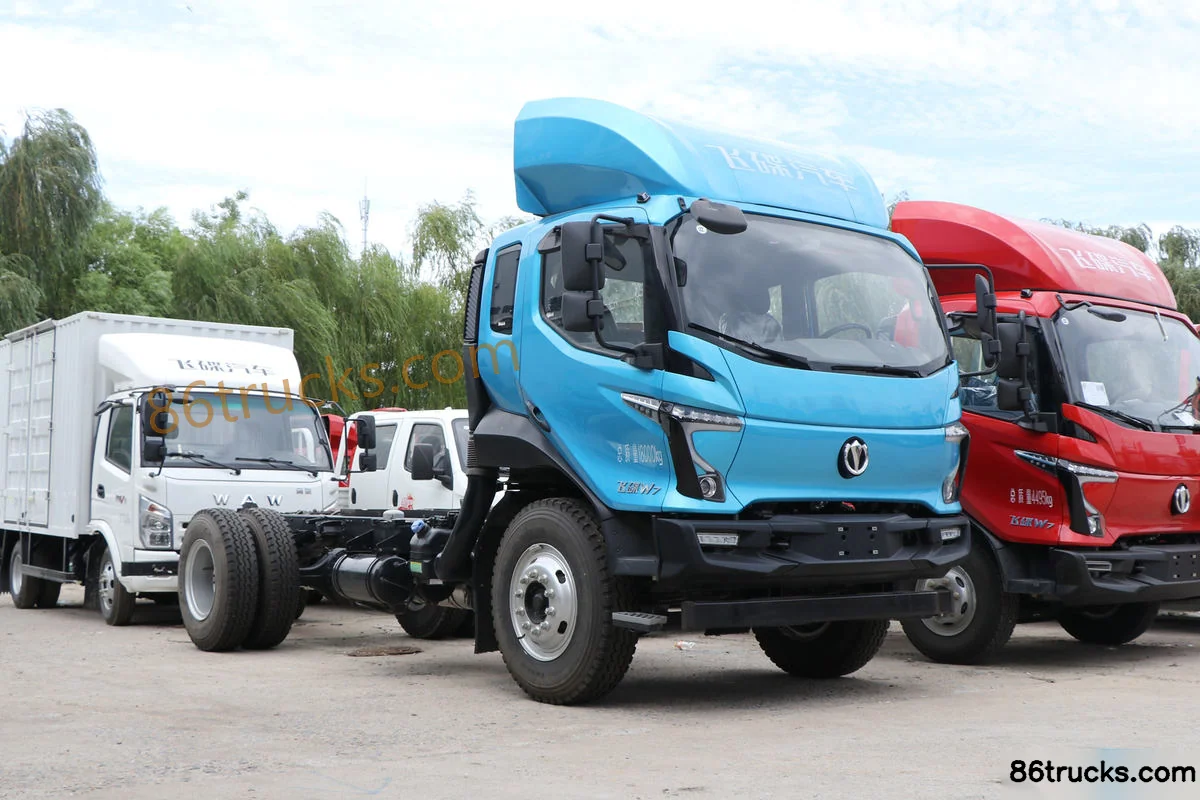

Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Exterior (1) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Exterior (2) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Exterior (3) | 86Trucks

Cab3

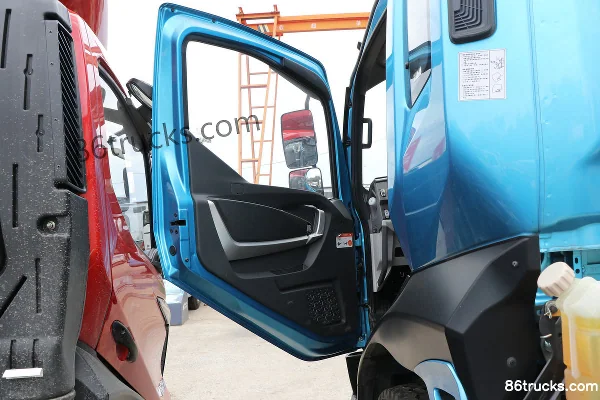

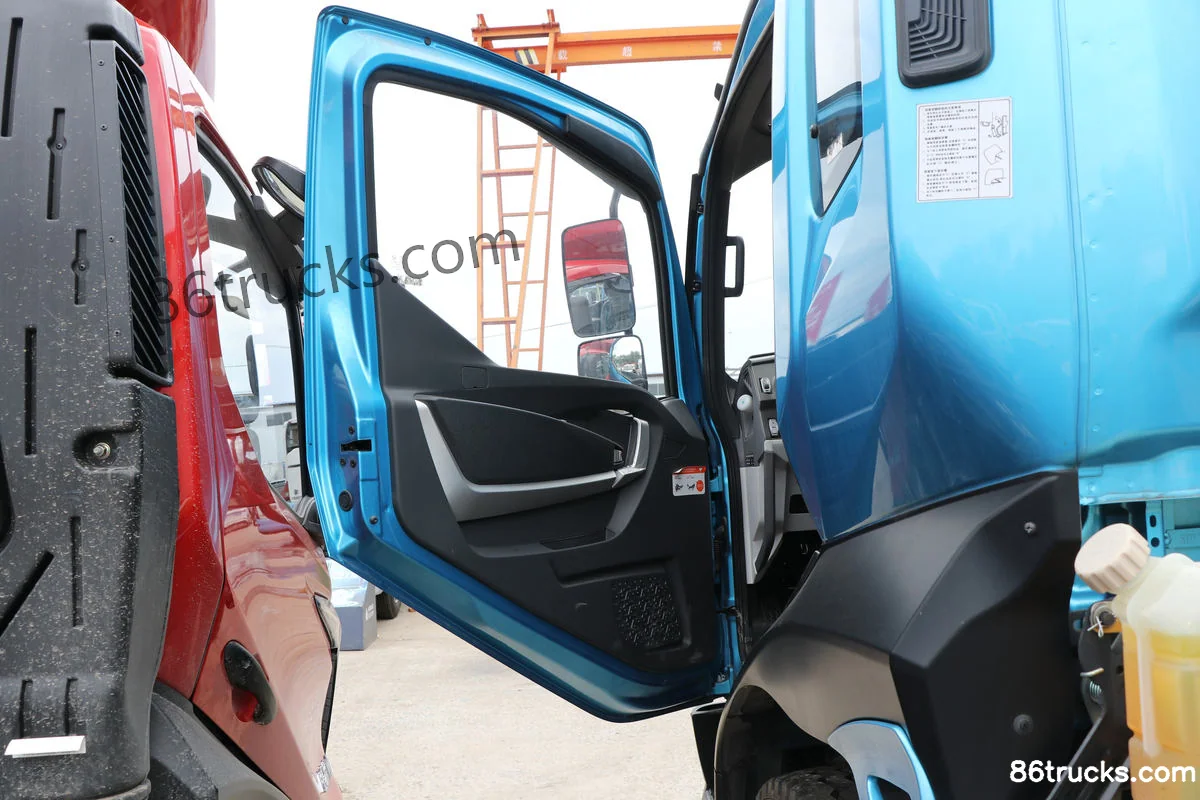

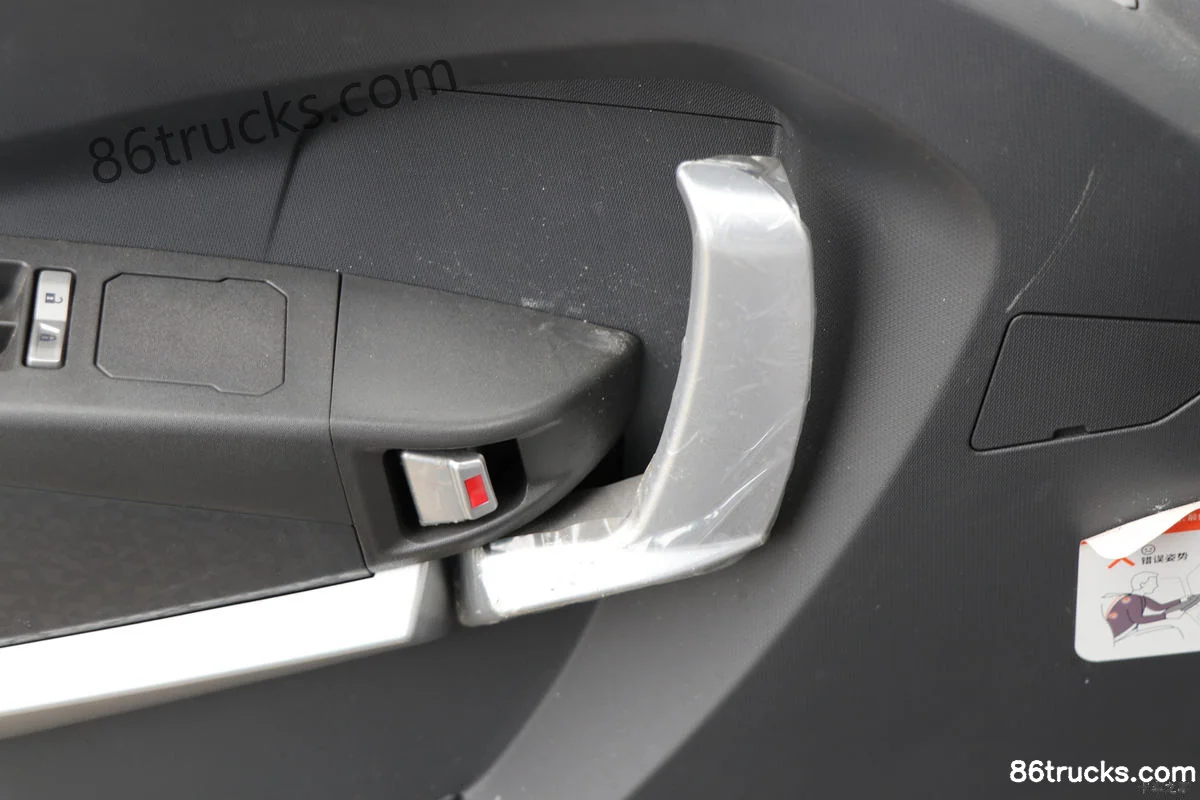

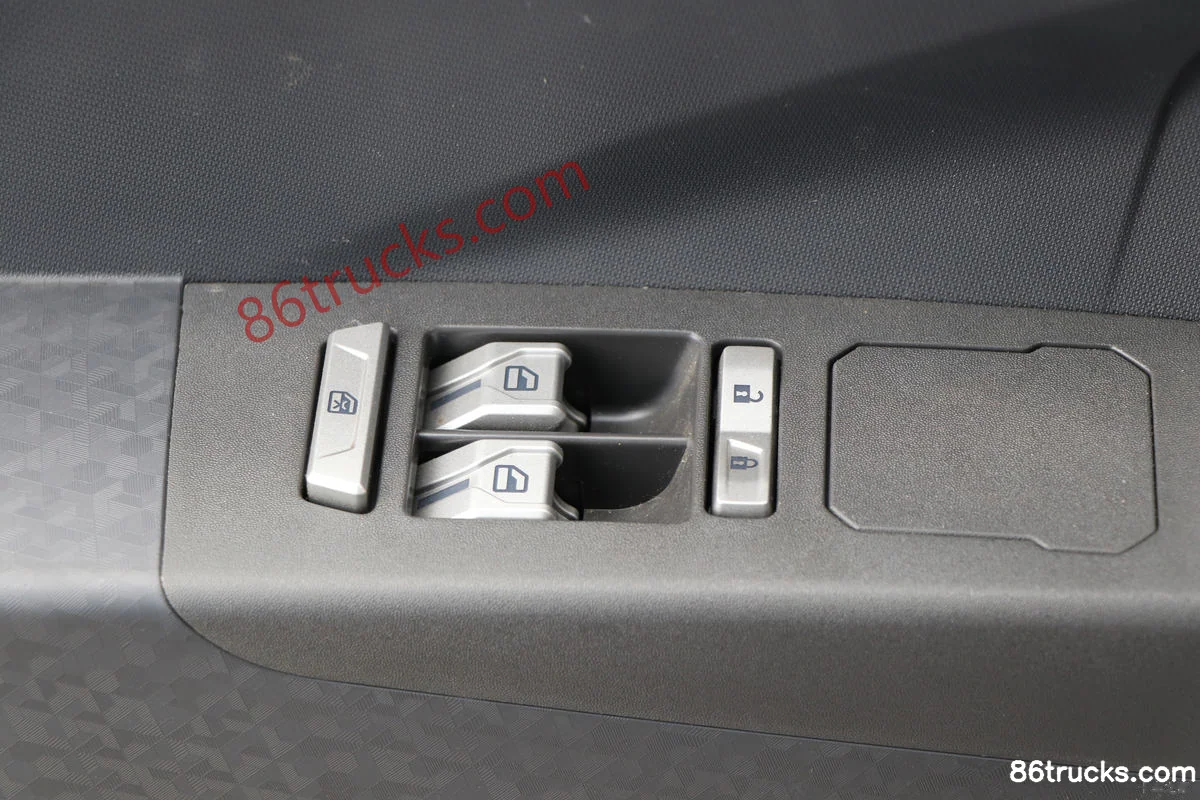

Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Cab (1) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Cab (2) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Cab (3) | 86Trucks

Chassis3

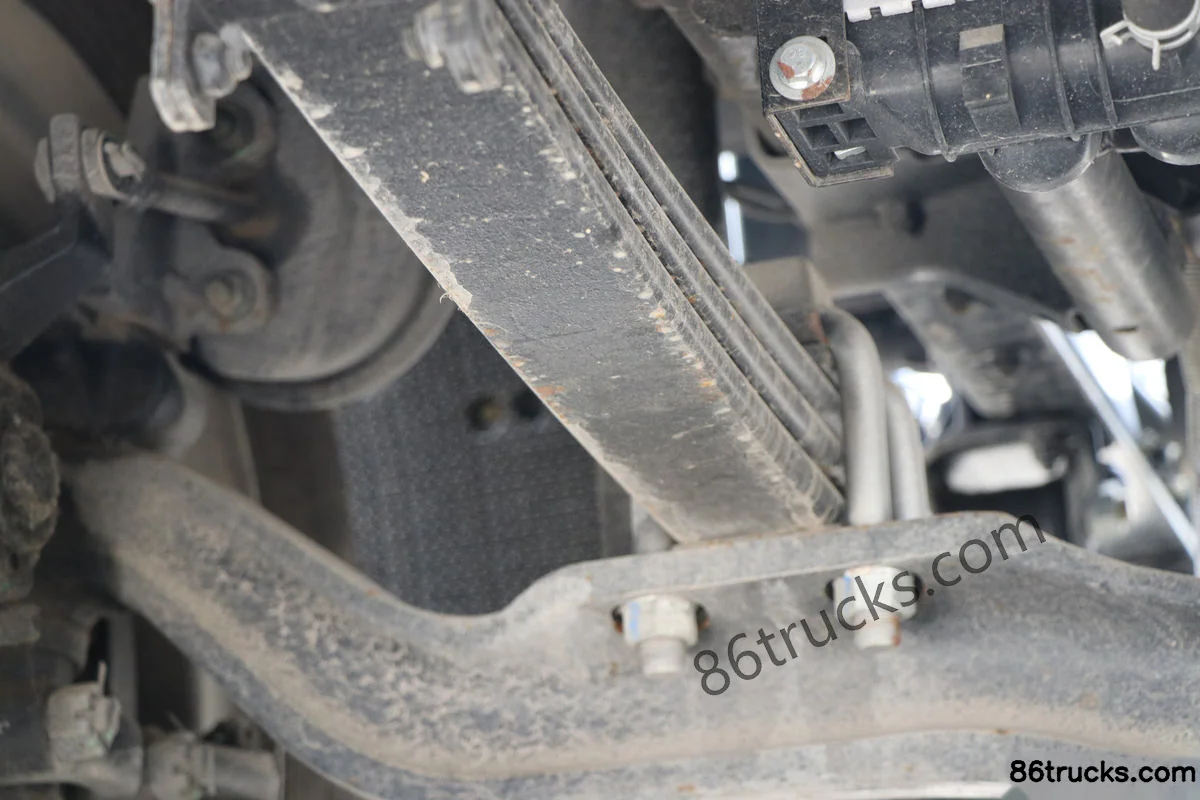

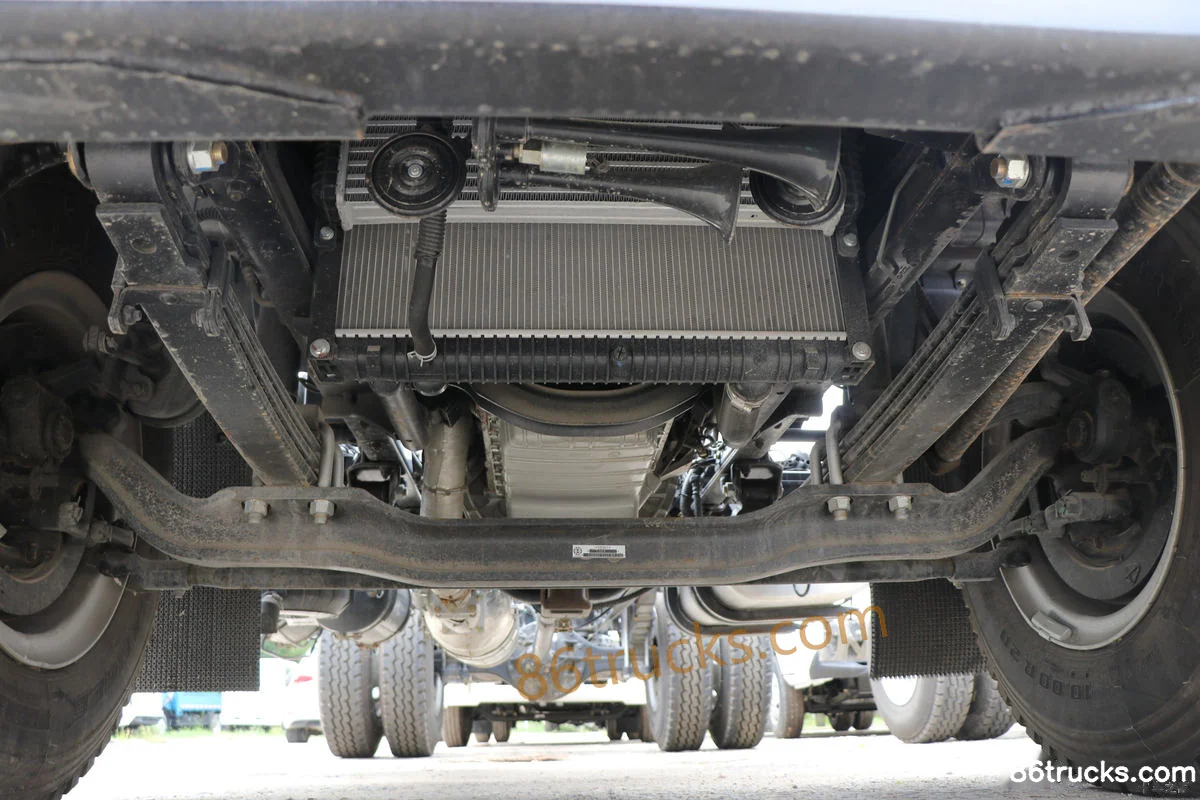

Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Chassis (1) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Chassis (2) | 86Trucks Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai)?

Key specs of Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai): Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Engine: WeichaiWP4.1N. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) suited for?

Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) differ from other variants in the same series?

Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai) belongs to Feidi7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi W7 190 hp 4X2(6 wheels) 5.2m Semi-row Stake Truck (China VI) (Weichai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
