JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 7ton
Wheelbase:: 5300mm
Tire Size:: 9.00R20 16PR,10R22.5 16PR
Cab dimensions:: 10×2.6×3.95m
Rated payload: 8.87ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.6×2.4×2.43m
Horsepower 190

Overview

The JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck is a Refrigerated Truck featuring 7.6×2.4×2.43m cargo body, 8.87t payload, 10×2.6×3.95m cab and 5300mm wheelbase. On the powertrain side, it comes with 190 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10×2.6×3.95m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5300mm
Vehicle origin: Hefei, Anhui
Front track width: 1870mm
rear track: 1860mm
Curb Weight: 7ton
Rated payload: 8.87ton
Max. speed: 100km/h
Front/rear suspension: 1.4/3.3m
Energy Type: Diesel
Engine parameters
Engine Model: MaxxForce JND412D190-52
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.748L
Emission standard: China V
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 740N·m
Rated speed: 2200rpm
Engine Type: Inline, water-cooled, 4-cylinder, air-to-air intercooled
Cargo box parameters
Cargo box dimensions: 7.6×2.4×2.43m
Cargo box width: 2.4m
Cargo box height: 2.43m
Body Parameters
Vehicle certification code: HFC5161XLCP3K1A57V
Body Brand: JAC Gallop
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopA5
Chassis Model: HFC5161XXYP3K1A47V
Axle ratio: 4.875
Leaf spring count: 3/4+3
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85C
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs

Photos

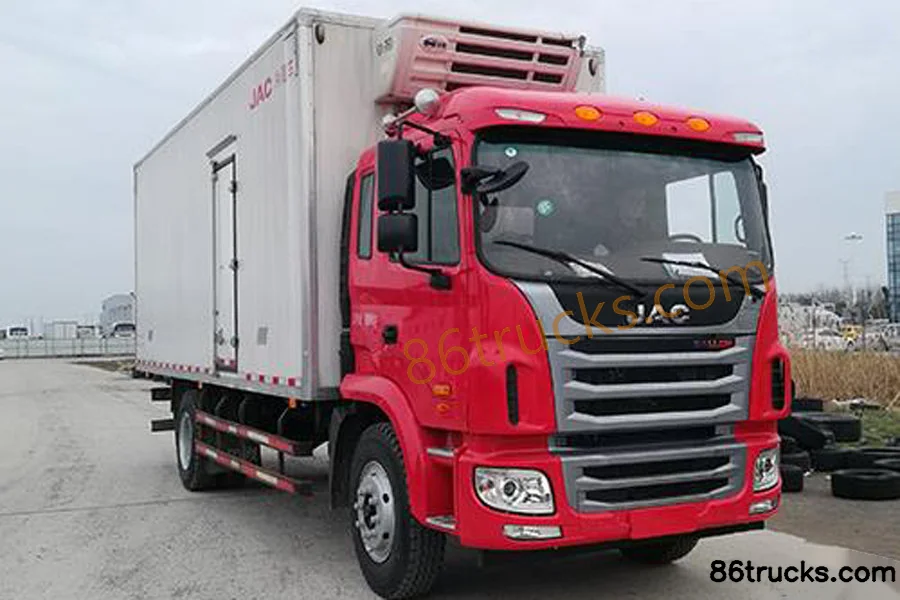

Exterior1

1 photos

FAQ

What emission standard does JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck?

Key specs of JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck: Drive: 4x2; Horsepower: 190 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck suited for?

JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck differ from other variants in the same series?

JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck belongs to JAC Gallop A5 Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5 190 hp 4X2(6 wheels) 7.6m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
