JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui)

Export reference
From $11,528
MSRP ¥8.3M CNY
Horsepower: 88
Emission: China V
Fuel: Diesel
Engine: JAC485
Transmission: Xingrui
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) is a Light Truck featuring 3.7m cargo length, Van body cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JAC485 engine, 88 hp, 4X2 (6 wheels) drive and China V emissions.

China V 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5040XXYP93K2B4V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.7m
engine: JACHFC4DF2-2D1
transmission: Xingrui LC5T28B
Cab length: 5.55m
Cab width: 1.96m
Cab height: 3.03m
Front track width: 1470mm
rear track: 1395mm
Curb Weight: 2.565ton
Rated payload: 1.495ton
GVWR: 4.19ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 18°
departure angle: 14°
market segment: Urban Distribution
Remarks: Standard: LED headlights; Optional: auto A/C (requires MP5).
Front/rear suspension: 1.09/1.49m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DF2-2D1
Engine info: JAC485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.156L
Emission standard: China V
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 240N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.7m
Cargo box width: 1.9m
Cargo box height: 1.98m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1510kg
Frame Dimensions: 180×65×4.5mm
rear axle allowable load: 2680kg
Leaf spring count: 7/5+3
Frame Type: Dovetail beam
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: fabric/leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster:
lighting configuration
Front fog lamp:
daytime running lights:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 18 months or 50,000 km
Rescue service: none

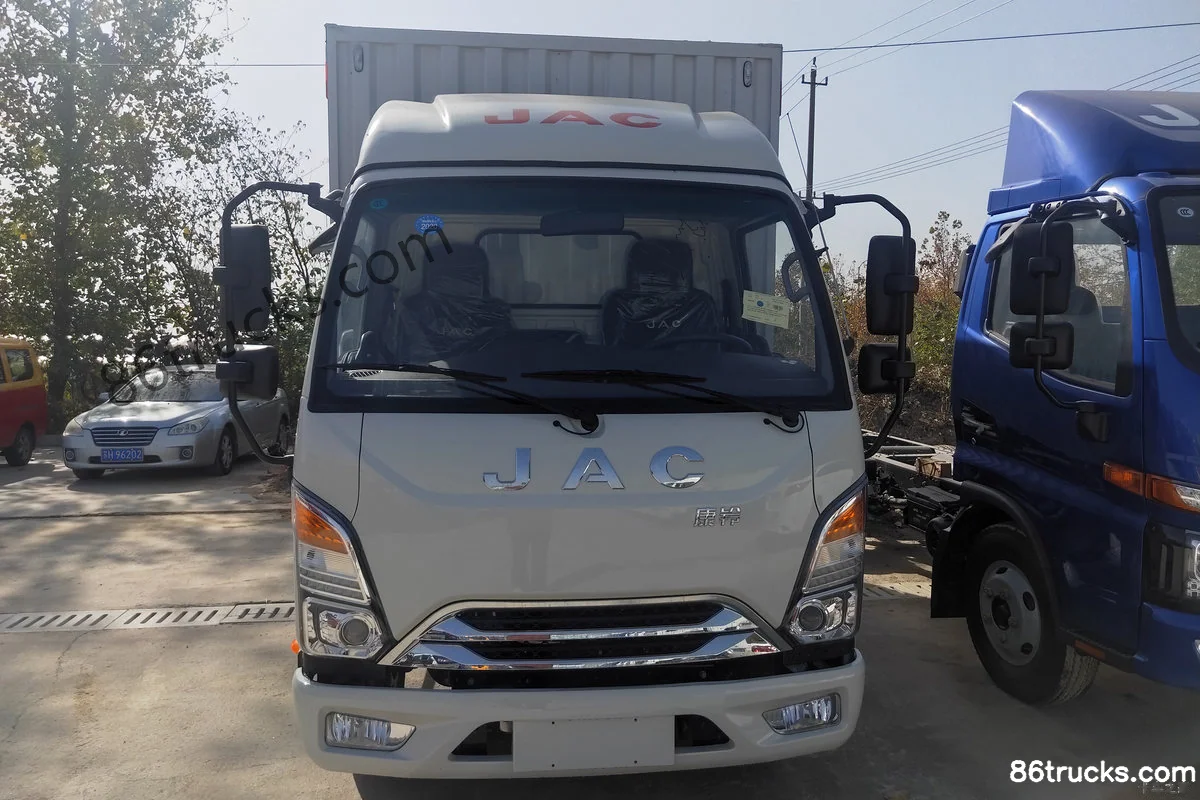

Photos

Exterior1

1 photos

FAQ

What is the export price of JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui), and what does it include?

JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) export reference is about From $11,528; MSRP is ¥8.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui)?

Key specs of JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui): Drive: 4x2; Horsepower: 88 hp; Emission: China V; Fuel: Diesel; Engine: JAC485; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) suited for?

JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) differ from other variants in the same series?

JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui) belongs to JAC J3 light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling J3 88 hp 4X2(6 wheels) 3.7m single-row van light truck (Xingrui)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
