Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3800+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 15.69L
Drive 6X4 (10 wheels)
Horsepower 720
Emission China VI
Transmission ZF

Overview

The Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 720 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a WeichaiWP16NG720E61 engine, ZF transmission and LNG (liquefied natural gas) fuel.

China VI 720 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4256Y384HF1LB
Drive type: 6X4
Wheelbase: 3800+1400mm
engine: WeichaiWP16NG720E61
transmission: ZFZF12TX3261TO
Rear Axle Ratio: 2.71
Cab length: 7.525m
Cab width: 2.55m
Cab height: 3.98m
Gross Trailer Weight: 40ton
Curb Weight: 9.67ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WP16NG720E61
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 15.69L
Emission standard: China VI
Max output power: 529kW
Max hp: 720Horsepower
Transmission Parameters
Transmission Model: ZF12TX3261TO
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: MCY12BGS self-adjusting arm dual rear axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.71
Leaf spring count: 2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Automatic

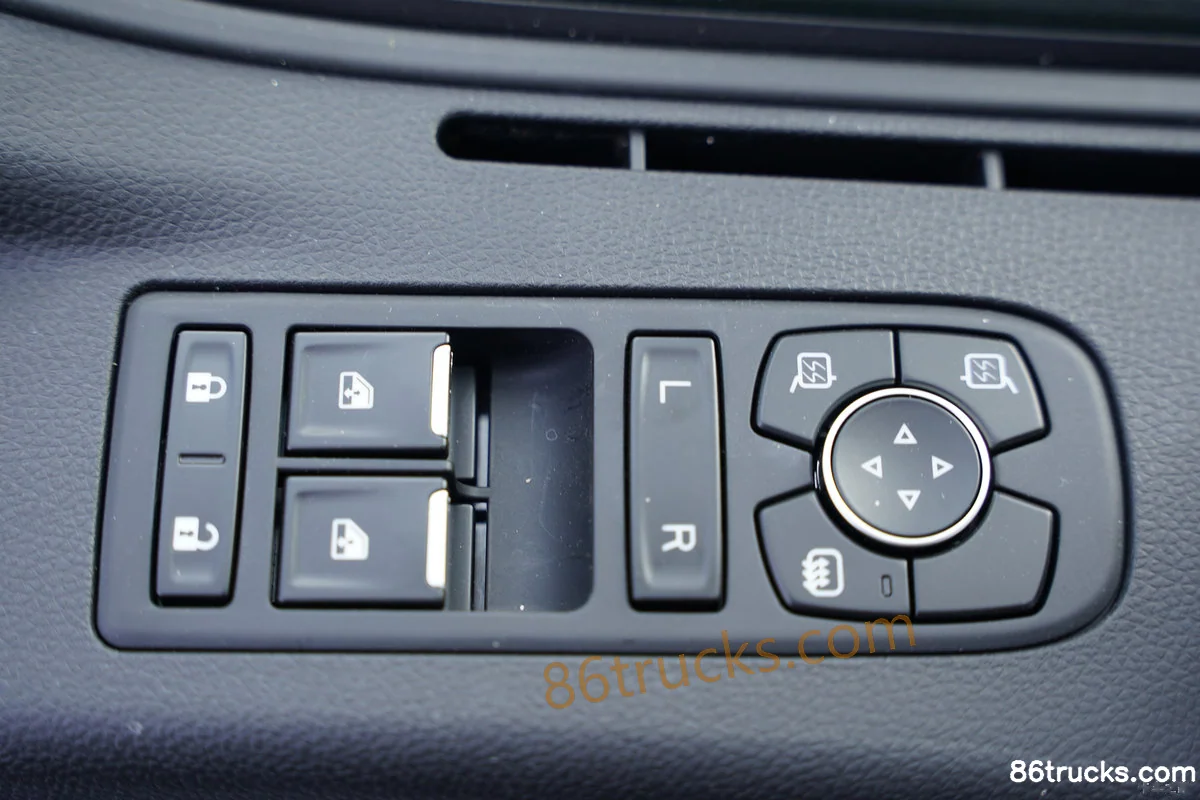

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Service brake
hydraulic retarder:

Photos

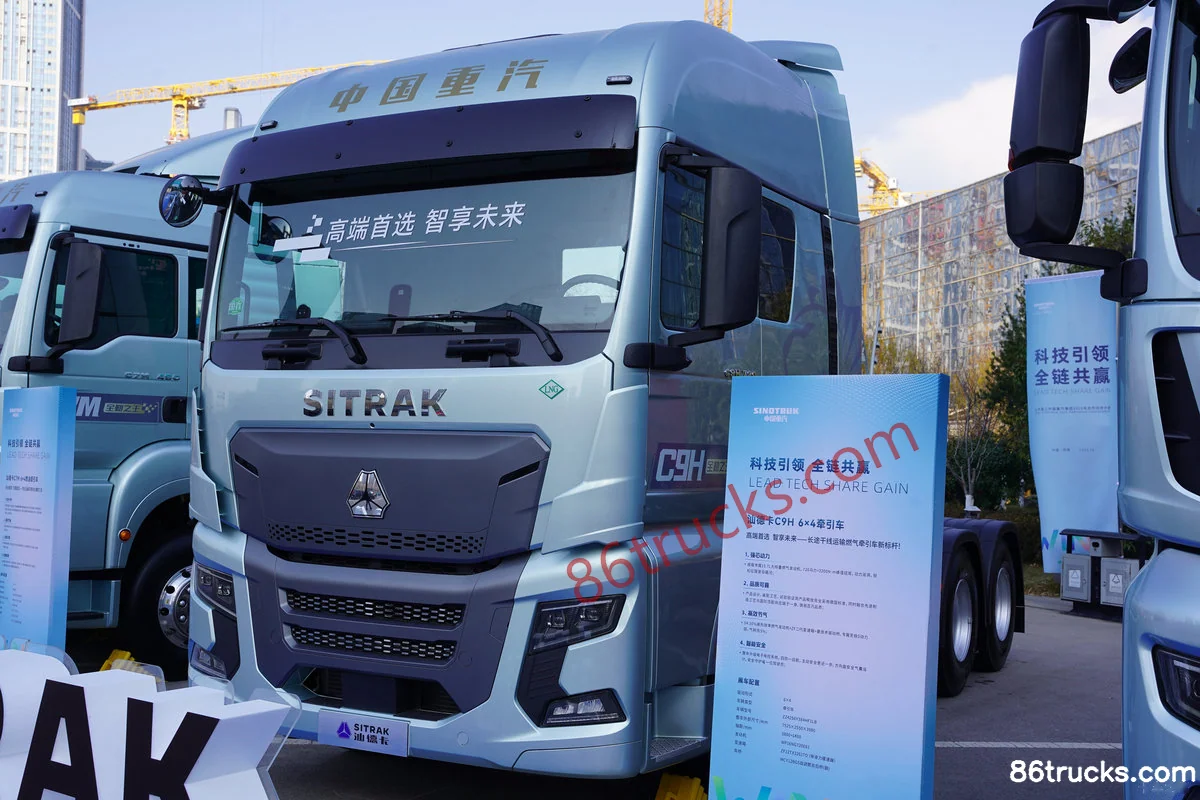

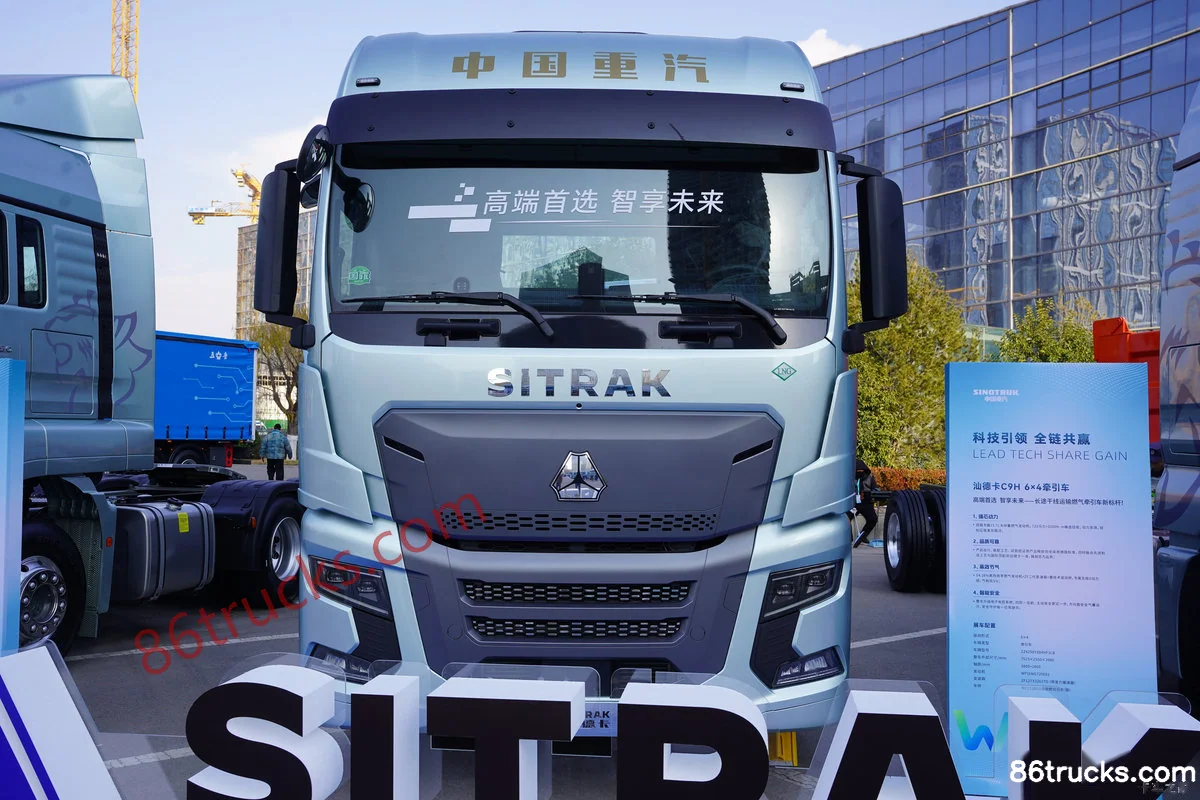

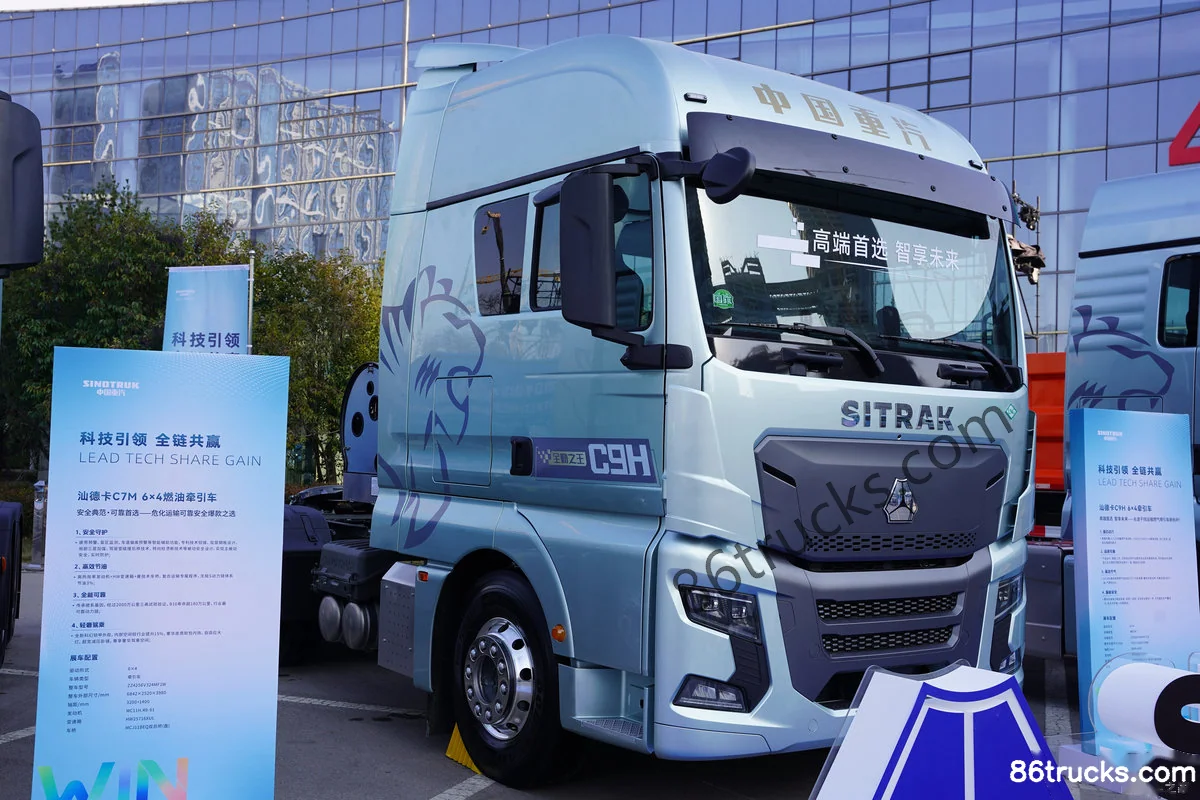

Exterior3

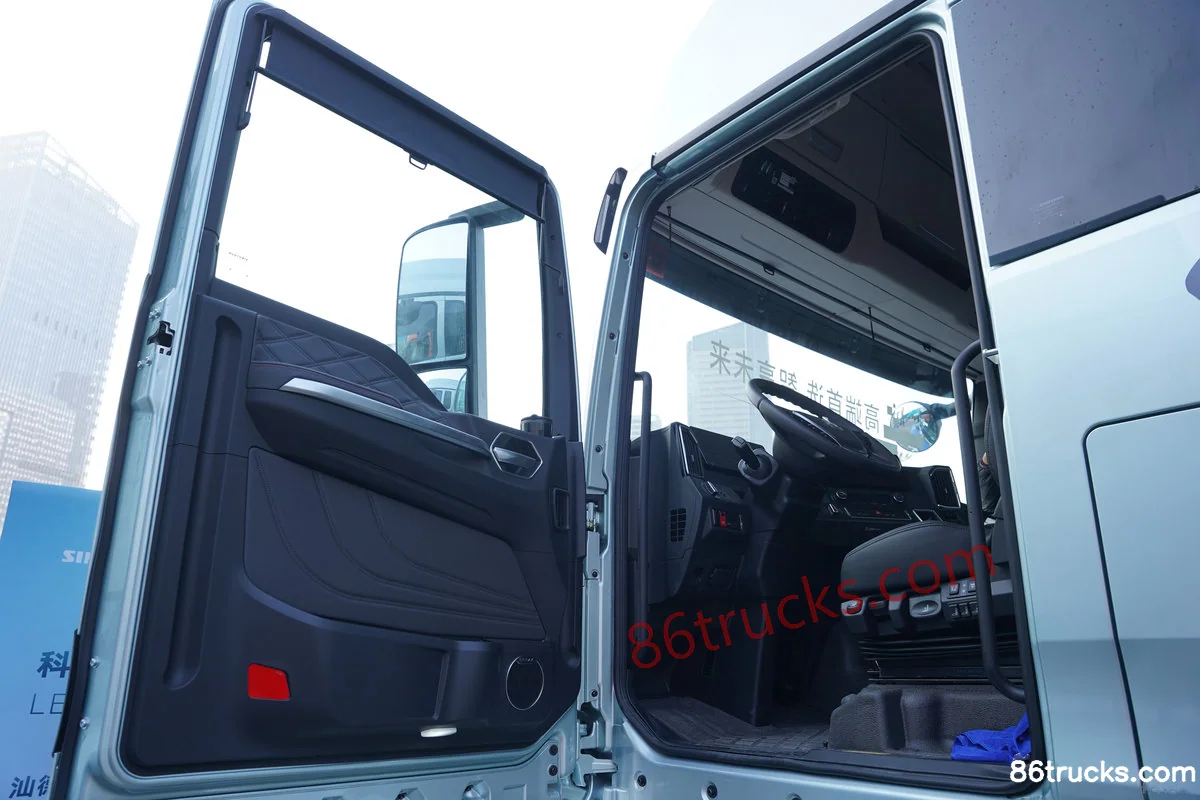

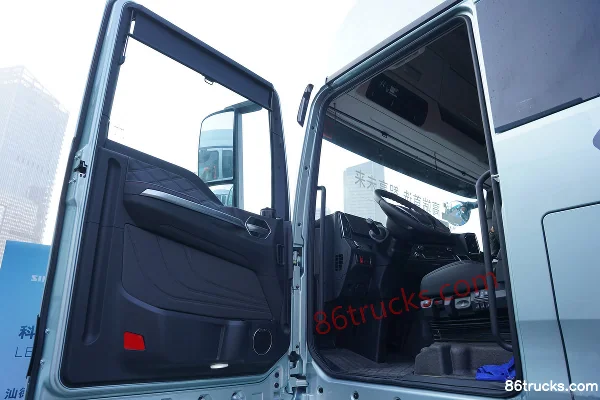

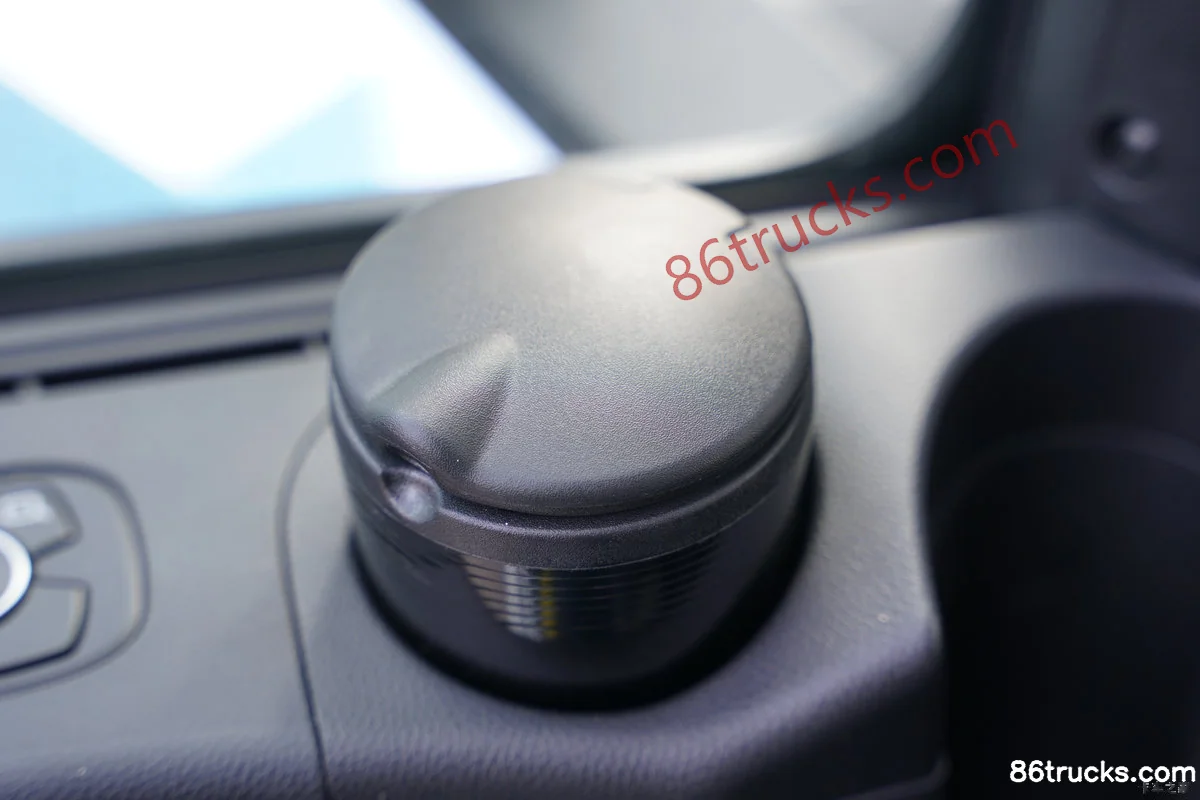

Cab3

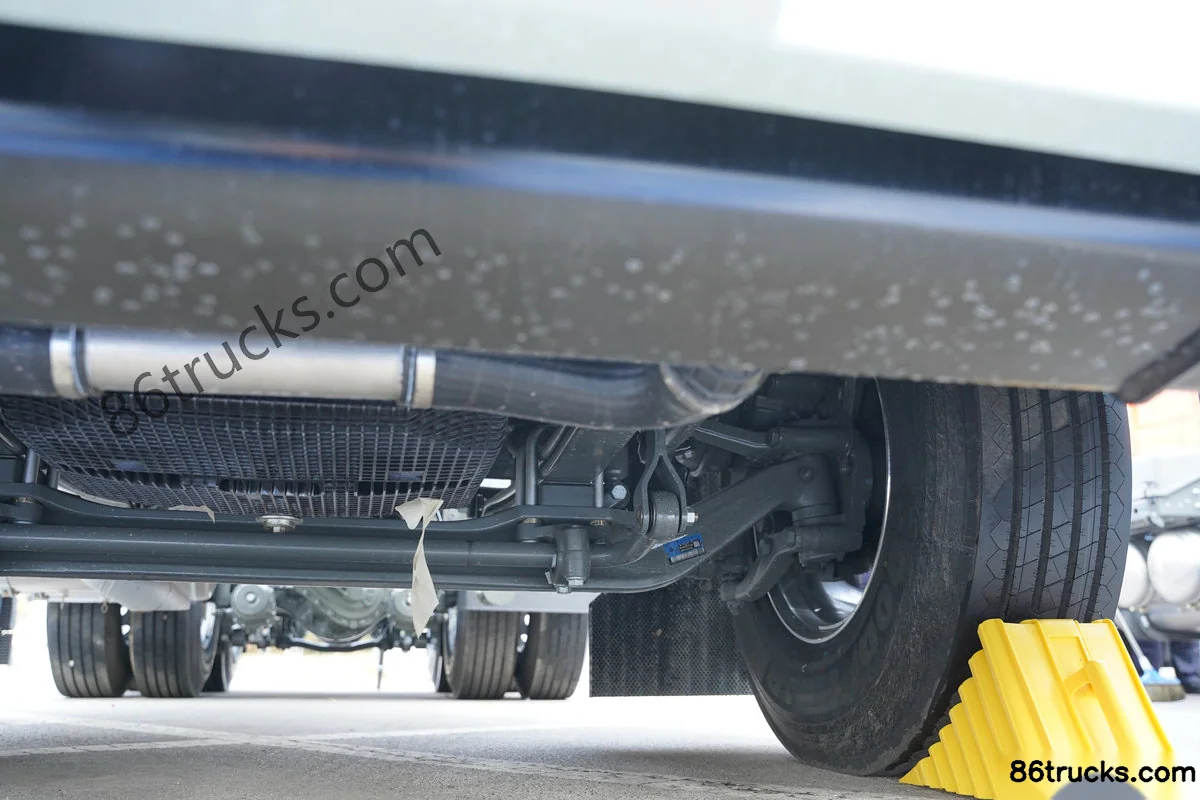

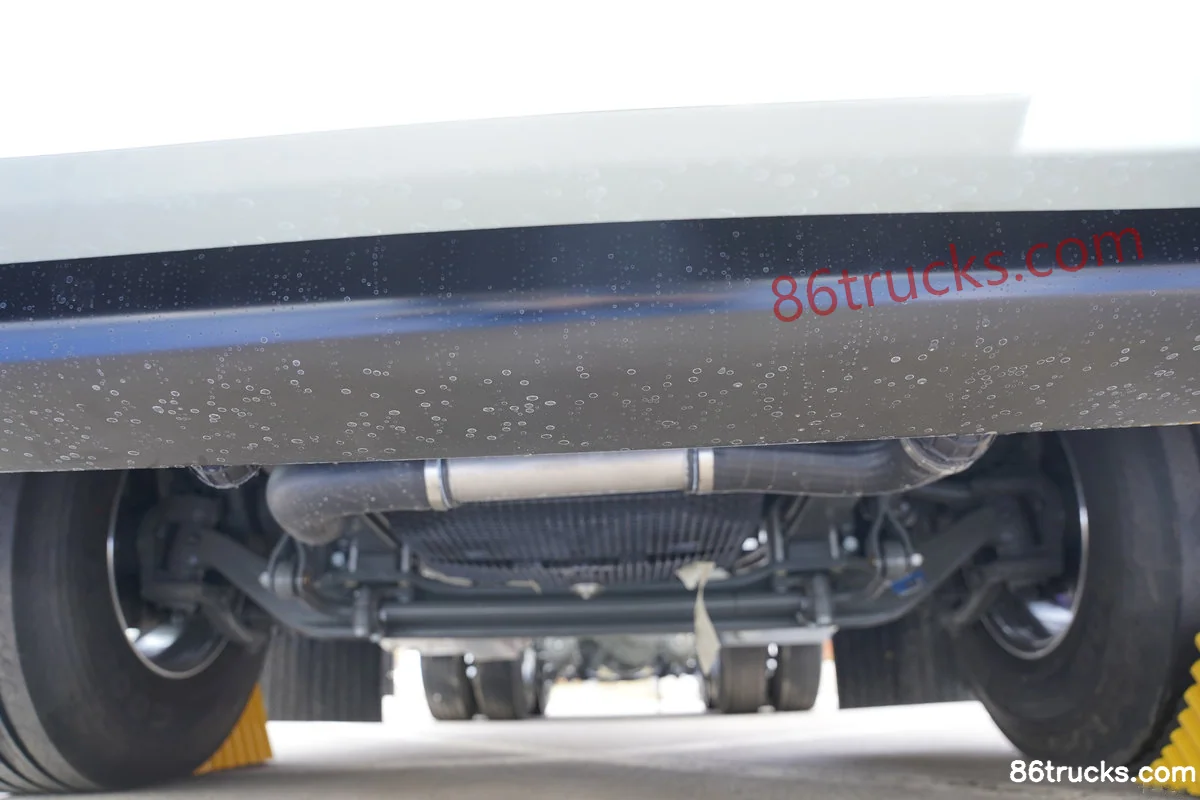

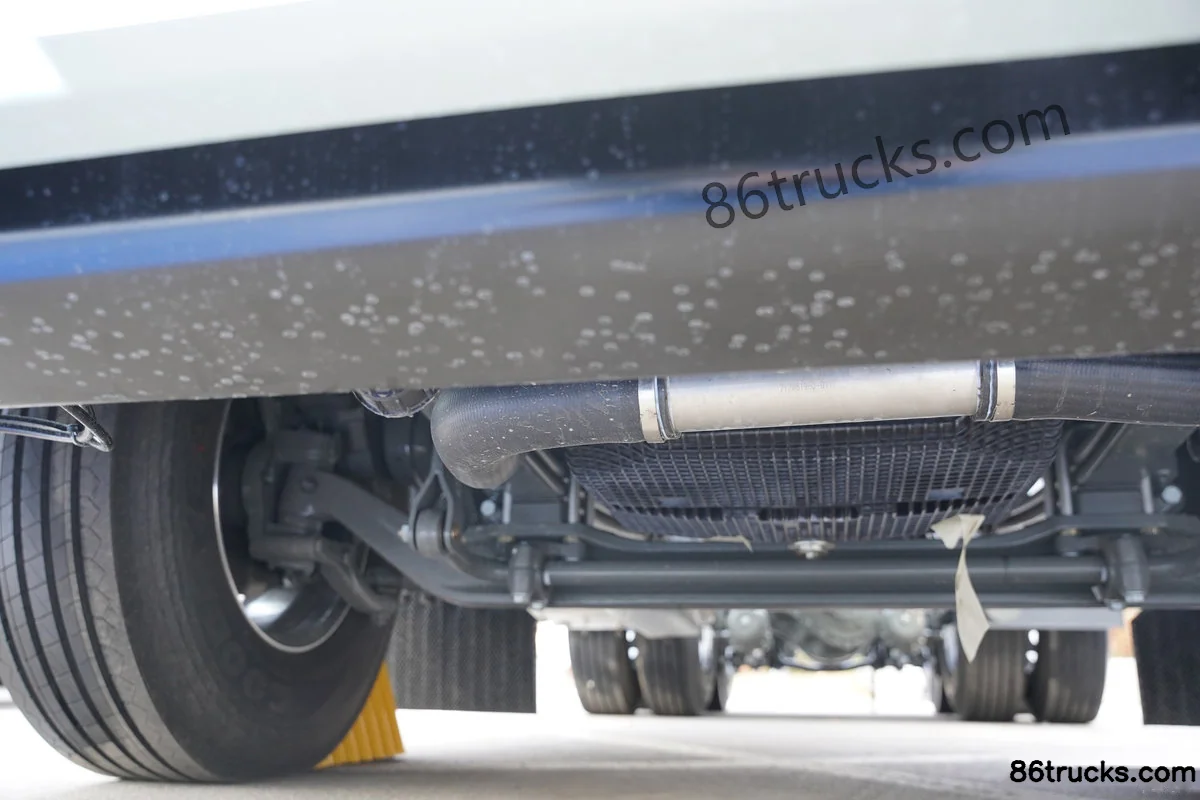

Chassis3

9 photos

FAQ

What emission standard does Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck?

Key specs of Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck: Drive: 6x4; Horsepower: 720 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck suited for?

Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck differ from other variants in the same series?

Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck belongs to Sitrak SITRAK C9H heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sitrak SITRAK C9H 15.7L LNG 720 hp 6X4(10 wheels) ZF 12-Speed AMT Automatic Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
