JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck

Export reference
MSRP N/A
Horsepower: 260
Emission: China V
Fuel: Diesel
Engine: Xichai8L
Transmission: Fast Gear
Curb Weight:: 10.9ton
seating capacity: 3Personnel
Rated payload: 13.905ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 13.905t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Xichai8L engine, 260 hp, 6X2 (8 wheels) drive and China V emissions.

China V 260 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5251CCYP2K3D54S1V
Type: stake truck
Drive type: 6X2
Wheelbase: 1900+5400mm
Box length class: 9.5m
engine: XichaiCA6DL1-26E5
transmission: Fast Gear9JS119
Rear Axle Ratio: 3.417
Cab length: 12m
Cab width: 2.5m
Cab height: 3.99m
Front track width: 2040/2040mm
rear track: 1840mm
Curb Weight: 10.9ton
Rated payload: 13.905ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 10°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.495/3.205m
Version: Standard Load Type
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-26E5
Engine info: Xichai8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 195kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear9JS119
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280×80×8mm
rear axle description: Ankai459
rear axle allowable load: 11000kg
Axle ratio: 3.417
Leaf spring count: 3/3/9+7
Tire
Tire Size: 11.00R20,12R22.5
Number of tires: 8pcs
Control configuration
ABS:

Photos

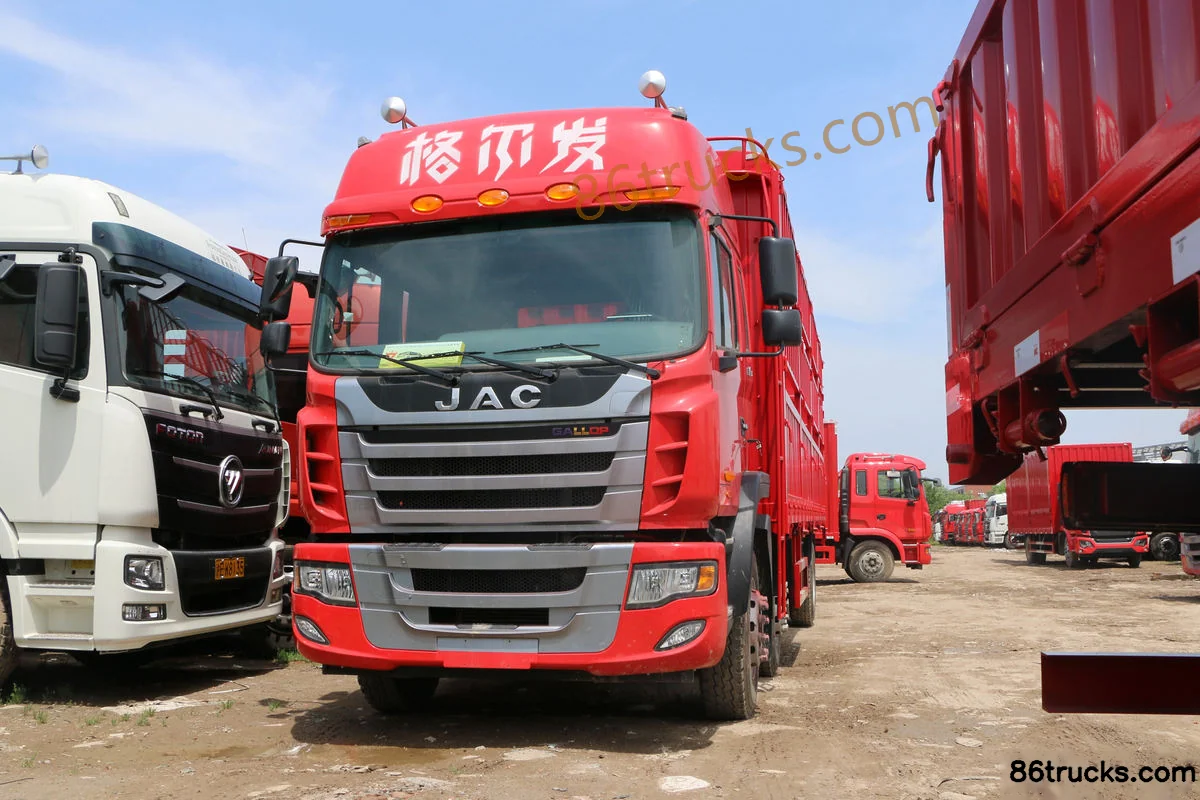

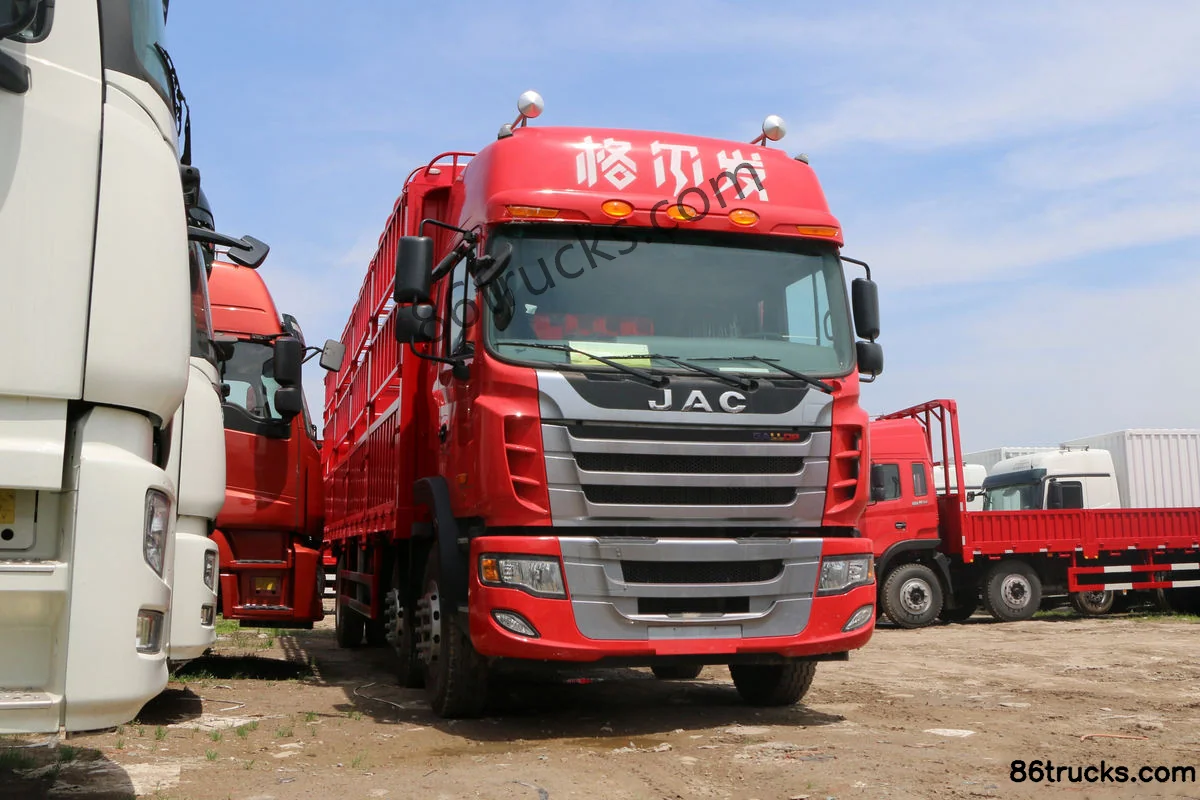

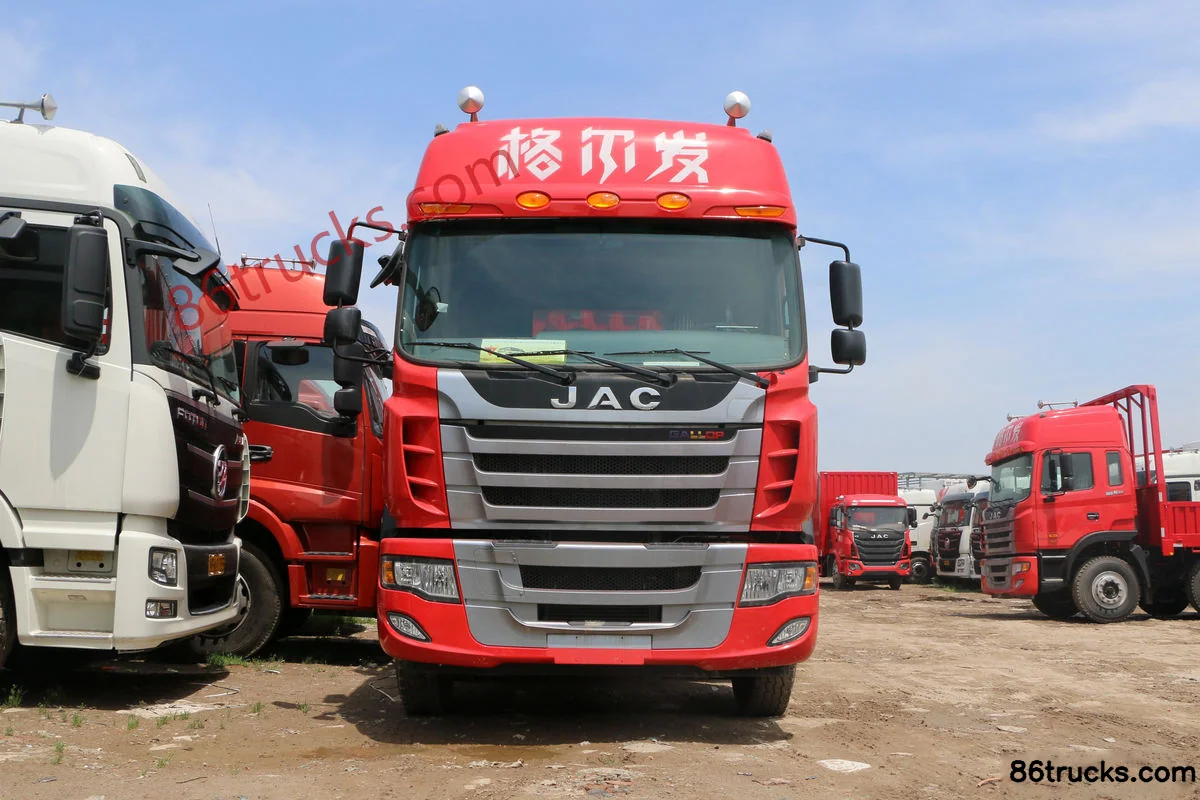

Exterior3

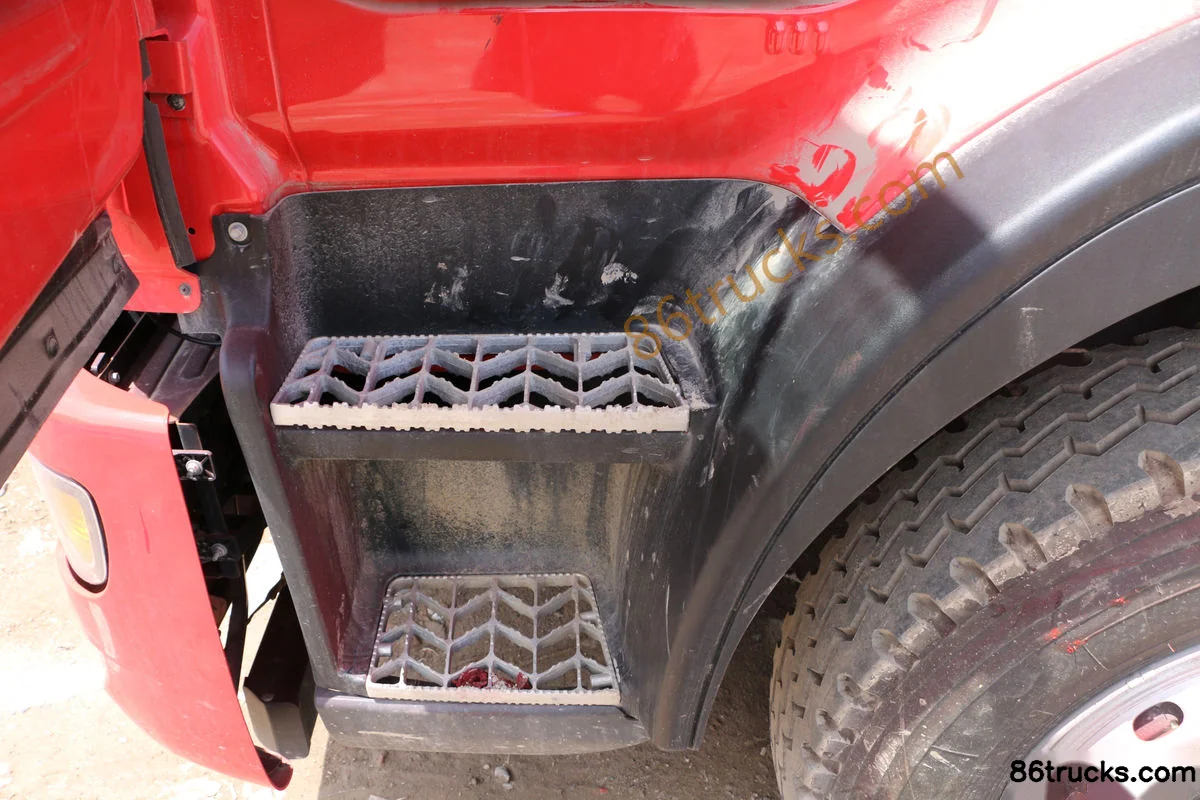

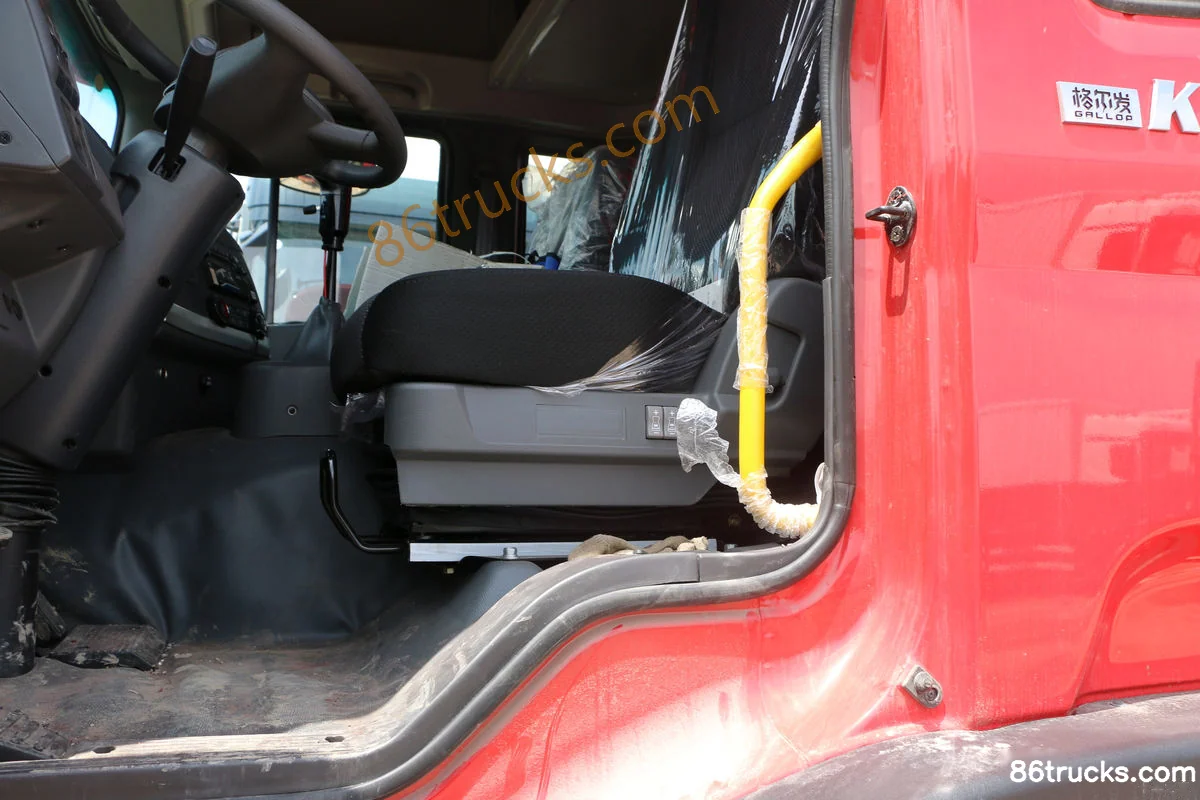

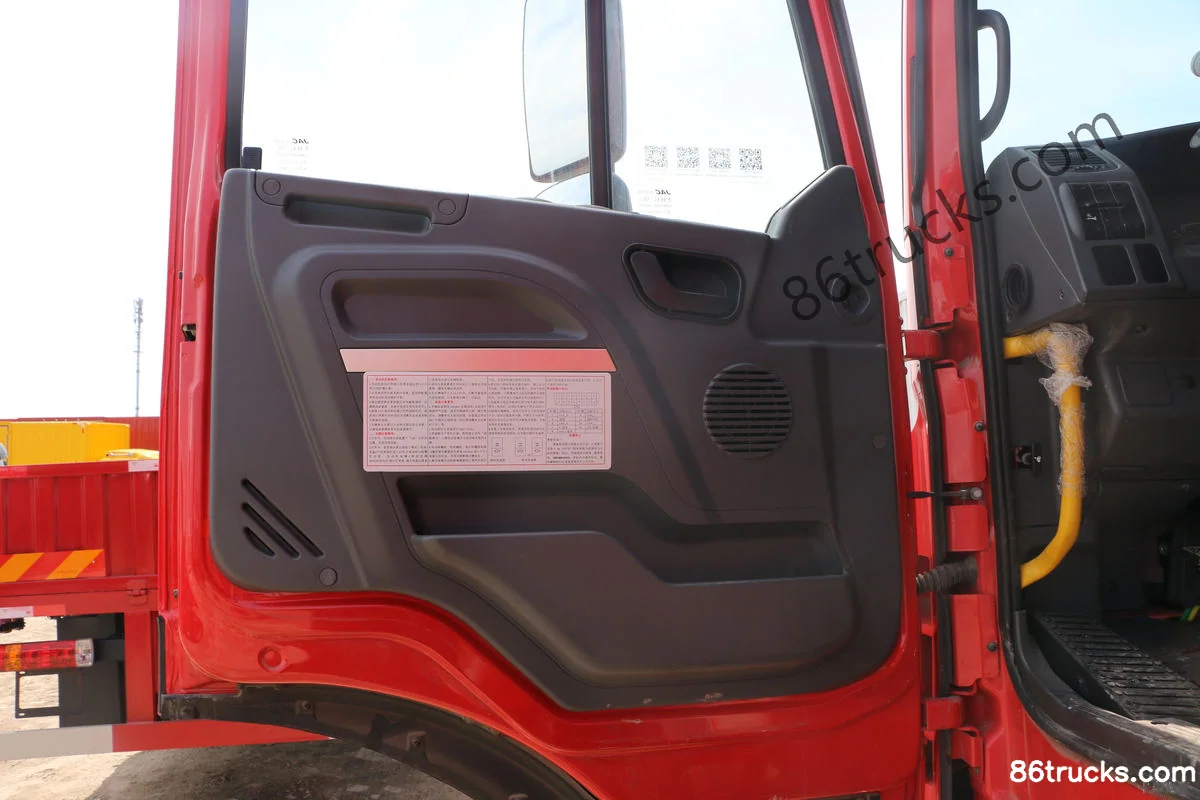

Cab3

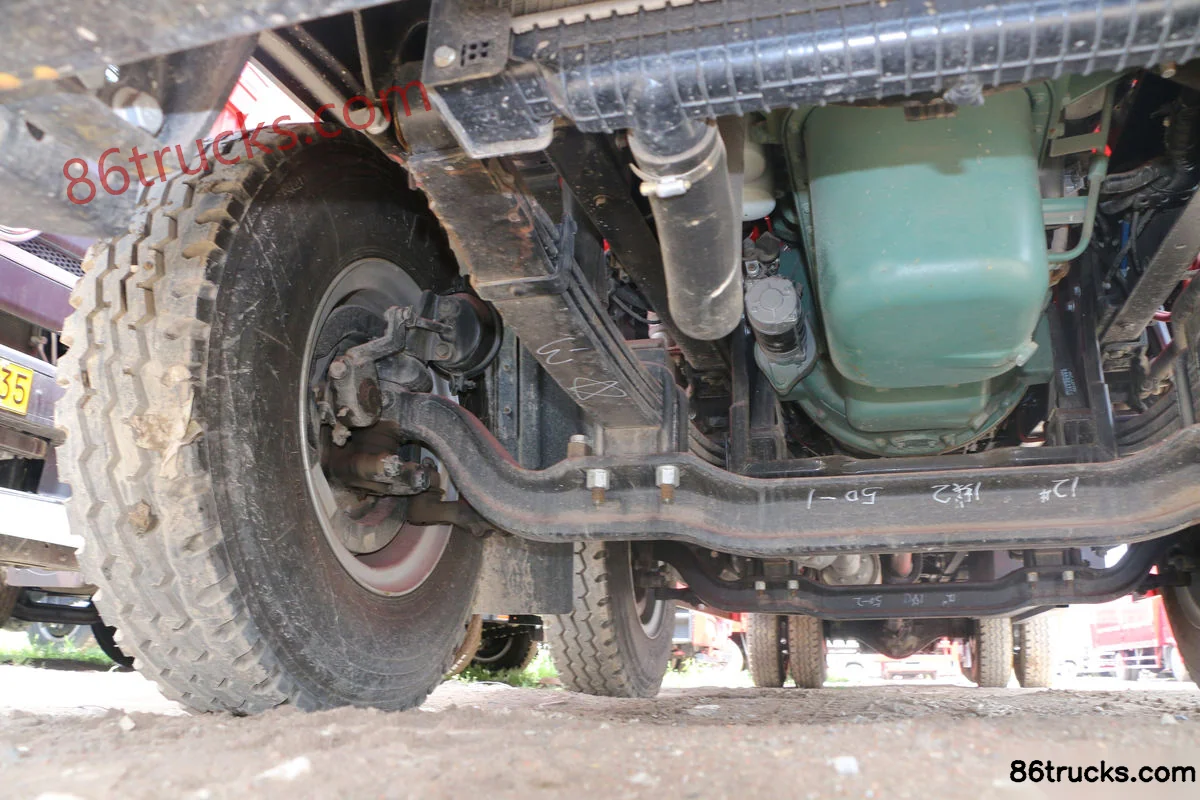

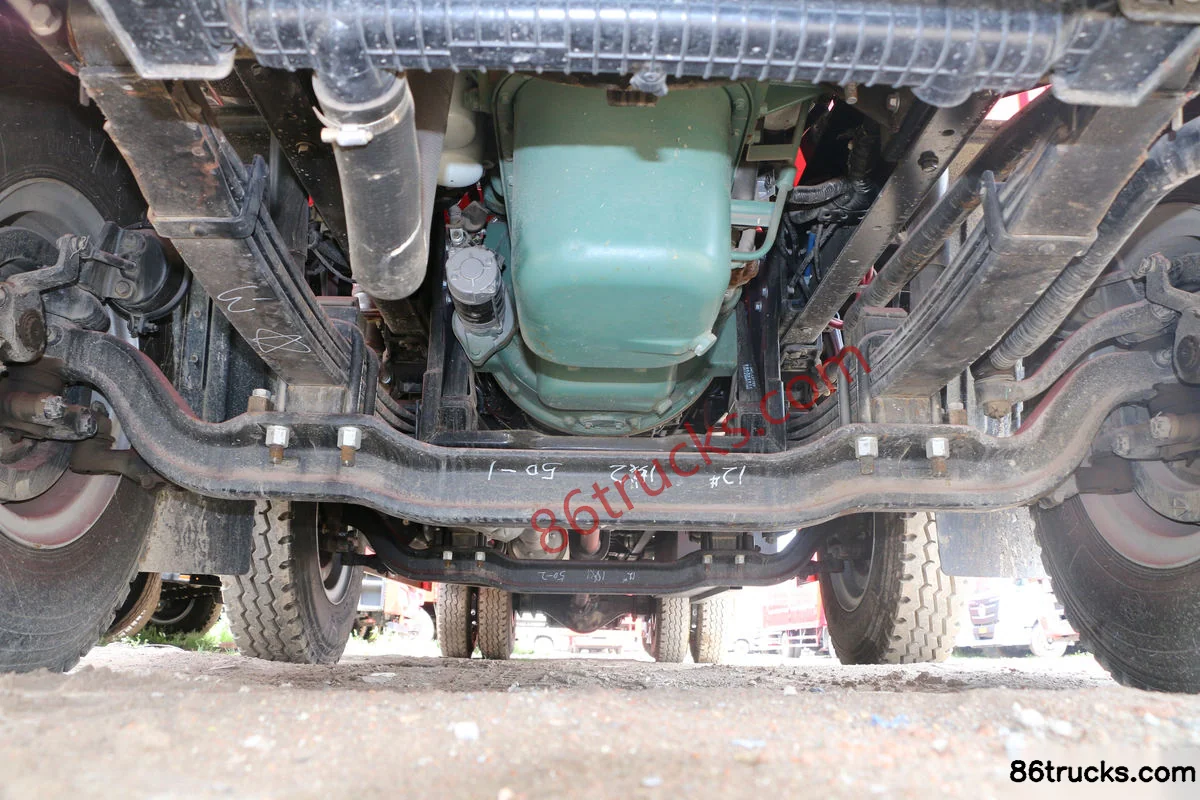

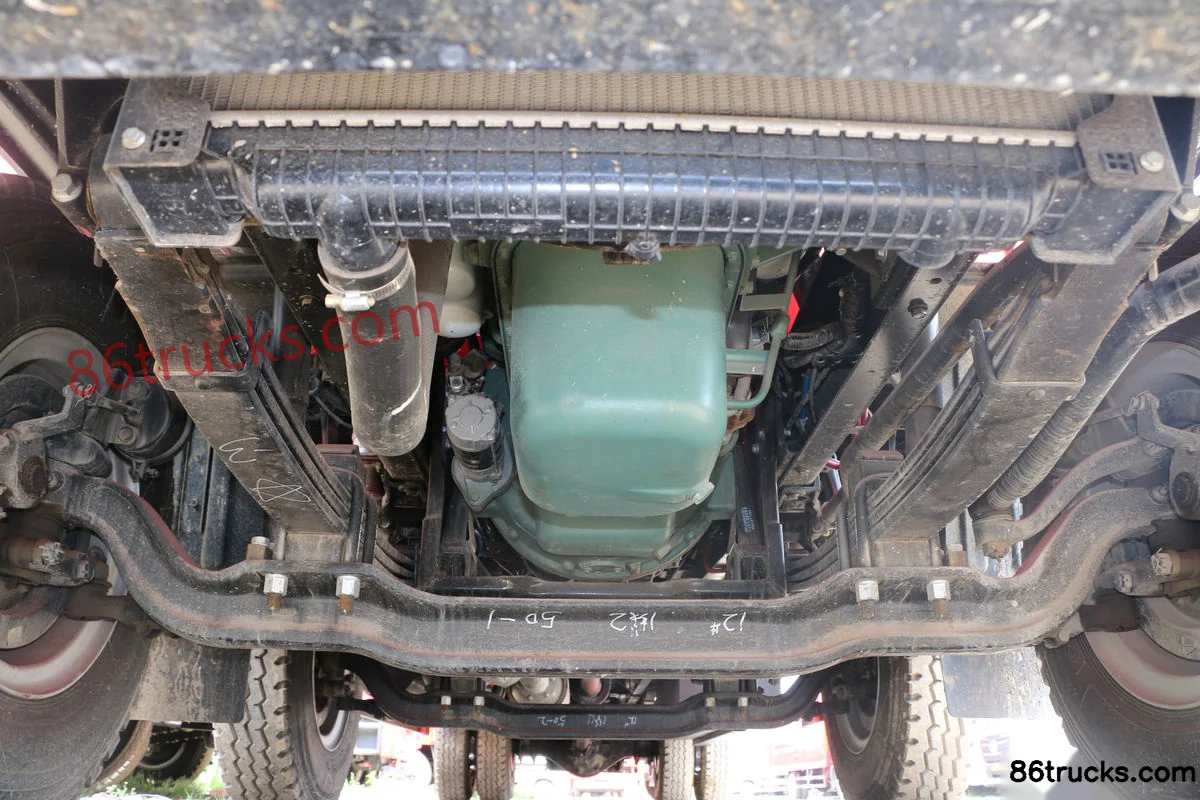

Chassis3

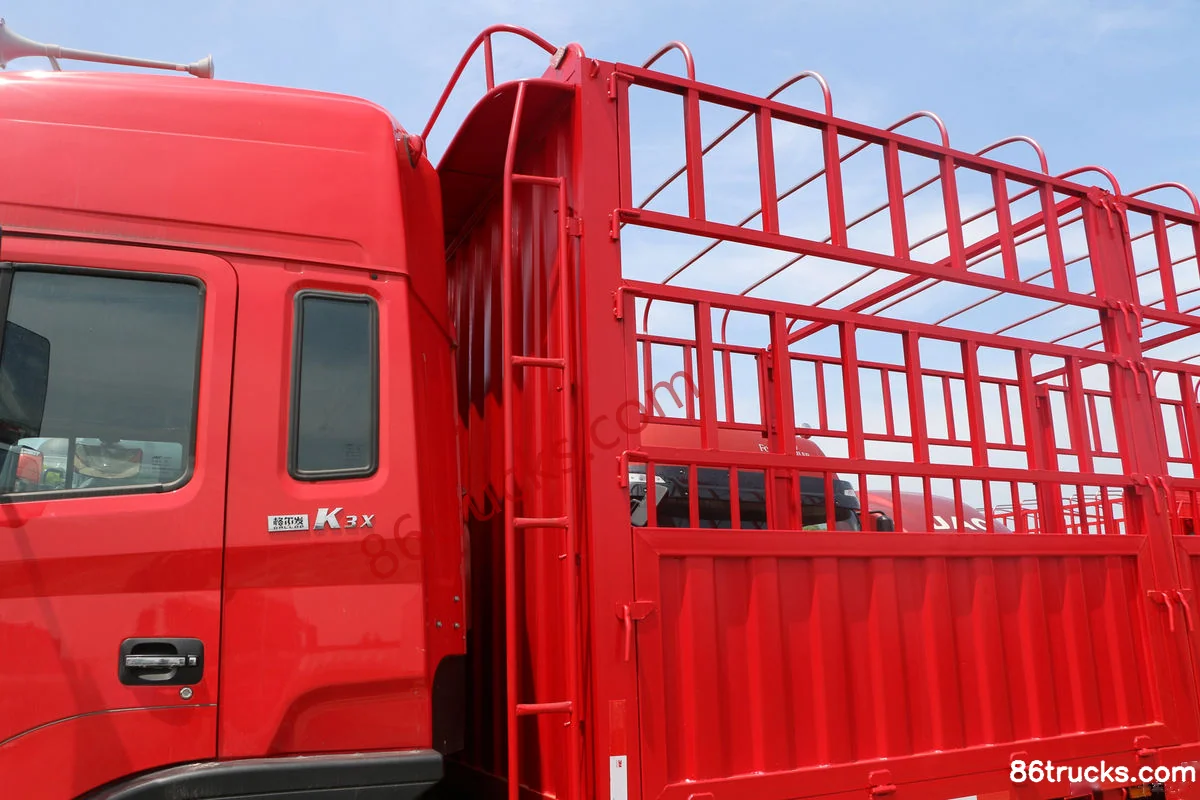

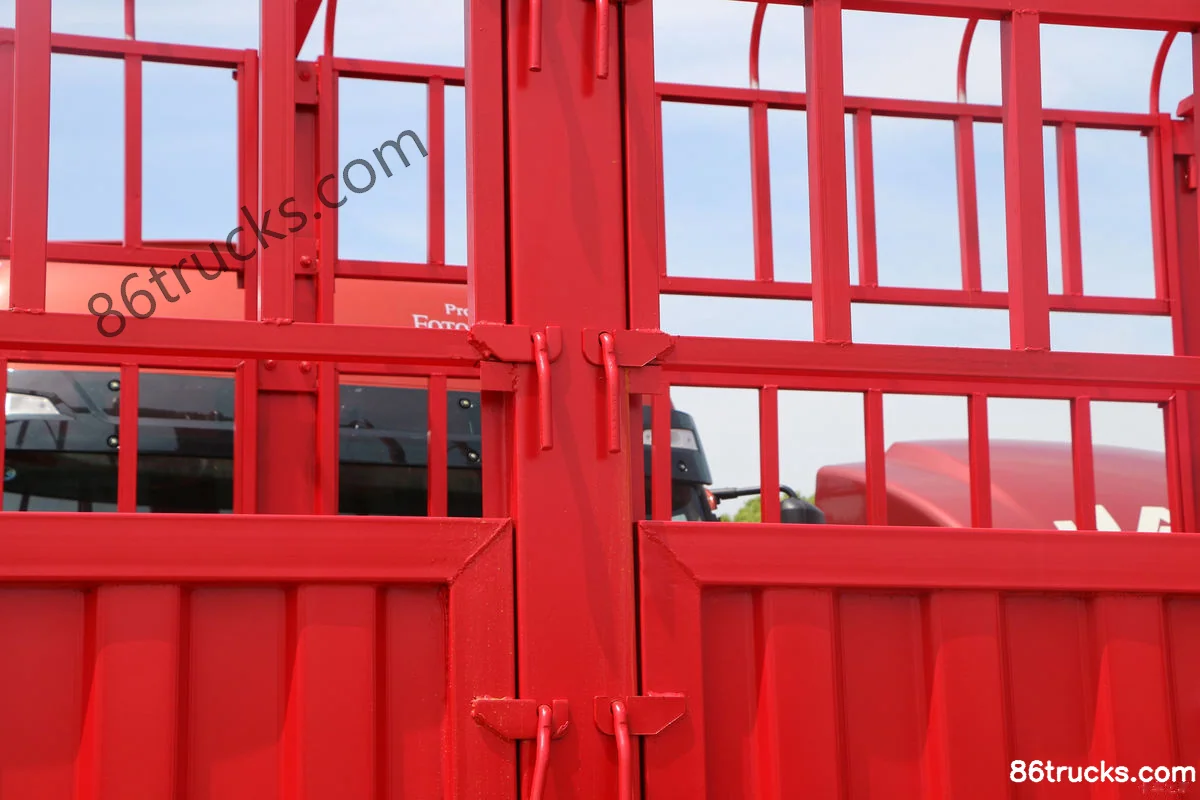

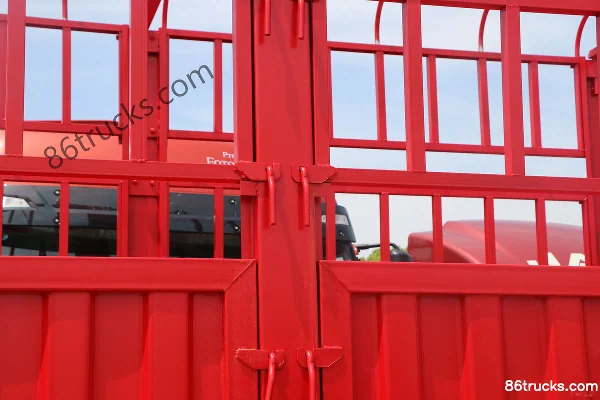

Body3

12 photos

FAQ

What emission standard does JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck?

Key specs of JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck: Drive: 6x2; Horsepower: 260 hp; Emission: China V; Fuel: Diesel; Engine: Xichai8L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck suited for?

JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck differ from other variants in the same series?

JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K3X Heavy Truck Standard Load 260 hp 6X2(8 wheels) 9.5m Grille Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
