Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels)

Export reference
From $46,667
MSRP ¥33.6M CNY
Rated payload:: 0.99ton
Wheelbase:: 3360mm
Cargo box width:: 2.1m
Model code (announced):: ZKH5045XLCBEV2B
Cab length:: 5.995m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
CLTC range: 510km
Motor 1 Brand: Yutong
Curb Weight: 3.31ton

Overview

The Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) is a Electric Refrigerated Truck featuring 510km battery/range, Yutong motor, 4X2 (6 wheels) drive and 0.99t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZKH5045XLCBEV2B
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.24m
Cab height: 3.22m
CLTC range: 510km
Curb Weight: 3.31ton
Rated payload: 0.99ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Zhengzhou, Henan
Energy Type: Electric
electric motor
Motor 1 Brand: Yutong
Motor 1 Model: TZ210XSYTC41
Motor Type: Permanent magnet synchronous motor
total rated power: 65kW
Peak power: 120kW
total rated torque: 170N·m
Electronic Control
ECU Brand: Yutong
Battery/Charging
Battery Brand: Shenlan
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 100.46kWh
fast charge time: 1.1h
Cargo box parameters
Box volume: 17.99m³
Cargo box width: 2.1m
Cargo box height: 2.1m
Chassis Specs
Chassis Series: YutongT5
Chassis Model: ZKH1047P1BEVJ4
Leaf spring count: 3/5+2
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Service brake
Brake Type: Air brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

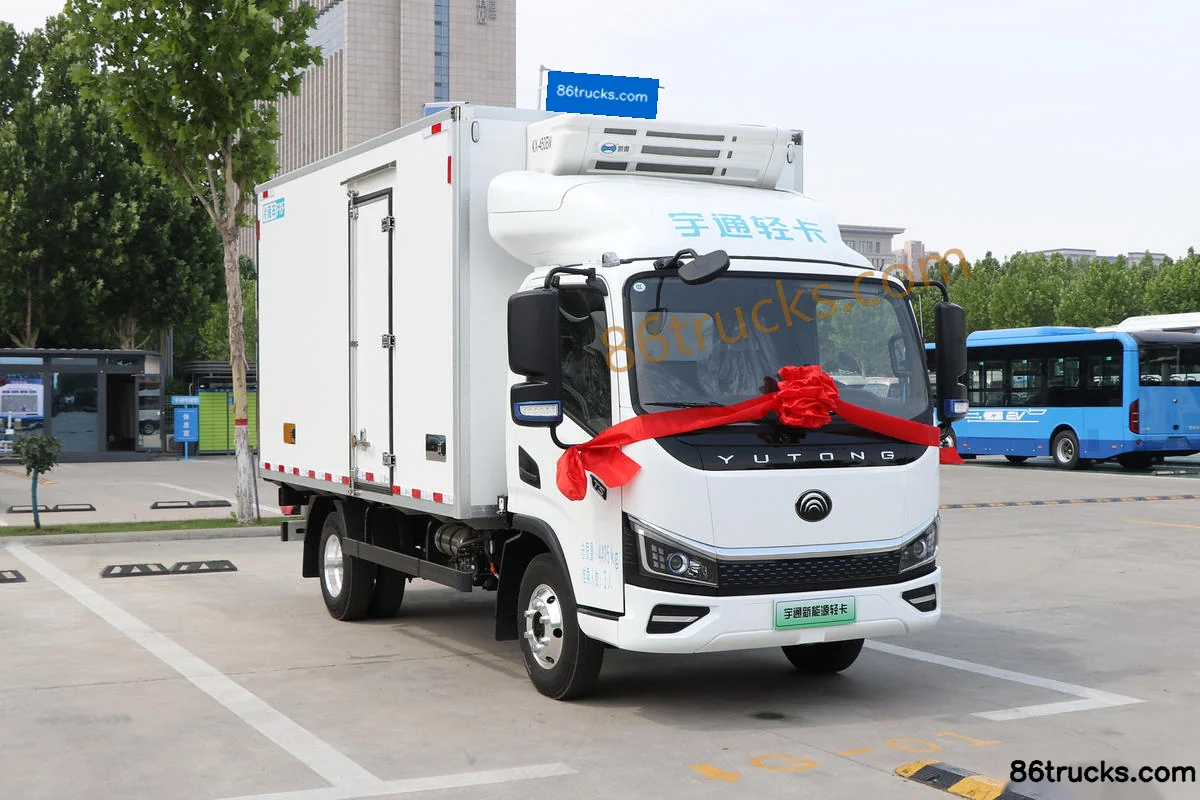

Exterior1

1 photos

FAQ

What is the export price of Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels), and what does it include?

Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) export reference is about From $46,667; MSRP is ¥33.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels)?

Key specs of Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) suited for?

Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) differ from other variants in the same series?

Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels) belongs to Yutong T5 Light Truck (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yutong T5 C Series 4.08m Pure Electric Refrigerated Truck (Air Brake) 100.46kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
