Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck

Export reference
From $63,722
MSRP ¥45.88M CNY
Horsepower: 570
Emission: China VI
Fuel: Diesel
Curb Weight:: 14.5ton
Wheelbase:: 1950+4425+1400mm
Tire Size:: 12R22.5 18PR
Fuel tank capacity: 900L
Rated payload: 17.305ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.6×2.42×2.6m

Overview

The Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck is a Refrigerated Truck featuring 9.6×2.42×2.6m cargo body, 900L volume, 17.305t payload and 12×2.6×3.98m cab. On the powertrain side, it comes with 570 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 570 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.98m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1950+4425+1400mm
Vehicle origin: Jining, Shandong
Front track width: 2022/2022mm
rear track: 1860/1860mm
Curb Weight: 14.5ton
Rated payload: 17.305ton
GVWR: 32ton
Max. speed: 89km/h
Front/rear suspension: 1.465/2.56m
Energy Type: Diesel
Engine parameters
Engine Model: MC13H.57-61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 13.02L
Emission standard: China VI
Max output power: 422kW
Max hp: 570Horsepower
Max torque: 2600N·m
Rated speed: 1800rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Cargo box parameters
Cargo box dimensions: 9.6×2.42×2.6m
Cargo box width: 2.42m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: ZZ5327XLCV446KF1K
Body Brand: Sinotruk
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: HOWO TS7
Chassis Model: ZZ1327V446KF1K
Front axle description: VGD50S self-adjusting arm front axle
Frame Dimensions: 280mm
rear axle description: MCJ12BGY self-adjusting tandem rear axle
Axle ratio: 3.36
Leaf spring count: 3/3/-/-
Transmission Parameters
Number of gears: 16Gear
Transmission Model: HW27716XACL
fuel tank
Fuel tank capacity: 900L
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

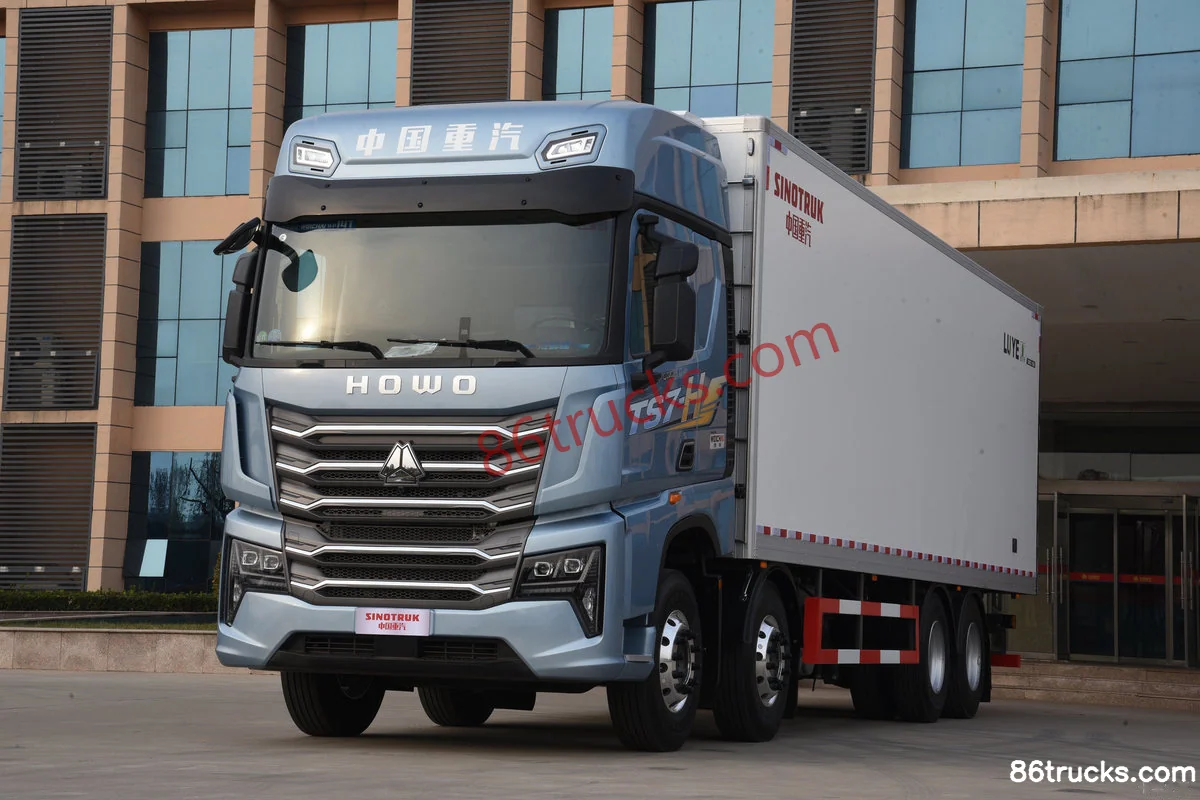

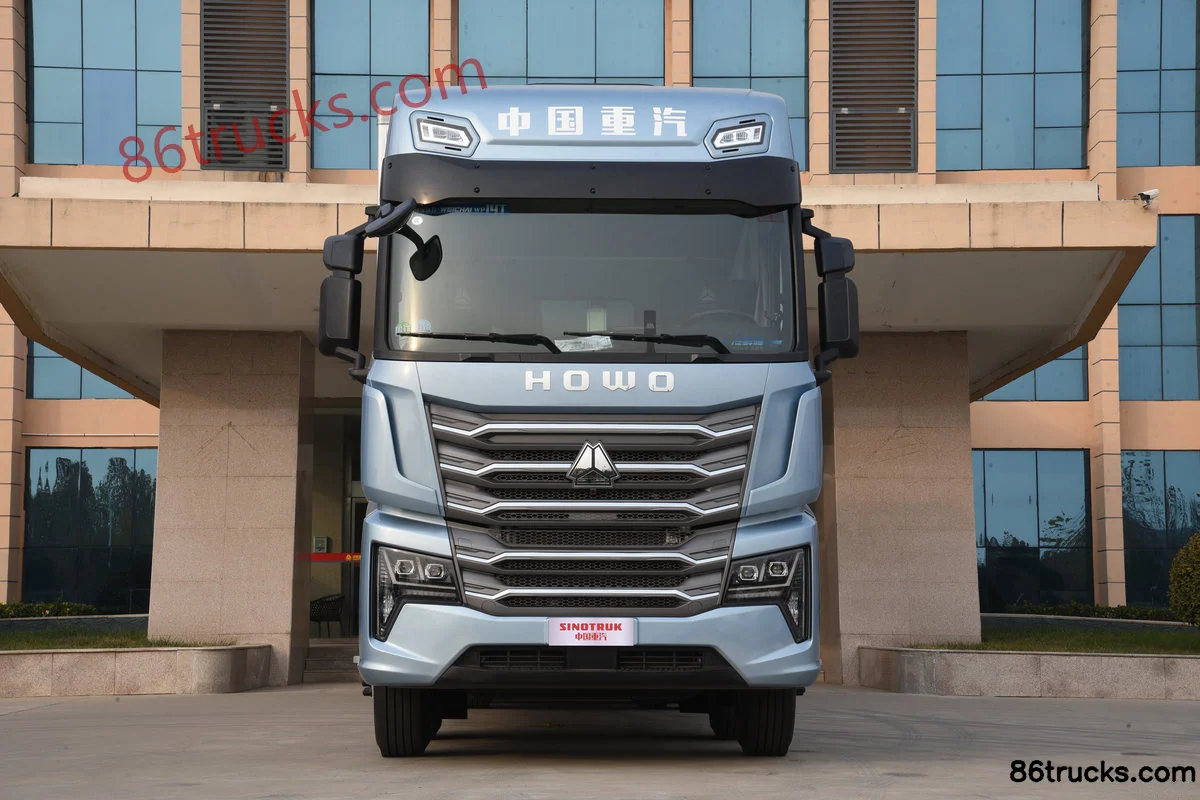

Photos

Exterior2

2 photos

FAQ

What is the export price of Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck, and what does it include?

Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck export reference is about From $63,722; MSRP is ¥45.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck?

Key specs of Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck: Drive: 8x4; Horsepower: 570 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck suited for?

Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck differ from other variants in the same series?

Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck belongs to SinotrukHOWO TS7 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TS7 570hp 8X4(12 wheels) Diesel Fast Gear 16-speed AMT 9.6m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
