SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 12.49ton
Wheelbase:: 1800+3975+1400mm
Tire Size:: 11.00R20,11R22.5
Cab dimensions:: 12×2.6×4m
Rated payload: 19.38ton
Drive 8X2 (10 wheels)
Cargo box dimensions: 9.5×2.43×2.6m
Horsepower 375

Overview

The SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck is a Refrigerated Truck featuring 9.5×2.43×2.6m cargo body, 19.38t payload, Delong X3000 cab and 1800+3975+1400mm wheelbase. On the powertrain side, it comes with 375 hp, 8X2 (10 wheels) drive, China V emissions and Diesel fuel.

China V 375 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×4m
Truck Type: Refrigerated Truck
Drive type: 8X2
Wheelbase: 1800+3975+1400mm
Vehicle origin: Xi'an, Shaanxi
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 12.49ton
Rated payload: 19.38ton
Max. speed: 100km/h
Front/rear suspension: 1.525/2.7m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: WeichaiWP10H375E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.5L
Emission standard: China V
Max output power: 276kW
Max hp: 375Horsepower
Max torque: 1800N·m
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Cargo box parameters
Cargo box dimensions: 9.5×2.43×2.6m
Cargo box width: 2.43m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: SX5320XLC4C45B
Body Brand: SHACMAN
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong X3000
Chassis Model: SX1320XCB
Front axle description: 5T
Frame Dimensions: 850×270(8+4)mm
rear axle description: 13T MAN single reduction
Axle ratio: 4.111
Leaf spring count: 3/3/-/-,3/3/2+-/2+-
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160TA
Cab parameters
Cab: Delong X3000
Tire
Tire Size: 11.00R20,11R22.5
Number of tires: 12pcs

Photos

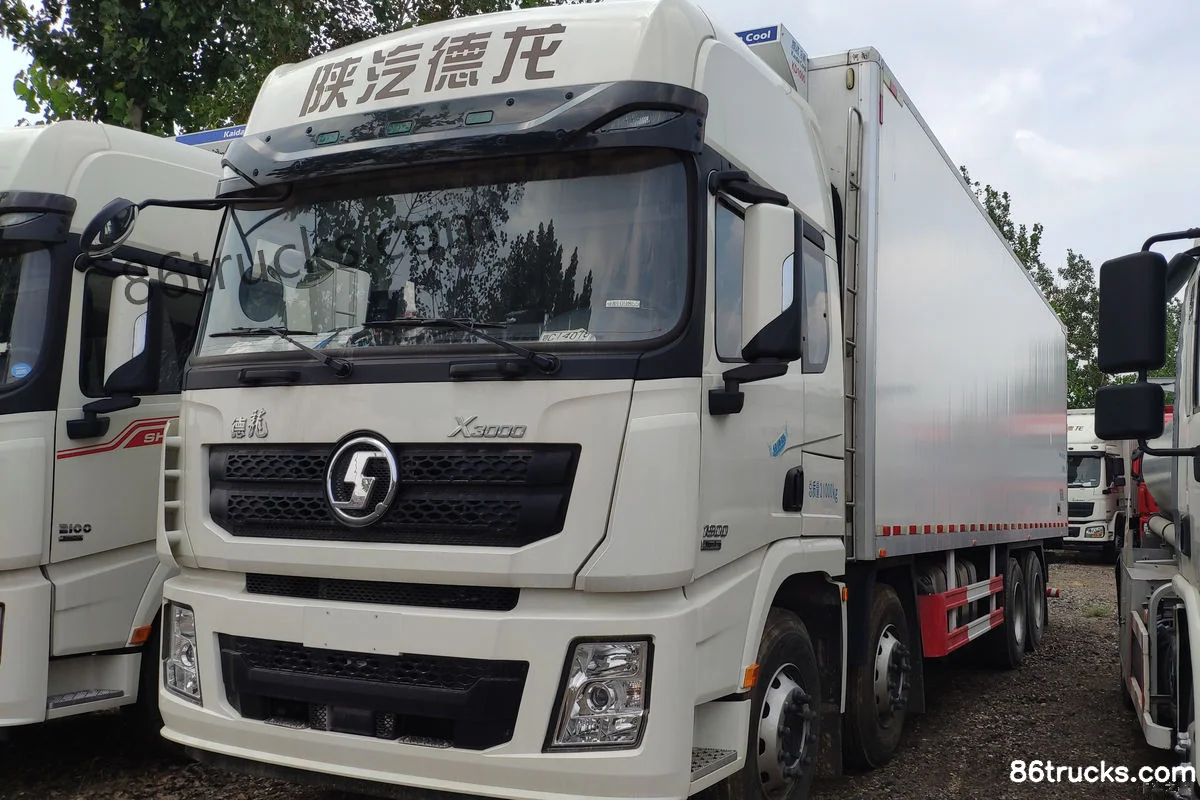

Exterior1

1 photos

FAQ

What emission standard does SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck?

Key specs of SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck: Drive: 8x2; Horsepower: 375 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck suited for?

SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck differ from other variants in the same series?

SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck belongs to SHACMAN Delong X3000 Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 375 hp 8X2(10 wheels) 9.5m refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
