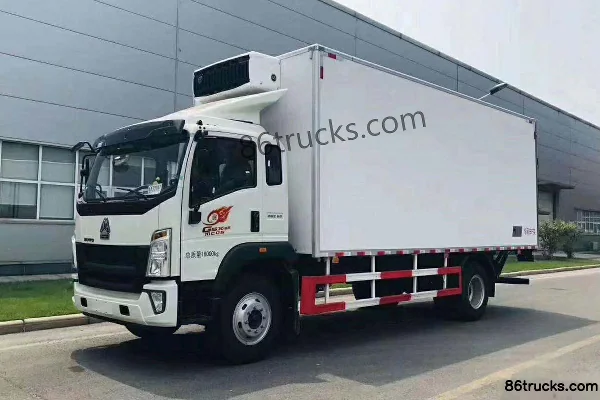

Sinotruk HOWO G5X 220hp 4X2(6 wheels) 6.64m Refrigerated Truck (Songchuan)
EXW
From $56,806
Export quote
Songchuan Sinotruk Chassis Refrigerated Truck
Main model photos
4 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO G5X 220hp 4X2(6 wheels) 6.64m Refrigerated Truck (Songchuan) | 4x2 / 220hp / China V | From $56,806 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.06m refrigerated truck (Songchuan brand) | 4x2 / 160hp / China VI | From $27,500 |
Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) 4.06m refrigerated truck (Songchuan brand)
EXW
From $27,500
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.45×3.45 / 8.995×2.6×3.98m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 3280 / 5200mm
Vehicle origin: Shangqiu, Henan
Front track width: 1815 / 1940mm
rear track: 1795 / 1800mm
Curb Weight: 3.21 / 7.88ton
Rated payload: 1.09 / 9.99ton
Max. speed: 95km/h
Front/rear suspension: 1.16/1.555 / 1.33/2.465m
Energy Type: Diesel
Engine parameters
Engine Model: WeichaiWP3NQ160E61 / Yunnei PowerD45TCIE1
Number of cylinders: 4cylinder
Displacement: 2.97 / 4.46L
Emission standard: China VI / China V
Max output power: 118 / 162kW
Max hp: 160 / 220Horsepower
Max torque: 480 / 820N·m
Rated speed: 3000 / 2400rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail / SCR
Cargo box parameters
Cargo box dimensions: 4.06×2.3×2.3 / 6.64×2.44×2.42m
Cargo box width: 2.3 / 2.44m
Cargo box height: 2.3 / 2.42m
Body Parameters
Vehicle certification code: SCL5044XLC6
Body Brand: Songchuan
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan / G5X
Chassis Model: ZZ1047H3315F145Z / ZZ1187G521DE1
Leaf spring count: 11/9+7 / 3/5,3/9+8,11/9+8
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW80508STCL / SinotrukHW90510C
Tire
Tire Size: 7.00R16LT 10PR / 10.00R20,295/80R22.5,275/80R22.5
Number of tires: 6pcs
FAQ
What kind of truck is Songchuan Songchuan Sinotruk Chassis Refrigerated Truck?
Songchuan Songchuan Sinotruk Chassis is an export-oriented Refrigerated Truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Songchuan Sinotruk Chassis Refrigerated Truck?
Songchuan Sinotruk Chassis Refrigerated Truck export reference is about $27,500 – $56,806. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Songchuan Sinotruk Chassis Refrigerated Truck cover?
Songchuan Sinotruk Chassis Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 160 hp / 220 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Songchuan Sinotruk Chassis Refrigerated Truck?
For Songchuan Sinotruk Chassis Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Songchuan Sinotruk Chassis Refrigerated Truck include?
Songchuan Sinotruk Chassis Refrigerated Truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Songchuan Sinotruk Chassis Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
