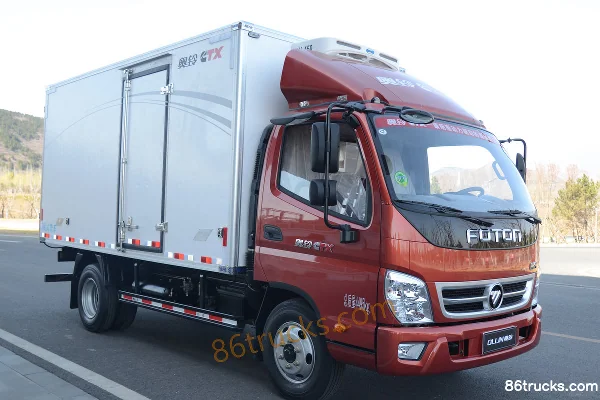

Foton Aoling CTX 131 hp 4X2(6 wheels) 4.085m Refrigerated Truck
EXW
From $30,556
Export quote
Foton CTX Light Truck Refrigerated Truck
Main model photos
604 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Aoling CTX 131 hp 4X2(6 wheels) 4.085m Refrigerated Truck | 4x2 / 131hp / China VI | From $30,556 | |
| Foton Ollin CTX 156 hp 4X2(6 wheels) 5.75m Refrigerated Truck | 4x2 / 156hp / China V | From $18,667 | |
| Foton Ollin CTX 156 hp 4X2(6 wheels) 5.1 m Refrigerated Truck | 4x2 / 156hp / China V | From $18,667 | |
| Foton Ollin CTX 156 hp 4X2(6 wheels) 4.085m refrigerated truck | 4x2 / 156hp / China V | From $19,806 | |
| Foton Aoling CTX 82hp 4X2(6 wheels) 4.08m Refrigerated Truck | 4x2 |
Foton Ollin CTX 156 hp 4X2(6 wheels) 5.75m Refrigerated Truck
EXW
From $18,667
Export quote
Foton Ollin CTX 156 hp 4X2(6 wheels) 5.1 m Refrigerated Truck
EXW
From $18,667
Export quote
Foton Ollin CTX 156 hp 4X2(6 wheels) 4.085m refrigerated truck
EXW
From $19,806
Export quote
Foton Aoling CTX 82hp 4X2(6 wheels) 4.08m Refrigerated Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.26×3.23 / 7.995×2.56×3.53 / 7.445×2.2×3.28 / 5.995×2.26×3.18 / 5.995×2.08×2.98 / 5.995×2.33×3.13 / 6.995×2.38×3.4 / 8.48×2.38×3.44 / 8.995×2.51×3.72 / 9.995×2.51×3.86 / 5.995×2.2×3 / 5.995×2.05×3. / 5.995×2.26×2.9 / 5.995×2.25×3.12 / 6.995×2.2×3.1 / 5.995×1.9×2.9 / 8.445×2.27×3.55 / 6.895×2.1×3 / 4.935×1.87×2.7m
Drive type: 4X2
Truck Type: Refrigerated Truck / electric refrigerated truck / BJ1151VKPFG-S
Vehicle origin: Beijing Changping / Beijing / Changping District, Beijing / Shandong Zhucheng
Wheelbase: 3360 / 4500 / 4200 / 3800 / 4700 / 5200 / 5600 / 2600mm
Front track width: 1730 / 1710 / 1665 / 1530 / 1830 / 1930 / 1685mm
rear track: 1590 / 1680 / 1630 / 1590,1615 / 1485 / 1615 / 1800 / 1525 / 1425 / 1600 / 1380 / 1425/1485mm
Curb Weight: 3.2 / 5.255 / 4.995 / 3.45 / 5.3 / 6.2 / 6.305 / 6.805 / 3.4 / 3.805 / 4.495 / 4.94 / 2.875 / 4.2 / 2.31 / 2.55 / 2.87ton
Rated payload: 1.1 / 4.545 / 4.8 / 0.85 / 1.165 / 3.9 / 4.99 / 7.08 / 7.995 / 2.9 / 1.49 / 2.995 / 1.56 / 3.3 / 2.5 / 0.99 / 1.815ton
GVWR: 4.495ton
Max. speed: 95 / 110 / 90 / 160km/h
Front/rear suspension: 1.11/1.525 / 1.12/2.375 / 1.12/2.125 / 1.12/1.515 / 1.12/2.075 / 1.25/2.53 / 1.3/2.495 / 1.3/3.095 / 1120/1515 / 1.095/1.540 / 1.085/1.55 / 1.150/2.595 / 1.15/2.595 / 1.12/1.975 / 1.085/1.25m
Energy Type: Diesel / gasoline
Engine parameters
Injection System: Common Rail
Engine Model: FotonF2.8NS6B131 / FotonISF3.8s5154 / FotonISF3.8E6154 / Foton ISF2.8s5129T / FotonISF3.8s5168 / FotonISF3.8s5141 / FotonISF2.8s5R117 / Foton4J28TC / FotonISF3.8s5R141 / FotonISF2.8s4117V / FotonISF3.8s3141 / DachaiCA4DC2-10E3 / FAWCA4DC2-12E3 / FotonISF2.8s3129T / FotonISF3.8s3 154 / XichaiCA4DF3-14E3 / FotonBJ494ZLQ / Lovol Phaser135Ti / FotonBJ493ZQ / FotonBJ493ZLQ / FotonBJ491EQ2
Number of cylinders: 4cylinder
Displacement: 2.78 / 3.76 / 2.771 / 3.168 / 3.8 / 4.752 / 3.99 / 2.237L
Emission standard: China VI / China V / China IV / China V (Beijing) / China III / Euro III / China II/Euro II
Max output power: 96 / 115 / 125 / 105 / 87 / 81 / 73 / 88 / 113 / 103 / 68 / 101 / 70kW
Max hp: 131 / 156 / 170 / 143 / 117 / 110 / 154 / 100 / 120 / 130 / 140 / 92 / 103 / 95Horsepower
Max torque: 310 / 491 / 500 / 300 / 592 / 440 / 260 / 280 / 450 / 320 / 245 / 202 / 193N·m
Rated speed: 2900 / 2600 / 3200 / 3600 / 2500 / 4300rpm
Engine Type: Electronically controlled high-pressure common rail / Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR / Inline, vertical, water-cooled / Inline / 4-cylinder inline, electronic common rail / ISF Series 3.8L Full Electronic Light Diesel Engine / 4-cylinder, inline, direct injection, turbocharged, intercooled, electronic common rail / Inline 4-cylinder / 4-stroke, water-cooled, inline, direct injection, dry cylinder liner / Turbocharged Water-Cooled
Cargo box parameters
Box volume: 35 / 15 / 12m³
Cargo box dimensions: 4.085×2.1×2.1 / 5.75×2.3×2.15 / 5.1×1.97×1.9 / 4.085×2×2 / 4.085×1.9×1.8 / 5.1×2.12×2.1 / 6.1×2.17×2.2 / 6.65×2.3×2.3 / 7.6×2.3×2.3 / 4.085×1.97×1.82 / 4.165×2.05×1.9 / 4.085×1.75×1.75 / 6.1×2.07×2.15 / 4.125×1.77×1.86 / 5.05×1.95×1.9 / 3.14×1.7×1.72 / 4.105×1.75×1.85m
Cargo box width: 2.1 / 2.3 / 1.97 / 2 / 1.9 / 2.12 / 2.17 / 2.05 / 1.75 / 2.07 / 1.77 / 1.95 / 1.7m
Cargo box height: 2.1 / 2.15 / 1.9 / 2 / 1.8 / 2.2 / 2.3 / 1.82 / 1.75 / 1.86 / 1.72 / 1.85m
Body Parameters
Vehicle certification code: BJ5041XLC8JDA-AB1 / BJ5109XLC-FE / BJ5109XLC-F1 / BJ5049XLC-B3 / BJ5049XLCEV1 / BJ5049XLC-A2 / BJ5119XLC-F1 / BJ5149XLC-F1 / BJ5159XLC-F1 / BJ5049XLC-BB / BJ5069XLC-FB / BJ5071XLC-S / BJ5041XLC-FA / BJ5081XLC / BJ5049Z8BD6-C / BJ5071ZCBFA-A1 / BJ5039Z3BD3-A1 / BJ5049Z9BD6-C1 / BJ5049Z8BW6-A1
Body Brand: Foton / Xinfei Brand
Refrigeration unit: Thermo King/Carrier/Kaixue/Bingzhiyuan / Optional / Non-independent or independent
Others: Tilt cab / Optional refrigeration unit of equivalent power; cargo box top closed, non-openable; with side door corresponds to width 1950mm, without side door corresponds to width 1900mm. / Metallic paint, crew cab with openable side window, front windshield (sun visor), forward-tilt cab, heater, imitation wood interior, dual sun visors, crystal headlights, Class IV/V rearview mirrors, load-sensing proportioning valve, clutch assist, electronic engine shutdown, exhaust brake, spring brake, adjustable steering wheel, radio + MP3, engine tachometer, battery cover, full interior trim, silicone fan, master power switch, power steering, radial tires, air horn / Optional side door; optional air deflector; optional other equivalent power refrigeration unit / Cargo box top sealed, non-openable. This model currently uses 6.50-16 tires only. Optional front surround trim, optional deflector. / Cargo box top closed, non-openable; with side door. / Optional front surround trim. / Cargo box side doors can be sealed.
Refrigeration temperature: 25/-18/-10/-5/ / -25/-18/-10/-5 / -18 / -20°C
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX / Aoling TX / Foton / Foton Aoling / Aoling / Foton Aoling CTX
Chassis Model: BJ1041V9JDA-AB1 / BJ1109VEJED-F1 / BJ1109VFPED-F1 / BJ1049V9JEA-A2 / BJ1049EVJA / BJ1049V9JEA-FE / BJ1099VEJEA-FA / BJ1129VFPEG-F1 / BJ1149VJPEK-F1 / BJ5159XXY-F3 / BJ1049V9JD6-AA / BJ5041V8BEA-KS1 / BJ1071VCJFA-S / BJ1041V9JD6-FA / BJ1089VDPFG-SD / BJ1049V9JD6-C / 079VDJFA-A / BJ1039V4JD3-A / BJ1049V9JW6-A
Front axle description: Front axle load 1350 / 5280KG
rear axle description: EQ145 stamped welded integral axle housing / NPR stamped welded integral axle housing / NPR/stamped welded integral axle housing / Rear axle load 3145 / NPR / 9505KG
Transmission Parameters
Number of gears: 5 / 6 / 1Gear
Transmission Model: WLYWLY5G32 / WLYWLY6T120 / WLYWLY5G40 / WLYWLY653 / WLYWLY6G120 / Jiangchi JC528 / WLYWLY5T92 / WLY 6-speed / 5-speed gearbox / 5S100 / 526 / ZF653
Cab parameters
Cab: Sleeper cab / Single Row / Flat roof
FAQ
What kind of truck is Foton Foton CTX Light Truck Refrigerated Truck?
Foton Foton CTX Light Truck is an export-oriented Refrigerated Truck lineup with about 27 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton CTX Light Truck Refrigerated Truck?
Foton CTX Light Truck Refrigerated Truck export reference is about $16,472 – $30,556. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton CTX Light Truck Refrigerated Truck cover?
Foton CTX Light Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 131 hp / 156 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton CTX Light Truck Refrigerated Truck?
For Foton CTX Light Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton CTX Light Truck Refrigerated Truck include?
Foton CTX Light Truck Refrigerated Truck currently lists about 27 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton CTX Light Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
