Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck

Export reference
From $21,528
MSRP ¥15.5M CNY
Emission: China IV
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16
Cab dimensions:: 5.995×2.2×3m
Rated payload: 1.1ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.085×1.97×1.82m
Horsepower 117

Overview

The Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck is a Refrigerated Truck featuring 4.085×1.97×1.82m cargo body, 1.1t payload, 5.995×2.2×3m cab and 3360mm wheelbase. On the powertrain side, it comes with 117 hp, 4X2 (6 wheels) drive, China IV emissions and Diesel fuel.

China IV 117 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.2×3m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Beijing
Wheelbase: 3360mm
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 3.2ton
Rated payload: 1.1ton
Max. speed: 95km/h
Front/rear suspension: 1120/1515m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF2.8s4117V
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.78L
Emission standard: China IV
Max output power: 87kW
Max hp: 117Horsepower
Max torque: 260N·m
Rated speed: 3200rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Cargo box parameters
Cargo box dimensions: 4.085×1.97×1.82m
Cargo box width: 1.97m
Cargo box height: 1.82m
Body Parameters
Vehicle certification code: BJ5049XLC-BB
Body Brand: Xinfei Brand
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1049V9JD6-AA
Front axle description: Front axle load 1350
rear axle description: Rear axle load 3145
Leaf spring count: 3+1/6+7
Transmission Parameters
Number of gears:
Transmission Model: 5-speed gearbox
Tire
Tire Size: 7.00R16
Number of tires: 6pcs

Photos

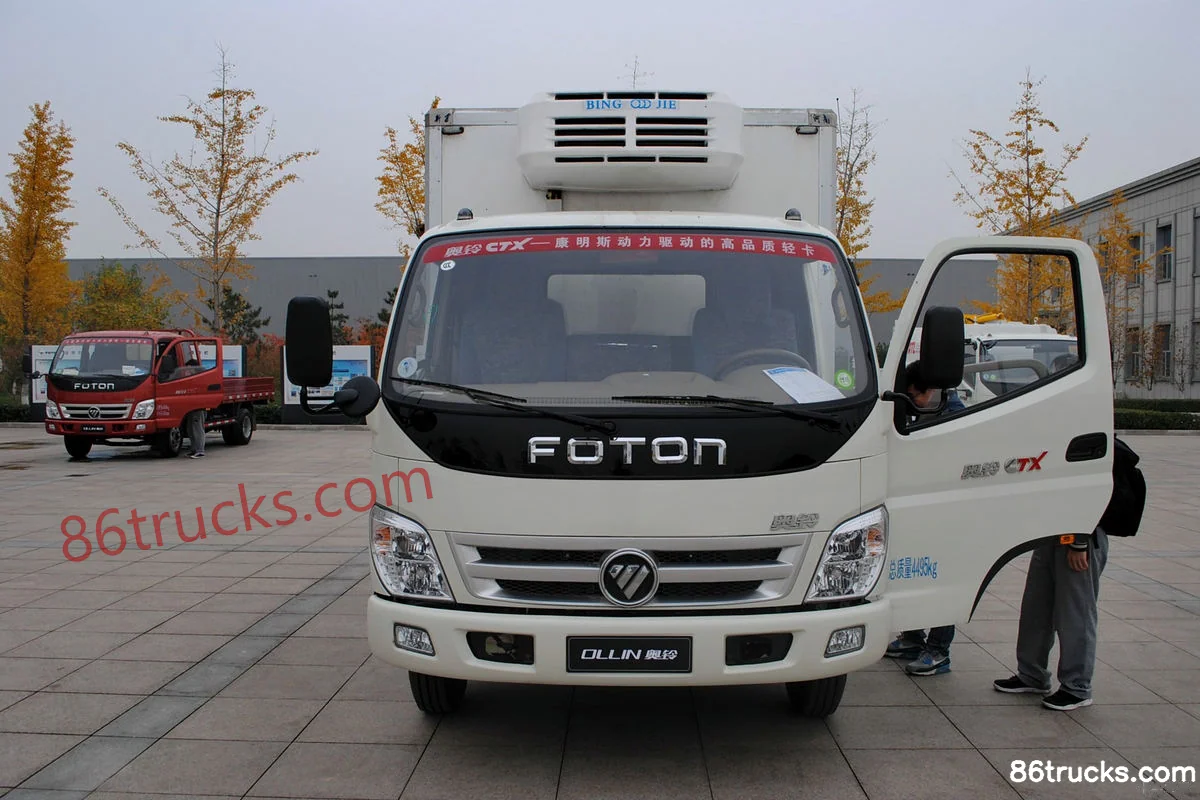

Exterior3

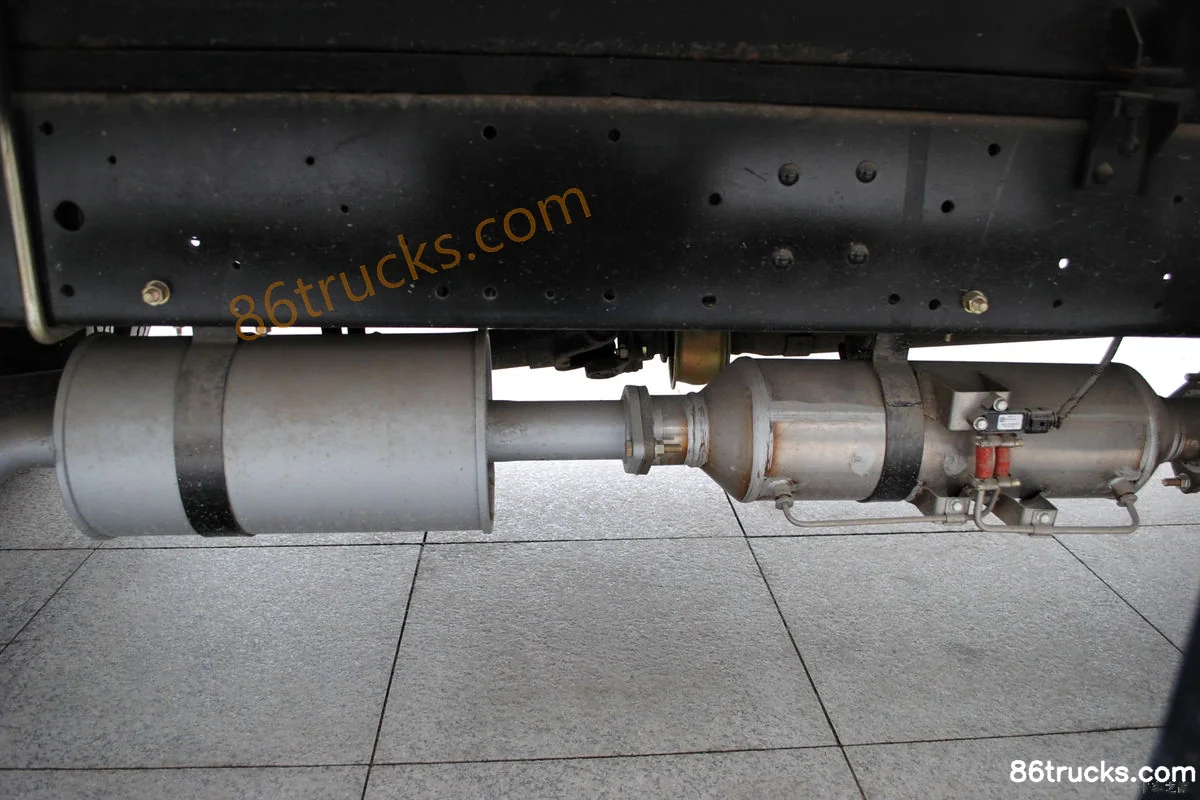

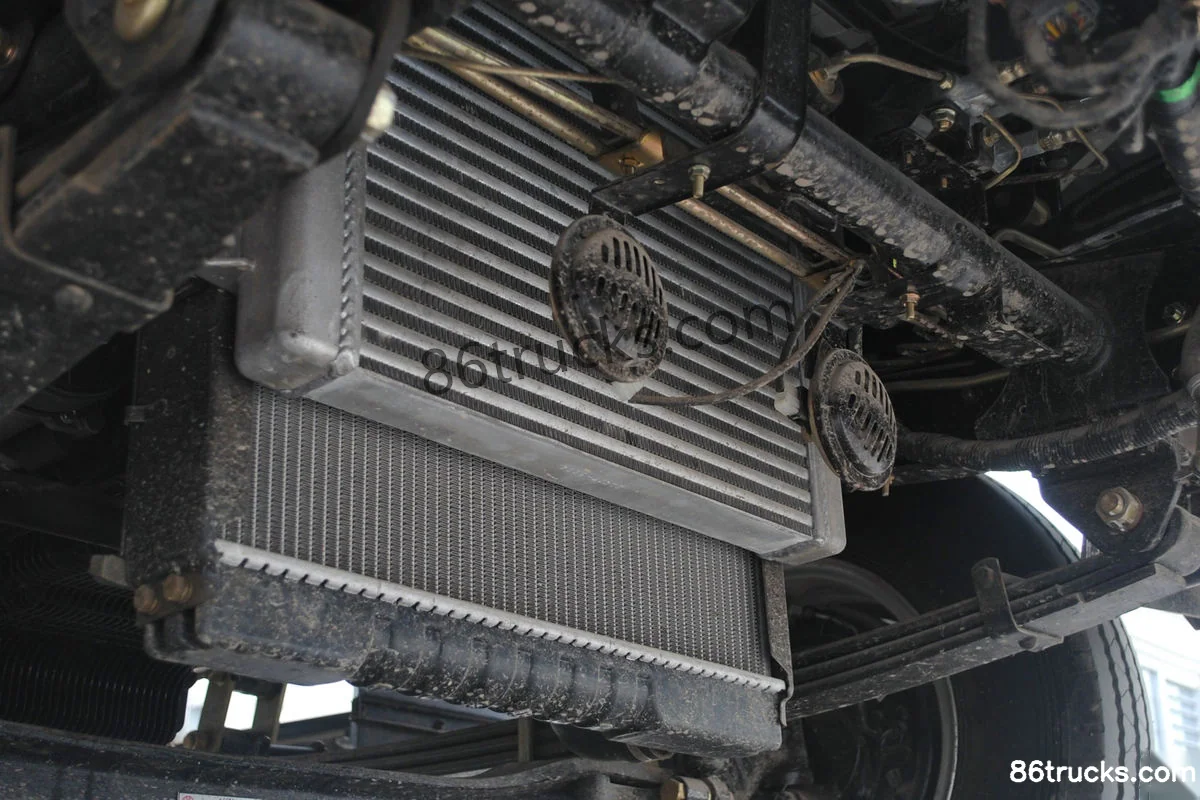

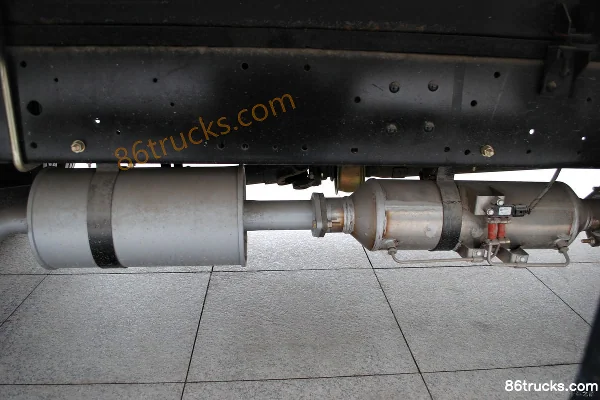

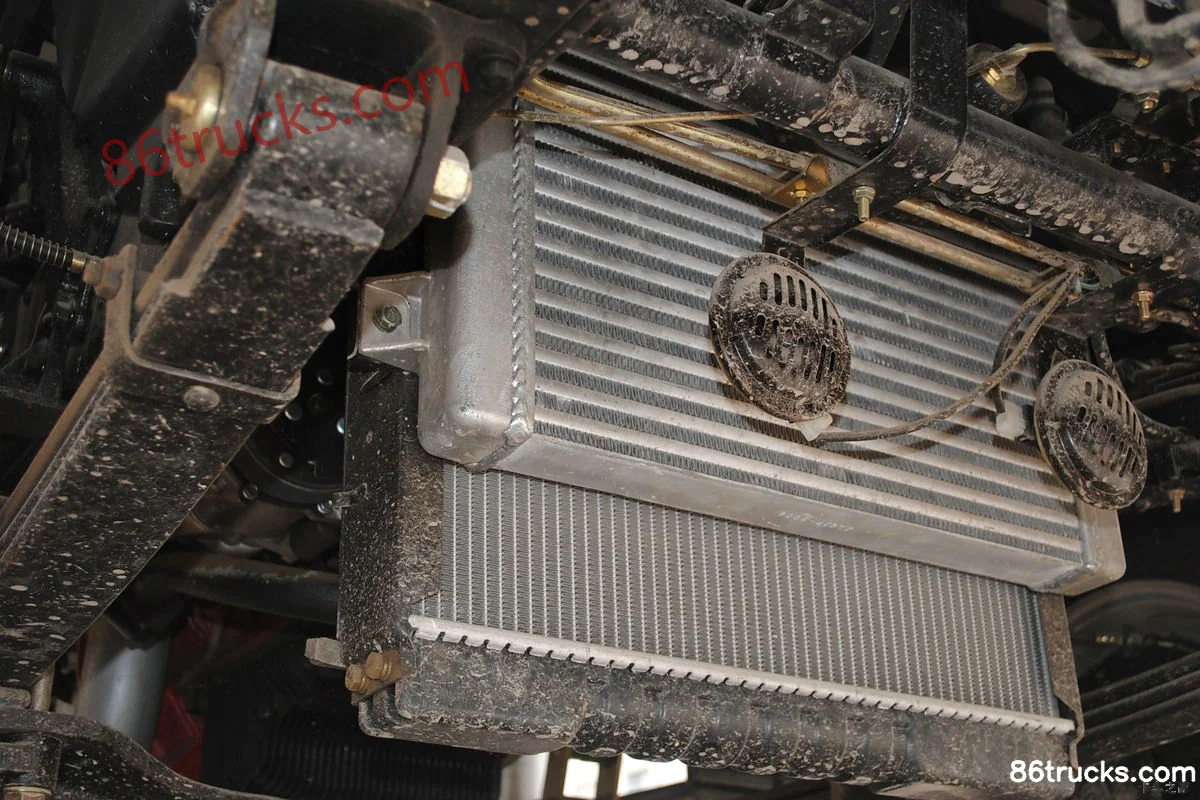

Chassis3

6 photos

FAQ

What is the export price of Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck, and what does it include?

Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck export reference is about From $21,528; MSRP is ¥15.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck?

Key specs of Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck: Drive: 4x2; Horsepower: 117 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck suited for?

Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck differ from other variants in the same series?

Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck belongs to Foton CTX Light Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX 117 hp 4X2(6 wheels) Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
