BYD T3 4.46m Electric Cargo Van 36.9kWh

Export reference
MSRP N/A
Wheelbase:: 2725mm
Model code (announced):: BYD5030XXYBEV2
Cab length:: 4.46m
GVWR:: 2.53ton
Max. speed:: 100km/h
Energy Type:: Electric
CLTC range: 220km
Motor 1 Brand: BYD
Curb Weight: 1.61ton
Rated payload: 0.77ton

Overview

The BYD T3 4.46m Electric Cargo Van 36.9kWh is a Electric Panel Van featuring 220km battery/range, BYD motor, 0.77t payload and 2.53t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BYD5030XXYBEV2
Wheelbase: 2725mm
Cab length: 4.46m
Cab width: 1.72m
Cab height: 1.875m
CLTC range: 220km
Curb Weight: 1.61ton
Rated payload: 0.77ton
GVWR: 2.53ton
Max. speed: 100km/h
Energy Type: Electric
electric motor
Motor 1 Brand: BYD
Motor 1 Model: BYD-1814TZ-XS-B
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 100kW
total peak torque: 180N·m
Battery/Charging
Battery Brand: BYD
Battery type: NMC lithium battery pack
Battery capacity: 36.9kWh
Energy Density: 140.68
Battery Model: C08MCA/C08MSA
Chassis Specs
Front suspension type: Air suspension
rear suspension type: Leaf spring
Body Parameters
Seat count: 2Seats
Door Parameters
Number of Doors: 5
side door type: Sliding side door
Tailgate type: back door type
Cab parameters
Seat rows:
Wheel brake
Front tire specification: 195/60R16C
Rear Wheel Specification: 195/60R16C
Control configuration
ABS:
lighting configuration
Front fog lamp:

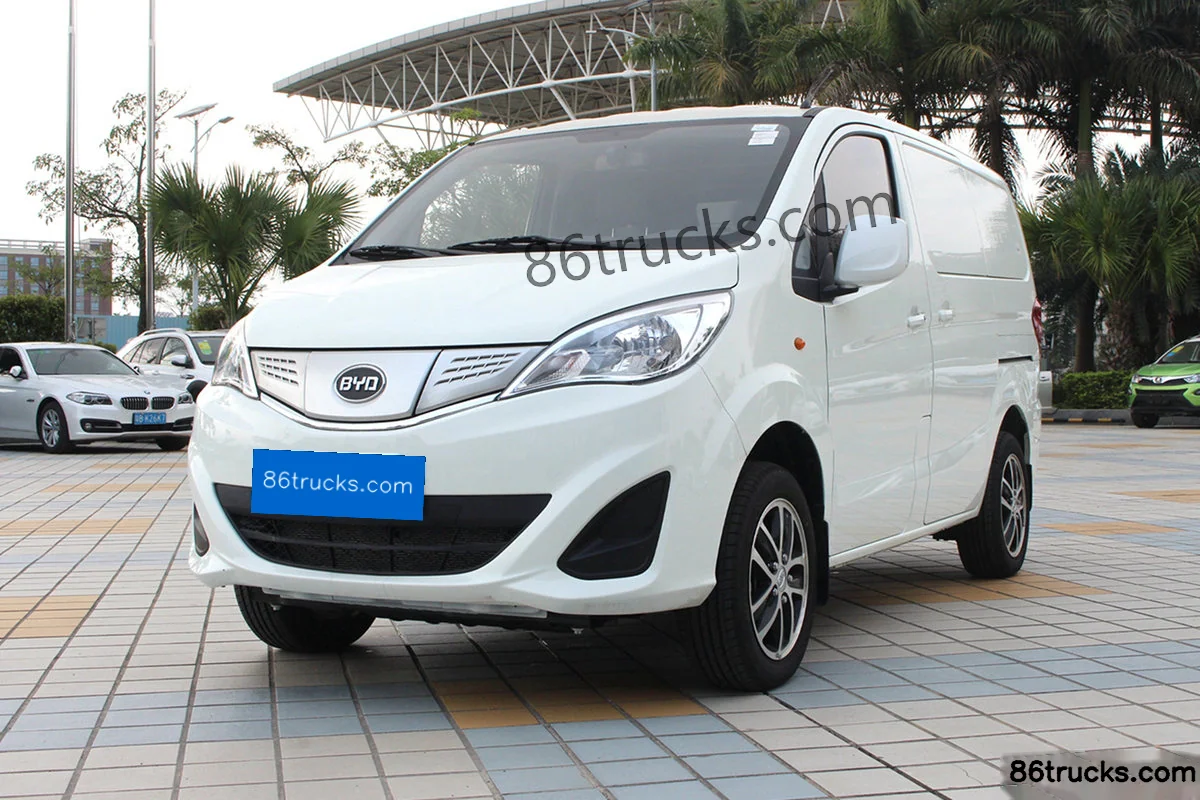

Photos

Exterior1

1 photos

FAQ

What transport jobs is BYD T3 4.46m Electric Cargo Van 36.9kWh suited for?

BYD T3 4.46m Electric Cargo Van 36.9kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does BYD T3 4.46m Electric Cargo Van 36.9kWh differ from other variants in the same series?

BYD T3 4.46m Electric Cargo Van 36.9kWh belongs to BYDT3 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BYD T3 4.46m Electric Cargo Van 36.9kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BYD T3 4.46m Electric Cargo Van 36.9kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
