Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck

Export reference
From $15,125
MSRP ¥10.89M CNY
Horsepower: 102
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D19
Transmission: Lu'an
Curb Weight:: 2.28ton
seating capacity: 3Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck is a Light Truck featuring 3.48m cargo length, Van body cargo body, 3Personnel volume and 1.995t payload. On the powertrain side, it comes with a Yunnei Dewei D19 engine, 102 hp, 4X2 (6 wheels) drive and China V emissions.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5040XXYA26D5
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.5m
engine: Yunnei PowerD19TCIE1
transmission: Lu'an LC5T190
Rear Axle Ratio: 5.833
Cab length: 5.32m
Cab width: 1.85m
Cab height: 2.7m
Front track width: 1420mm
rear track: 1375mm
Curb Weight: 2.28ton
Rated payload: 1.995ton
GVWR: 4.405ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 17°
departure angle: 18°
Front/rear suspension: 1.1/1.42m
Version: High-spec version
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Engine info: Yunnei Dewei D19
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Lu'an LC5T190
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.48m
Cargo box width: 1.72m
Cargo box height: 1.7m
*Cargo box interior width: 1.7200000286102
Cab parameters
Cab suspension: Front: rigid connection; Rear: mechanical
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Driver seat type: Rigid connection seat
Chassis Specs
Front axle description: 212AS-2
Front axle allowable load: 1585kg
rear axle description: 130AS-2
rear axle allowable load: 2820kg
Axle ratio: 5.833
Leaf spring count: 9/8+4,3/5+3
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 6.00-14LT
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Parking brake: parking brake

Photos

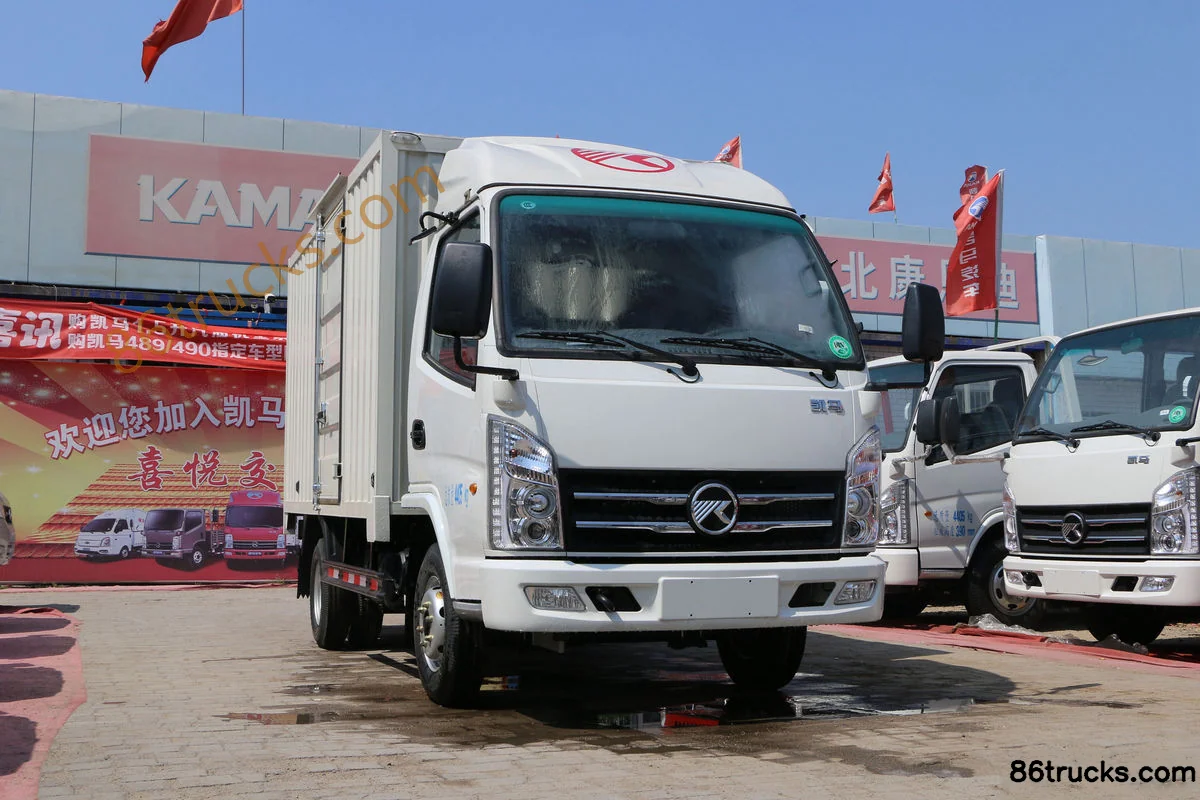

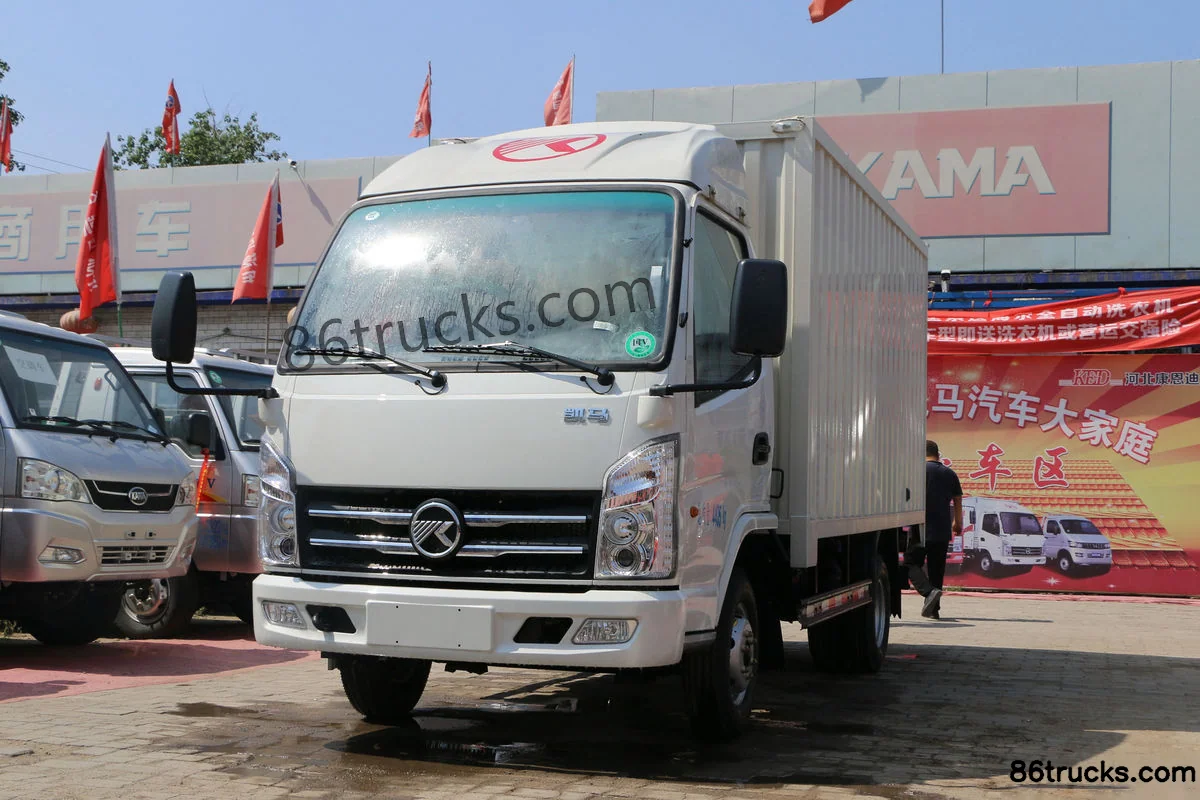

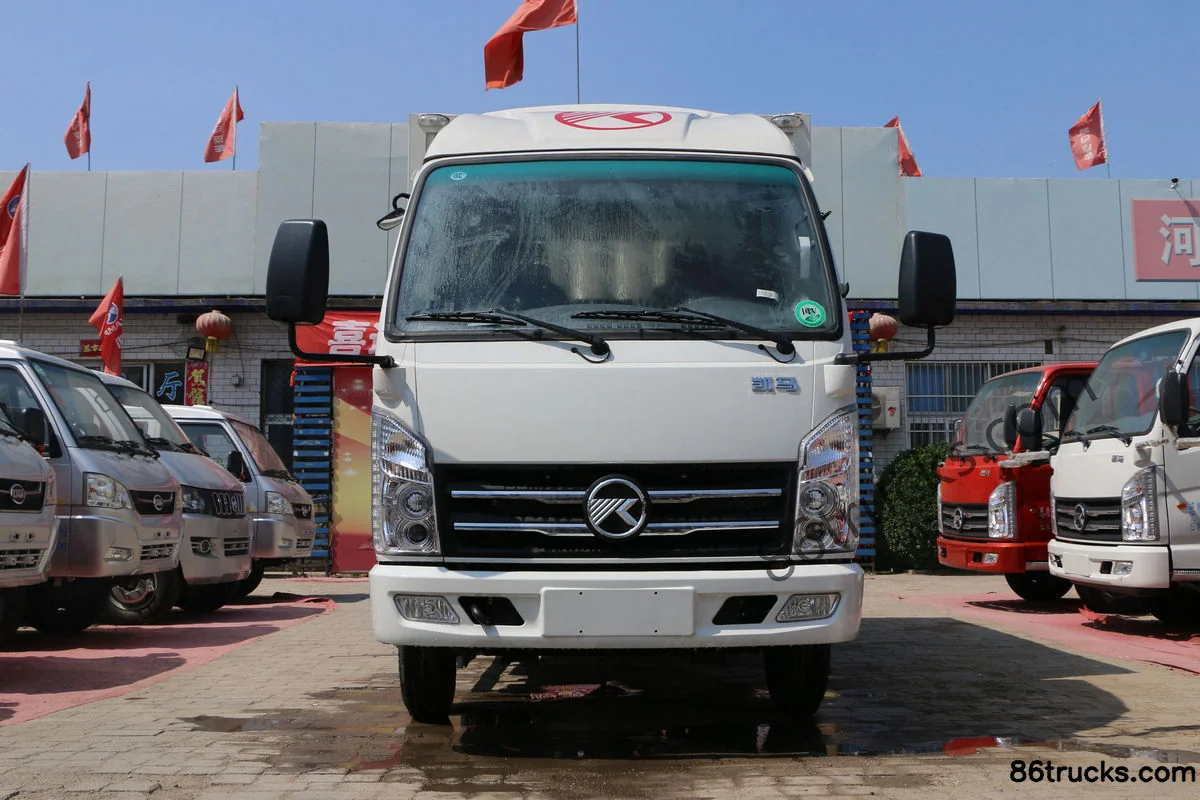

Exterior3

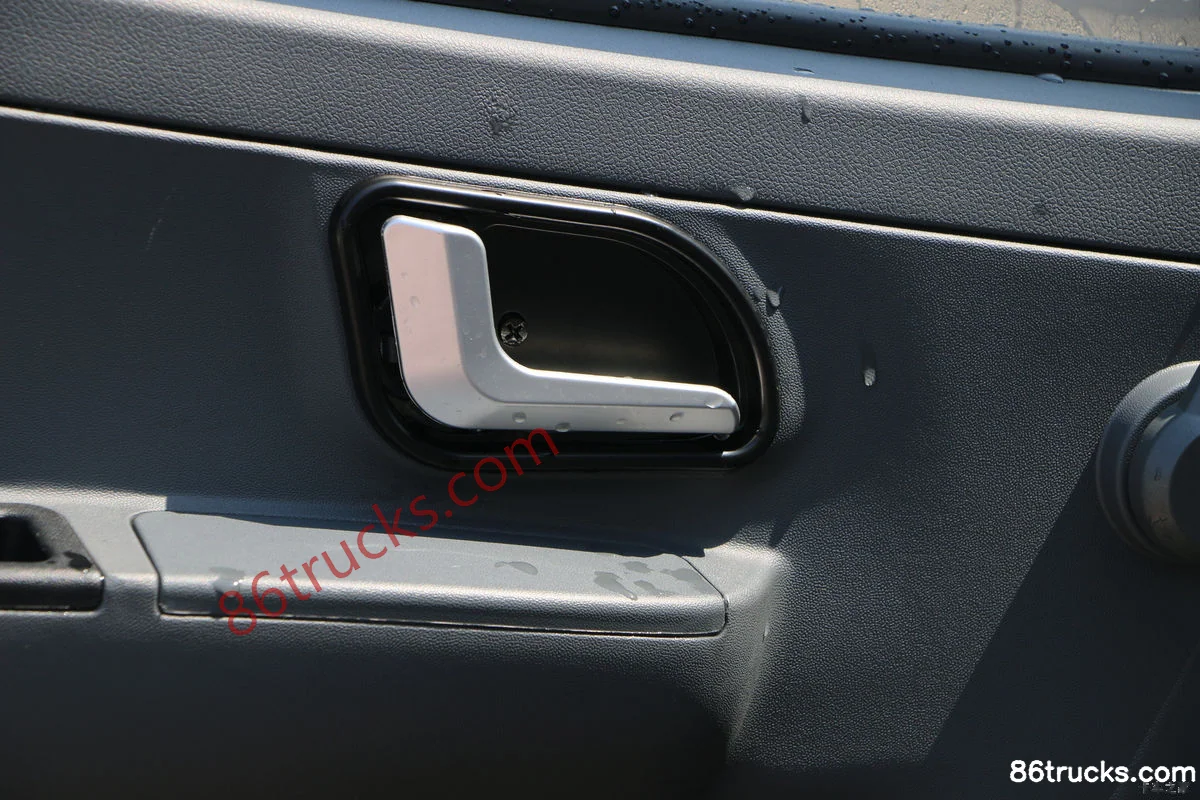

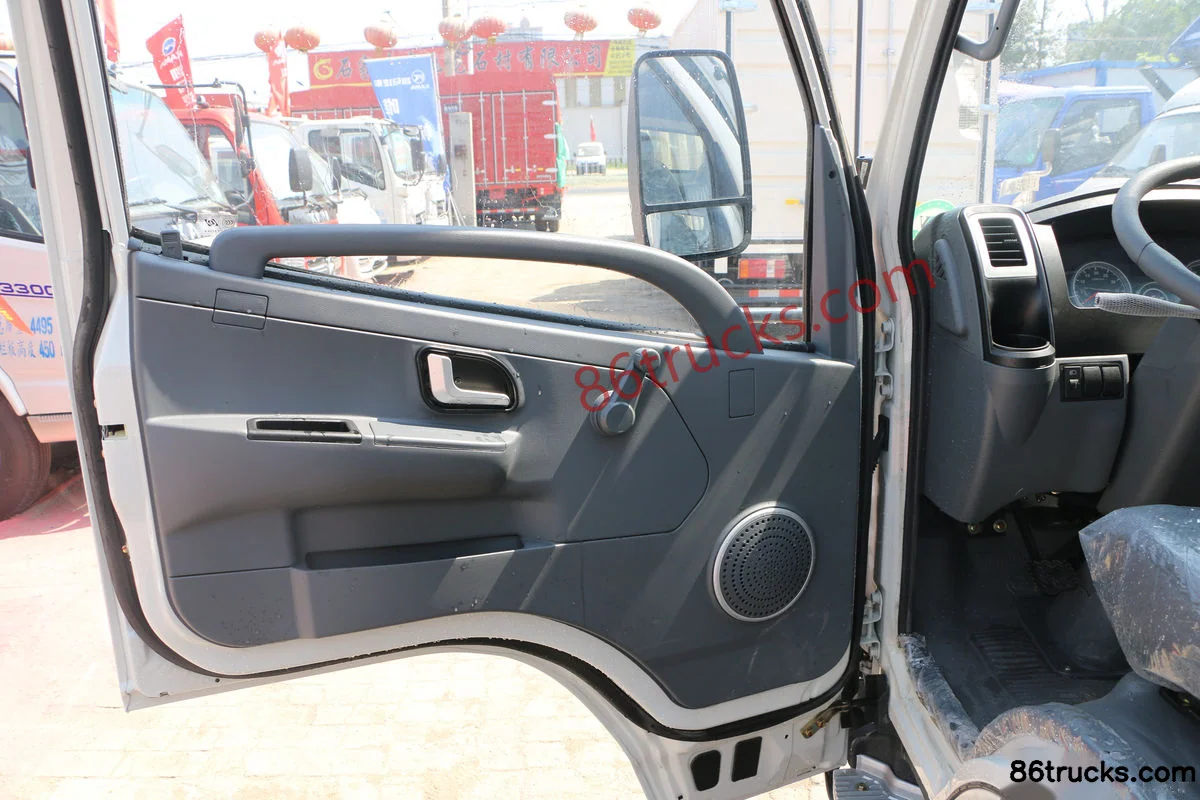

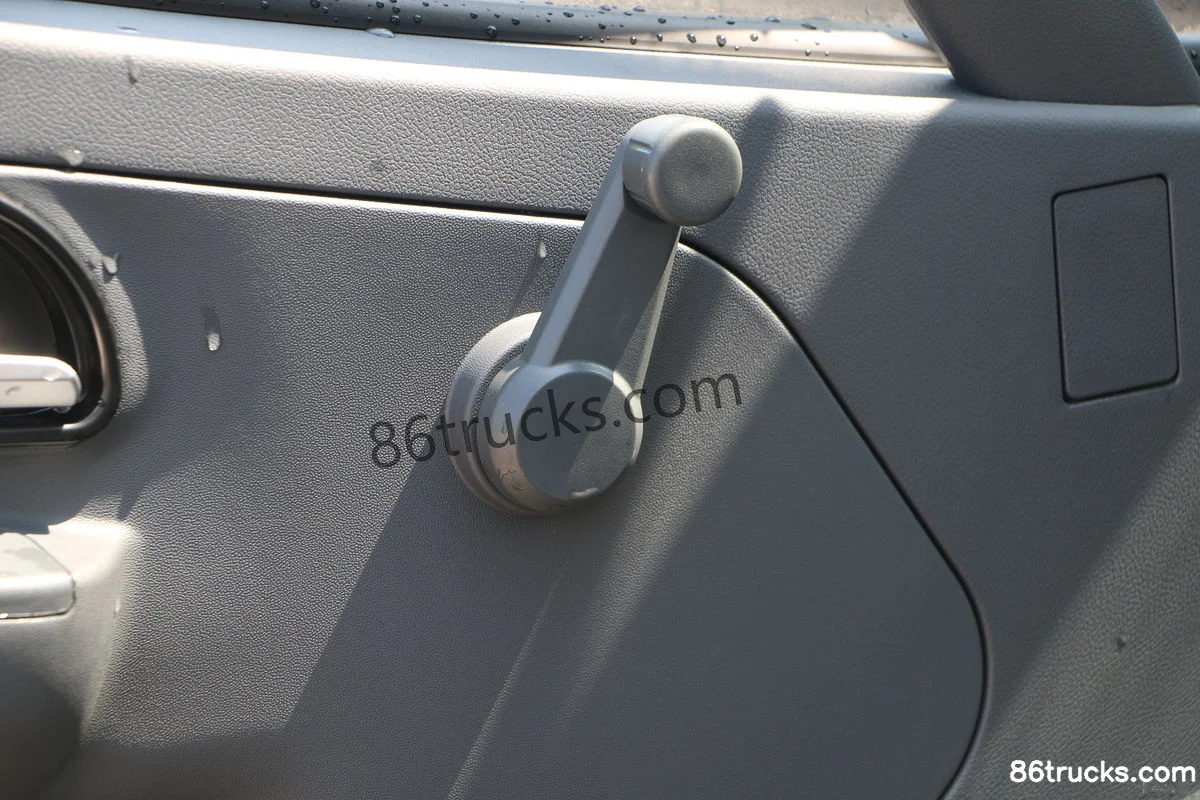

Cab3

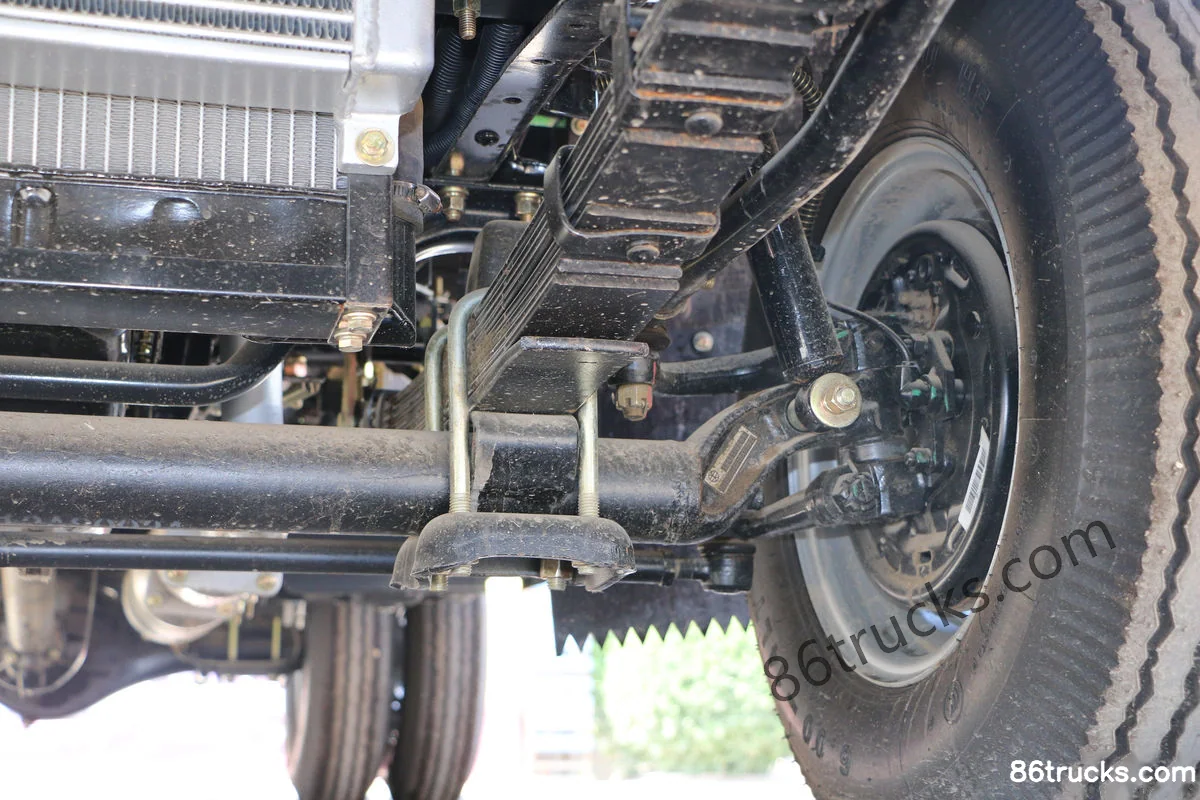

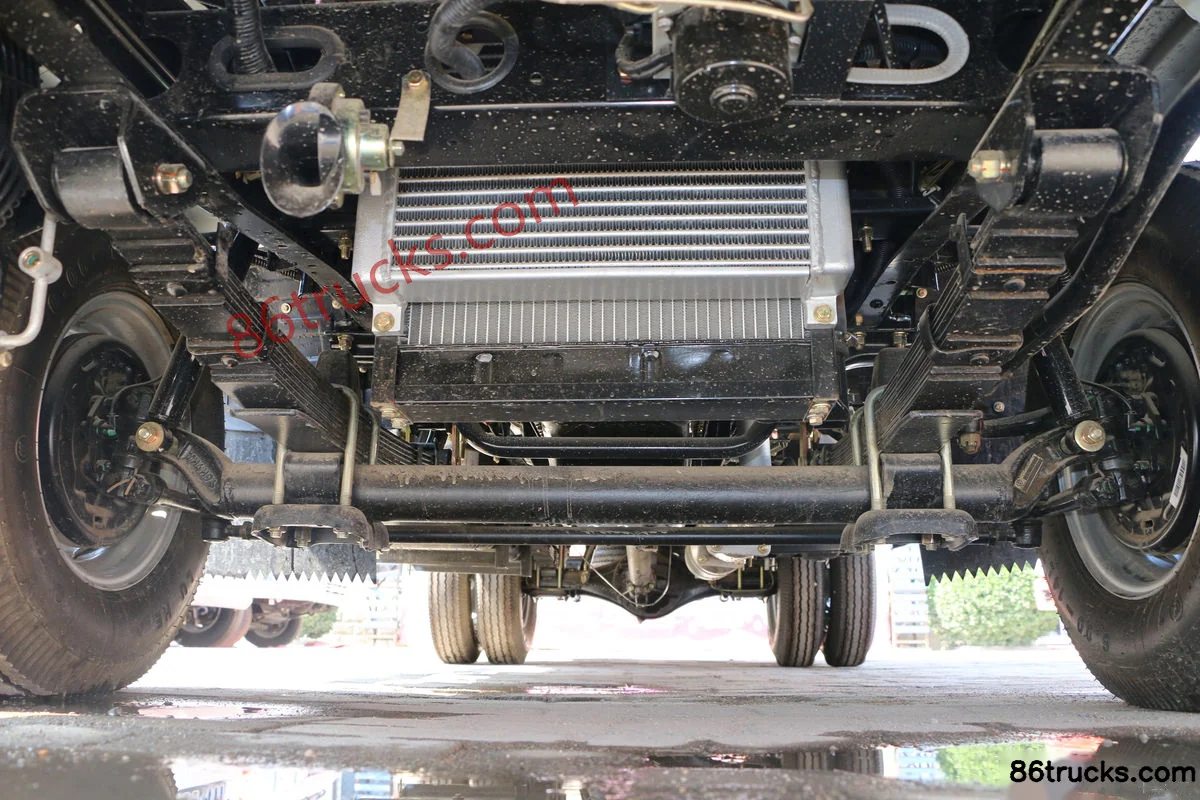

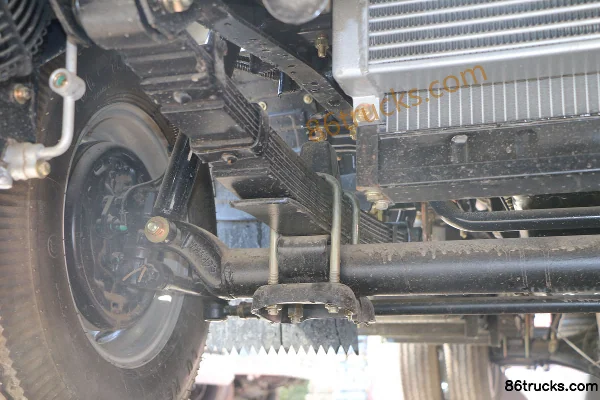

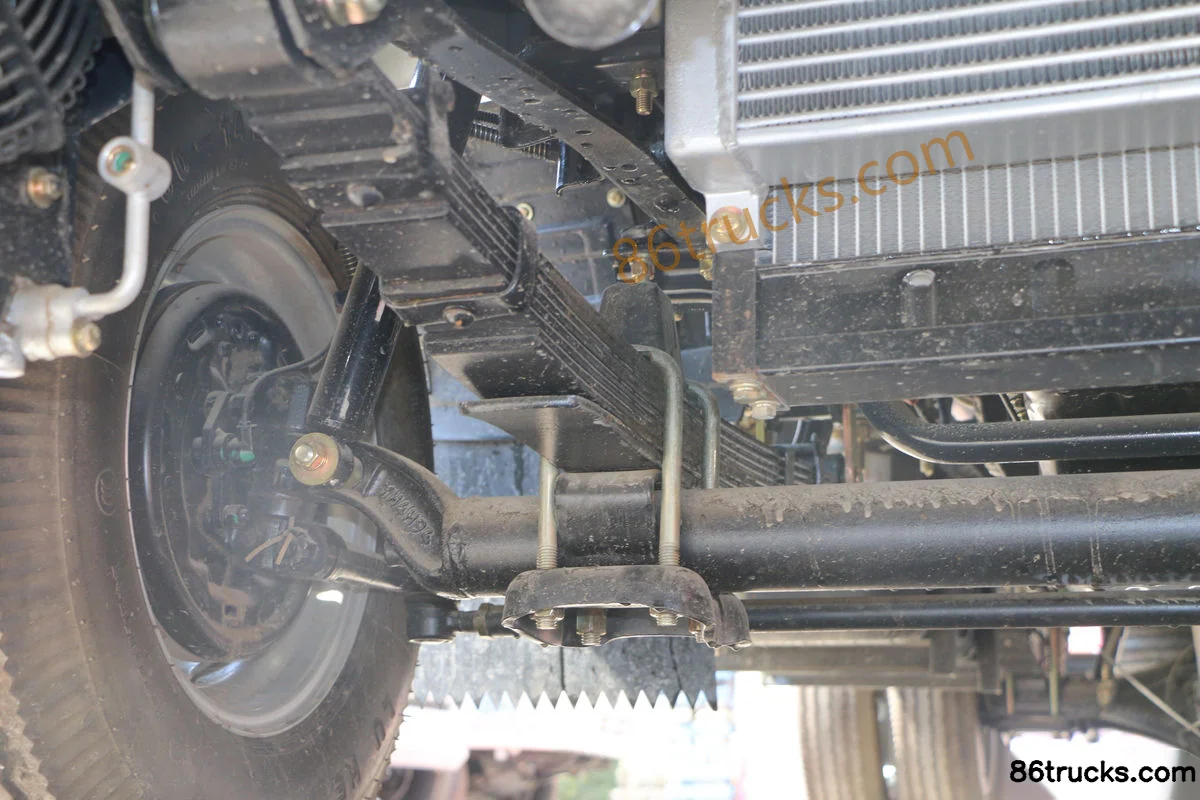

Chassis3

9 photos

FAQ

What is the export price of Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck, and what does it include?

Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck export reference is about From $15,125; MSRP is ¥10.89M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck?

Key specs of Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D19; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck suited for?

Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck differ from other variants in the same series?

Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck belongs to Kama K3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama K3 Jinyunka High-end 102 hp 4X2(6 wheels) 3.48m single-row box light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
