SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.85ton
Wheelbase:: 1800+3025+1350mm
Tire Size:: 11.00R20
Rated payload: 16.02ton
Drive 8X4 (12 wheels)
Horsepower 320
Cargo box type: Rear-dump body

Overview

The SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) is a Heavy truck featuring 16.02t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SDECSC10E320Q4 engine, 320 hp, China IV emissions and Fast Gear transmission.

China IV 320 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3315HMG306
Drive type: 8X4
Wheelbase: 1800+3025+1350mm
engine: SDECSC10E320Q4
transmission: Fast Gear12JSD160T
Cab length: 9.07m
Cab width: 2.5m
Cab height: 3.46m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 14.85ton
Rated payload: 16.02ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC10E320Q4
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.42L
Emission standard: China IV
Max output power: 235kW
Max hp: 320Horsepower
Max torque: 1500N·m
Max torque speed: 1300rpm
Rated speed: 1900rpm
Engine Type: Inline, 4-valve, electronically controlled common rail, turbocharged, intercooled, water-cooled, rear-mounted gear train
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 1.25m
fuel tank
Fuel tank capacity: 350L
Chassis Specs
Frame Dimensions: 940-865/305 8+4mm
rear axle description: HY300S
rear axle allowable load: 18000 (twin axle)kg
Leaf spring count: 8/8/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

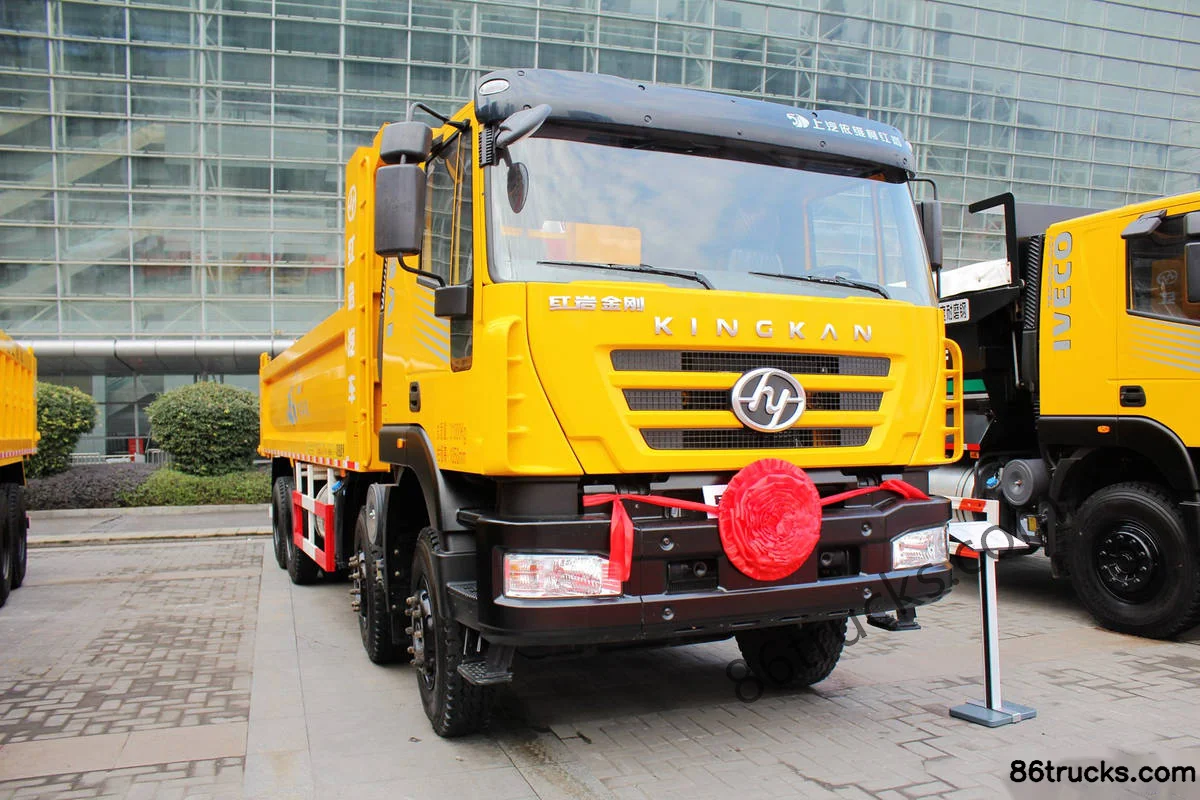

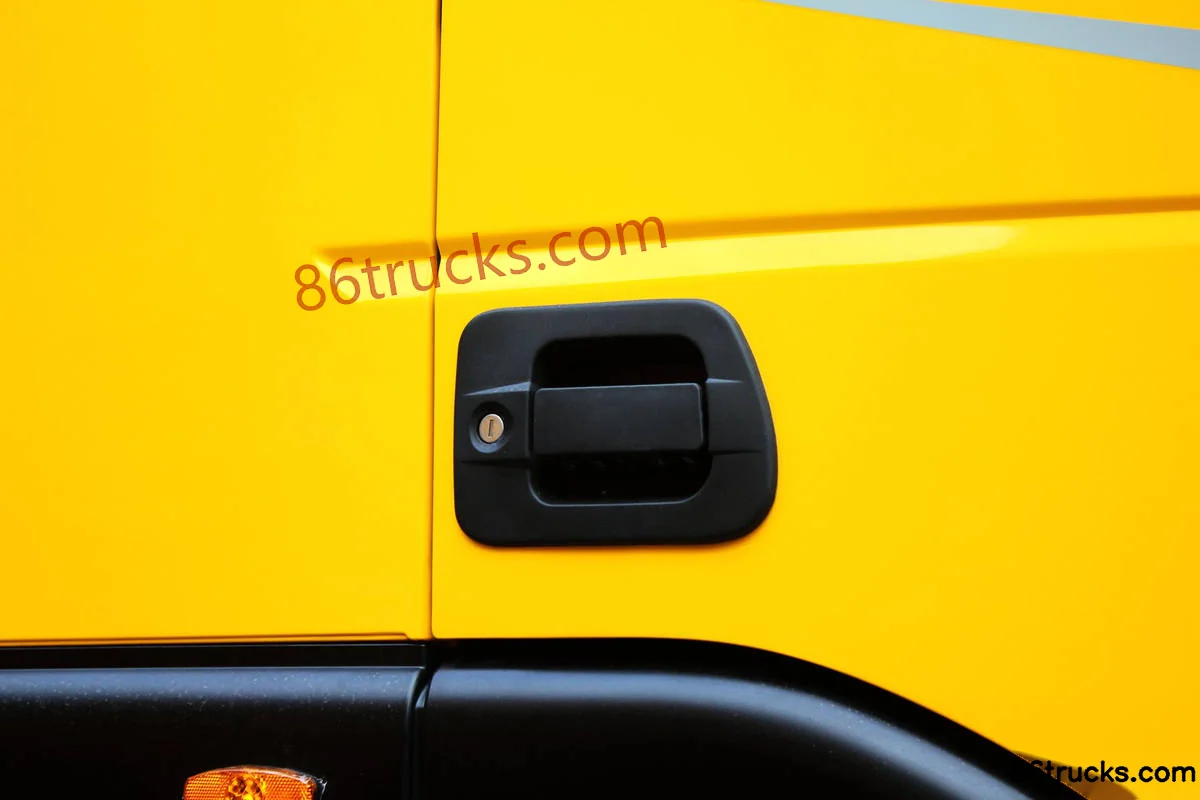

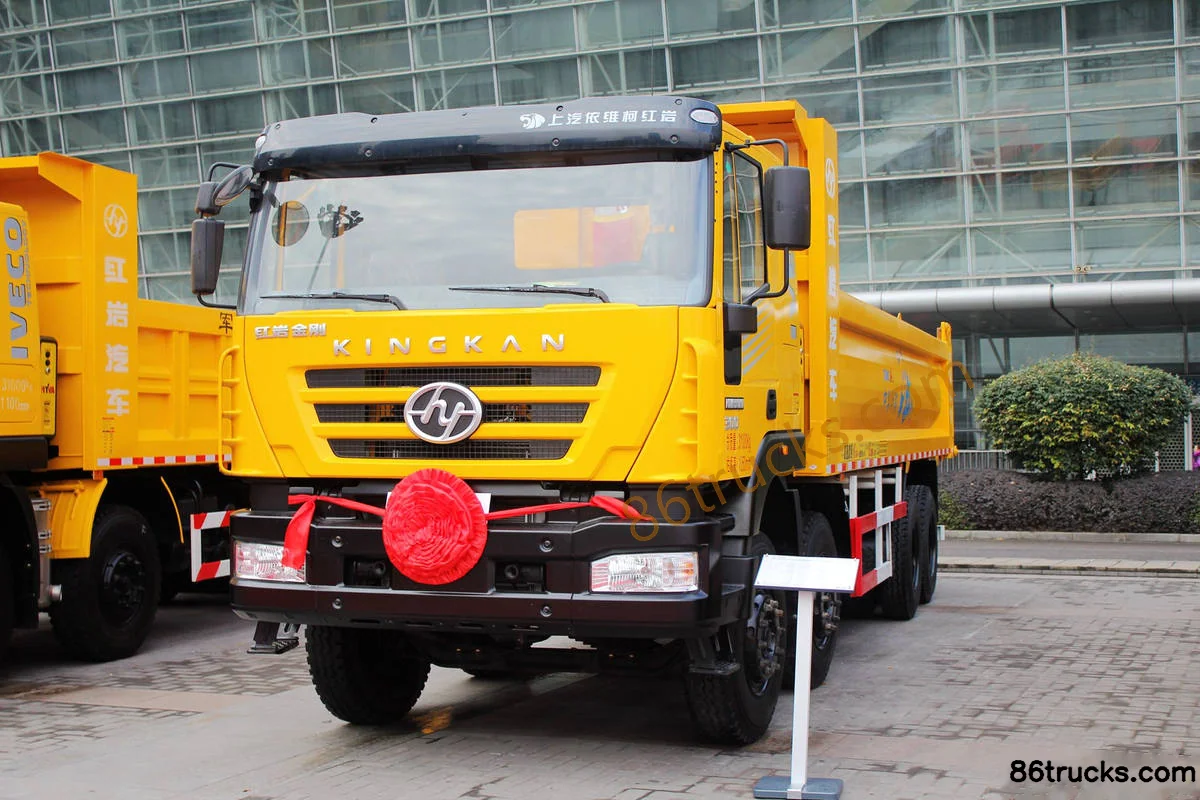

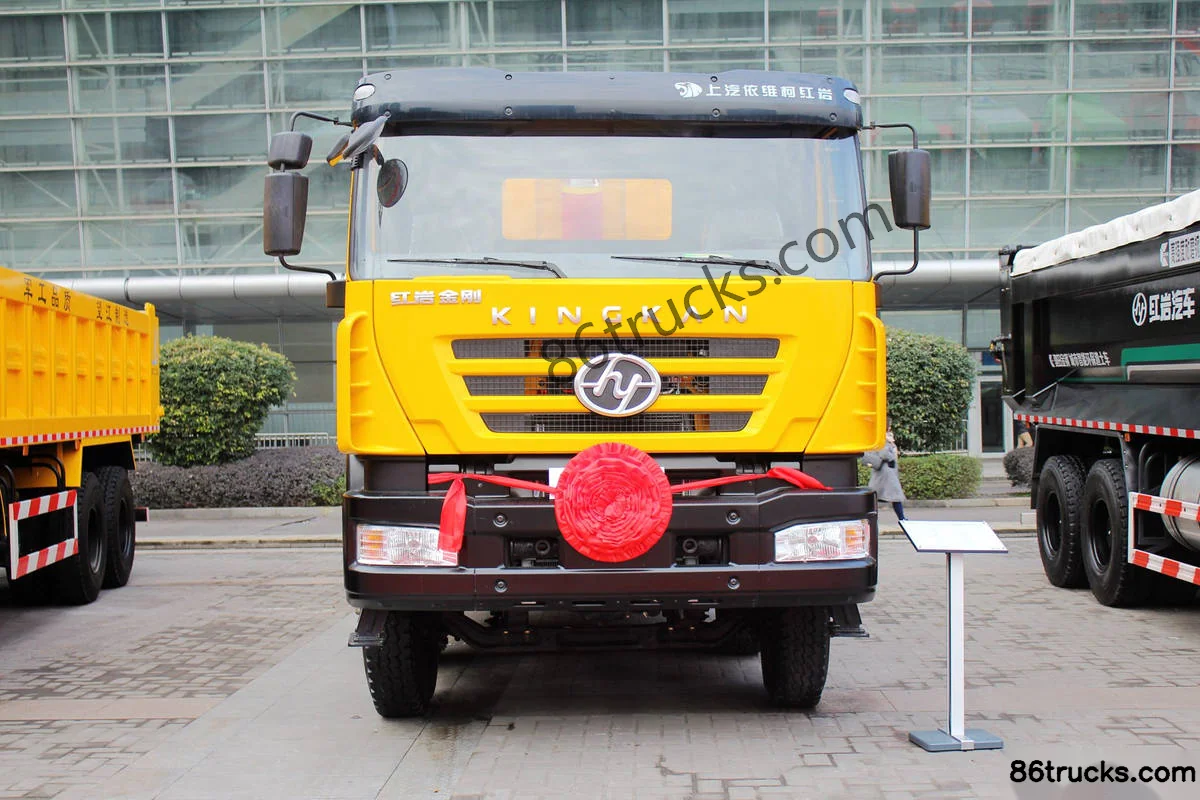

Exterior3

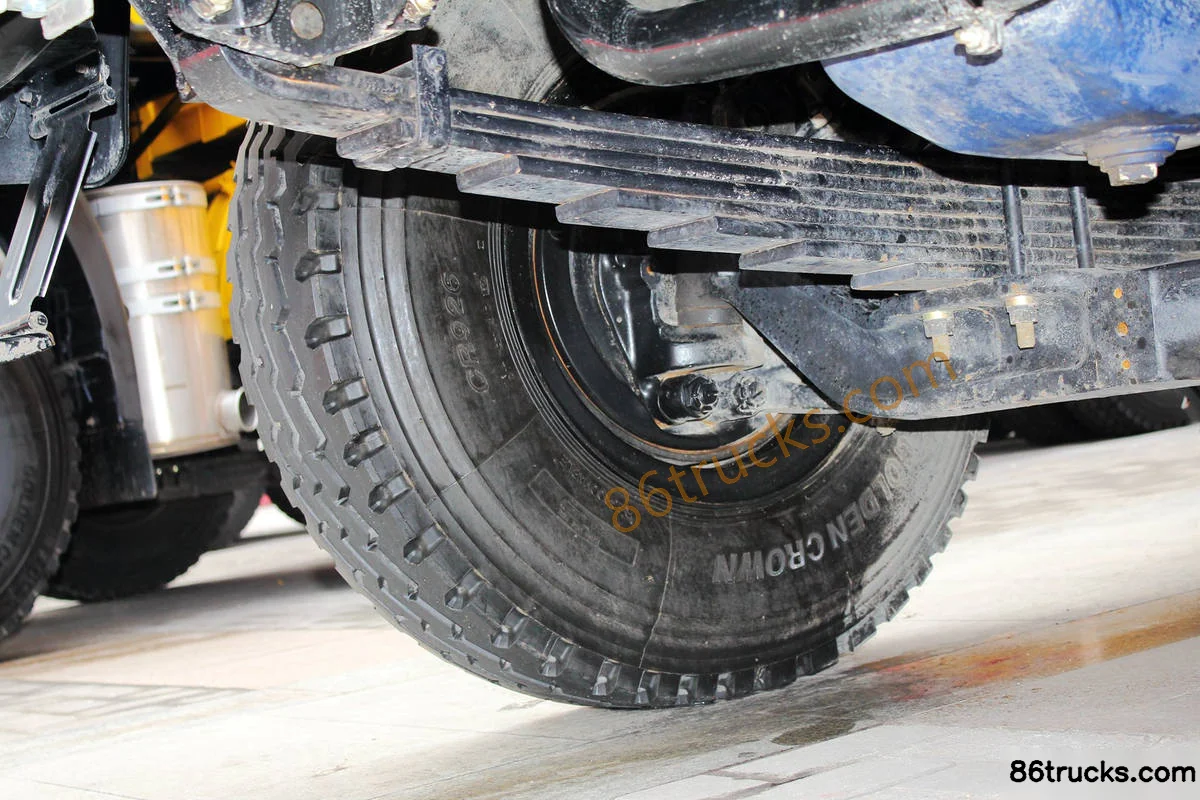

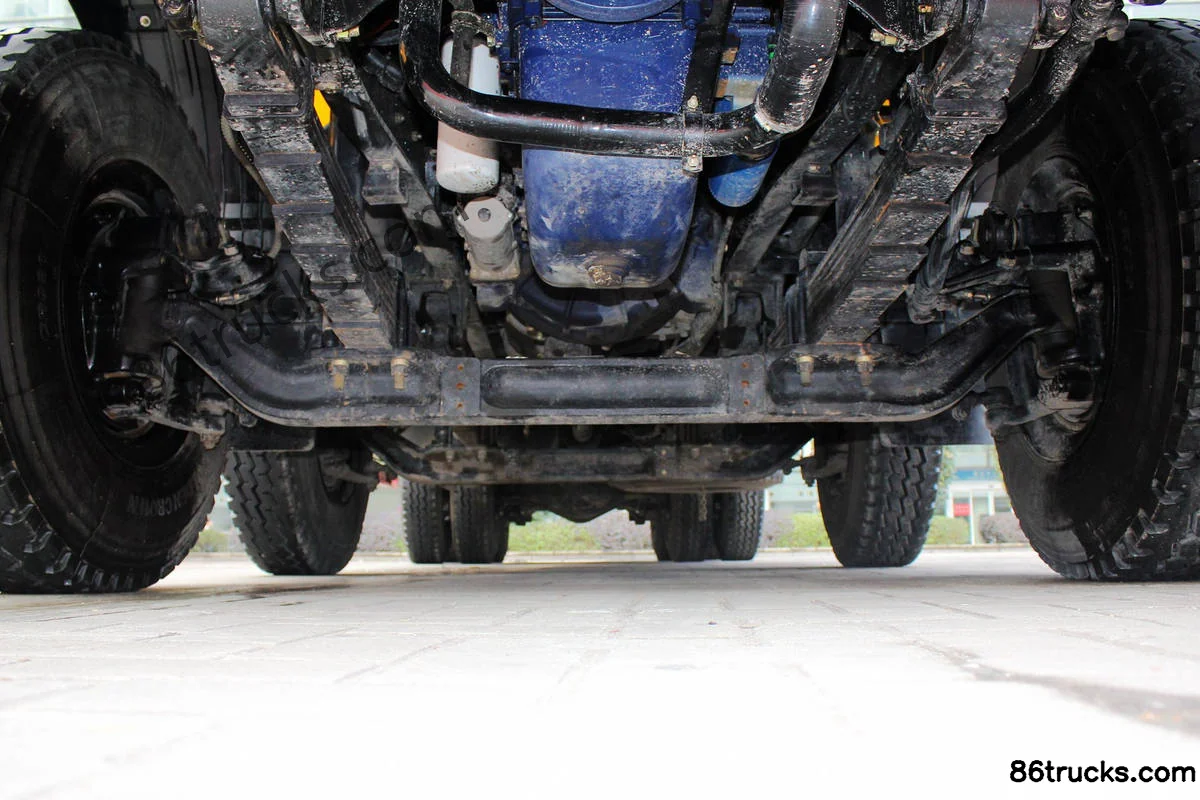

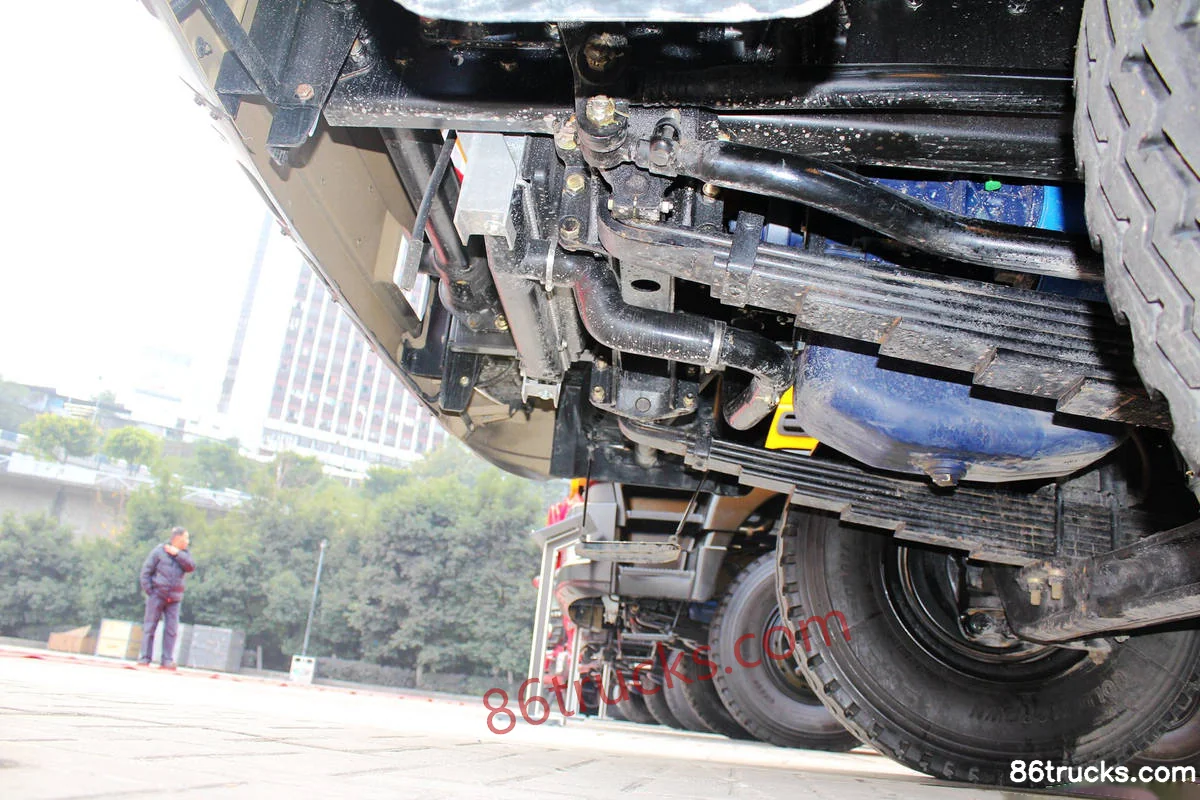

Chassis3

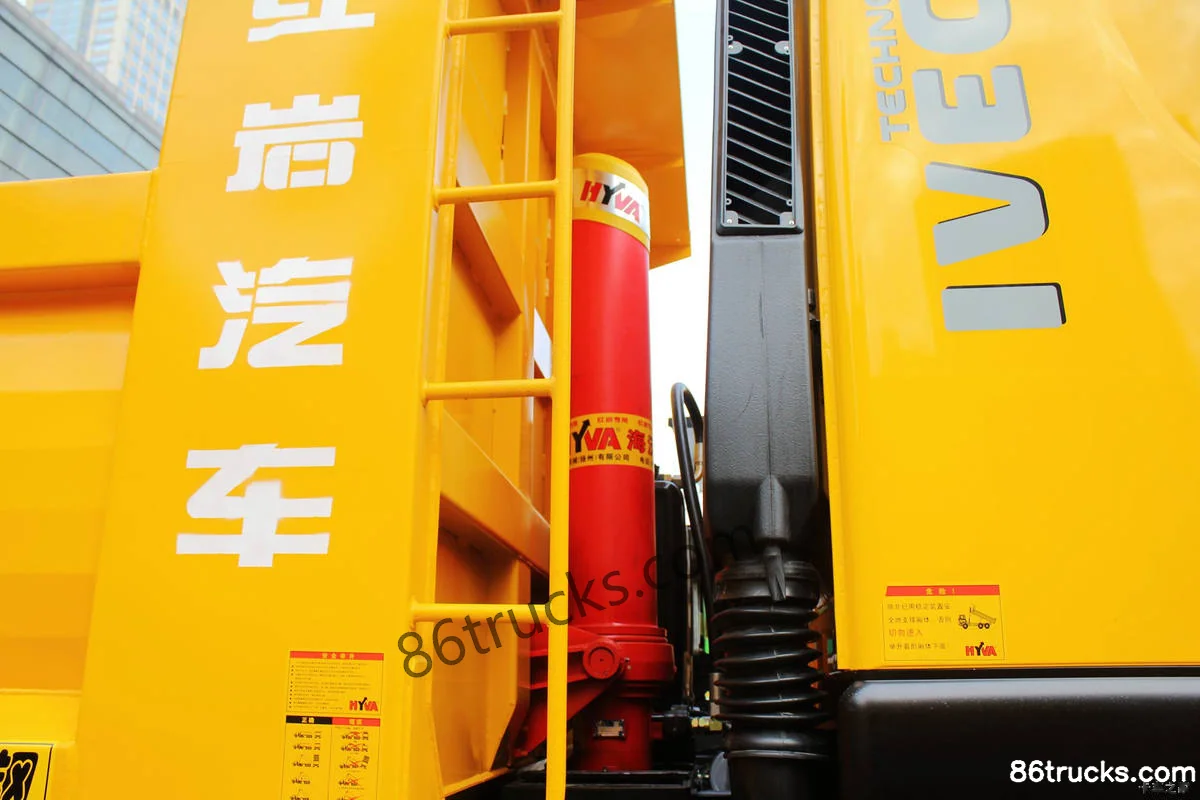

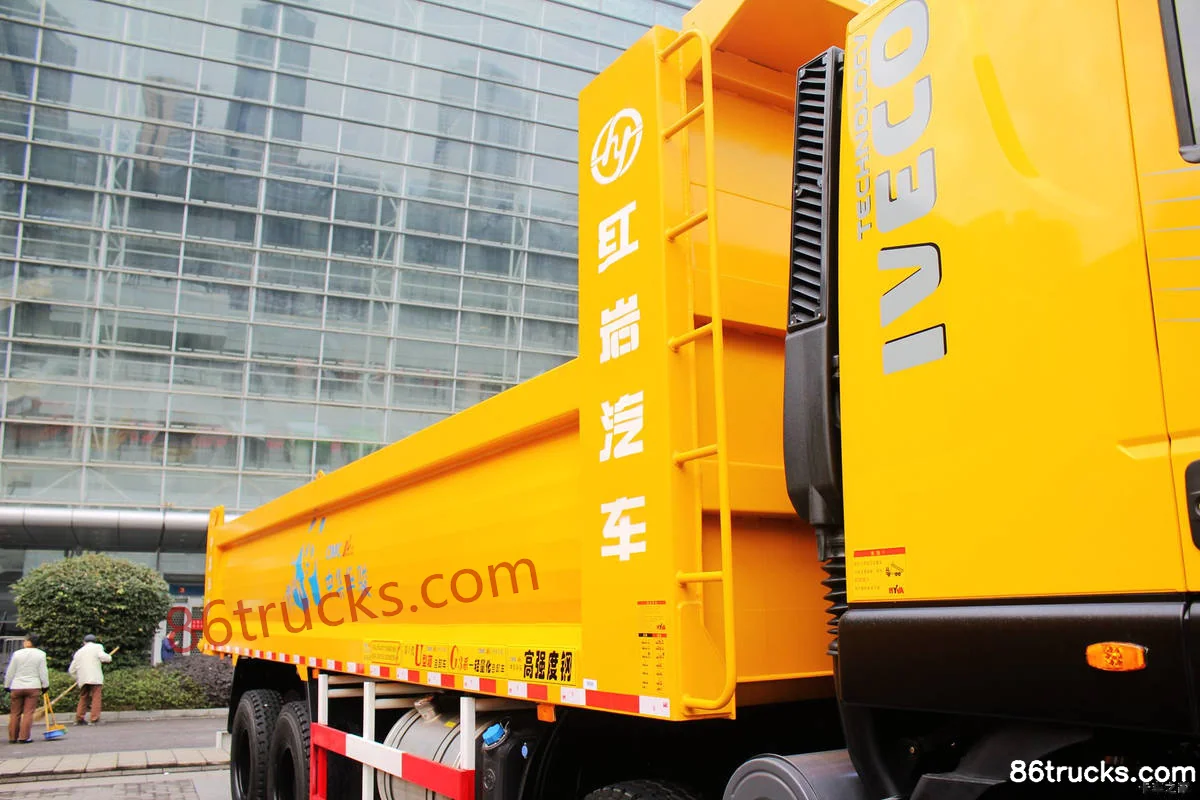

Body3

9 photos

FAQ

What emission standard does SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC)?

Key specs of SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC): Drive: 8x4; Horsepower: 320 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) suited for?

SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) differ from other variants in the same series?

SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC) belongs to SAIC Hongyan New King Kong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan New JinGang Heavy Truck 320 hp 8X4(12 wheels) 6.5m Dump Truck (SDEC)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
