Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck

Export reference
From $20,833
MSRP ¥15M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.1ton
Wheelbase:: 3350mm
Tire Size:: 9.00R20
Rated payload: 9.905ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck is a Medium-duty truck featuring 9.905t payload, 16.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP3NQ160E61 engine, 160 hp, China VI emissions and Fast Gear transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3163A1Q6
Drive type: 4X2
Wheelbase: 3350mm
engine: WeichaiWP3NQ160E61
transmission: Fast Gear8JS85F
Cab length: 6.135m
Cab width: 2.36m
Cab height: 2.695m
Front track width: 1740mm
rear track: 1640mm
Curb Weight: 6.1ton
Rated payload: 9.905ton
GVWR: 16.2ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3NQ160E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 480N·m
Max torque speed: 1400-2300rpm
Rated speed: 3000rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.94m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10600kg
Leaf spring count: 11/11+9

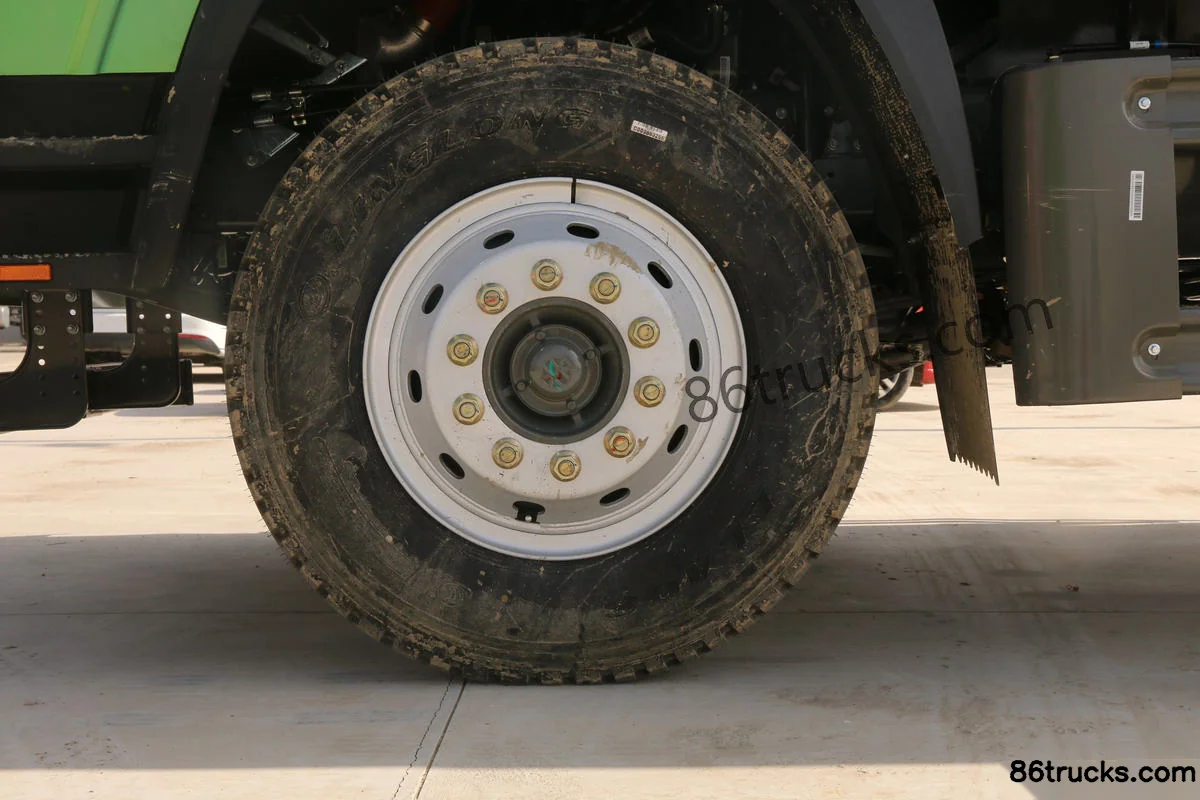

Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

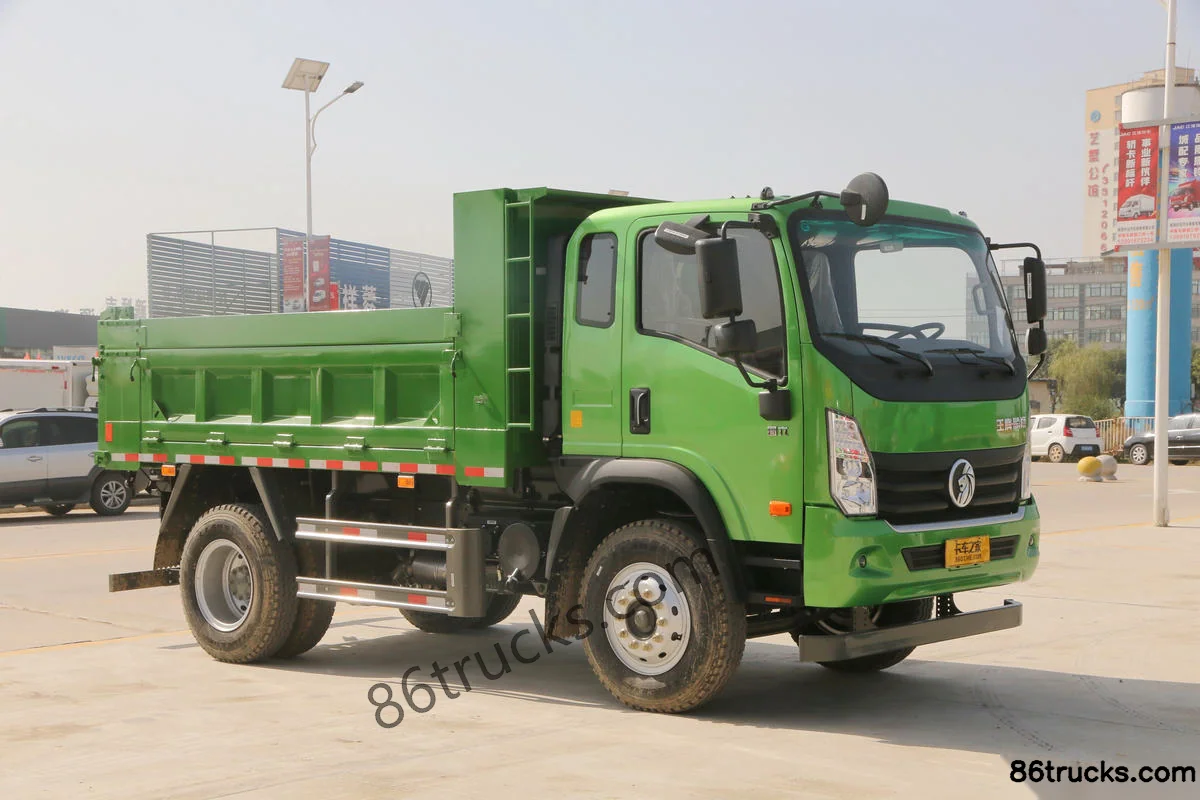

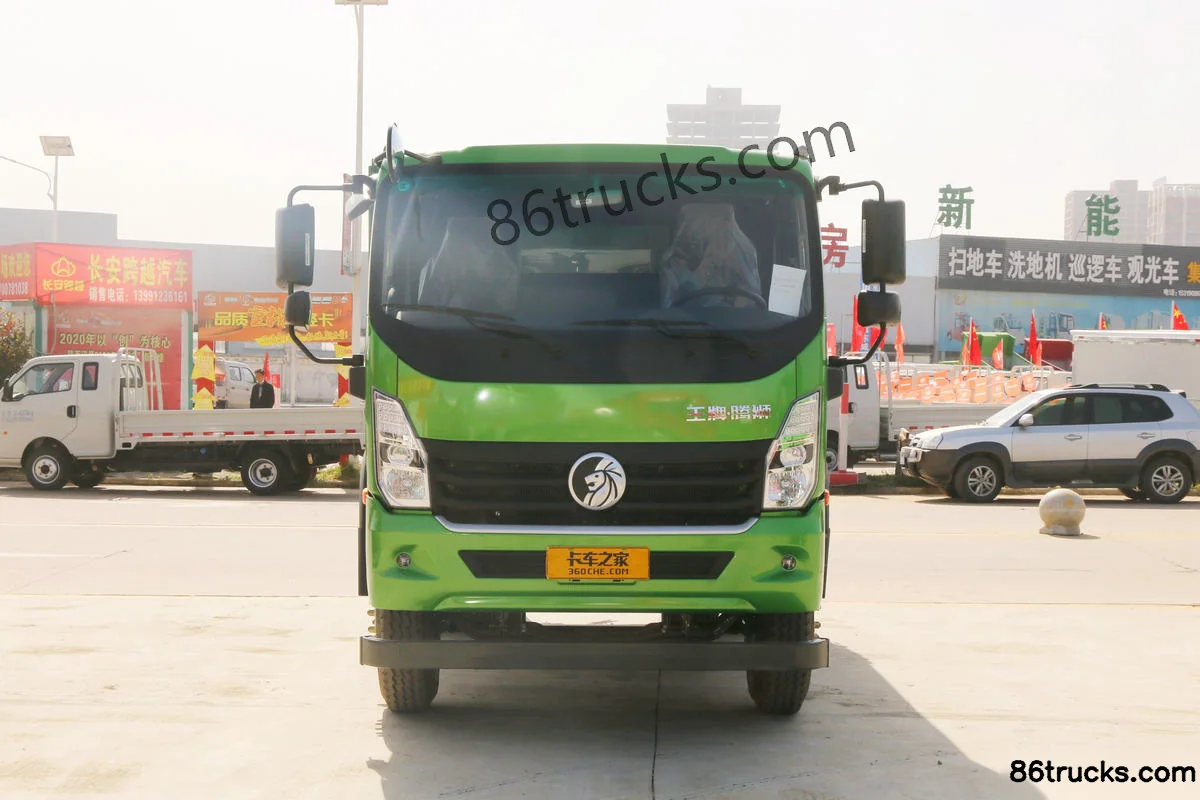

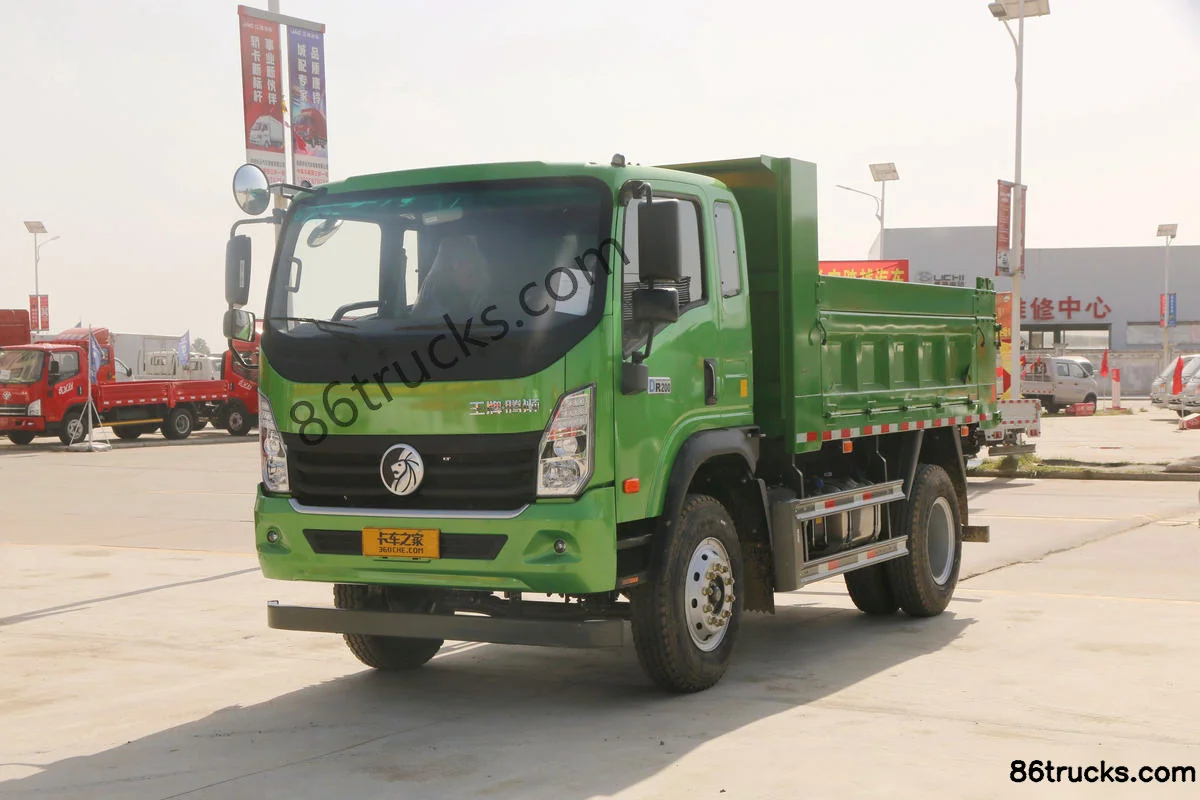

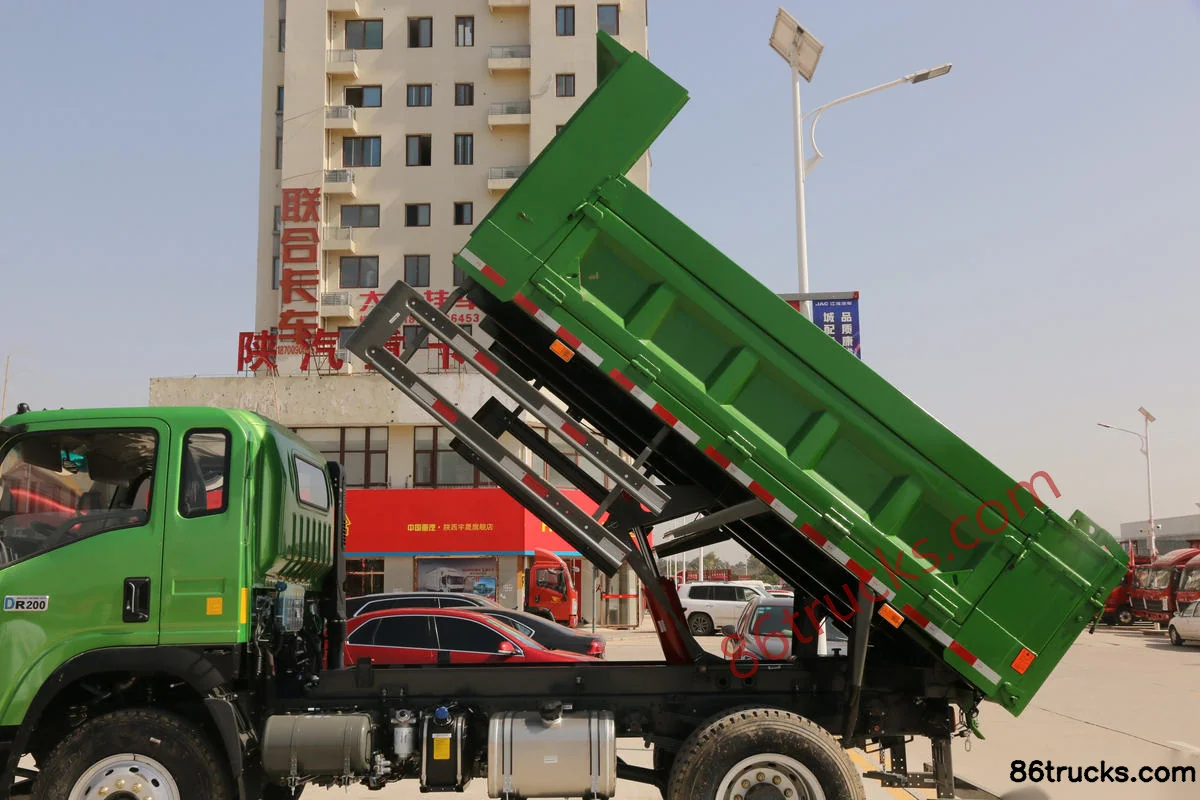

Exterior3

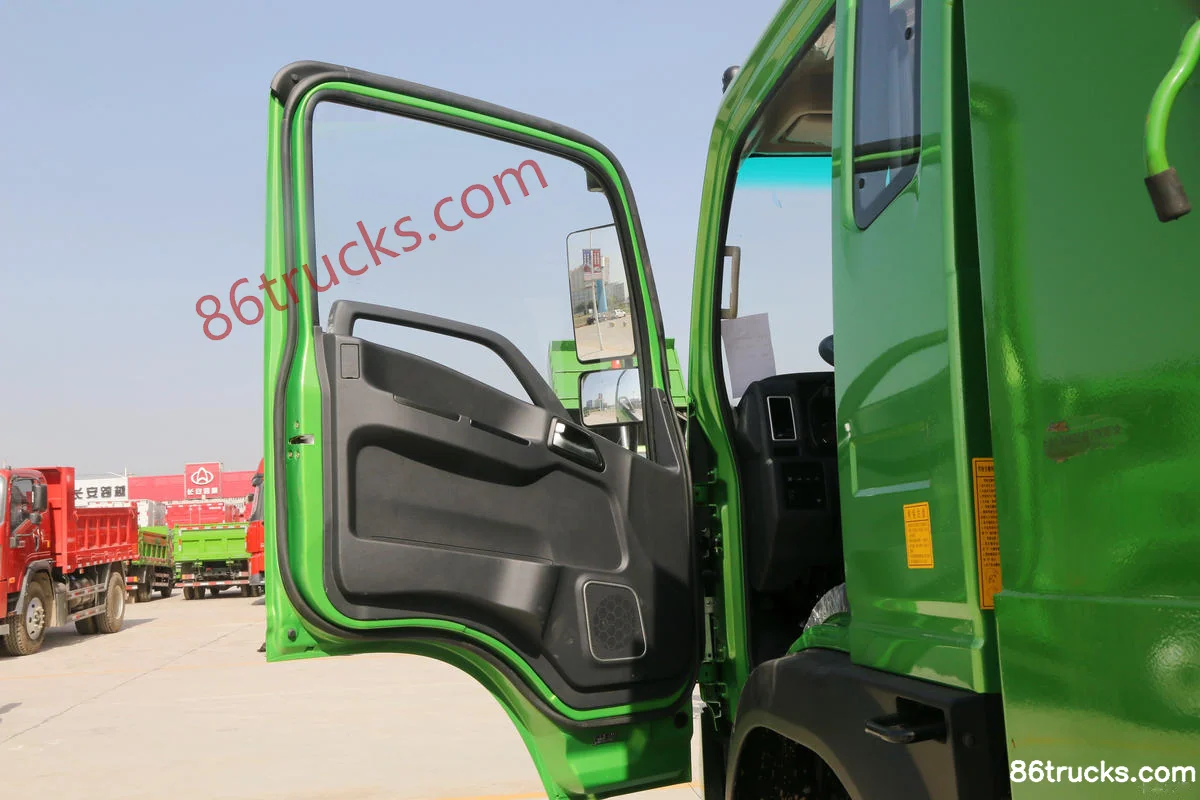

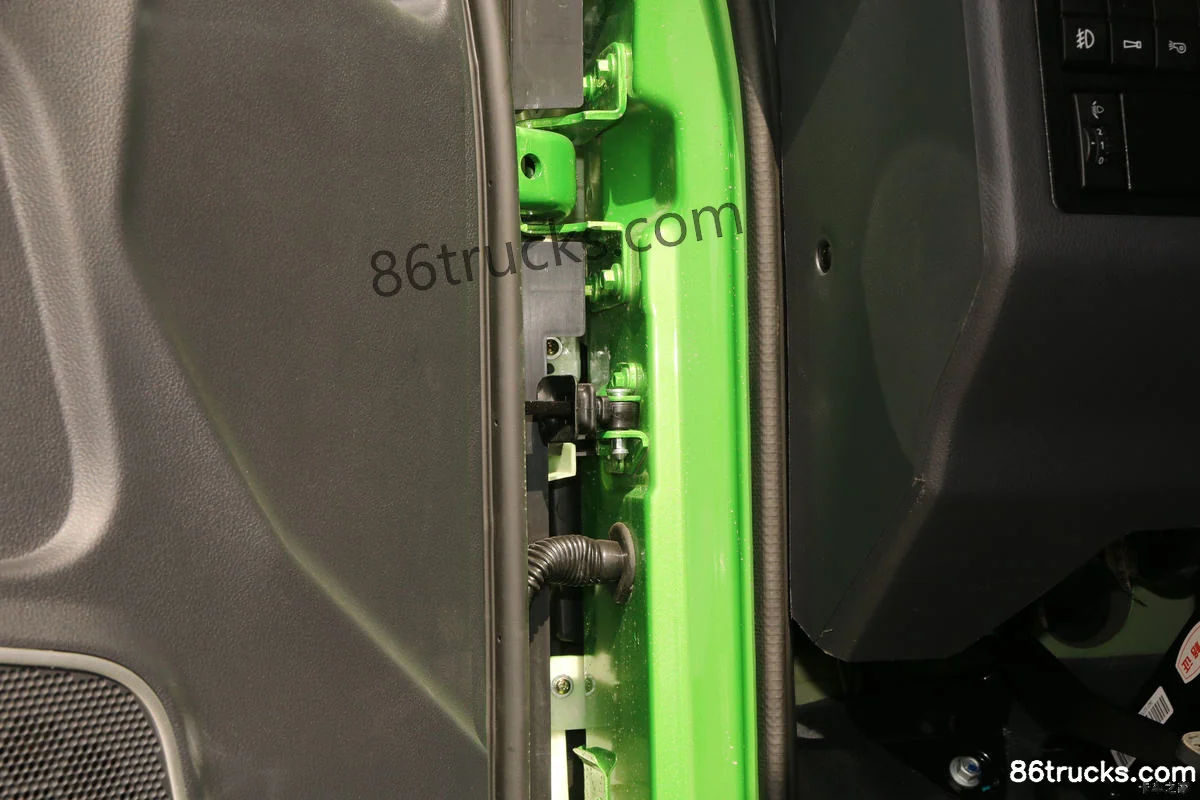

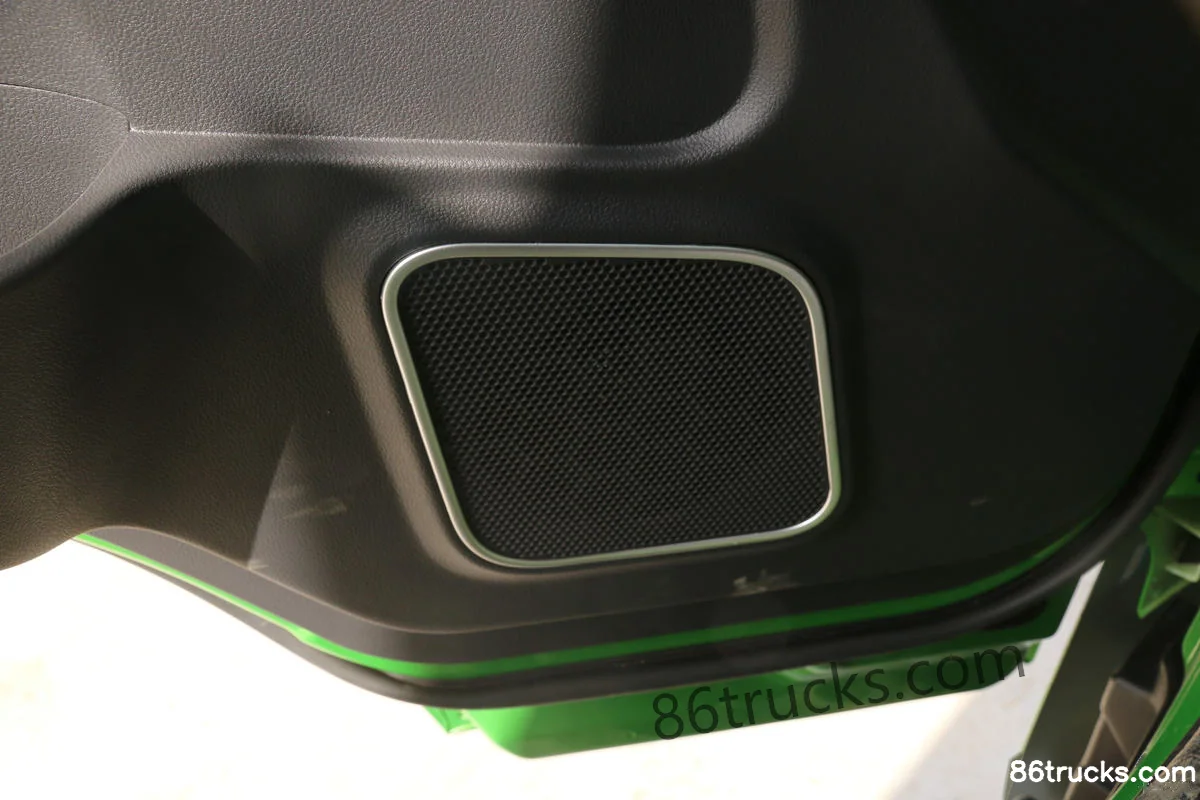

Cab3

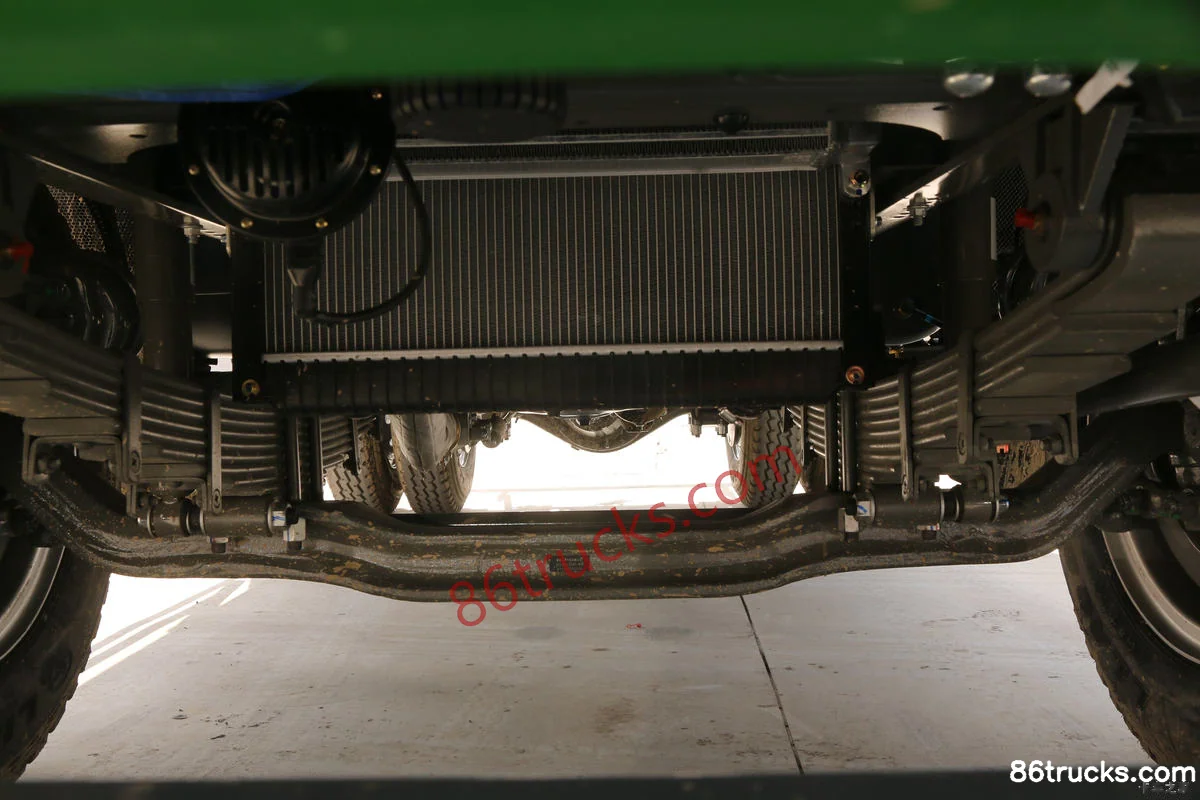

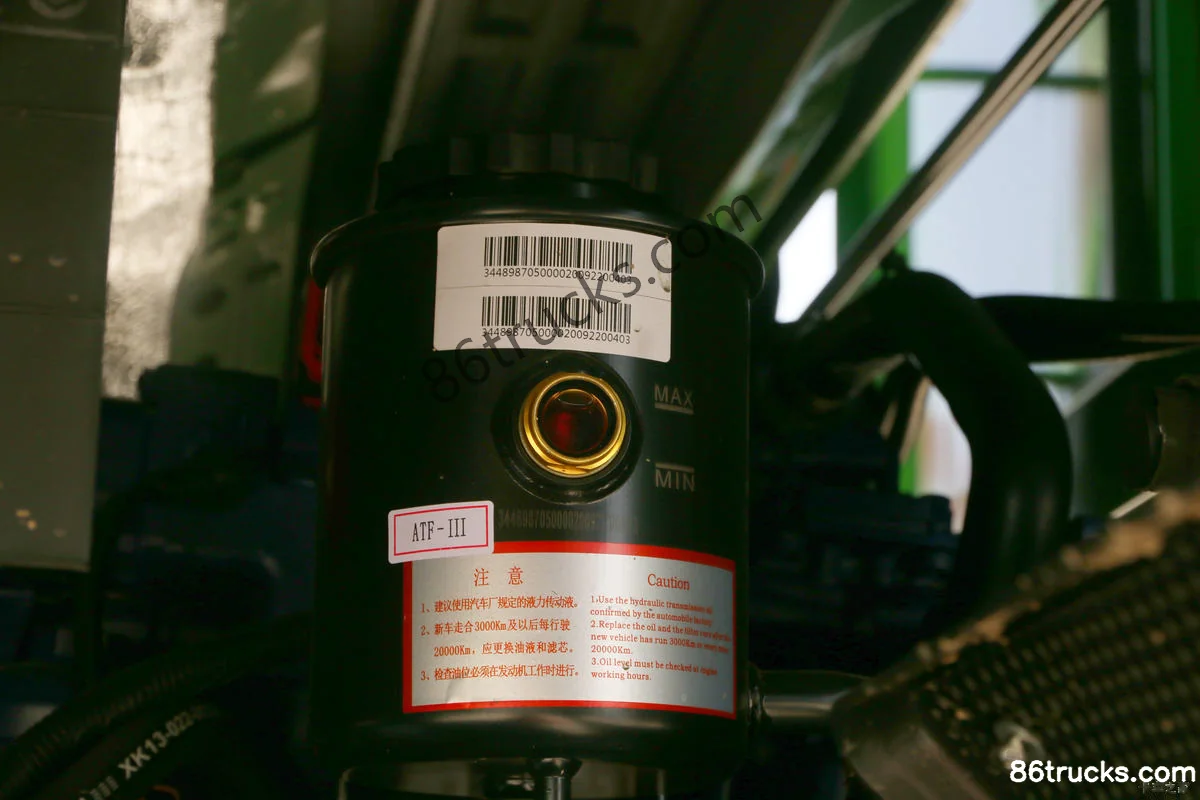

Chassis3

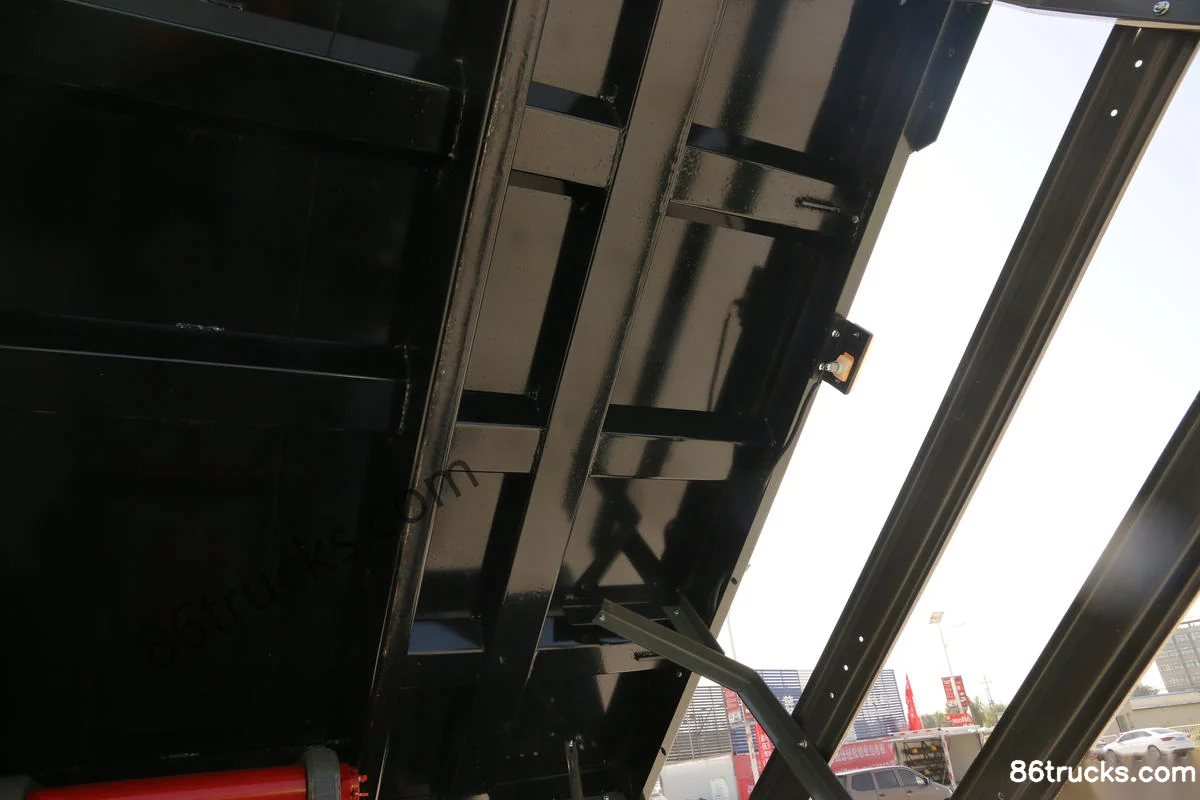

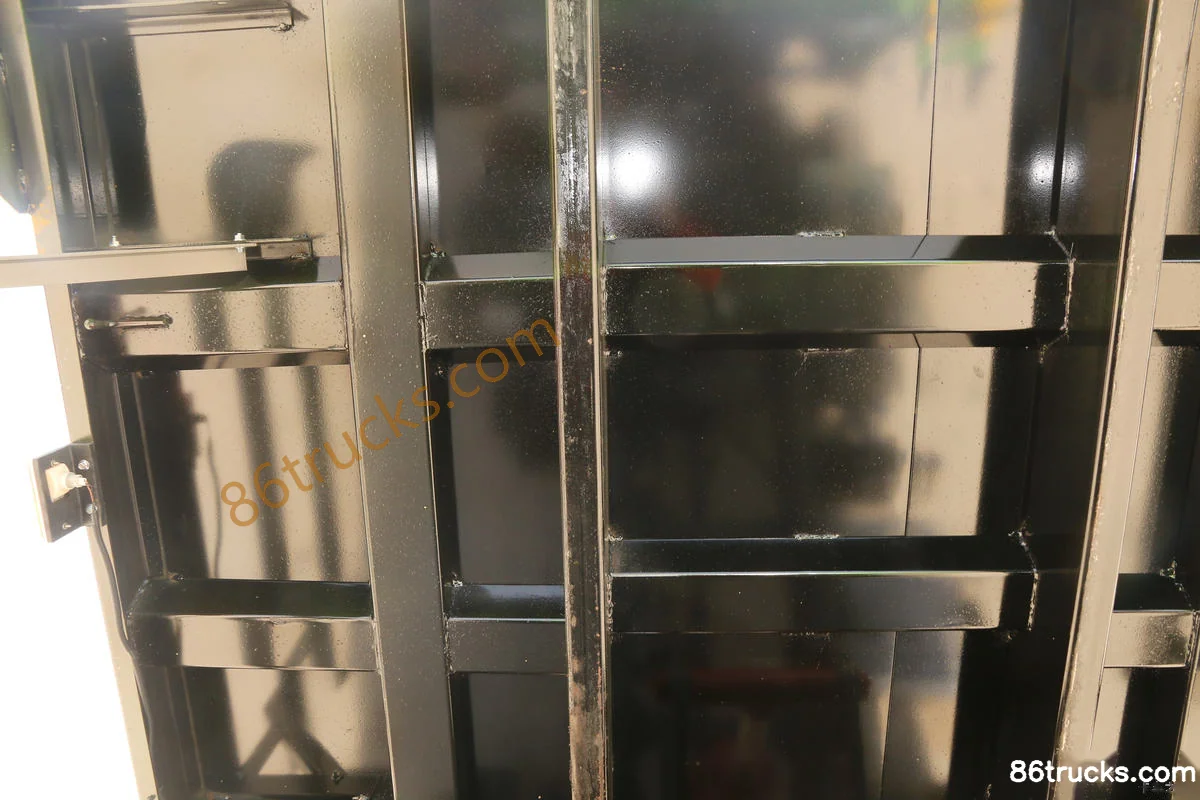

Body3

12 photos

FAQ

What is the export price of Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck, and what does it include?

Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck export reference is about From $20,833; MSRP is ¥15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck?

Key specs of Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck suited for?

Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck differ from other variants in the same series?

Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck belongs to Sinotruk Tengshi Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Tengshi 160 hp 4X2(6 wheels) 3.94m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
