SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top)

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 1800+4625+1350mm
Cab dimensions:: 11.79×2.5×3.738m
Truck Type:: Fuel tanker truck
Front track width:: 2006/2006mm
rear track:: 1850/1850mm
Drive 8X4 (12 wheels)
Horsepower 310
Curb Weight: 12.57ton
Emission China IV

Overview

The SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) is a fuel tanker truck featuring 12.57ton GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain Hongyan C9 310 C4 engine, 310 hp, China IV emissions and Diesel fuel.

China IV 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.79×2.5×3.738m
Truck Type: Fuel tanker truck
Drive type: 8X4
Wheelbase: 1800+4625+1350mm
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 12.57ton
Max. speed: 80km/h
Energy Type: Diesel
Engine parameters
Engine Model: SAIC Fiat Powertrain Hongyan C9 310 C4
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.7L
Emission standard: China IV
Max output power: 227kW
Max hp: 310Horsepower
Rated speed: 2100rpm
Engine Type: Electronic high-pressure common rail system
Body Parameters
Vehicle certification code: CQ5315GJYHMG466
Body Brand: SAIC Hongyan
Chassis Specs
Chassis Brand: SAIC Hongyan
Chassis Series: GENLYON
Chassis Model: CQ1315HMG466V
Frame Dimensions: 940-865/305 8+4mm
rear axle description: 457
Leaf spring count: 3/3/4
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD160A
Cab parameters
Cab: Flat roof
Tire
Tire Size: 315/80R22.5
Number of tires: 12pcs

Photos

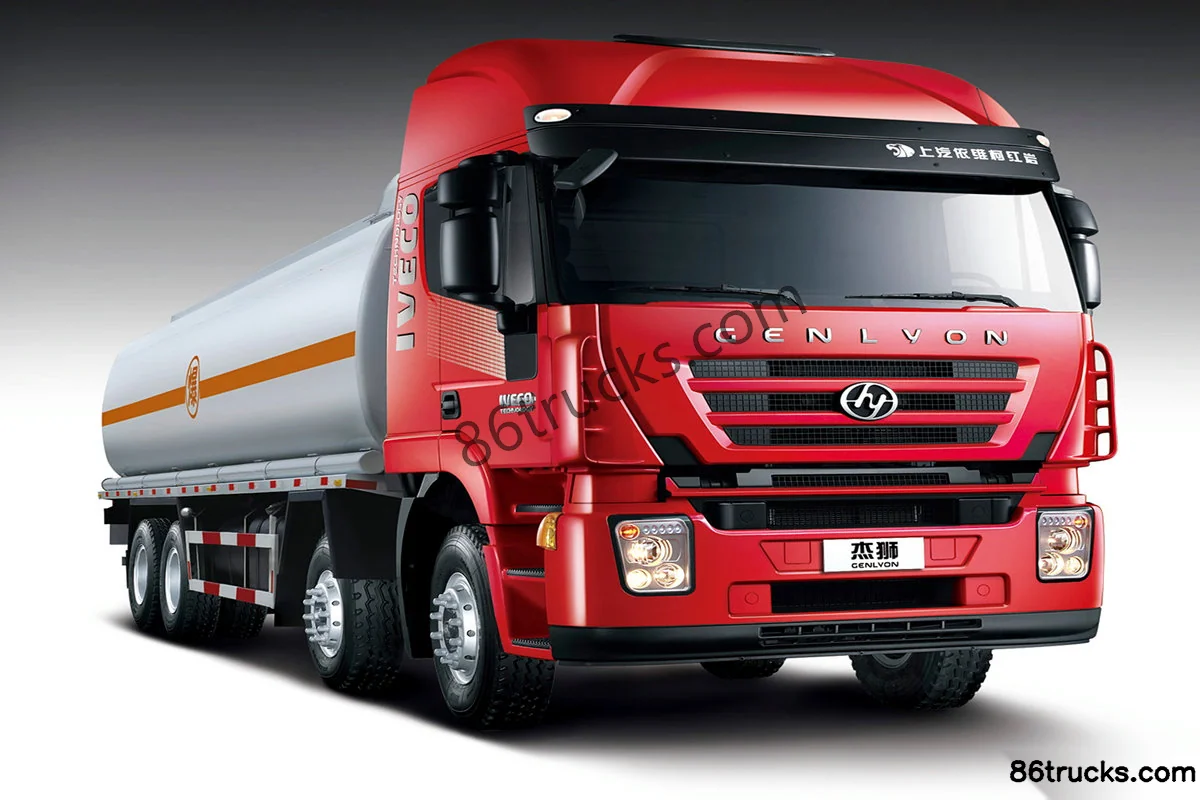

Exterior1

1 photos

FAQ

What emission standard does SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top)?

Key specs of SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top): Drive: 8x4; Horsepower: 310 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) suited for?

SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) is a fuel tanker truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) differ from other variants in the same series?

SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top) belongs to SAIC Hongyan Genlyon Heavy Truck (fuel tanker truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M100 310hp 8X4(12 wheels) Oil Tanker Truck Chassis (flat top)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
