Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) oil tanker truck (Chufei brand)
EXW
Export quote
Chufei Sinotruk chassis fuel tanker truck
Main model photos
38 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO Hanjiang 143hp 4X2(6 wheels) oil tanker truck (Chufei brand) | 4x2 / 143hp / China V | ||
| Sinotruk Haoyun 300hp 6X4(10 wheels) Oil Transport Truck (Chufei Brand) | 6x4 / 300hp / China III / Euro III |

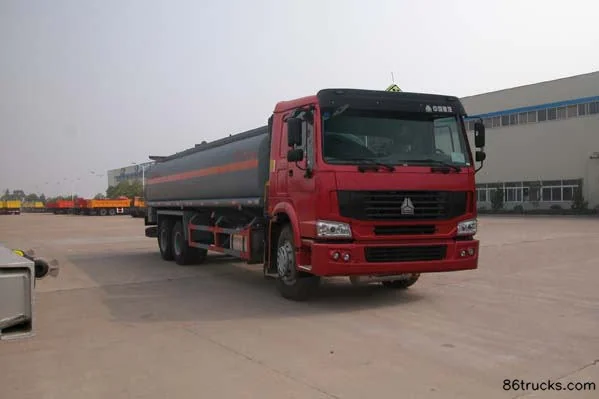

Sinotruk Haoyun 300hp 6X4(10 wheels) Oil Transport Truck (Chufei Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 6.04×2.26×2.65 / 11.0×2.495×3.37m
Drive type: 4X2 / 6X4
Truck Type: Fuel tanker truck
Wheelbase: 3280 / 5225+1350mm
Vehicle origin: Suizhou, Hubei
Front track width: 1795 / 2041mm
rear track: 1555mm
Curb Weight: 4.52 / 11.4ton
Rated payload: 3.63 / 13.45ton
Max. speed: 79 / 90km/h
Front/rear suspension: 1.16/1.6 / 1.55/2.875m
Energy Type: Diesel
Body Parameters
Tank Size: 4×1.56×1.06 / 7.9×2.3×1.53m
Tank Volume: 4.5 / 20.17m3
Transport medium: gasoline
Medium Density: 0.7ton/cubic meter
Vehicle certification code: CLQ5080GYY5ZZ / CLQ5257GYY3ZZ
Body Brand: Chufei Brand
Engine parameters
Engine Brand: Chaochai / Sinotruk
Engine Model: ChaochaiCY4BK151 / Sinotruk WD615.97E
Number of cylinders: 4 / 6cylinder
Displacement: 3.856 / 9.726L
Emission standard: China V / China III / Euro III
Max output power: 105 / 221kW
Max hp: 143 / 300Horsepower
Max torque: 500 / 1250N·m
Max torque speed: 1400-1800 / 1100-1600rpm
Rated speed: 2800 / 2200rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Sinotruk Hanjiang / Haoyun
Chassis Model: ZZ1087F3315E183 / ZZ1257M5247C
Axle ratio: 5.286
Leaf spring count: 3/5+3 / 10/12,10/-
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY646
Tire
Tire Size: 7.50R16LT / 11.00-20,11.00R20,12.00-20,12.00R20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is Chufei Chufei Sinotruk chassis fuel tanker truck?
Chufei Chufei Sinotruk chassis is an export-oriented fuel tanker truck lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Chufei Sinotruk chassis fuel tanker truck cover?
Chufei Sinotruk chassis fuel tanker truck mainly covers: Drive: 4x2 / 6x4; Horsepower: 143 hp / 300 hp; Emission: China III / Euro III / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chufei Sinotruk chassis fuel tanker truck?
For Chufei Sinotruk chassis fuel tanker truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is fuel tanker truck typically used for?
fuel tanker truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chufei Sinotruk chassis fuel tanker truck include?
Chufei Sinotruk chassis fuel tanker truck currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chufei Sinotruk chassis fuel tanker truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
