JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck

Export reference
From $10,528
MSRP ¥7.58M CNY
Horsepower: 68
Emission: China V
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: Qingshan
Curb Weight:: 1.9ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck is a mini truck featuring 3.5m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Quanchai2.3L engine, 68 hp, 4X2 (6 wheels) drive and China V emissions.

China V 68 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5042CCYPV7K1B3V
Type: stake truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.5m
engine: Quanchai4A2-68C50
transmission: QingshanMR78
Cab length: 5.57m
Cab width: 1.71m
Cab height: 2.6m
Front track width: 1360mm
rear track: 1180mm
Curb Weight: 1.9ton
Rated payload: 1.495ton
GVWR: 3.525ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 19.5°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.185/1.385m
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4A2-68C50
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China V
Max output power: 50kW
Max hp: 68Horsepower
Max torque: 170N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline, vertical, water-cooled, high-pressure common rail, turbocharged intercooled
Transmission Parameters
Transmission Model: QingshanMR78
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.5m
Cargo box width: 1.61m
*Cargo box interior width: 1.61
Cab parameters
Cab width: 1626mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1270kg
rear axle description: 2.1T
rear axle allowable load: 2255kg
Leaf spring count: 3/5
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
steering wheel adjustment: Manual
AC control type: Optional manual.
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

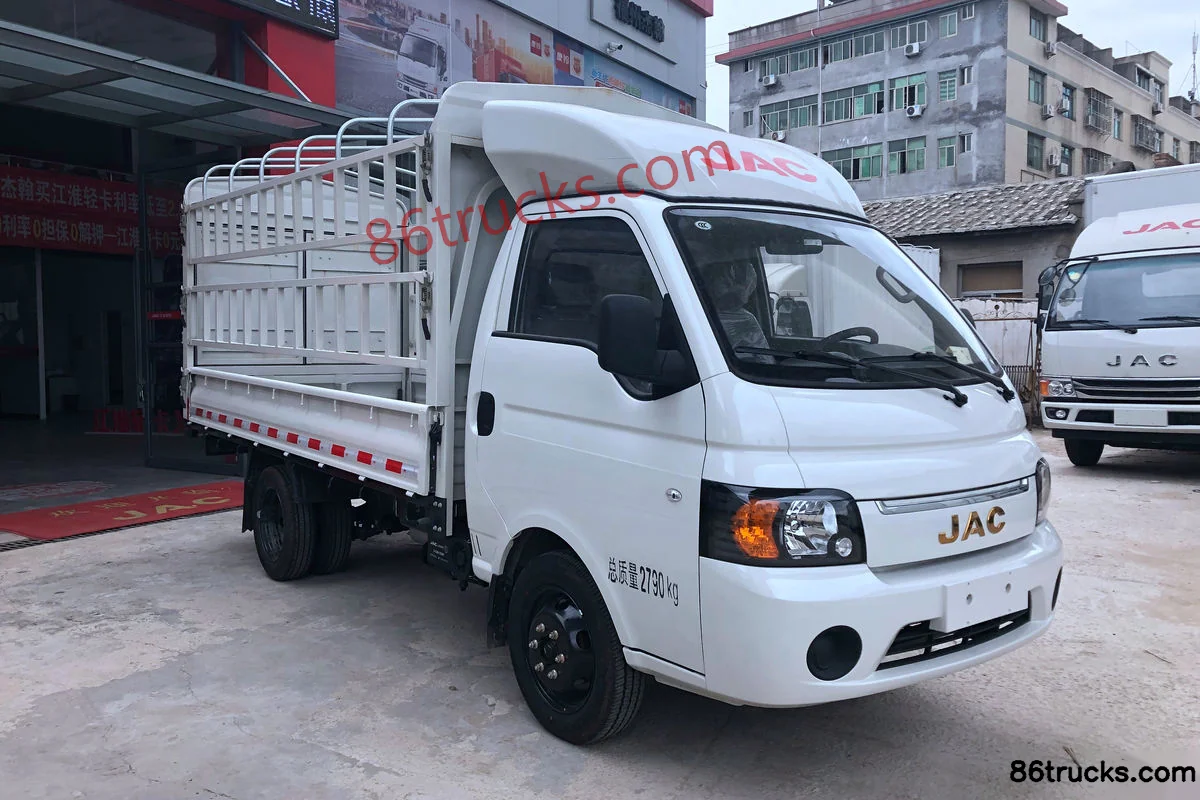

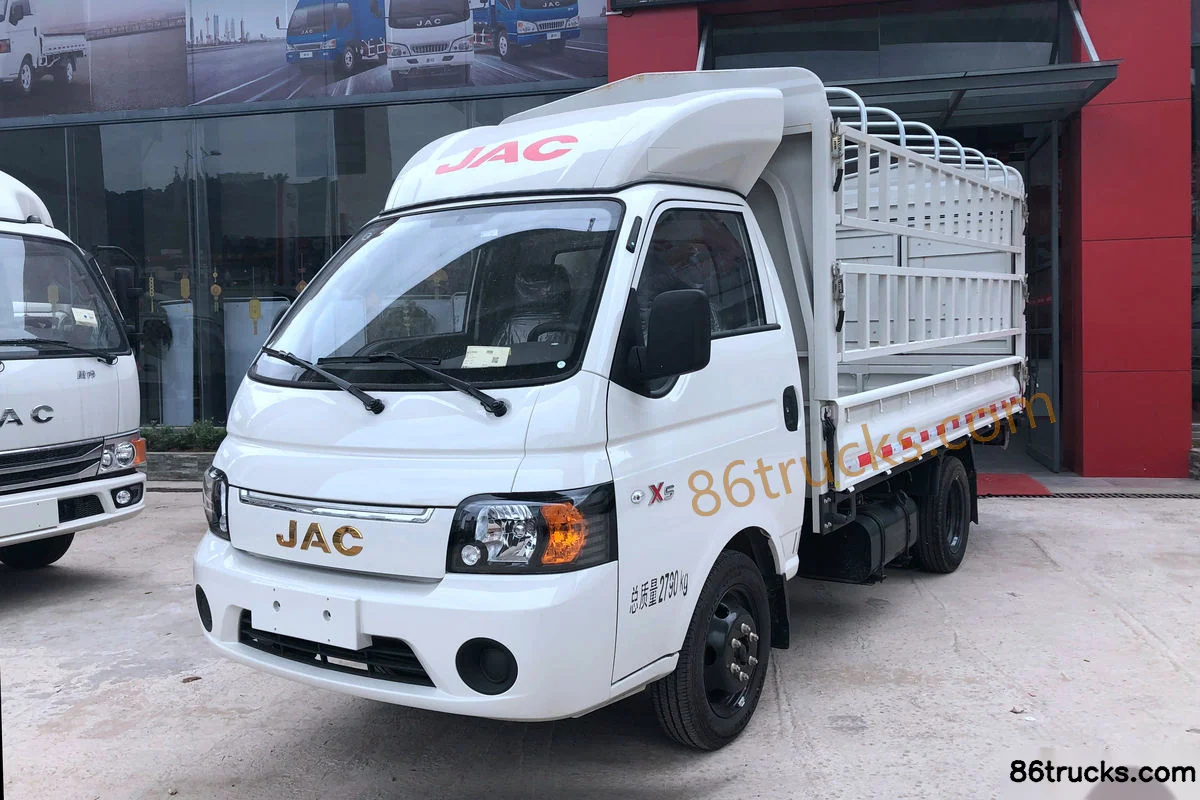

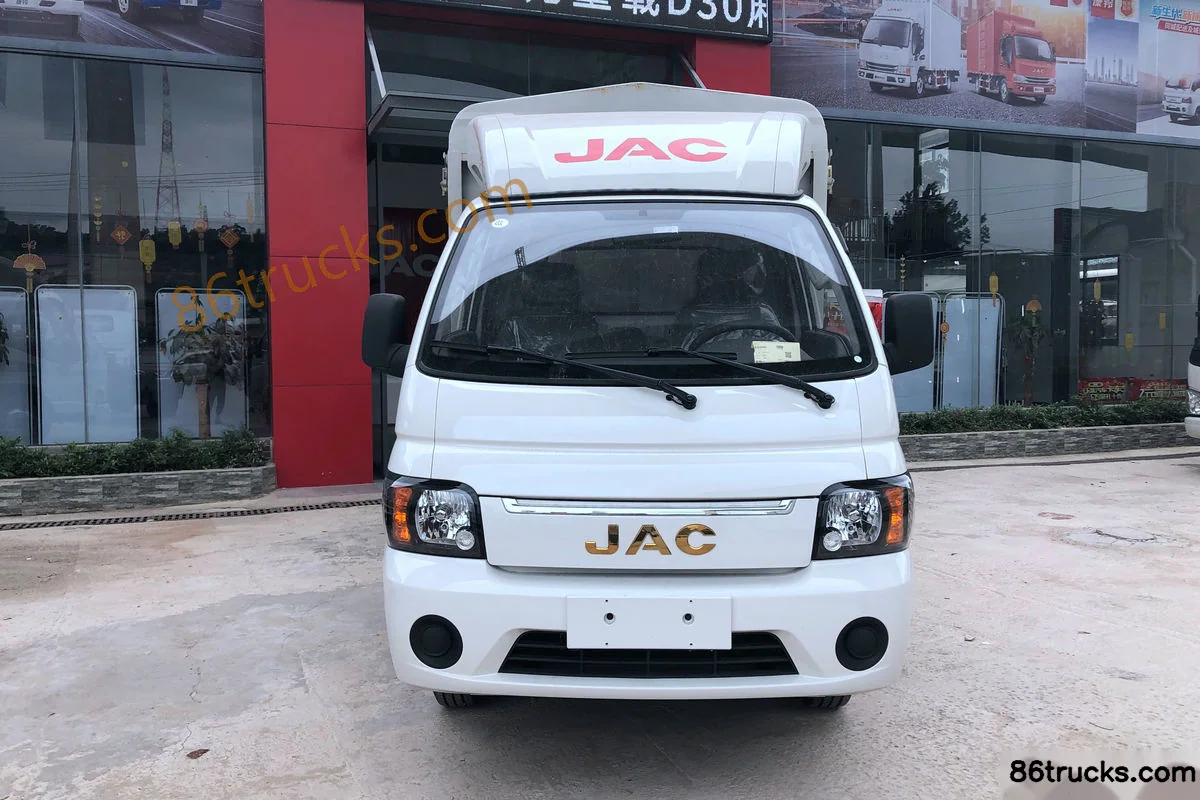

Exterior3

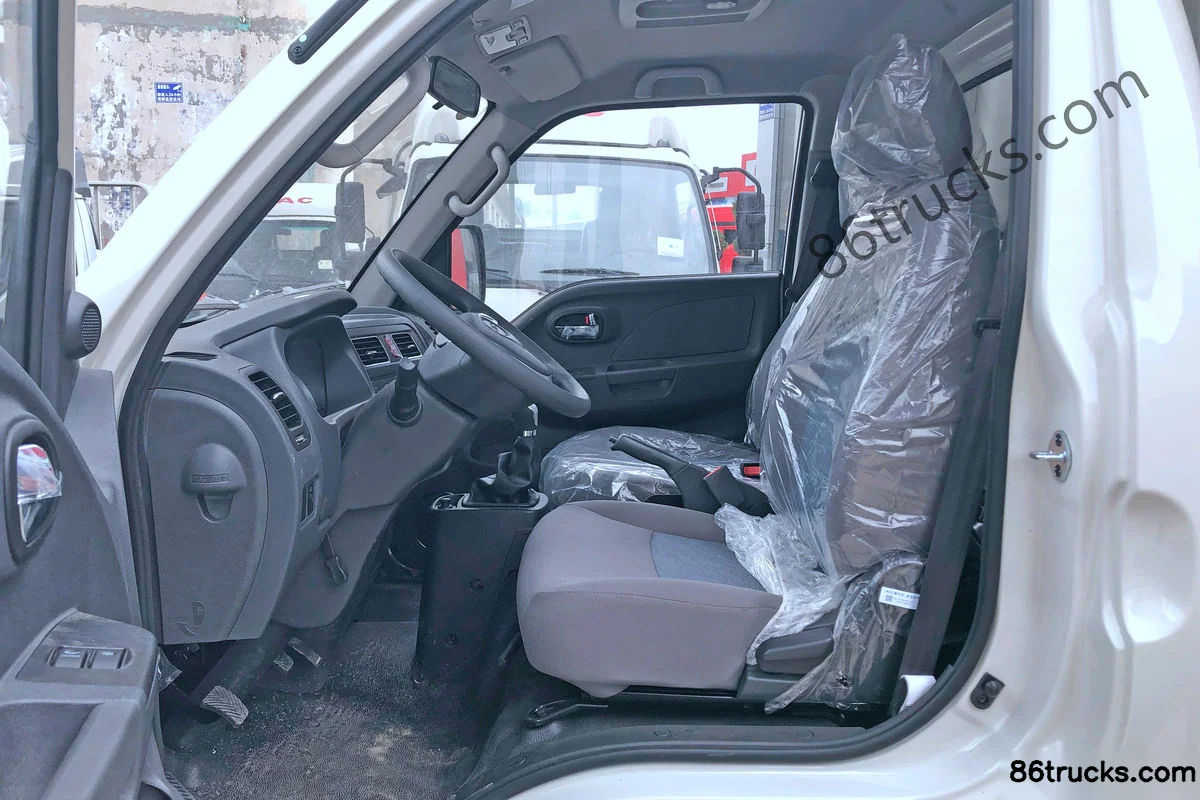

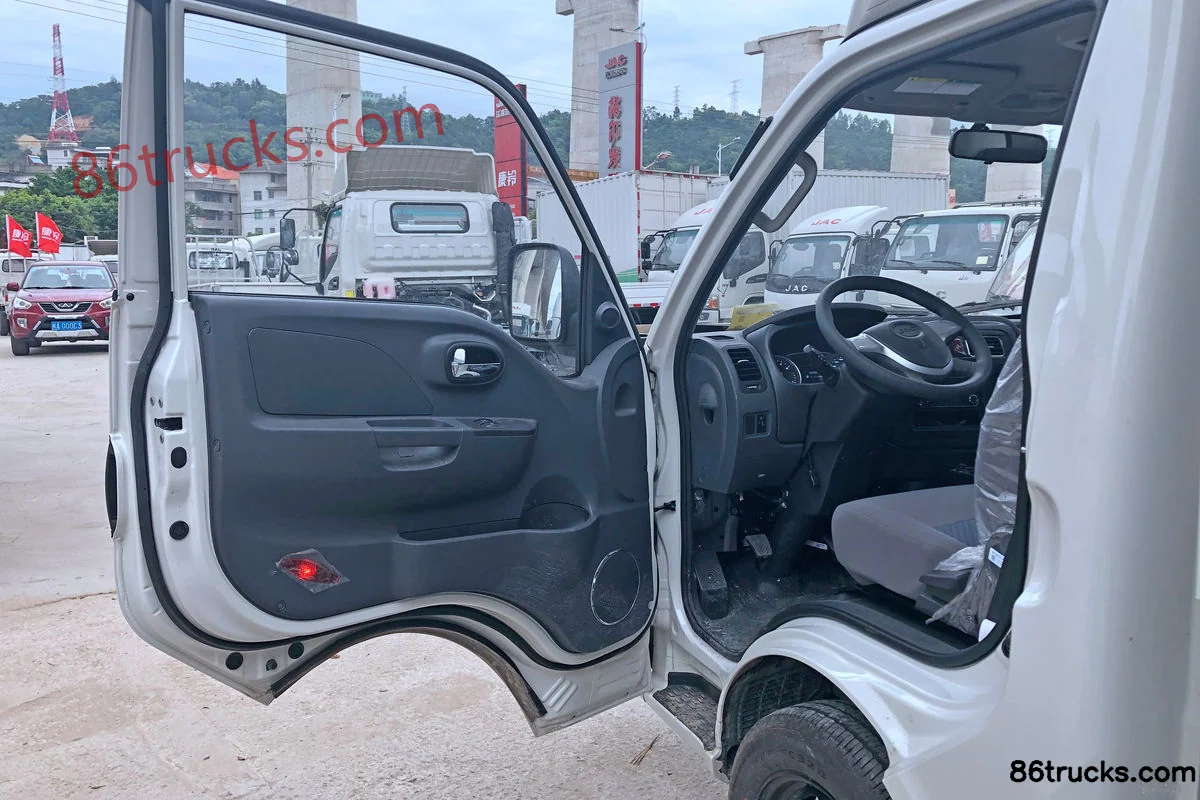

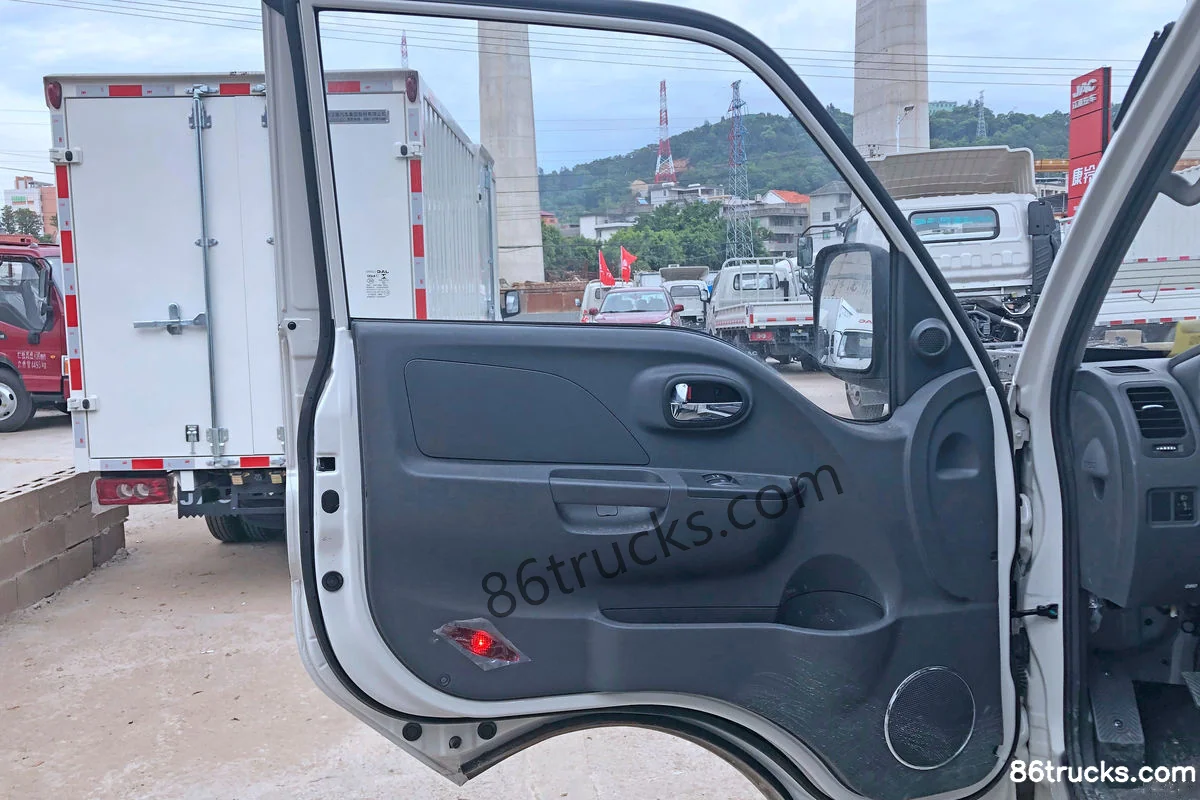

Cab3

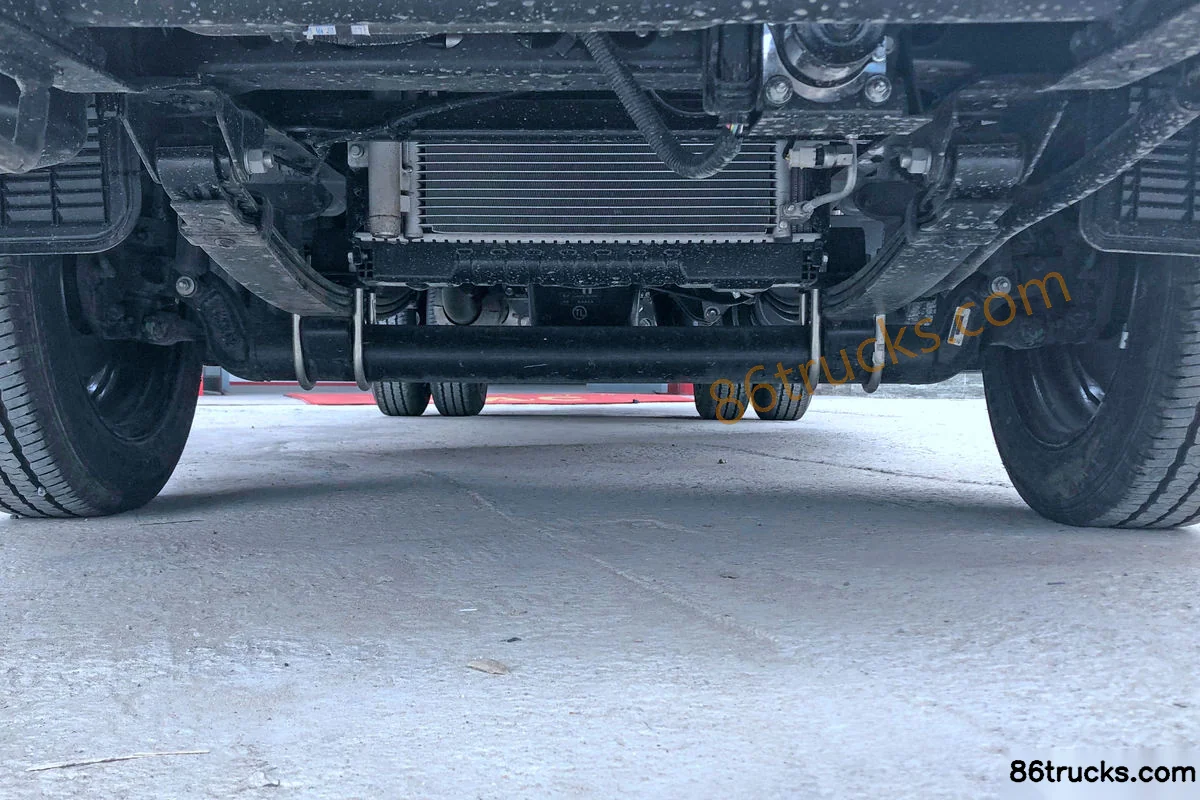

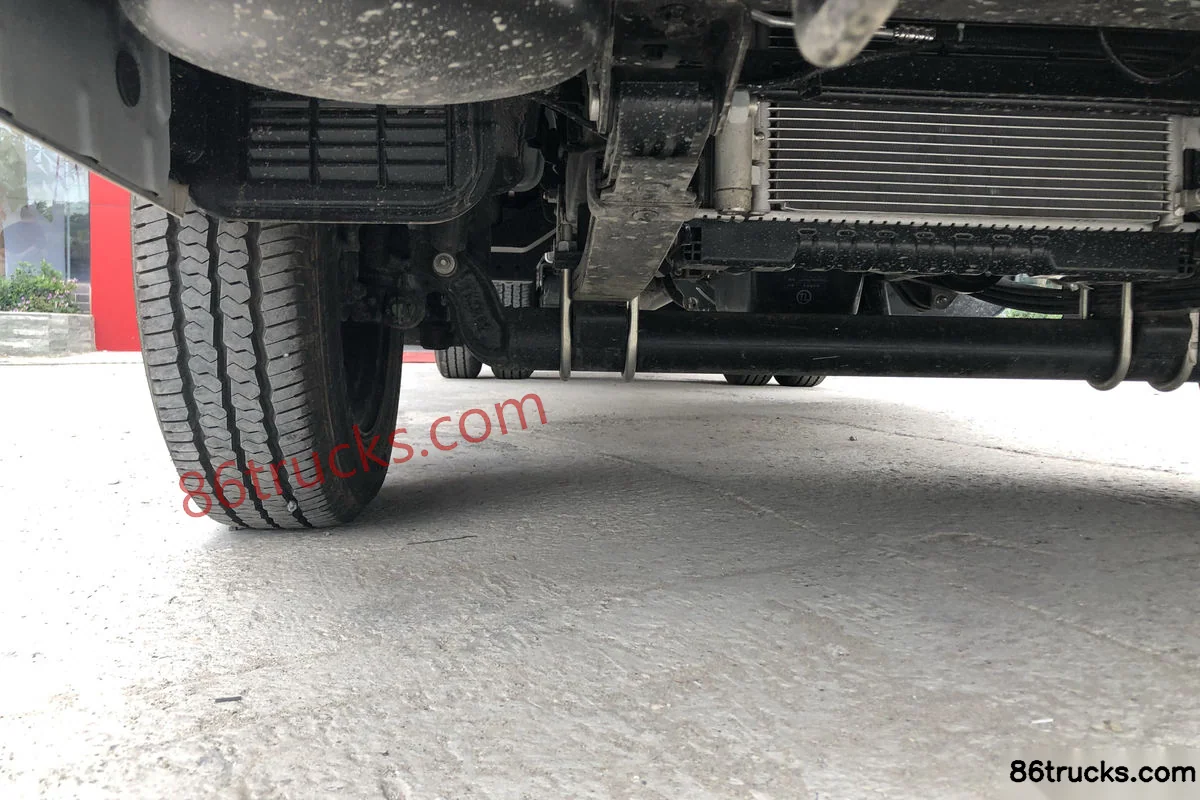

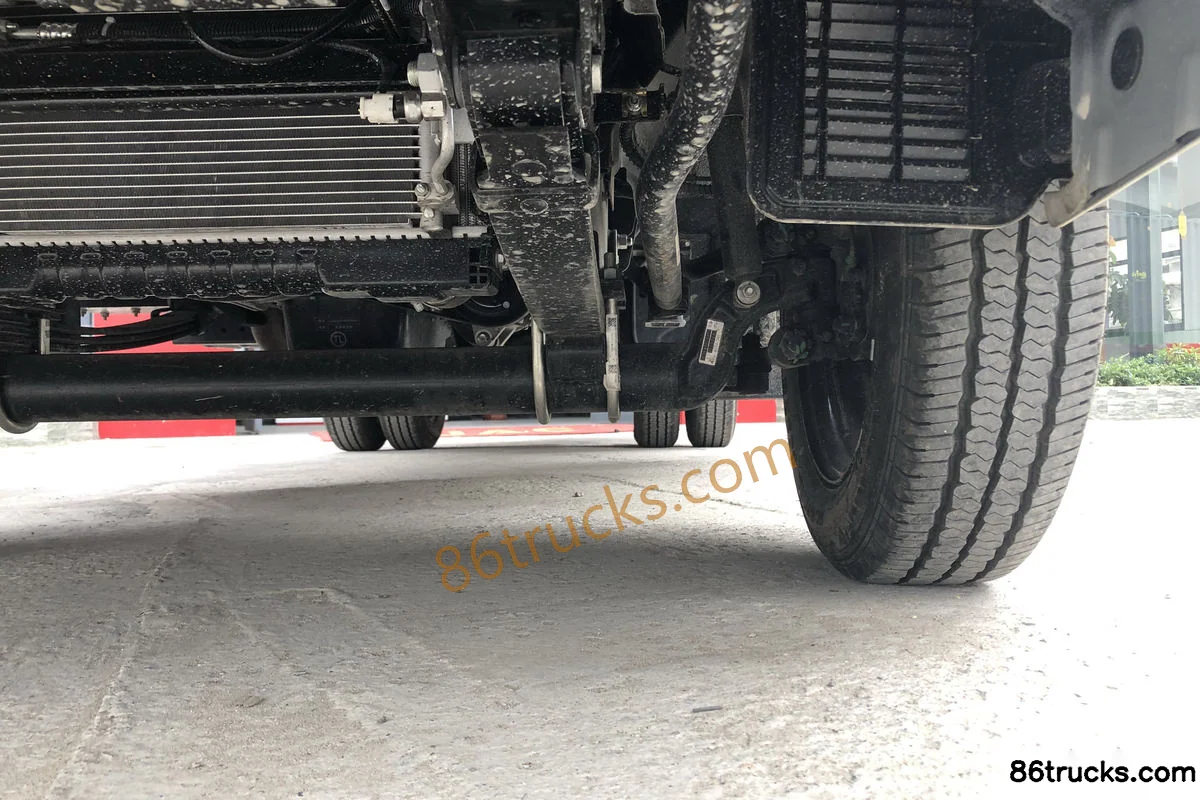

Chassis3

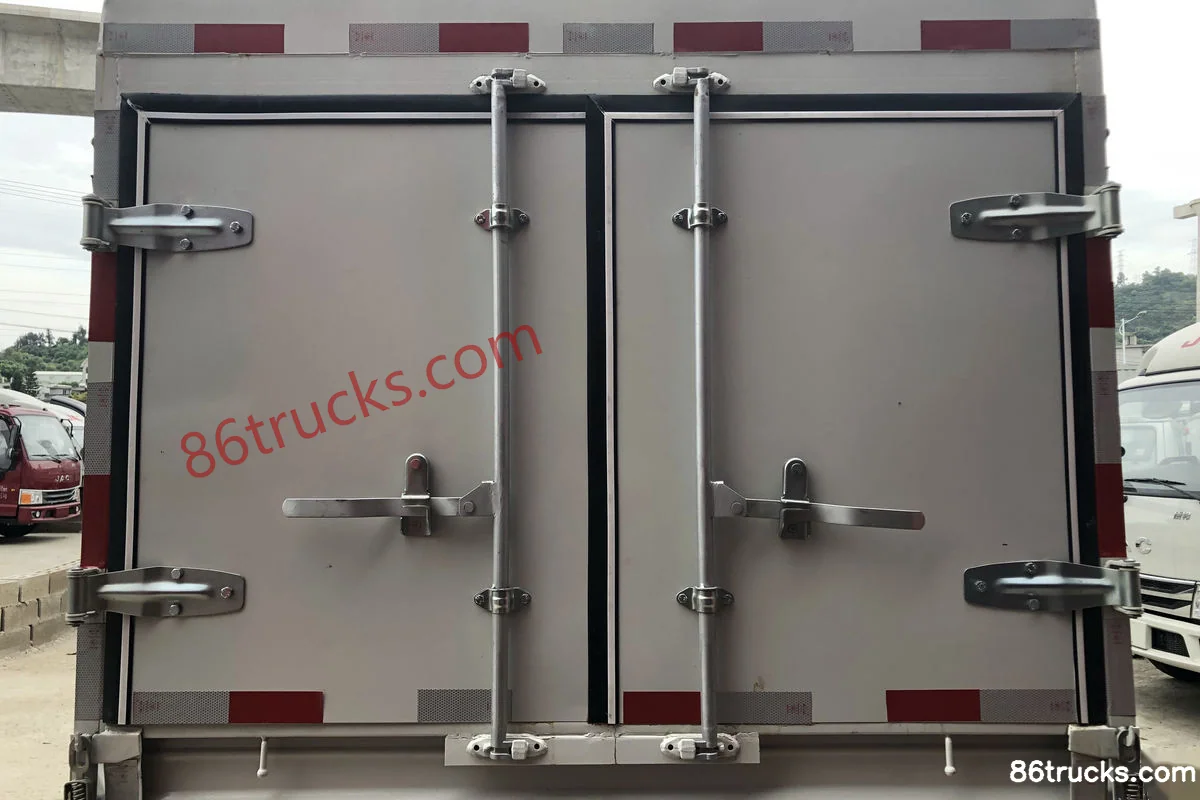

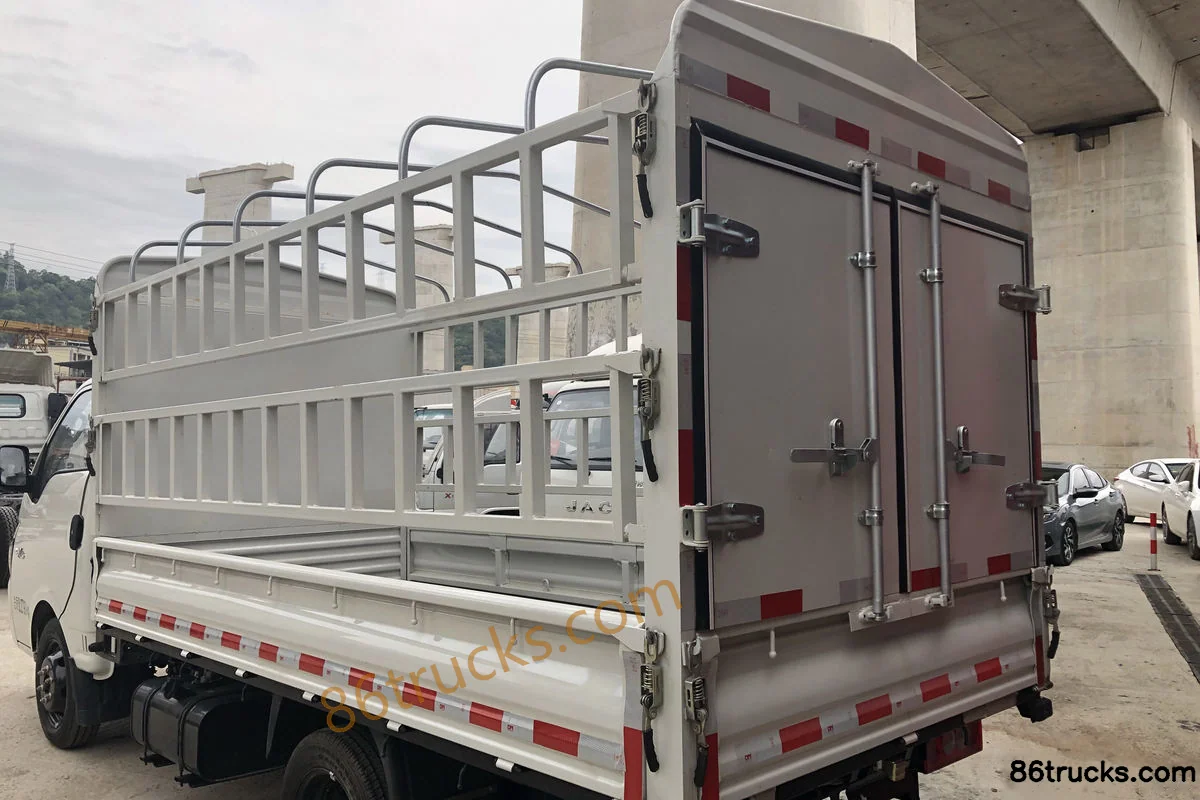

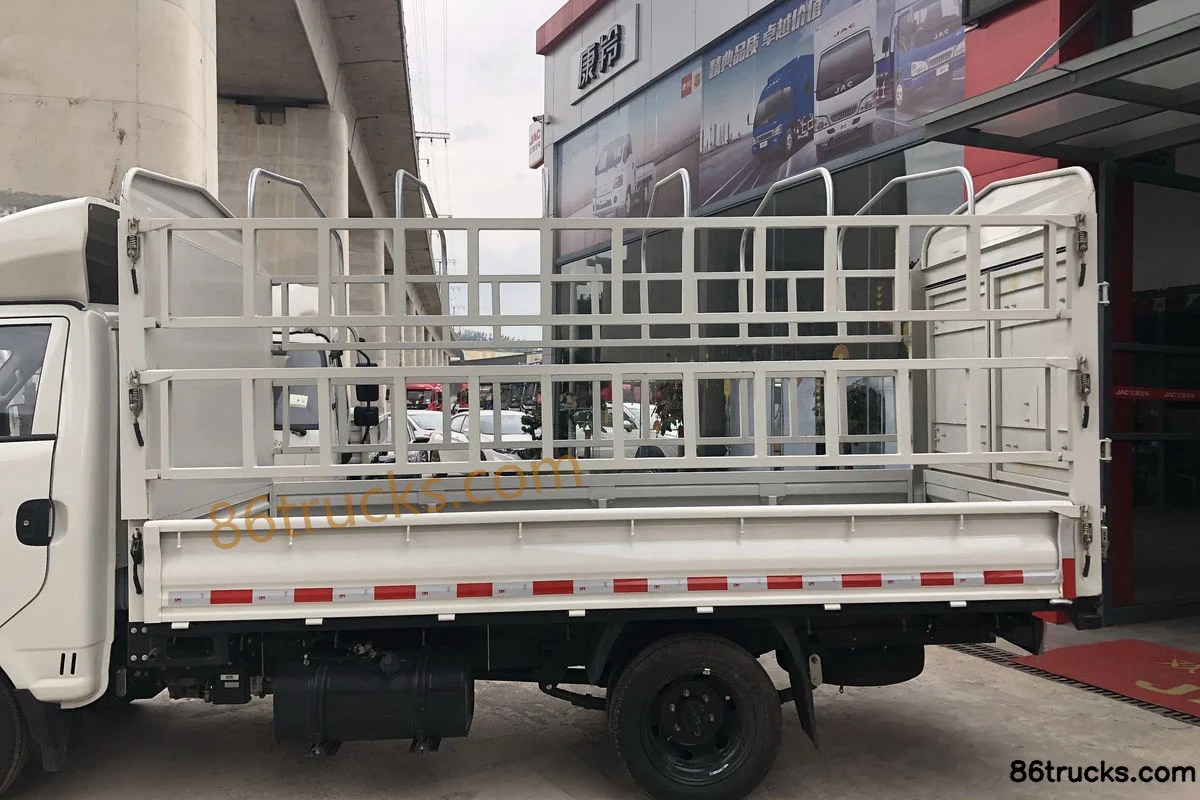

Body3

12 photos

FAQ

What is the export price of JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck, and what does it include?

JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck export reference is about From $10,528; MSRP is ¥7.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck?

Key specs of JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck: Drive: 4x2; Horsepower: 68 hp; Emission: China V; Fuel: Diesel; Engine: Quanchai2.3L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck suited for?

JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck differ from other variants in the same series?

JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck belongs to JACX5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC K5 X5 Comfort Edition 68 hp 4X2(6 wheels) 3.5m single-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
