Kama Kaijie M3 Chuangye Edition 130 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 130
Emission: China VI
Fuel: Diesel
Engine: Xichai 4-cylinder
Curb Weight:: 2.565ton
Wheelbase:: 3360mm
seating capacity: 2Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M3 Chuangye Edition 130 hp 4X2(6 wheels) 4.16m Single Row Flatbed Light Truck (China VI) is a Light Truck featuring 4.16m cargo length, stake body cargo body, 2Personnel volume and 1.735t payload. On the powertrain side, it comes with a Xichai 4-cylinder engine, 130 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC1042F336DP6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: XichaiCA4DB1A13E68
transmission: 6-speed transmission
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2.27m
Cab height: 2.39m
Front track width: 1570mm
rear track: 1590mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
Front/rear suspension: 1.125/1.51m
Version: Chuangyeban
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1A13E68
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.207L
Emission standard: China VI
Max output power: 95kW
Max hp: 130Horsepower
Transmission Parameters
Transmission Model: 6-speed transmission
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.16m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 1900mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 1064AQSJ
Front axle allowable load: 1860kg
rear axle description: 1063AQDSJ break
rear axle allowable load: 2635kg
Axle ratio: 5.375
Leaf spring count: 3/5+3
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration

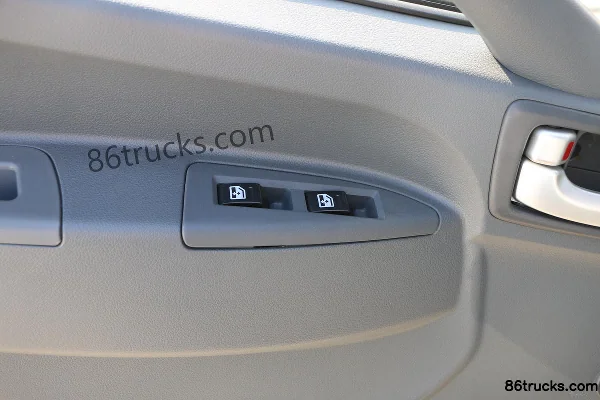

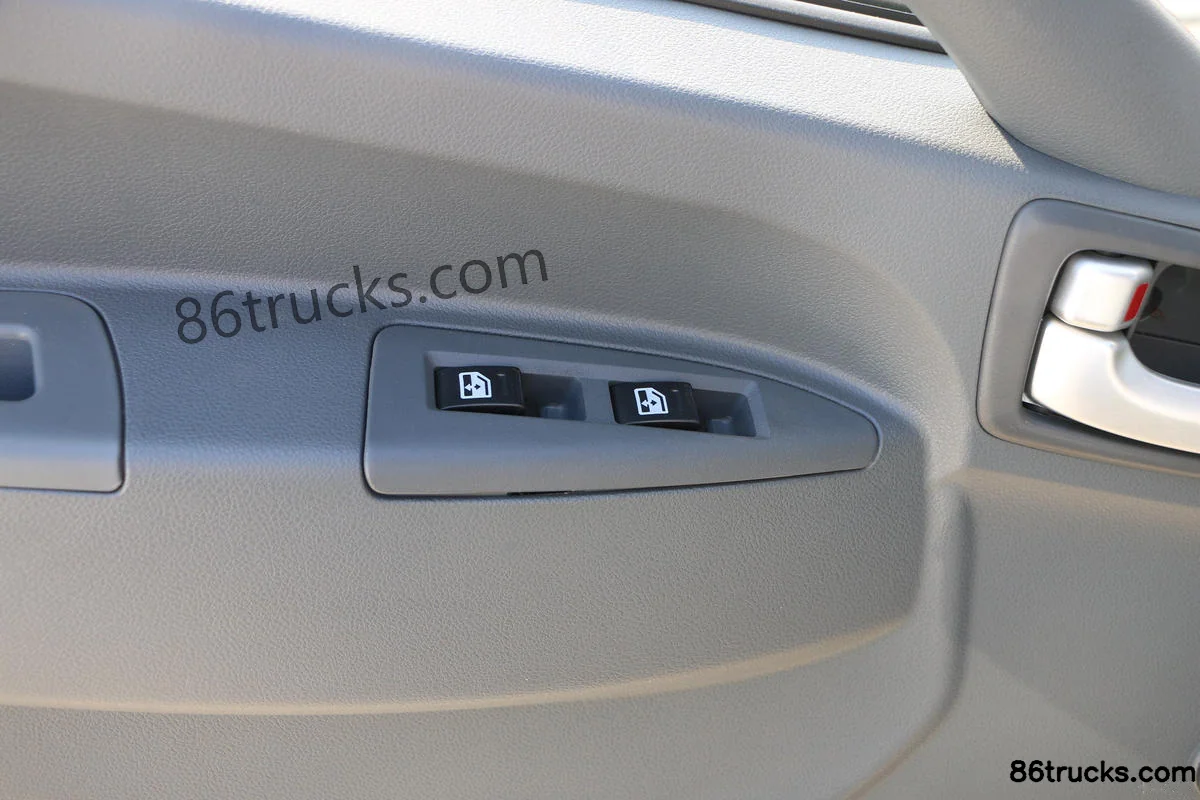

Power Windows:
Multimedia features
Radio:
standard instrument cluster:
lighting configuration
Headlight height adjustment:

Photos

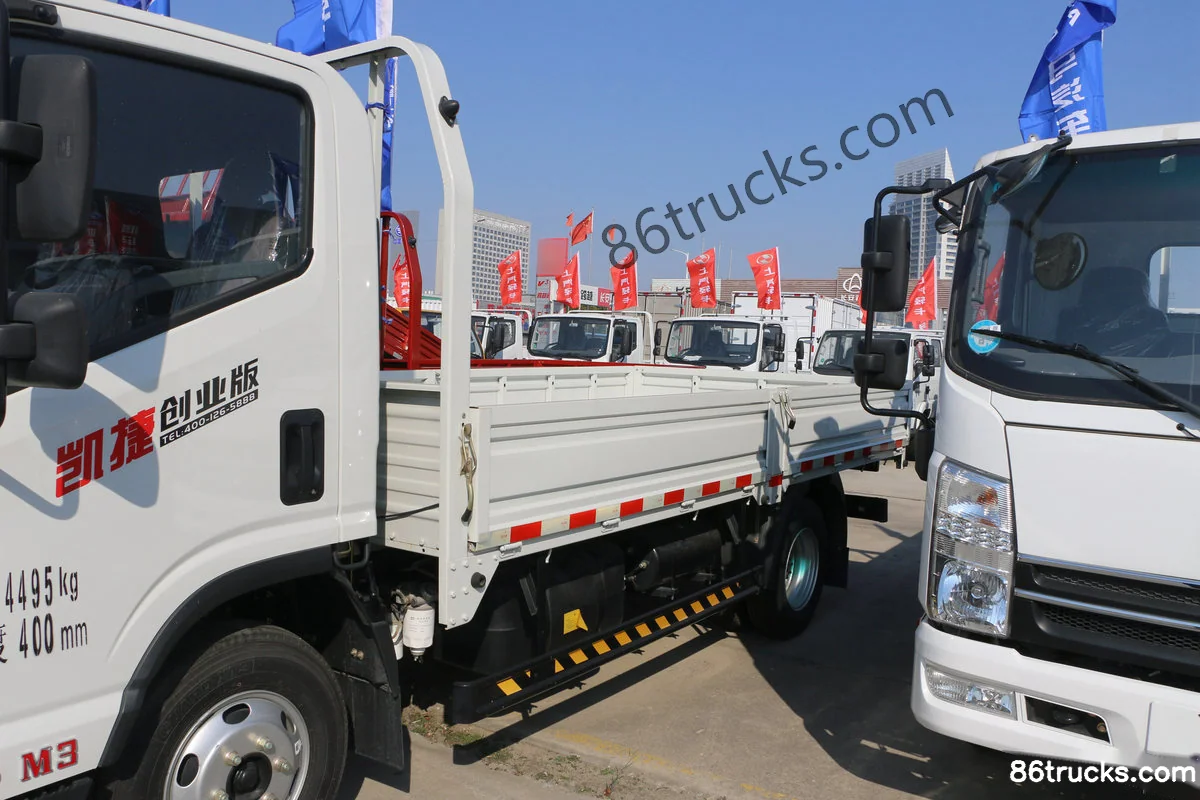

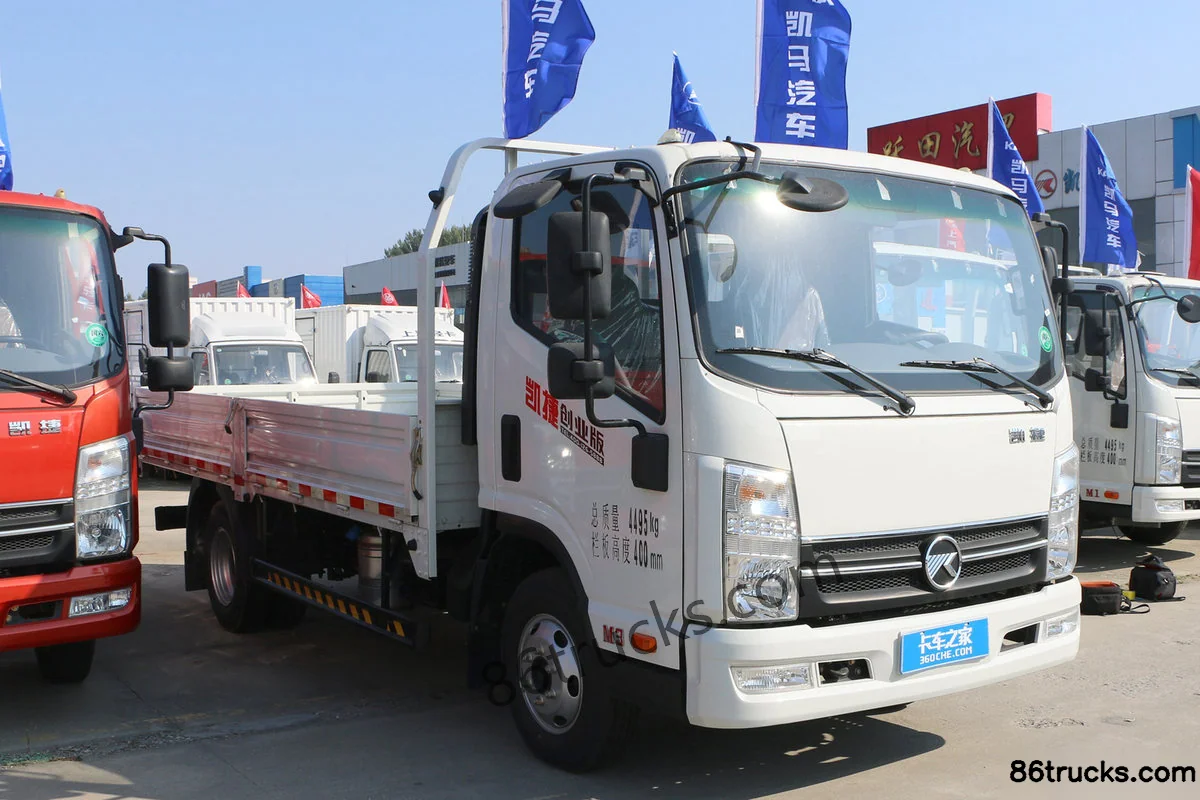

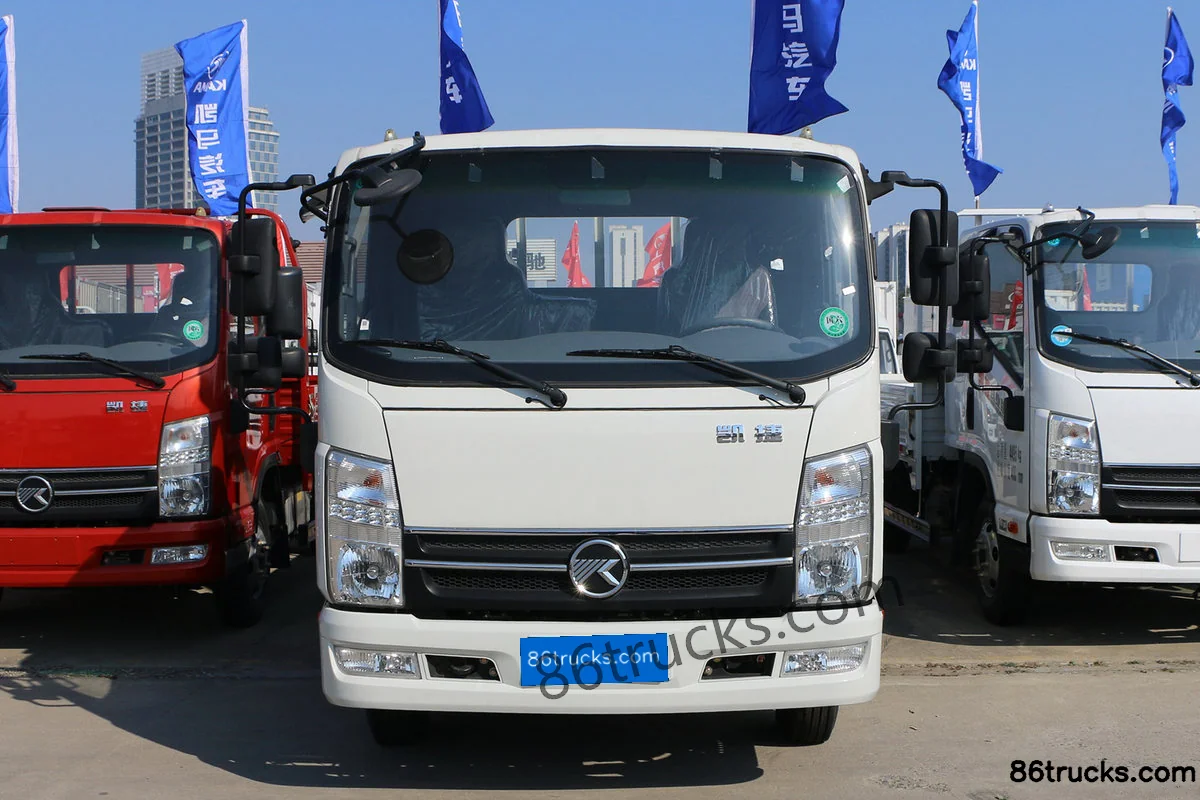

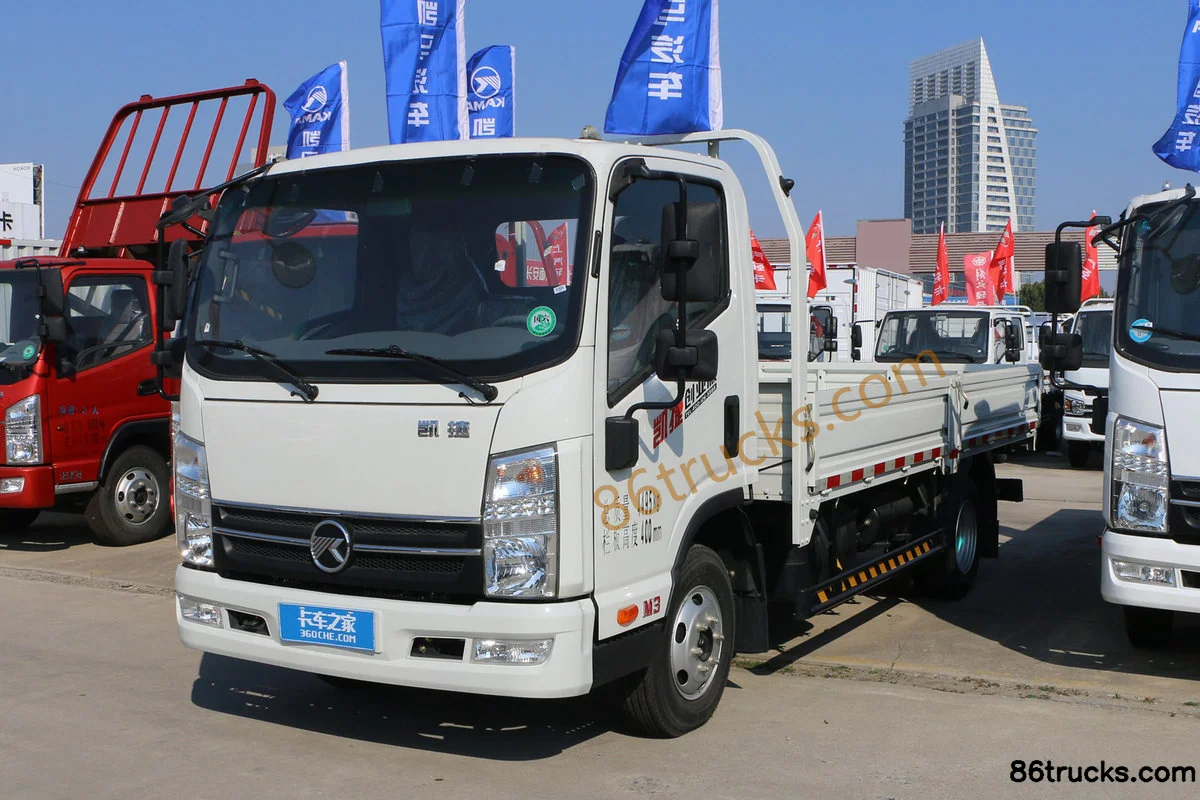

Exterior3

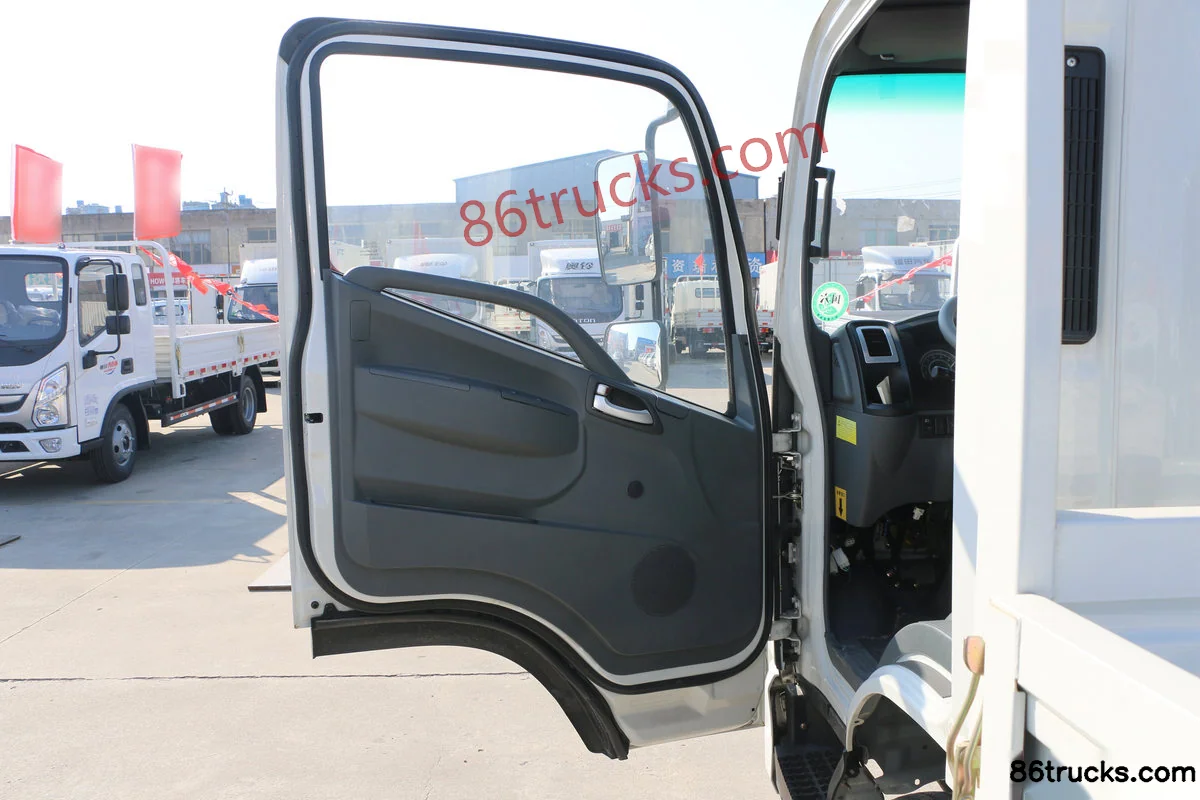

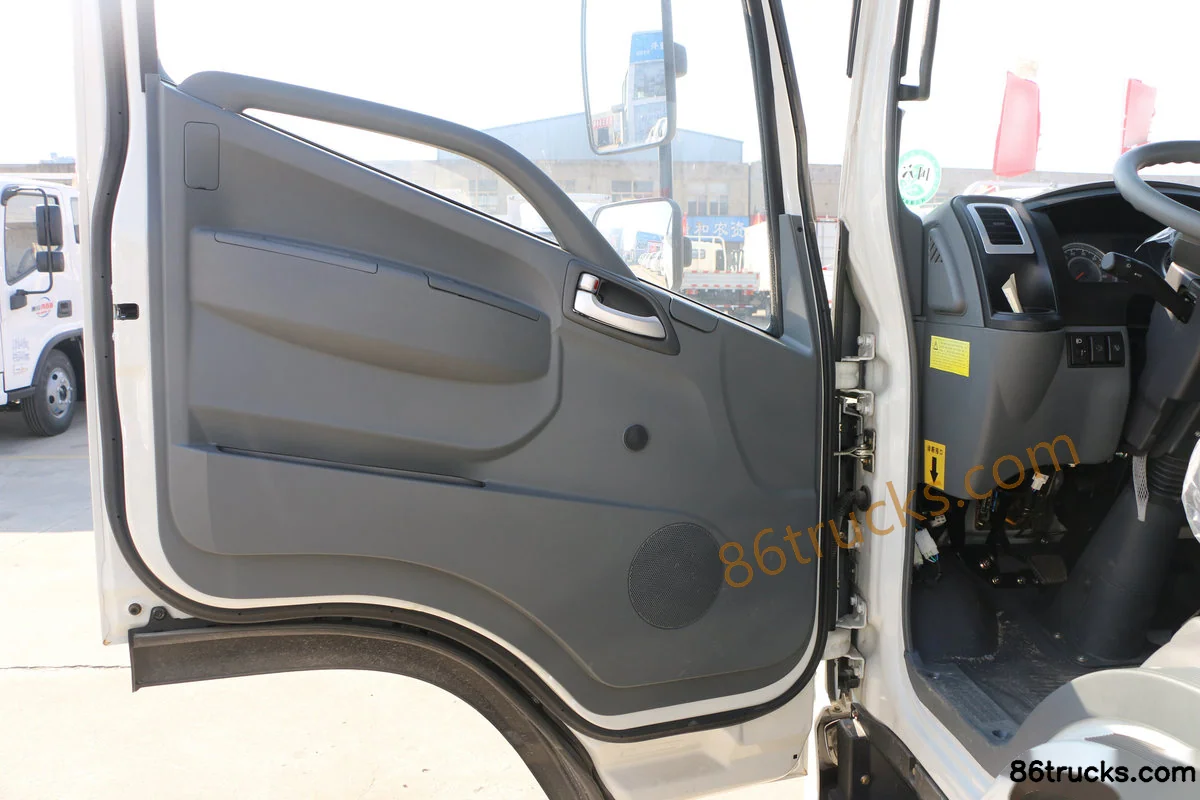

Cab3

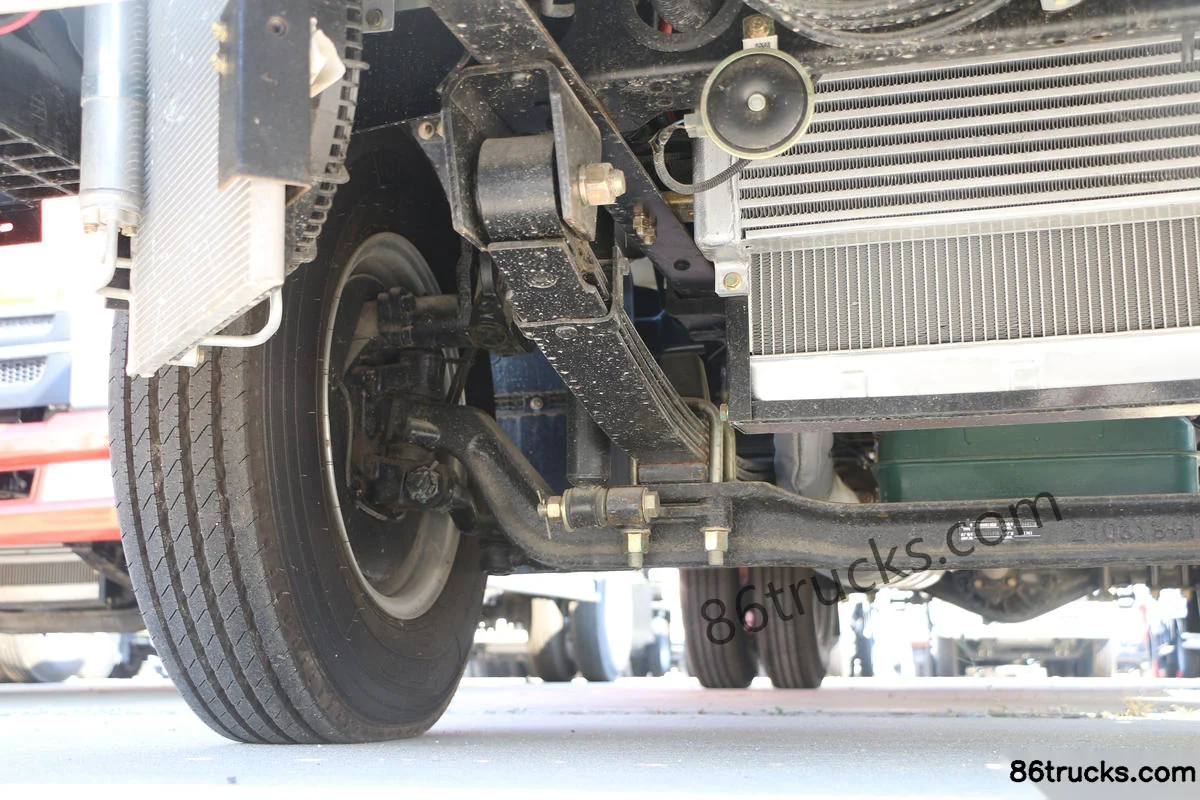

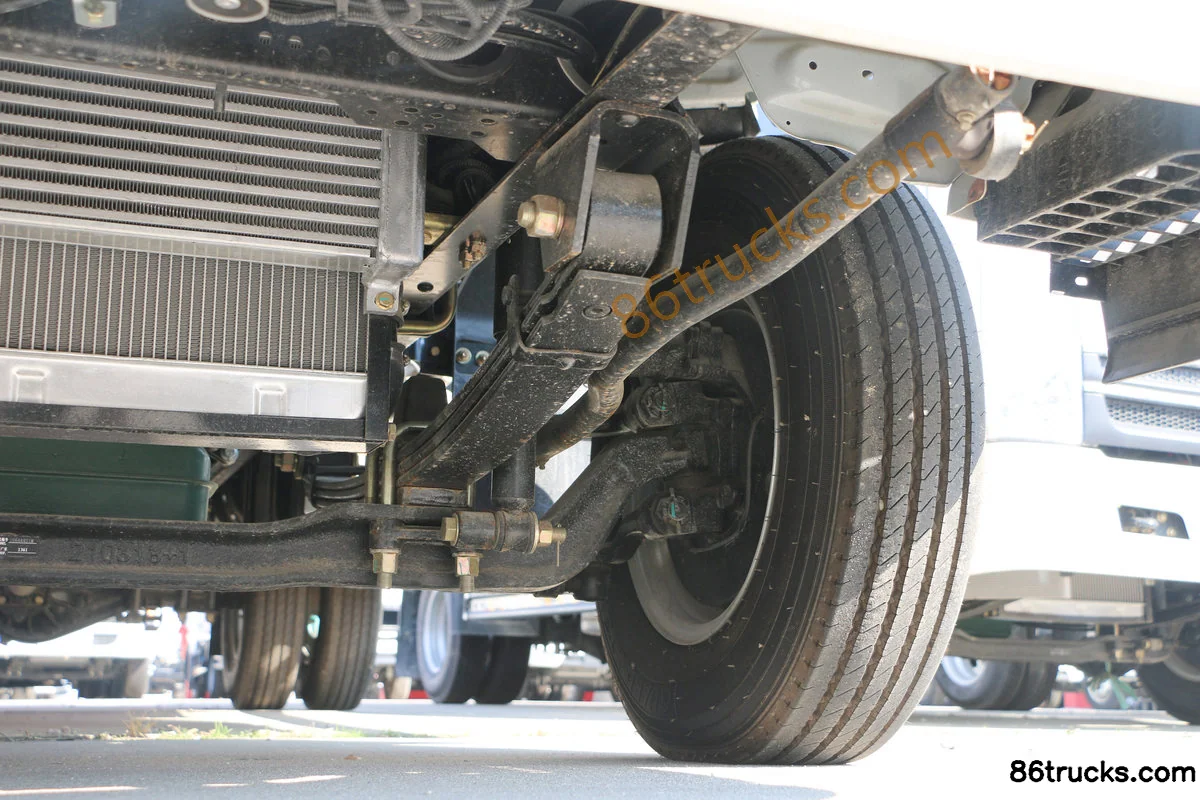

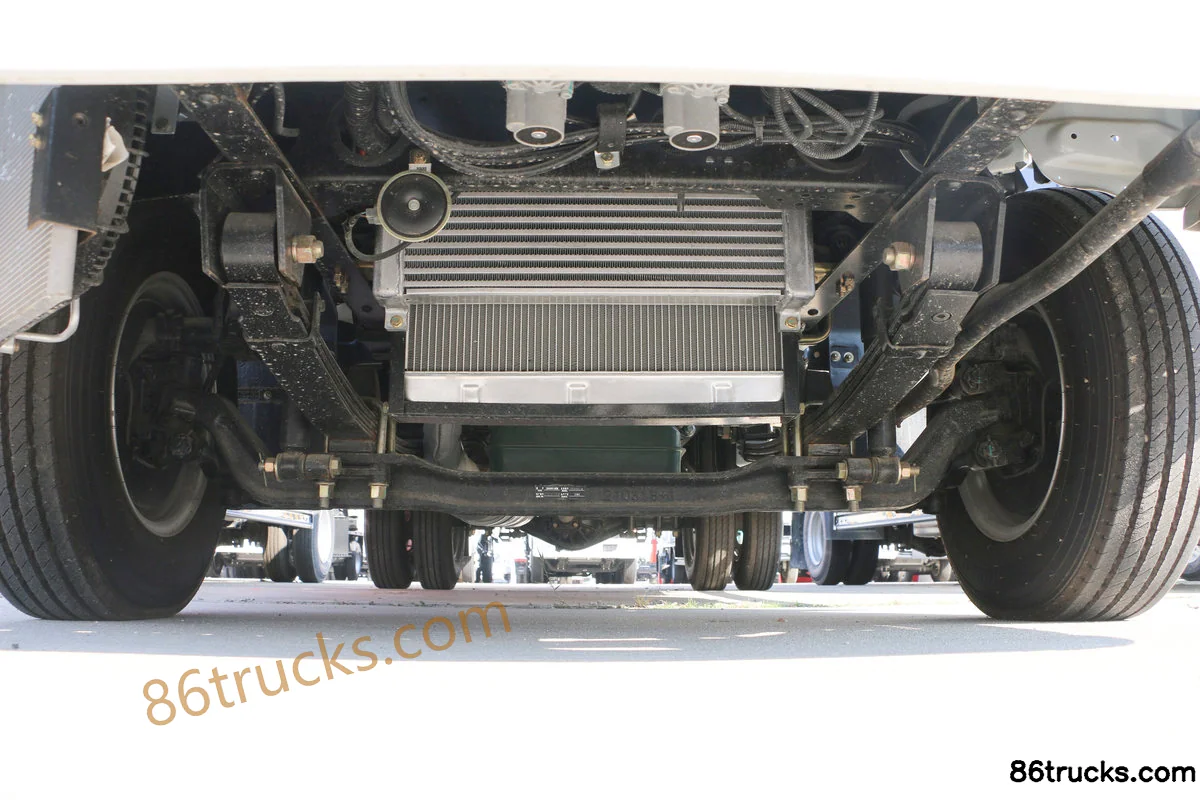

Chassis3

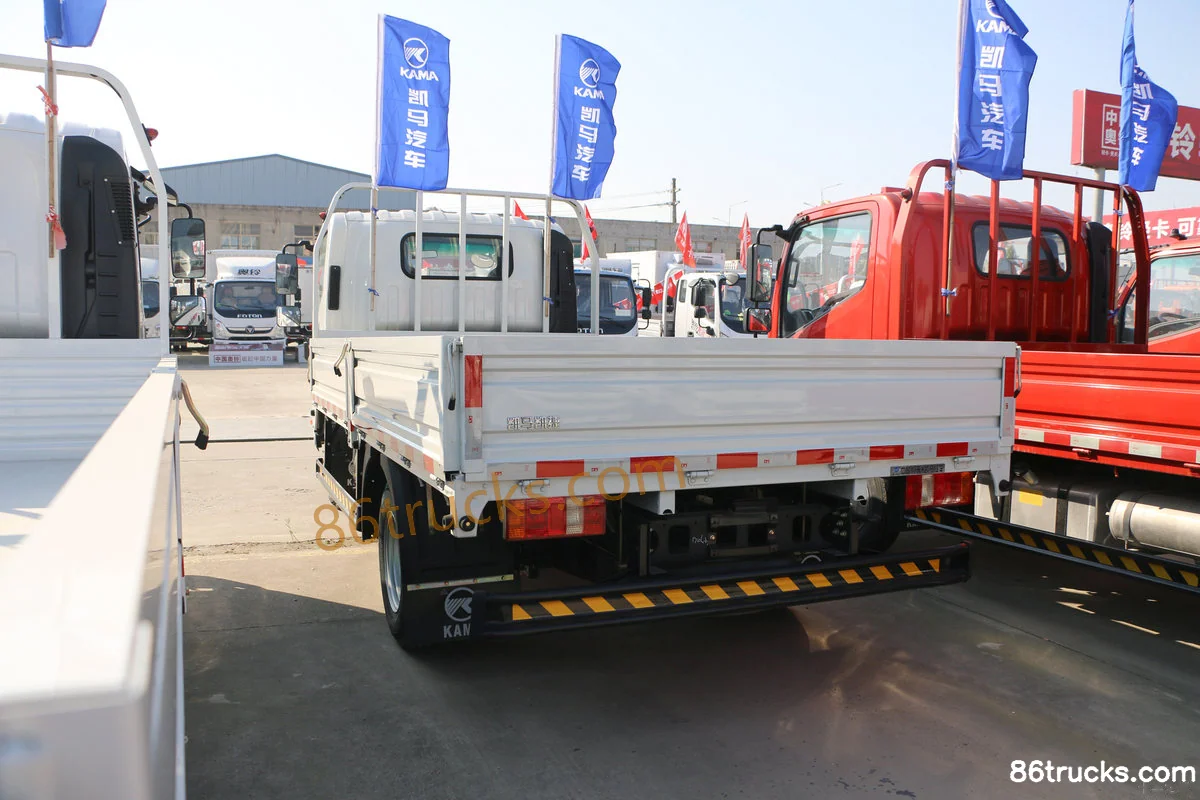

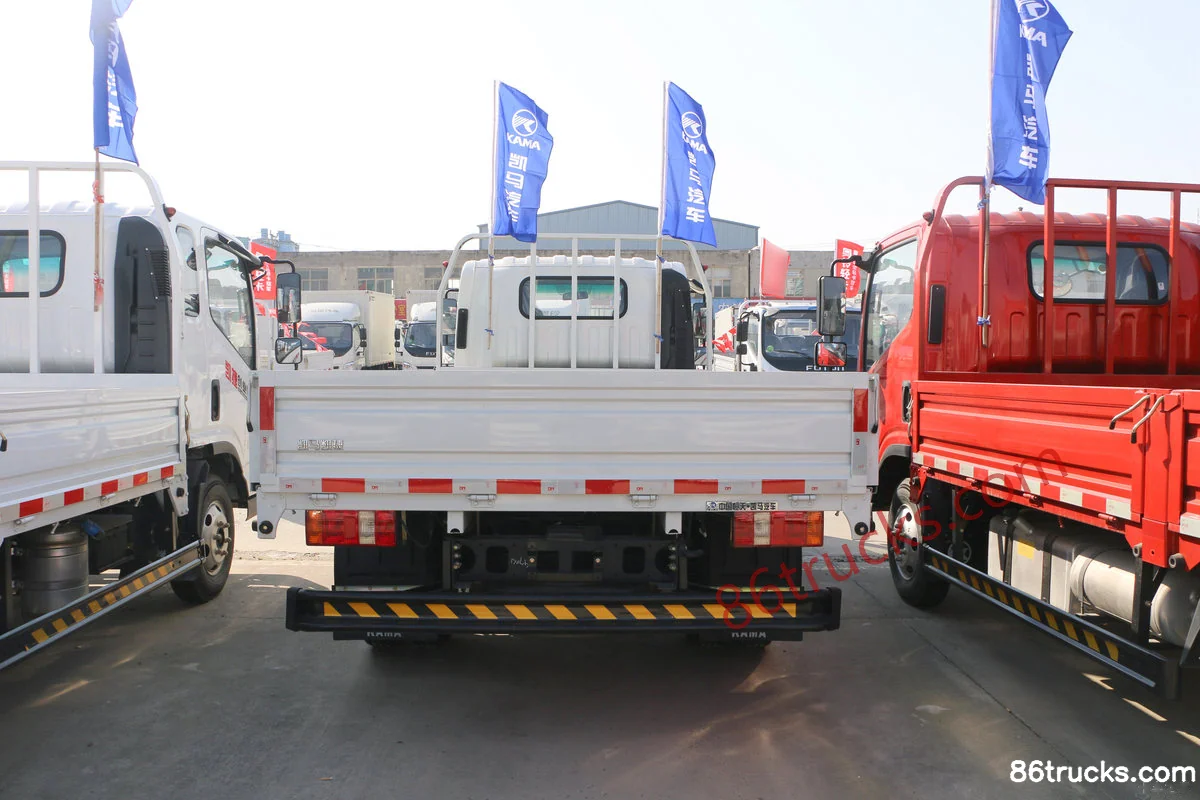

Body3
