Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand)

Export reference
From $21,944
MSRP ¥15.8M CNY
Fuel: Diesel
Wheelbase:: 3800mm
Cab dimensions:: 6.995×2.18×3.03m
Type:: Explosives Transport Truck
Front/rear track width:: Front: 1665mm; Rear: 1630
GVWR:: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 154
Rated mass: 5.26ton
Emission China V

Overview

The Xiangyang Xinzhongchang Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) is a Explosives Transport Truck featuring 9.995t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 154 hp, China V emissions and Diesel fuel.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.995×2.18×3.03m
Type: Explosives Transport Truck
Drive type: 4X2
Wheelbase: 3800mm
Front/rear track width: Front: 1665mm; Rear: 1630
Rated mass: 5.26ton
GVWR: 9.995ton
Max. speed: 80km/h
Front/rear suspension: 1.12/2.075m
Energy Type: Diesel
Body Parameters
rear guard section size: 100×50mm
Transport medium: Black powder, compressed black powder, electric detonators, blasting explosives, igniting fuse
Vehicle certification code: XZC5109XQY5
Body Brand: Zhongchang Brand
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5154
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Max torque speed: 1200-1900rpm
Rated speed: 2600rpm
Cargo box parameters
Cargo box dimensions: 5.1×2.1×1.8m
Chassis Specs
Chassis Brand: Foton
Chassis Series: Aoling CTX
Chassis Model: BJ1109VEJEA-FB
Leaf spring count: 3/7+6
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6T120
Tire
Tire Size: 8.25R16,8.25R20 12PR
Number of tires: 6pcs

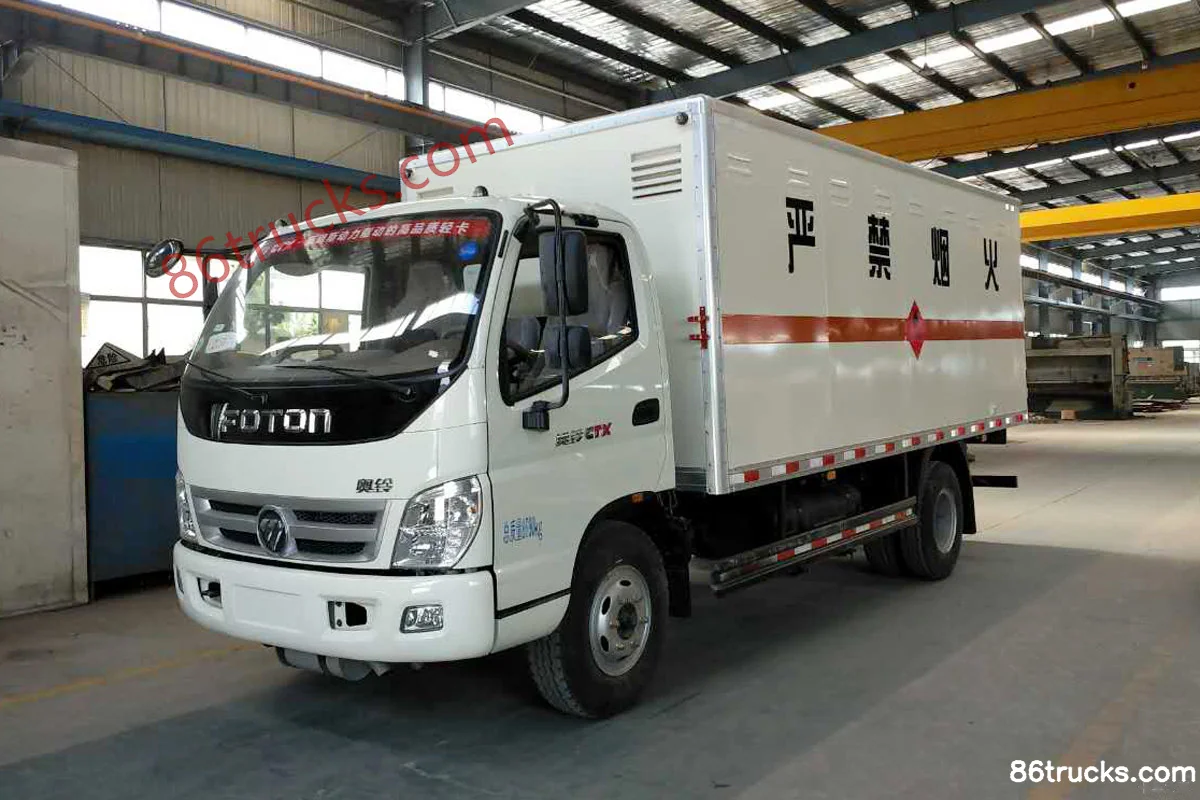

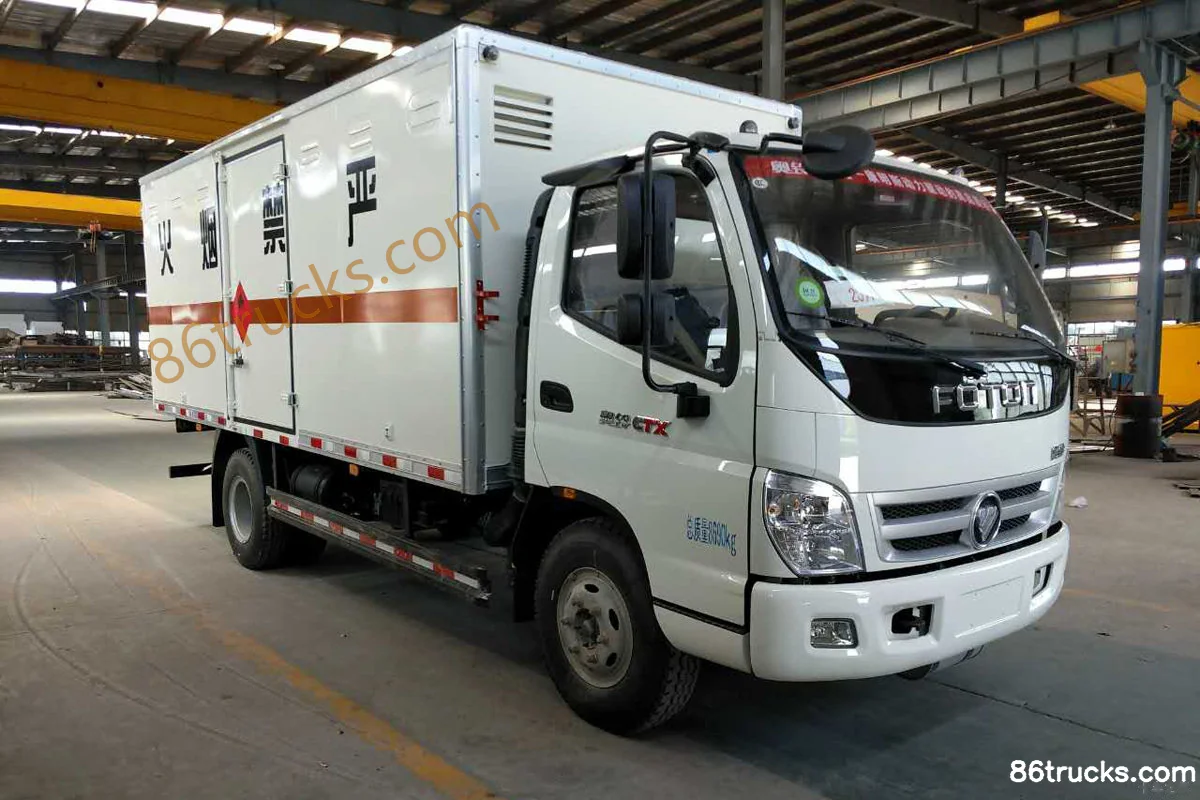

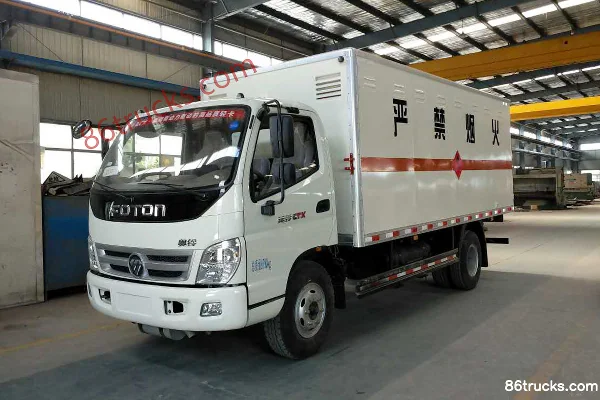

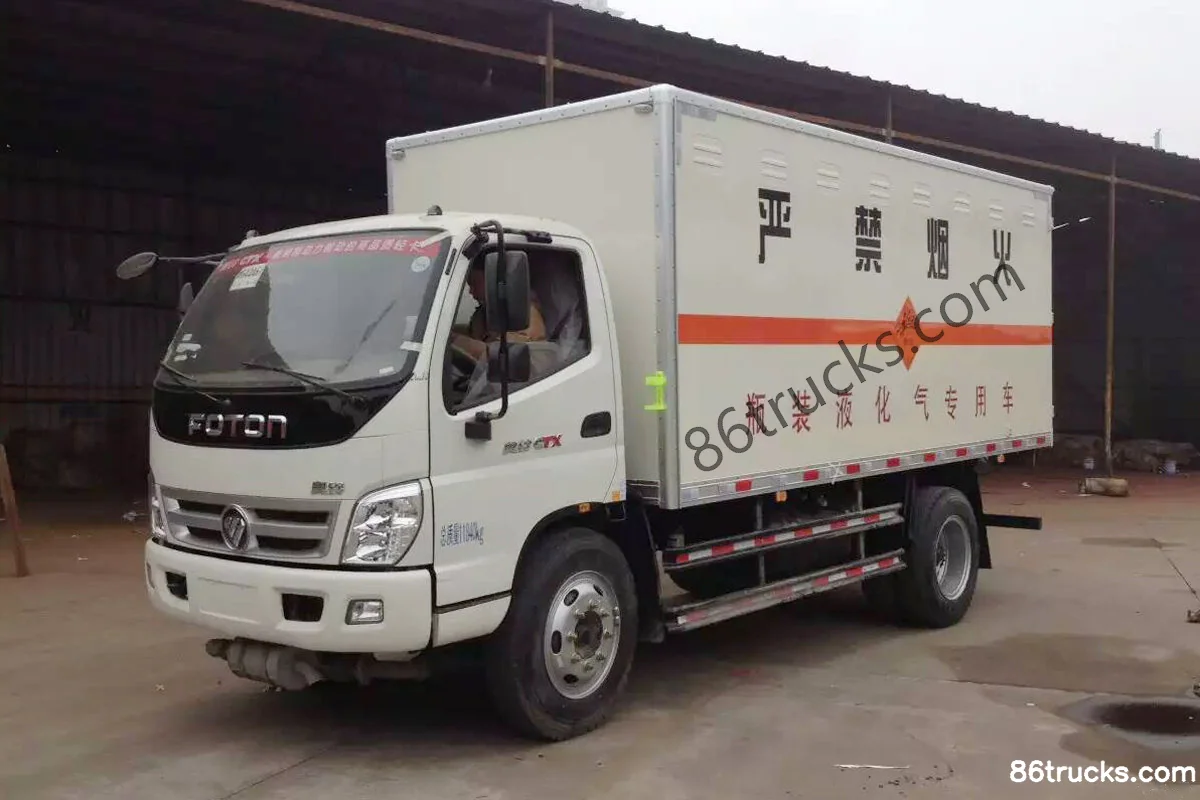

Photos

Exterior3

3 photos

FAQ

What is the export price of Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand), and what does it include?

Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) export reference is about From $21,944; MSRP is ¥15.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand)?

Key specs of Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand): Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) suited for?

Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) is a Explosives Transport Truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) differ from other variants in the same series?

Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand) belongs to Xiangyang Xinzhongchang Foton Chassis (Explosives Transport Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling CTX 154hp 4X2(6 wheels) 5.1m Explosive Material Transport Truck (Zhongchang Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
