FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 12.75ton
Wheelbase:: 1900+3200+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 9.5×2.5×3.96m
Truck Type:: Concrete mixer truck
Rated payload: 18.12ton
Drive 8X4 (12 wheels)
Horsepower 270
Emission China V

Overview

The FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) is a concrete mixer truck featuring 18.12t payload, 12.75ton GVW, 8X4 (12 wheels) drive and 9.5×2.5×3.96m cab. On the powertrain side, it comes with 270 hp, China V emissions and Diesel fuel.

China V 270 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.5×2.5×3.96m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1900+3200+1350mm
Vehicle origin: Yuanjiang, Hunan
Front/rear track width: Front: 1950/1950mm, Rear: 1847/1847
Curb Weight: 12.75ton
Rated payload: 18.12ton
Max. speed: 89km/h
Front/rear suspension: 1.375/1.925m
Body Parameters
Mixing drum capacity: 8m³
Vehicle certification code: ZLJ5318GJBJ1E
Body Brand: ZOOMLION
Engine parameters
Engine Model: WeichaiWP10.270E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, 4-stroke, electronically controlled high-pressure common rail + SCR
Chassis Specs
Chassis Series: HanV
Chassis Model: CA3310P1K2L3T4BE5A80
rear axle description: 435 single reduction axle
Leaf spring count: 12/12/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW JiefangCA10TA130M
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

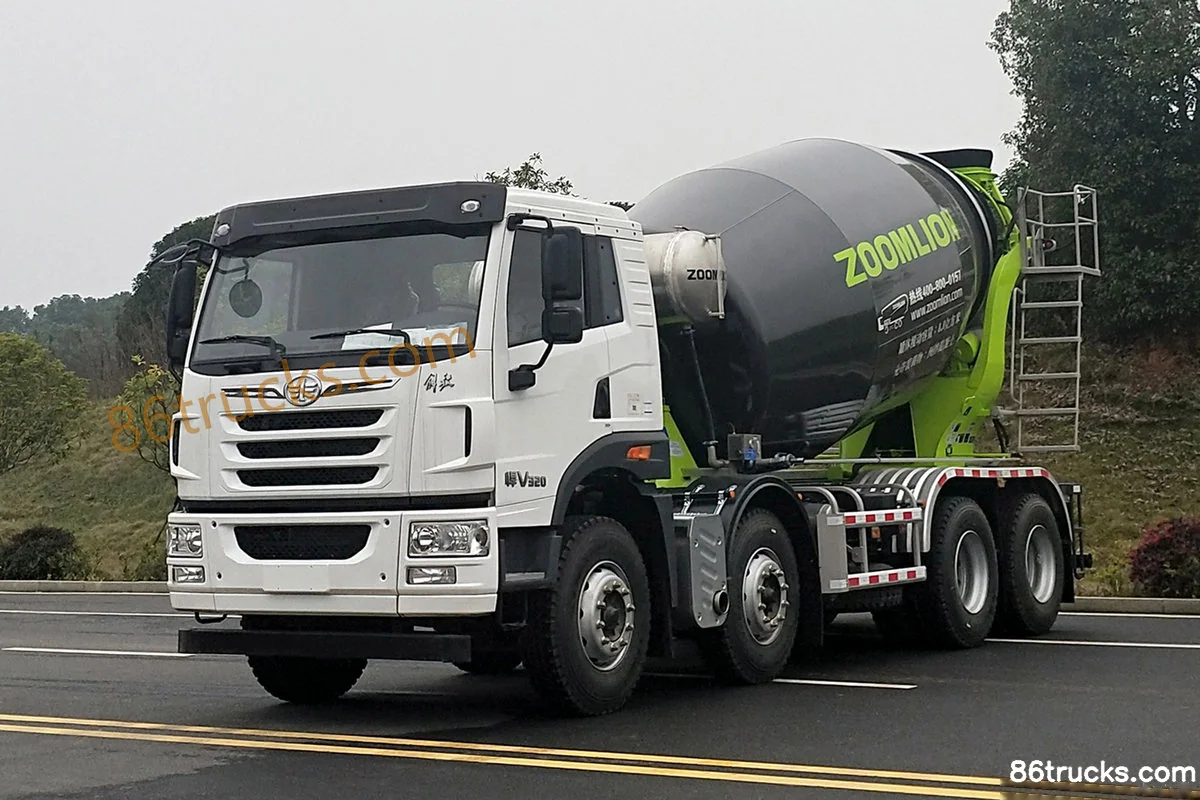

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion)?

Key specs of FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion): Drive: 8x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) suited for?

FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) differ from other variants in the same series?

FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion) belongs to ZOOMLION FAW Jiefang Qingdao Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V heavy truck 270 hp 8X4(12 wheels) 8 m³ concrete mixer truck (Zoomlion)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
