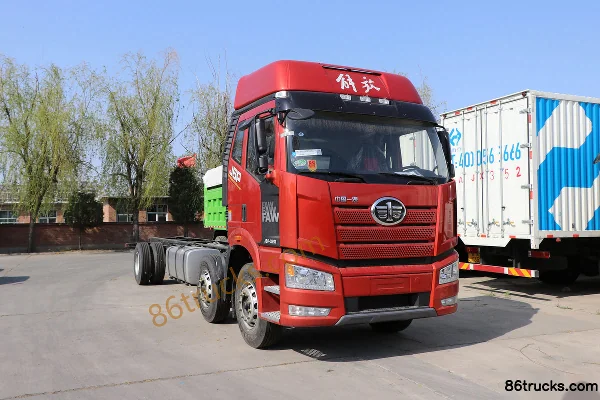

FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof)

Export reference
From $36,375
MSRP ¥26.19M CNY
Horsepower: 320
Emission: China VI
Fuel: Diesel
Engine: Dachai7.2L
Transmission: FAW Jiefang
Curb Weight:: 9.8ton
seating capacity: 2Personnel
Rated payload: 14.97ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) is a Heavy-duty cargo trucks featuring 7.7m cargo length, stake body cargo body, 2Personnel volume and 14.97t payload. On the powertrain side, it comes with a Dachai7.2L engine, 320 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 320 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P66K1L6T3E6
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1900+4300mm
Box length class: 7.7m
engine: DachaiCA6DK1-32E6
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.1
Cab length: 10.1m
Cab width: 2.55m
Cab height: 3.78m
Front track width: 1950/1950mm
rear track: 1878mm
Curb Weight: 9.8ton
Rated payload: 14.97ton
GVWR: 24.9ton
Max. speed: 89km/h
Origin: Changchun, Qingdao, Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 15°
departure angle: 10°
Remarks: Exhaust throttle valve, right-turn audible warning, overspeed alarm, brake lining wear alarm, seat belt reminder, single-DIN Beidou-compatible in-vehicle system, driver seat with ventilated/heated seat (lumbar support, armrest).
Front/rear suspension: 1.5/2.4m
Version: ZhiHui Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-32E6
Engine info: Dachai7.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.2L
Emission standard: China VI
Max output power: 239kW
Max hp: 320Horsepower
Max torque: 1300N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Oil Change Interval: 50,000 km
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Transmission oil change interval: 50,000 km
Cargo box parameters
Cargo box type: stake body
Cargo box length: 7.7m
Cargo box width: 2.46m
Cargo box height: 0.6m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: 2020 new J6P high-roof large-sleeper cab
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: New F5N-2050 Front Axle
Front axle allowable load: 6700/6700kg
Frame Dimensions: 300×80×8mm
rear axle description: ф435 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.1
Suspension (front/rear): 3/3/4+3
clutch: Φ430
Tire
Tire brand: Domestic leading brand
Tire Size: 12R22.5
Tire Type: 18 ply rating tubeless
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface: Optional 220V
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
Lane Keeping Assist System (B.LKA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

0 photos

FAQ

What is the export price of FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof), and what does it include?

FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) export reference is about From $36,375; MSRP is ¥26.19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof)?

Key specs of FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof): Drive: 6x2; Horsepower: 320 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai7.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) suited for?

FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) differ from other variants in the same series?

FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof) belongs to FAW Jiefang J6P Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P heavy truck Zhihuiban 320hp 6X2(8 wheels) 7.7m flatbed cargo truck (China VI)(high roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
