NanJun Xiangkang Deluxe Edition 150hp 4X2(6 wheels) 3.15m Dump Truck

Export reference
From $14,792
MSRP ¥10.65M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 2.72ton
Wheelbase:: 2800mm
Tire Size:: 7.00R16LT 10PR
Model code (announced):: NJA3040EDH26A
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 150
Cargo box thickness: Lightweight

Overview

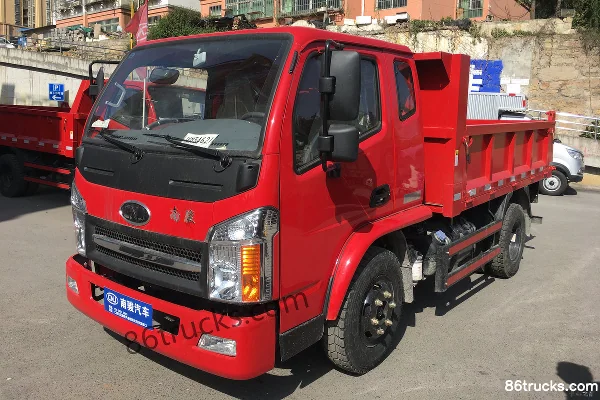

The NanJun Xiangkang Deluxe Edition 150hp 4X2(6 wheels) 3.15m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Lightweight cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25TCIF1 engine, 150 hp, China VI emissions and 8-speed gearbox transmission.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040EDH26A
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerD25TCIF1
transmission: 8-speed gearbox
Rear Axle Ratio: 5.375
Cab length: 5.75m
Cab width: 2.03m
Cab height: 2.26m
Front track width: 1430mm
rear track: 1490mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 16°
departure angle: 17°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8-speed gearbox
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG-90×300
Cargo box thickness: Lightweight
Cargo box length: 3.15m
Cargo box width: 1.85m
Cargo box height: 0.6m
Body Parameters
Lifting type: dual cylinder
Cab parameters
Cab: Sleeper cab
Cab width: 1730mm
seating capacity: 2Personnel
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1610kg
Frame Dimensions: 200mm
rear axle description: 5T
rear axle allowable load: 2885kg
Axle ratio: 5.375
Leaf spring count: 3/4+3
Tire
Tire Size: 7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
