Weirn 22.5x8(8 wheels).25 aluminum alloy wheel (Model: S091)

Export reference
MSRP N/A
Product ID:: S091
Max load capacity:: 3650kg
inner offset:: 147mm
Weirn 22.5x8(8 wheels).25 aluminum alloy wheel (Model: S091) exterior
View more photos (1)
Specifications: 22.5x8.25
Material: aluminum alloy
bolt hole diameter: 26mm

Overview

The Weirn 22.5x8(8 wheels).25 aluminum alloy wheel (Model: S091) is a parts product with spec 22.5x8.25, aluminum alloy material and 26mm size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Product ID: S091
Specifications: 22.5x8.25
Max load capacity: 3650kg
inner offset: 147mm
Weight: 27kg
bolt hole diameter: 26mm
Web plate thickness: 25mm
number of bolt holes: 10
Pitch circle diameter: 335mm
Center Hole Diameter: 281.2mm
Material: aluminum alloy
Reference tire specification: Michelin 12R22.5 X LINE ENERGY Z；Michelin 315/80R22.5 XZA 2+ ENERGY；Michelin 295/80R22.5 XTE 2；
Remarks: Bolt hole diameters: 26mm and 32mm. Suitable for city buses. Features Powder Coating (PC) surface treatment, offering outstanding mechanical strength, adhesion, corrosion resistance, aging resistance, and weather resistance. The coating is soft, high-gloss, and not prone to peeling, with good acid and alkali resistance and corrosion resistance, making daily maintenance easier.

Photos

Exterior1

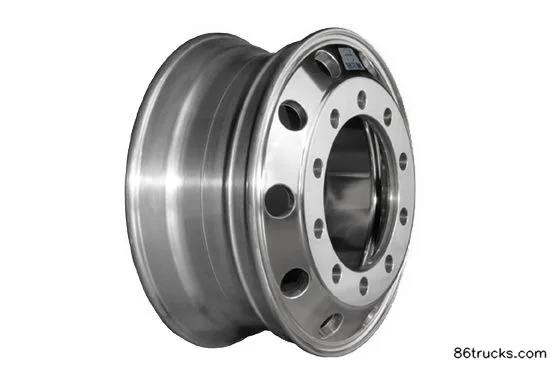

Weirn 22.5x8(8 wheels).25 aluminum alloy wheel (Model: S091) Exterior (1) | 86Trucks

1 photos
