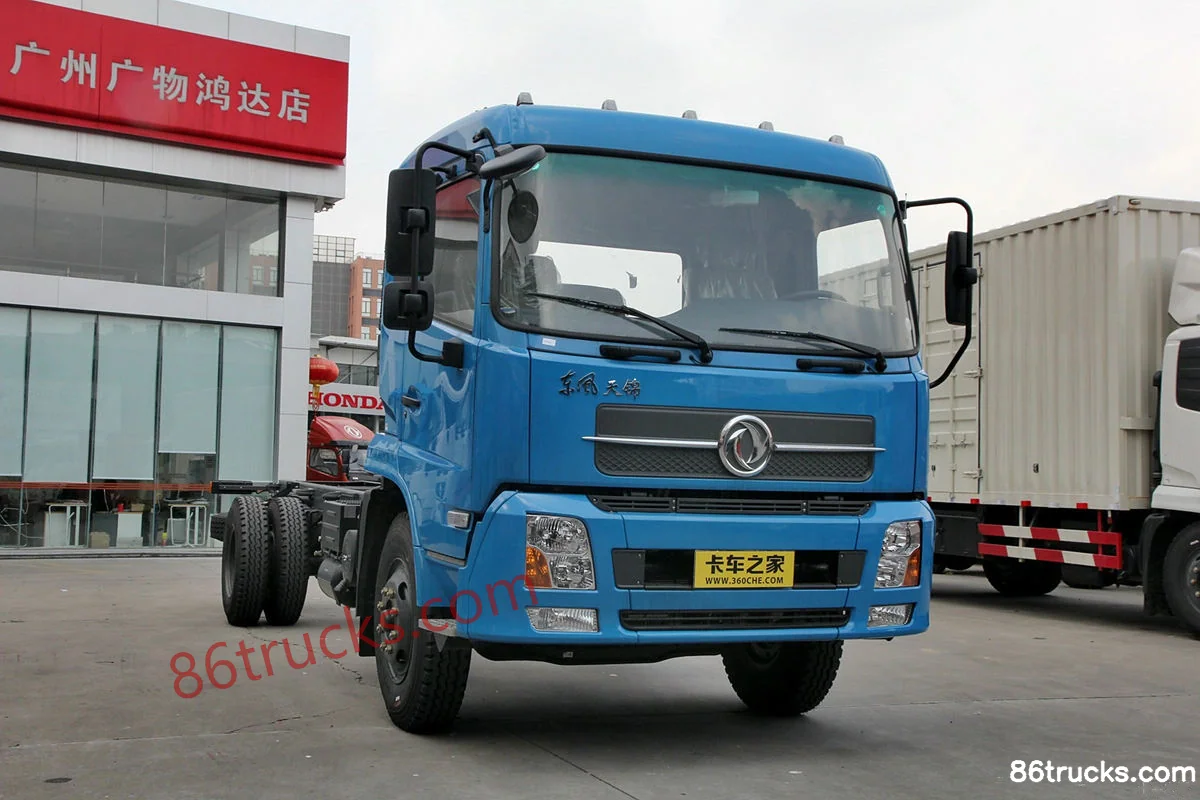

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis

Export reference
From $23,194
MSRP ¥16.7M CNY
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Dongfeng
Curb Weight:: 5.86ton
seating capacity: 3Personnel
Rated payload: 5.95ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis is a Medium-duty truck featuring 6.75m cargo length, Chassis cargo body, 3Personnel volume and 5.95t payload. On the powertrain side, it comes with a Dongkang 6-cyl engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL1120B13
Type: Chassis
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengISB180 40
transmission: DongfengDF6S900
Rear Axle Ratio: 4.56
Cab length: 8.6m
Cab width: 2.5m
Cab height: 2.87m
Front track width: 1880mm
rear track: 1800mm
Curb Weight: 5.86ton
Rated payload: 5.95ton
GVWR: 12.005ton
Max. speed: 100km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 10°
Front/rear suspension: 1.43/2.47m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: DongfengDF6S900
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.75m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 6T front axle
Front axle allowable load: 4300kg
Frame Dimensions: 250×80×(7+4)mm
rear axle description: 9T single reduction rear axle
rear axle allowable load: 7705kg
Axle ratio: 4.56
Leaf spring count: 7/9+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs

Photos

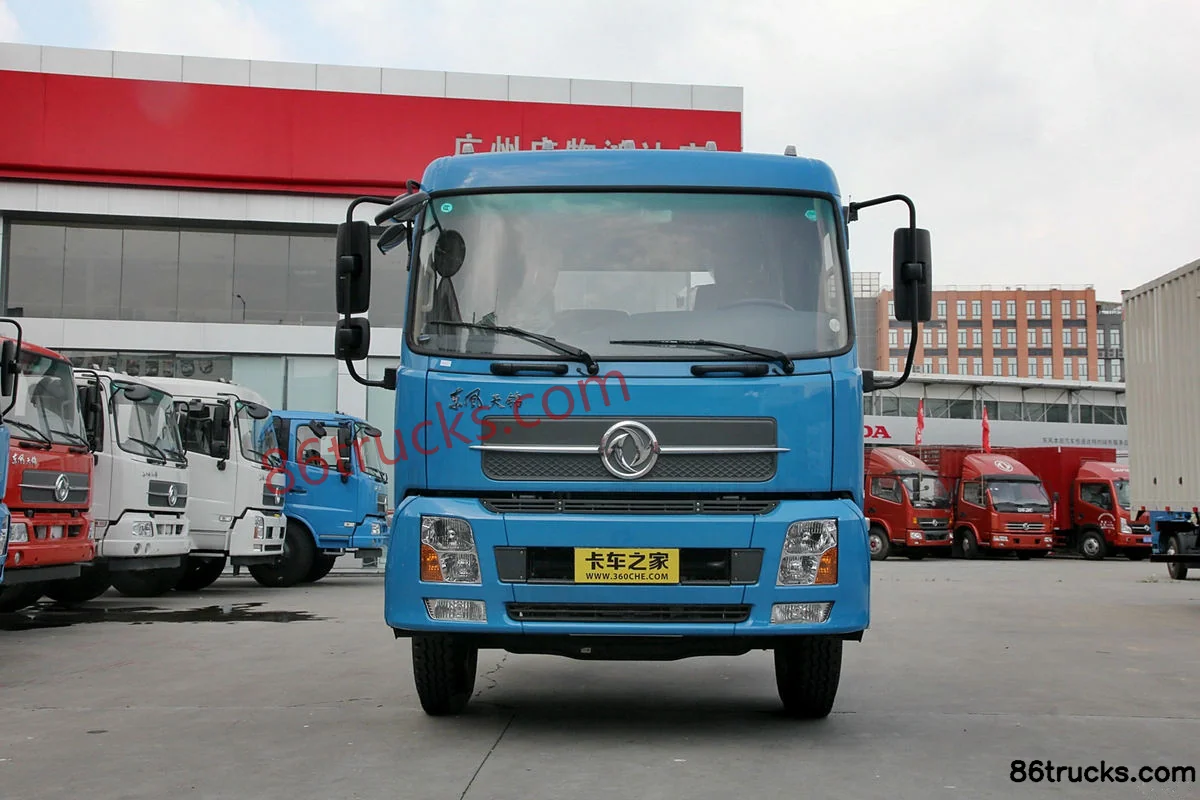

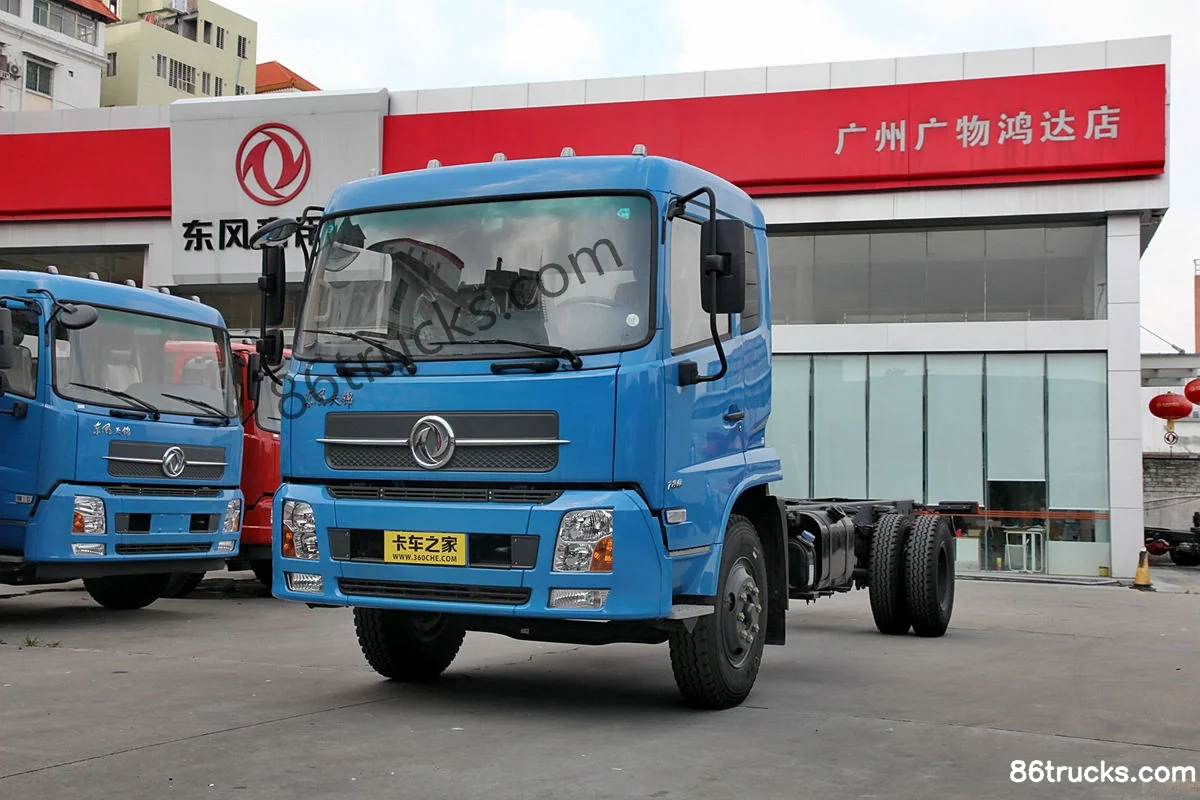

Exterior3

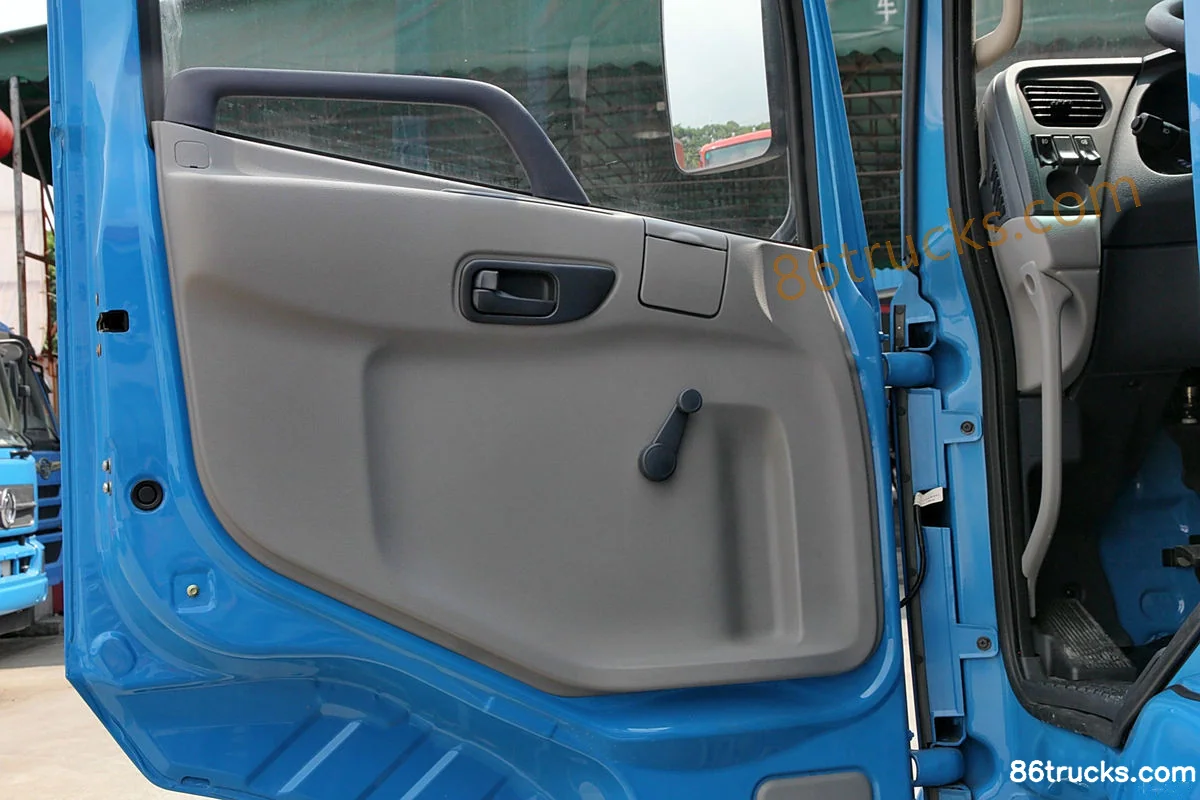

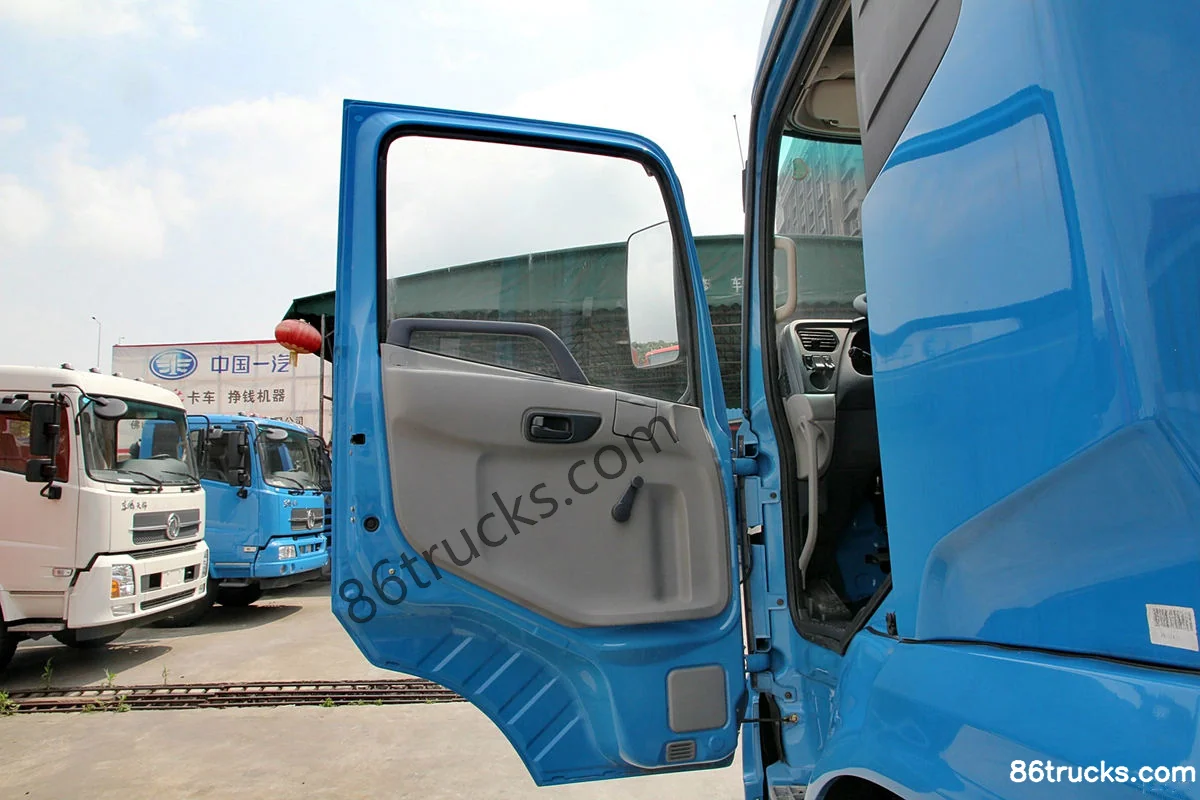

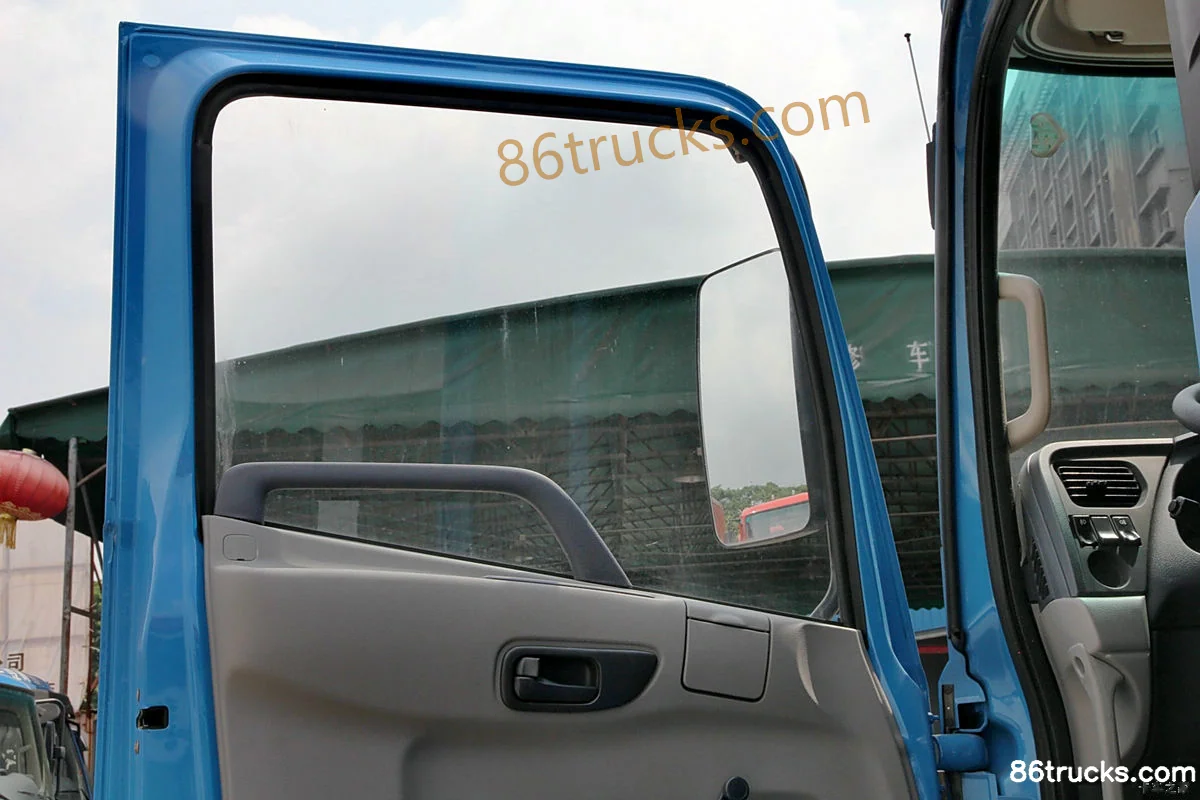

Cab3

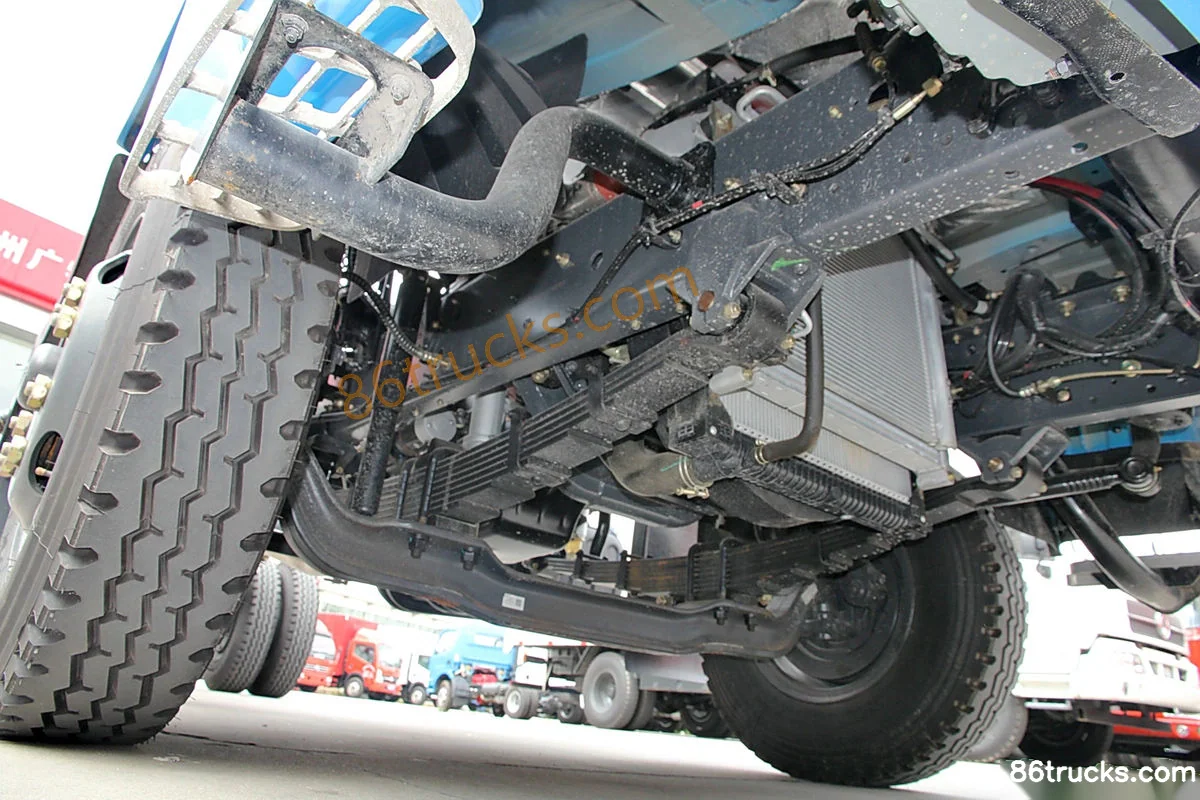

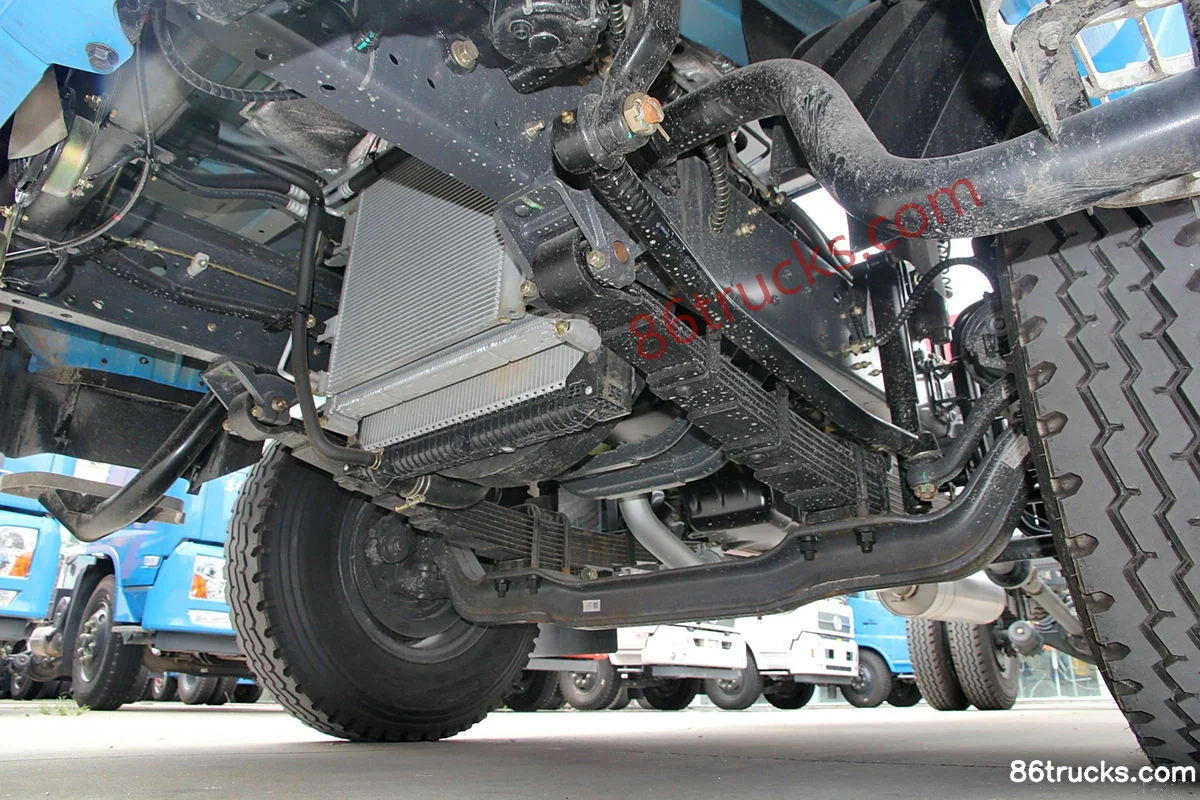

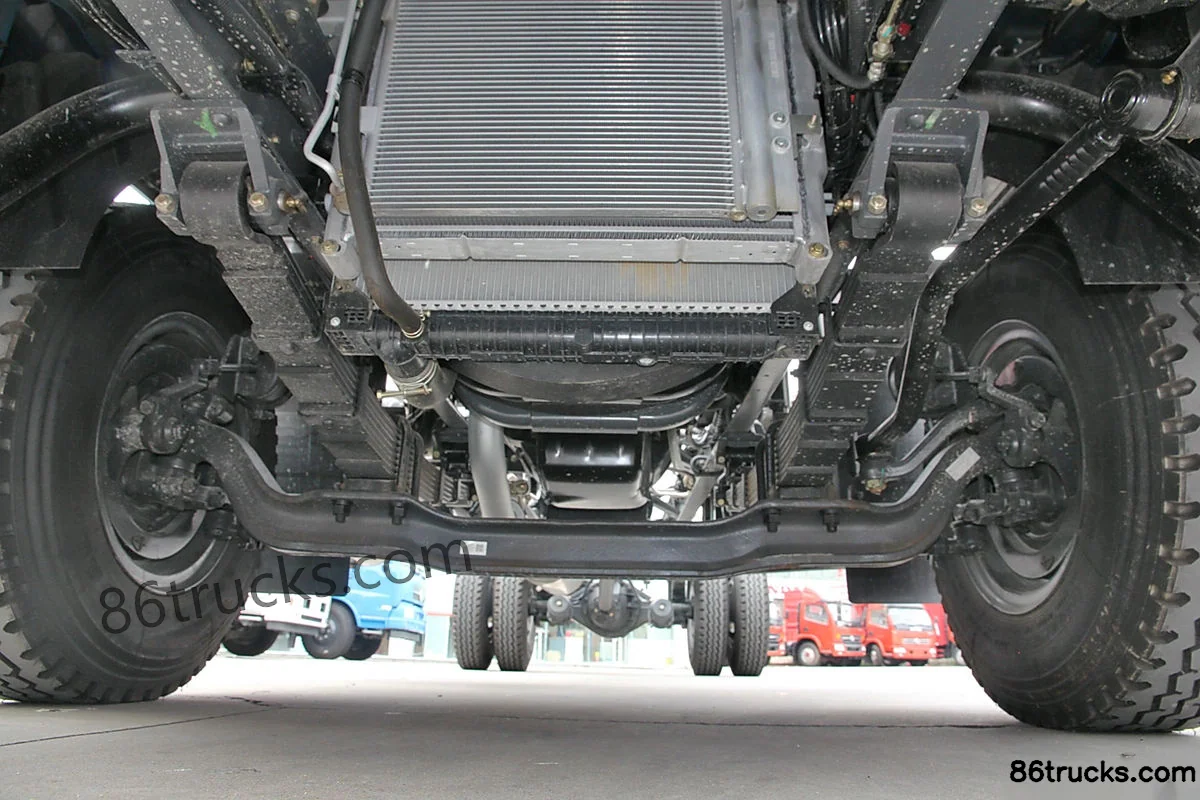

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis, and what does it include?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis export reference is about From $23,194; MSRP is ¥16.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180 hp 4X2(6 wheels) 6.75m Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
