Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck

Export reference
From $11,806
MSRP ¥8.5M CNY
Horsepower: 82
Emission: China IV
Fuel: Diesel
Engine: Quanchai485
Curb Weight:: 2.4ton
Wheelbase:: 2800mm
seating capacity: 2Personnel
Rated payload: 1.95ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck is a Light Truck featuring 3.25m cargo length, Stake type cargo body, 2Personnel volume and 1.95t payload. On the powertrain side, it comes with a Quanchai485 engine, 82 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 82 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5049CCY-CA
Type: stake truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.2m
engine: Quanchai4B1-82C40
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.445m
Cab width: 1.91m
Cab height: 2.75m
Front track width: 1530mm
rear track: 1240mm
Curb Weight: 2.4ton
Rated payload: 1.95ton
GVWR: 4.48ton
Max. speed: 95km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Front/rear suspension: 1.105/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B1-82C40
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China IV
Max output power: 60kW
Max hp: 82Horsepower
Max torque: 205N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: High-pressure common rail, water-cooled, vertical
Transmission Parameters
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.25m
Cargo box width: 1.81m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1345kg
rear axle allowable load: 3135kg
Axle ratio: 4.875
Leaf spring count: 7/7+5,7/5+3
Tire
Tire Size: 6.00-15,6.00R15,6.50-16,6.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

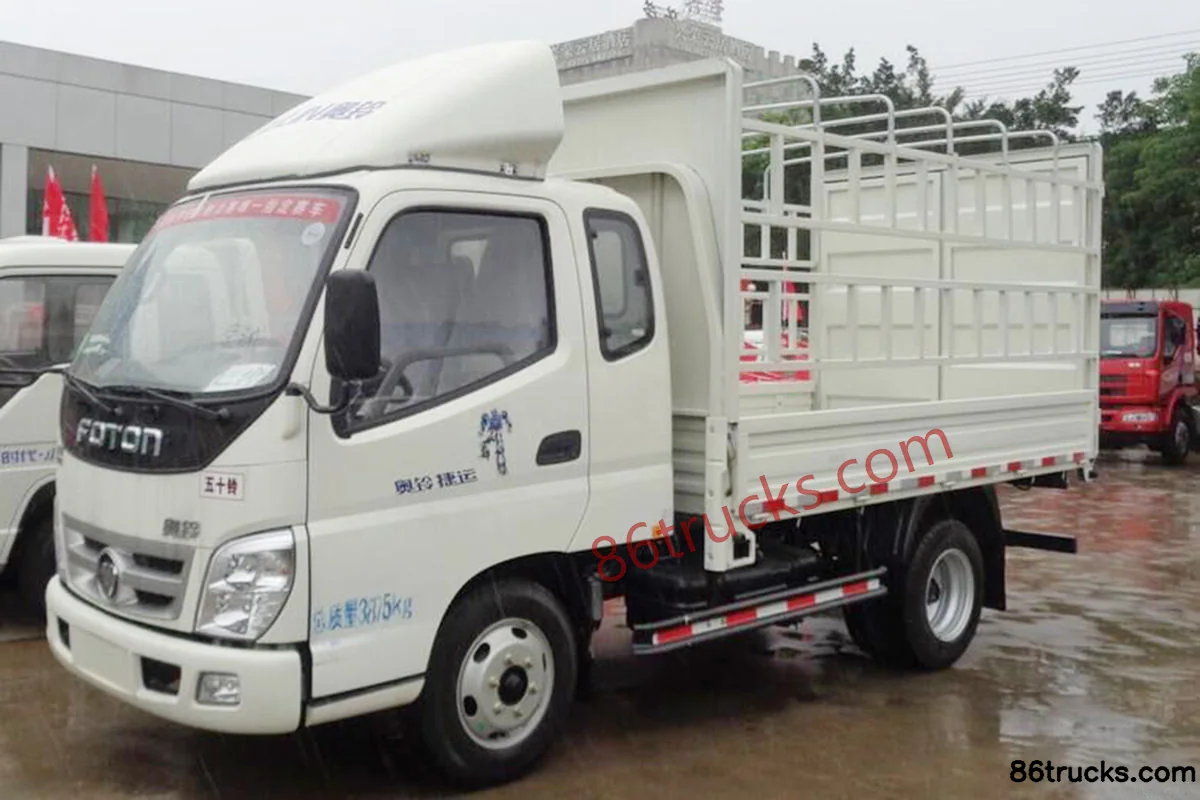

Exterior1

1 photos

FAQ

What is the export price of Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck, and what does it include?

Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck export reference is about From $11,806; MSRP is ¥8.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck?

Key specs of Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck: Drive: 4x2; Horsepower: 82 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai485. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck suited for?

Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck differ from other variants in the same series?

Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck belongs to Foton Jieyun Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auling Jieyun 82hp 4X2(6 wheels) 3.2m half-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
