JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels)

Export reference
From $33,306
MSRP ¥23.98M CNY
Curb Weight:: 3.555ton
Rated payload:: 0.745ton
Wheelbase:: 3365mm
Cargo box type:: Stake type
Emission: China VI
Model code (announced):: HFC5041CCYPHEV2
Drive 4X2 (6 wheels)
Battery Brand: Mingheng
Motor 1 Brand: Yunnei Mingheng
Horsepower 127

Overview

The JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) is a Light Truck featuring Mingheng battery/range, Yunnei Mingheng motor, 4X2 (6 wheels) drive and 0.745t payload. On the powertrain side, it comes with 127 hp.

China VI 127 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041CCYPHEV2
Type: stake truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.25m
Curb Weight: 3.555ton
Rated payload: 0.745ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Yunnei Mingheng
Motor 1 Model: MH15HB1
Max torque: 120N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Hybrid
total rated power: 44kW
Peak power: 70kW
total rated torque: 65N·m
total peak torque: 120N·m
Battery/Charging
Charging method: Fast Charge
Battery Brand: Mingheng
Battery type: Lithium Iron Phosphate Battery
Battery rated voltage: 345.6V
Battery capacity: 15.5kWh
Engine parameters
Engine Model: Yunnei PowerD20TCIF11
Number of cylinders: 4cylinder
Displacement: 1.999L
Emission standard: China VI
Max output power: 93kW
Max hp: 127Horsepower
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
Cab parameters
Cab: V5
Cab width: 1900mm
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Single Row
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 1985kg
rear axle allowable load: 2510kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

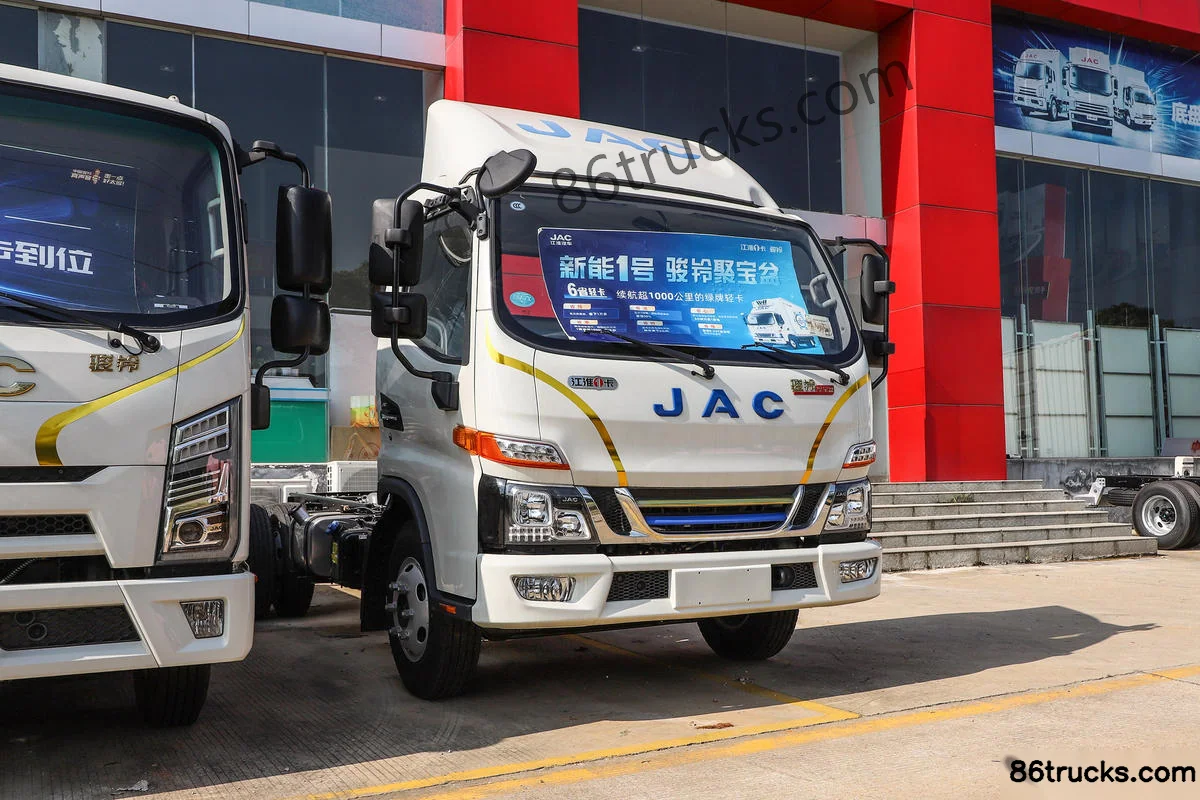

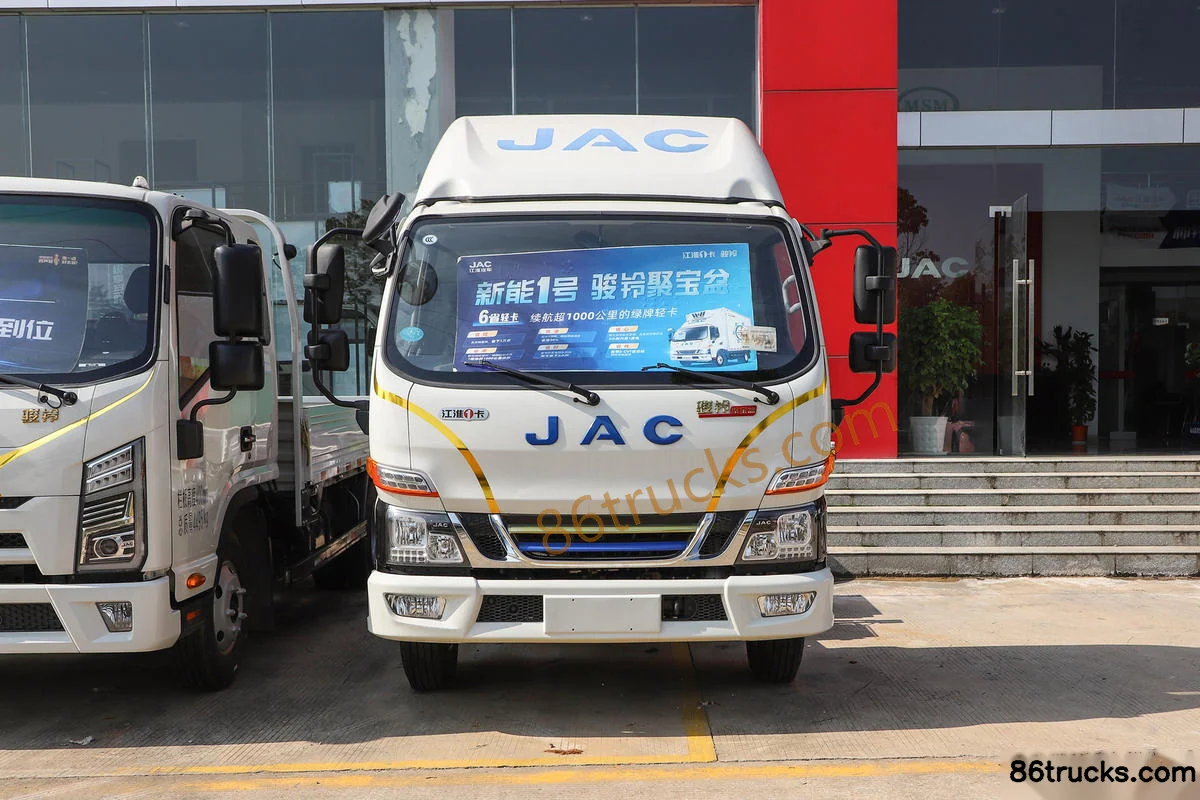

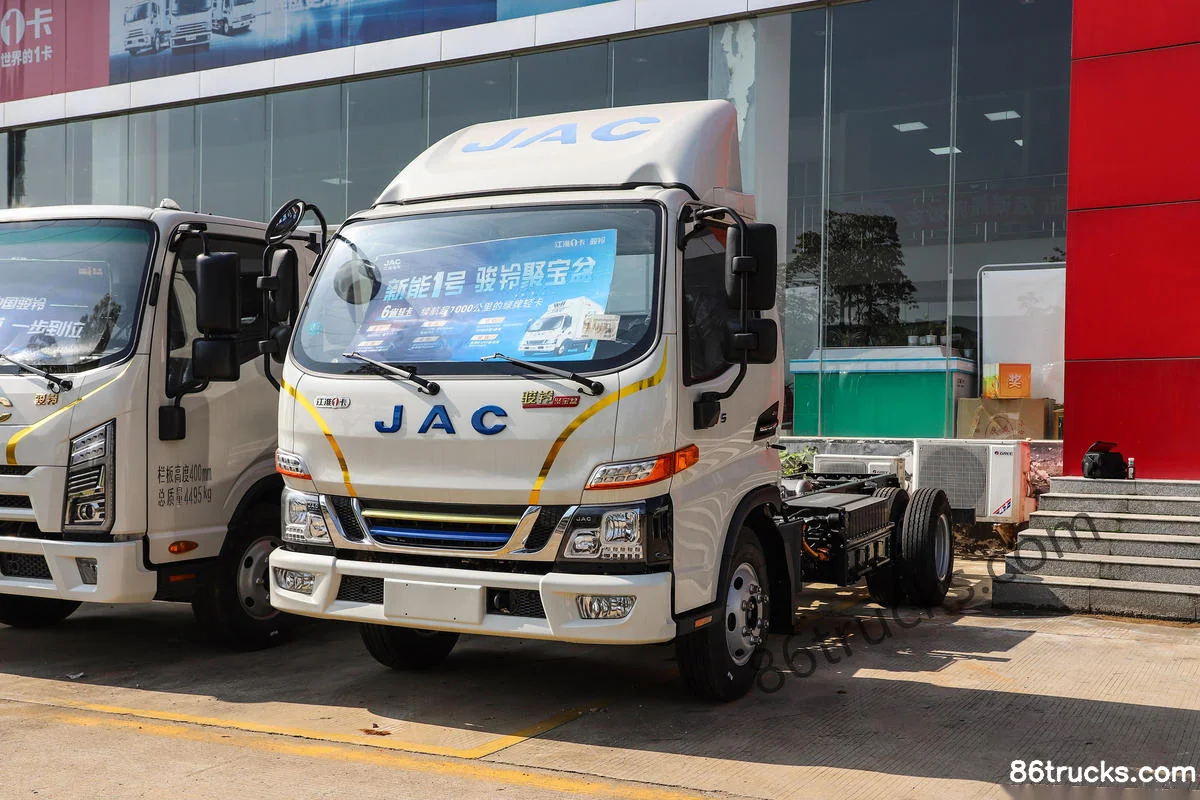

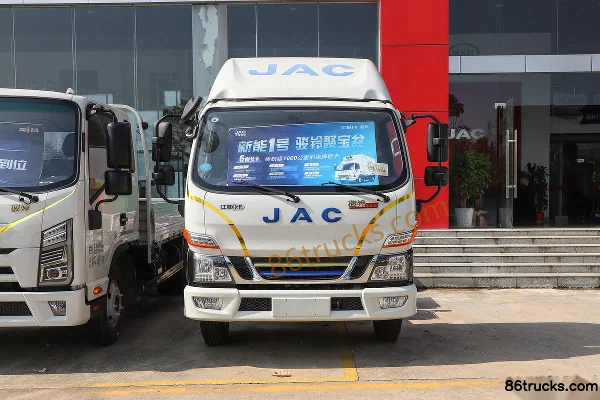

Exterior3

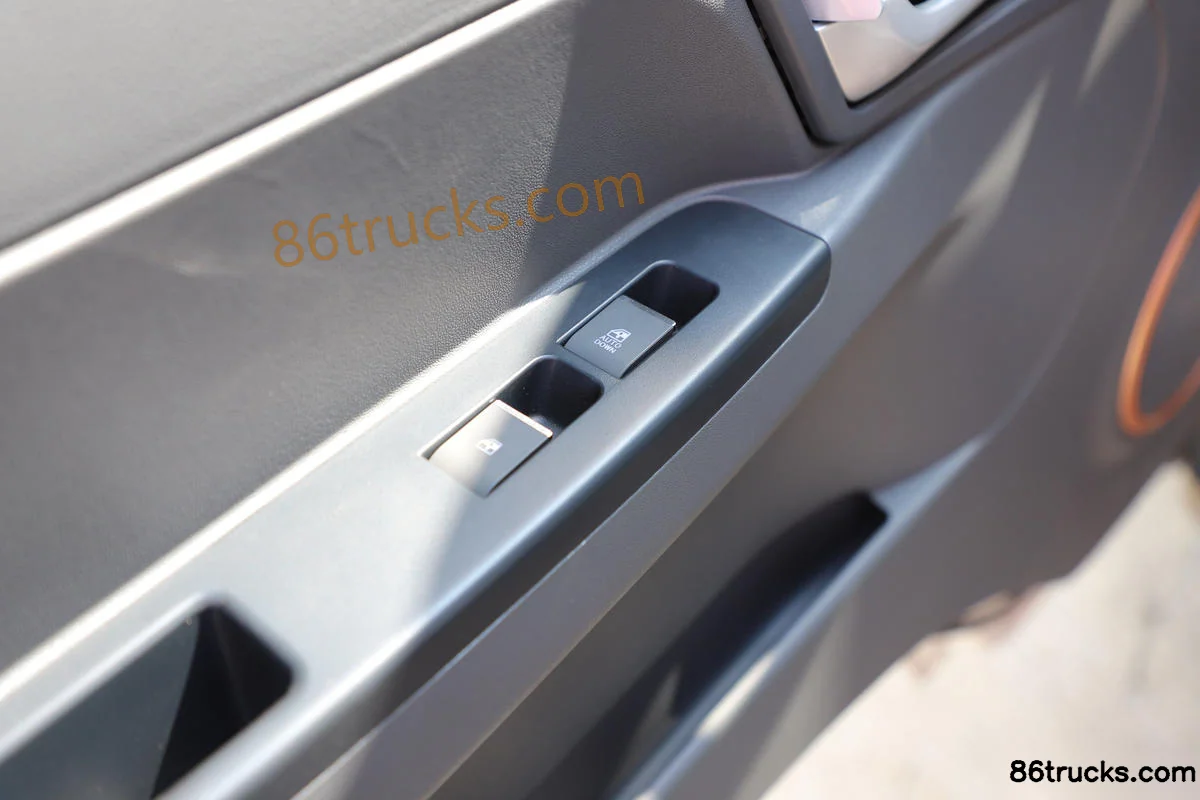

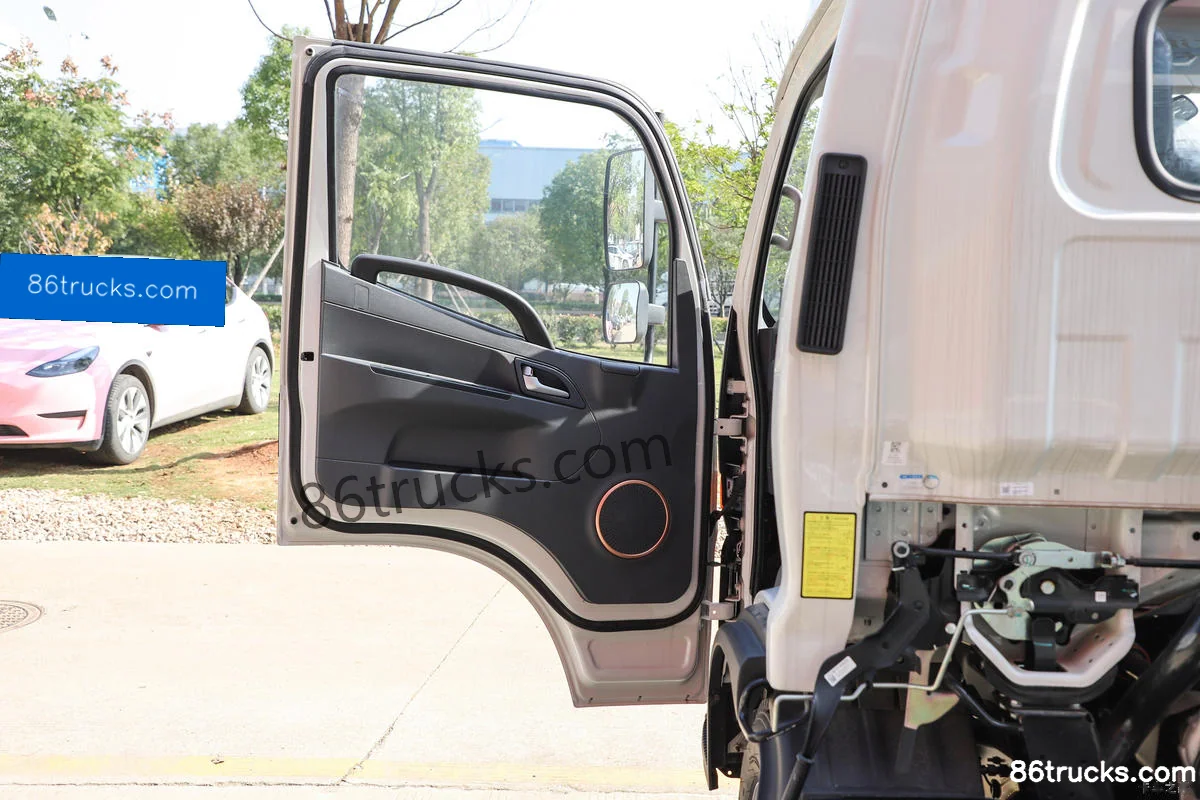

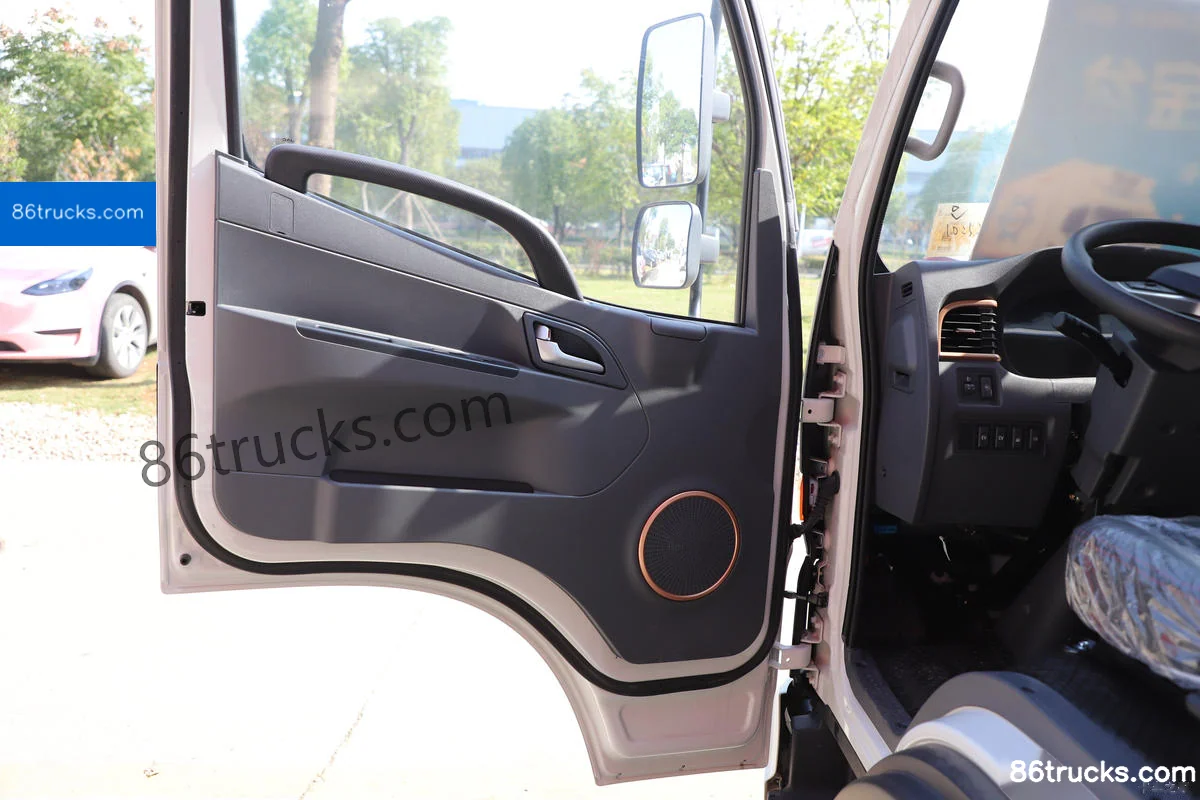

Interior3

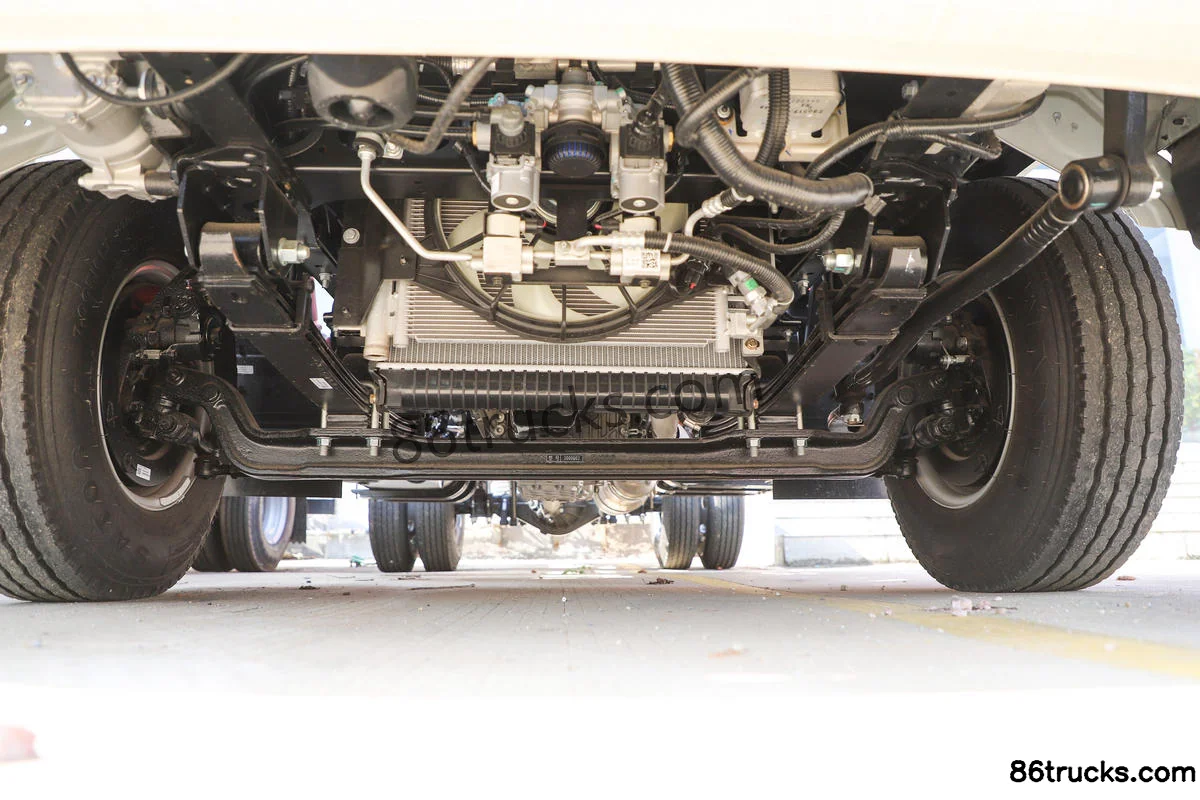

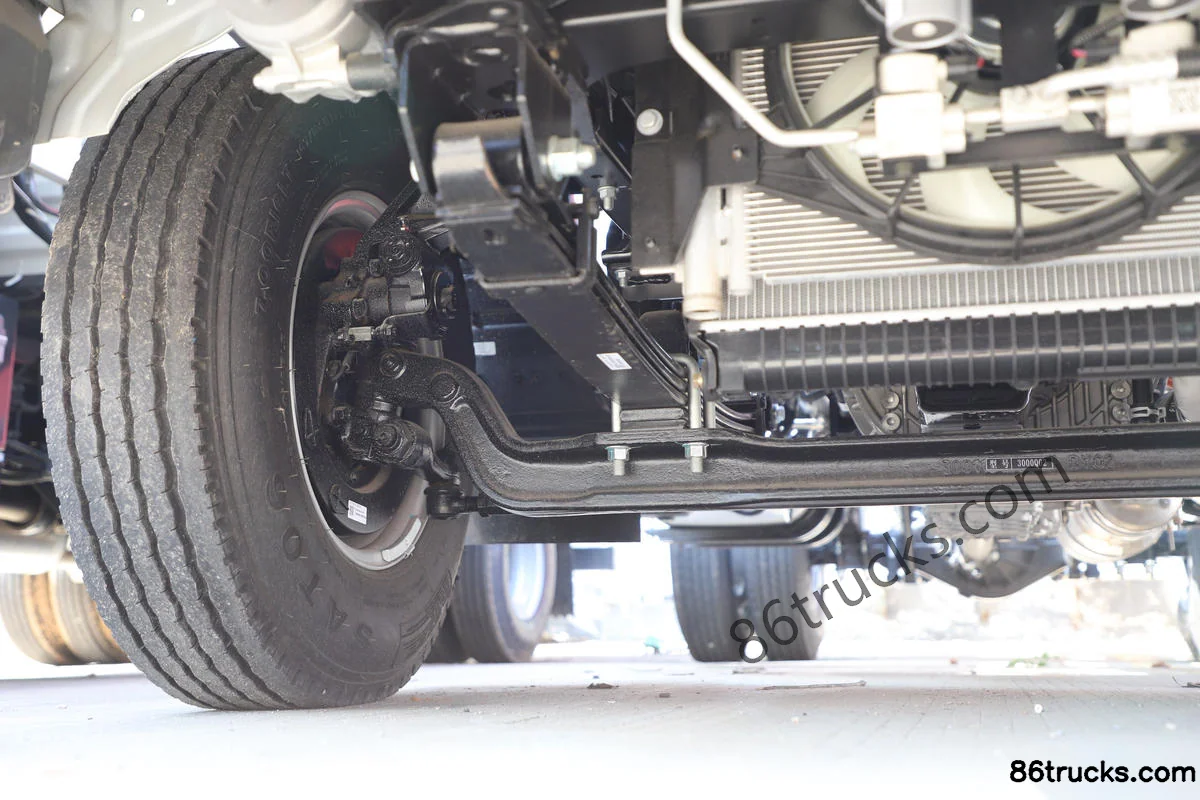

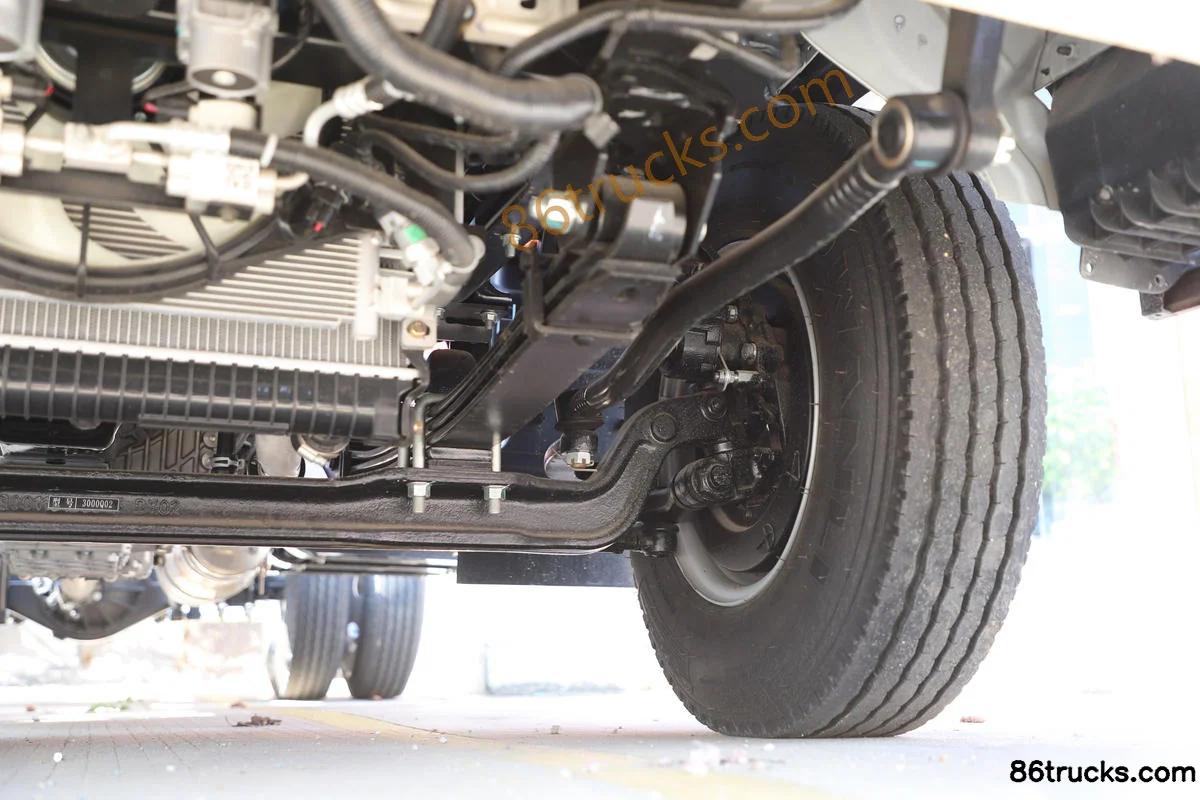

Chassis3

9 photos

FAQ

What is the export price of JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels), and what does it include?

JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) export reference is about From $33,306; MSRP is ¥23.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels)?

Key specs of JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 127 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) suited for?

JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) differ from other variants in the same series?

JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels) belongs to JACHV5 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Jubao 4.5T 4.18m Single Row Plug-in Hybrid Stake Light Truck 15.5kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
