SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck

Export reference
From $51,542
MSRP ¥37.11M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.5ton
Wheelbase:: 1800+4175+1400mm
Tire Size:: 12.00R20 18PR
SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck exterior
View more photos (12)
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 430
Cargo box type: Dump type

Overview

The SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP12.430E50 engine, 430 hp, China V emissions and Fast Gear transmission.

China V 430 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX5310ZLJ5C426
Drive type: 8X4
Wheelbase: 1800+4175+1400mm
engine: WeichaiWP12.430E50
transmission: Fast Gear12JSD200T-B
Rear Axle Ratio: 5.262
Cab length: 10.95m
Cab width: 2.55m
Cab height: 3.45m
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 20°
Remarks: Standard hydraulic cab mount, Tianxingjian Zhiya BD onboard terminal, desert air filter, transmission with QH50 PTO, 180Ah maintenance-free battery; optional transmission 12JSD200TA-B
Version: Standard version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.430E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.596L
Emission standard: China V
Max output power: 316kW
Max hp: 430Horsepower
Max torque: 2060N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD200T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 8m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Extended Flat Roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: MAN7.5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 850×300( 8+5)mm
rear axle description: 16T MAN cast double reduction axle
Steering gear: Domestic
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.262
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12,10/10/10,14/14/12,14/13/12
clutch: Φ430
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
lighting configuration
daytime running lights:

Photos

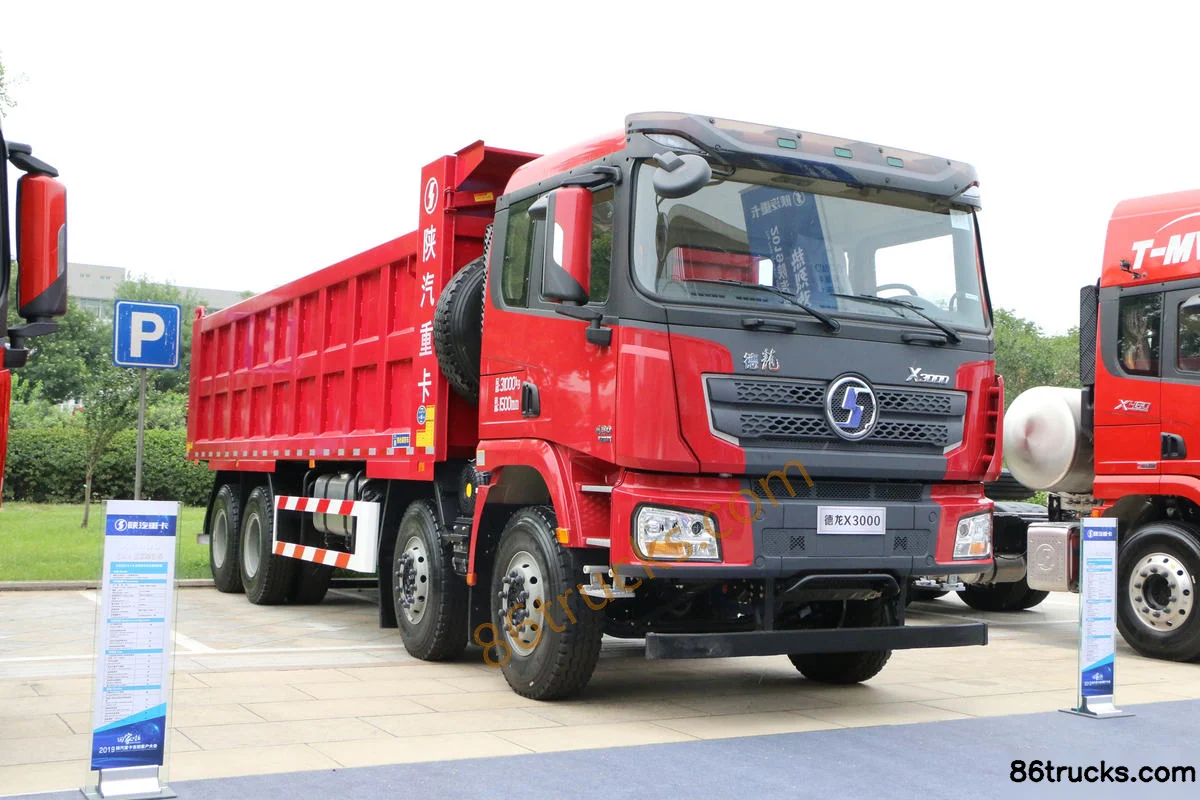

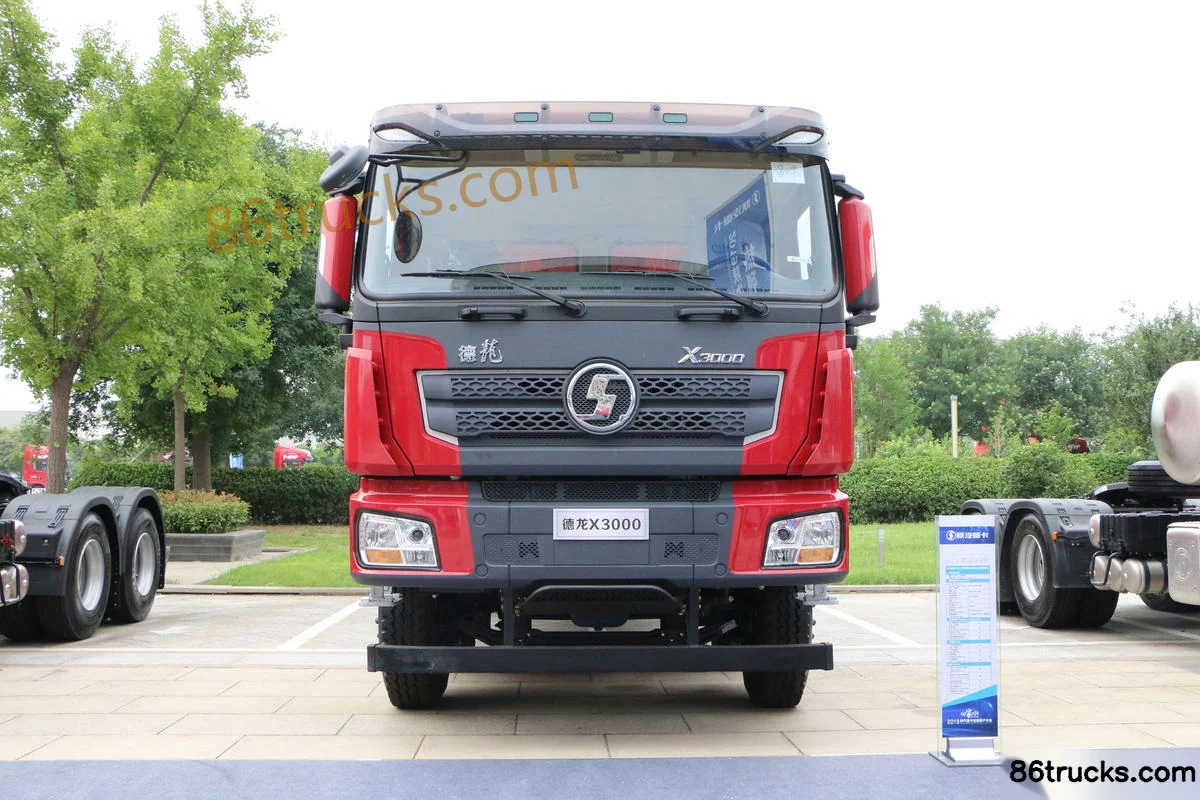

Exterior3

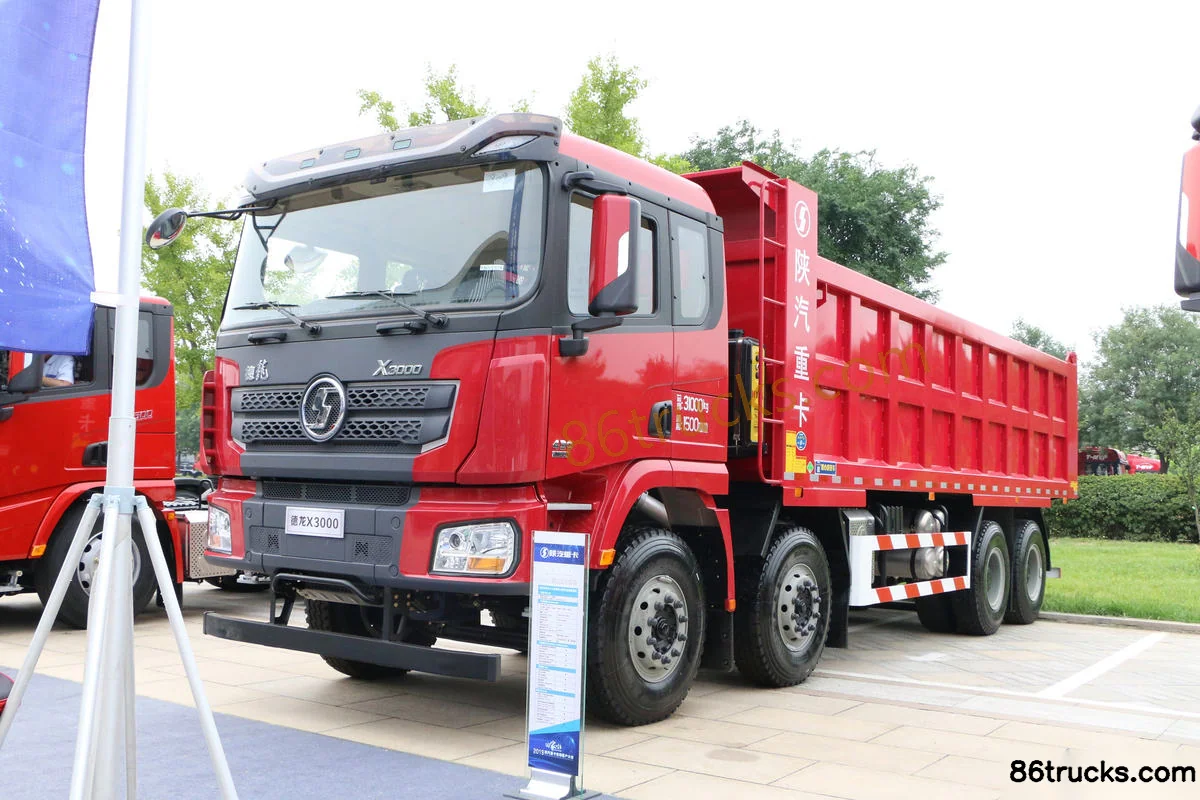

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Exterior (1) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Exterior (2) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Exterior (3) | 86Trucks

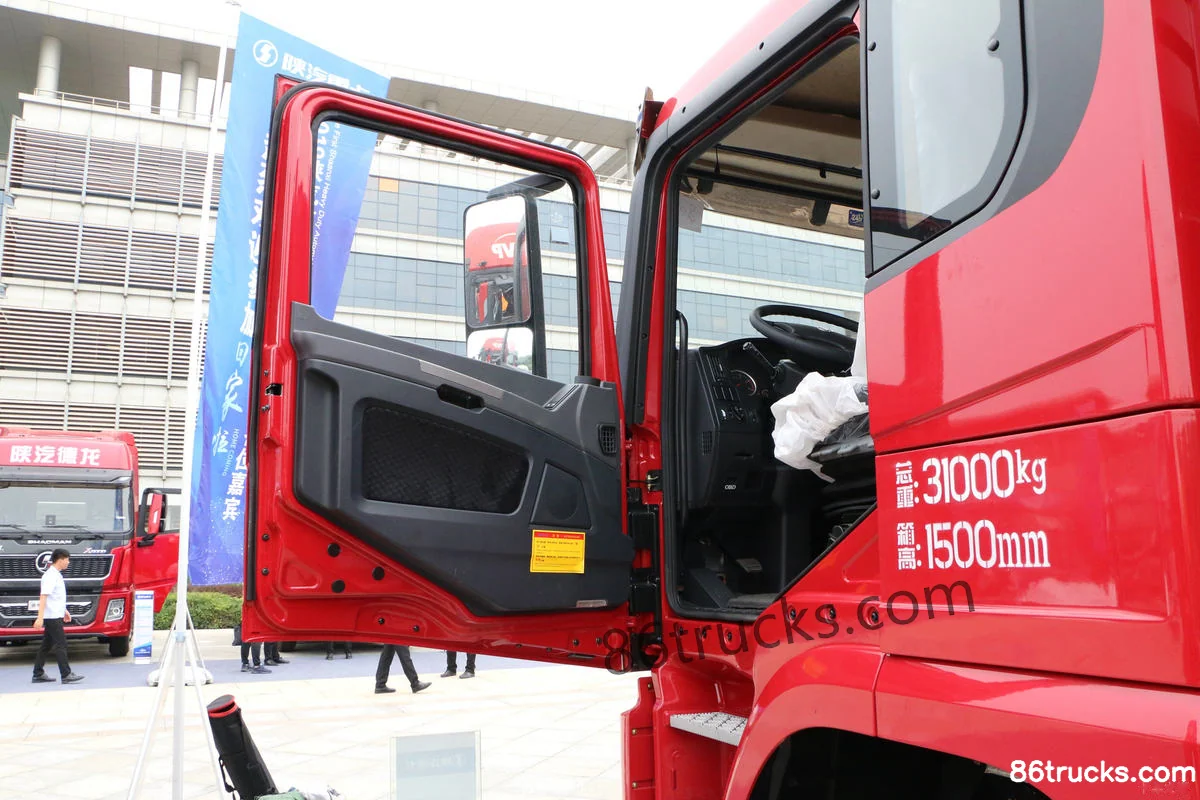

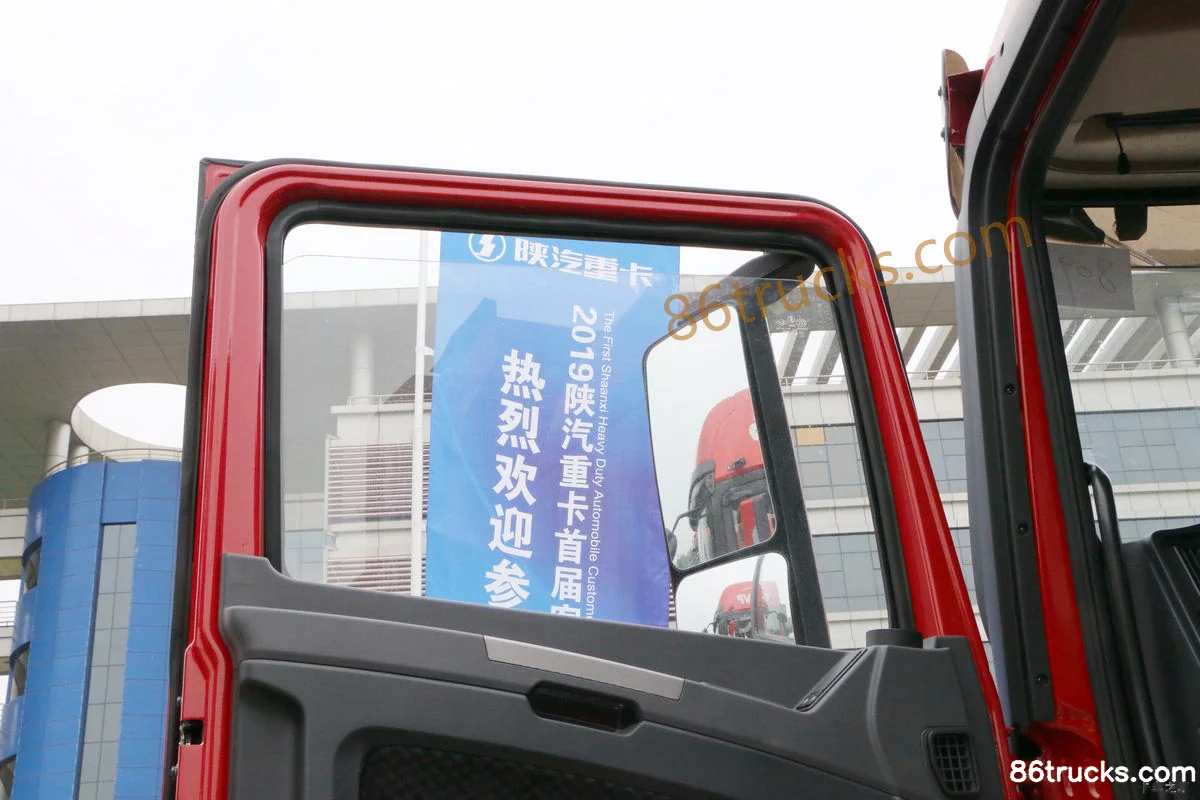

Cab3

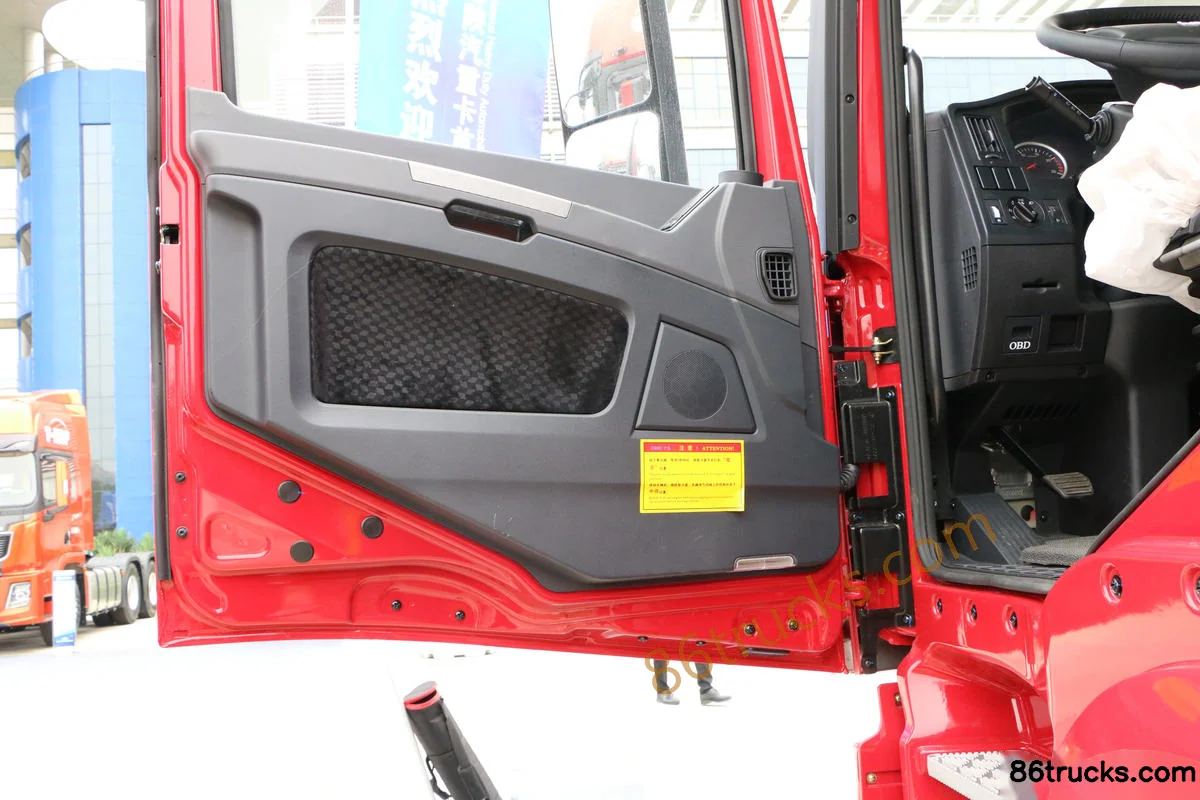

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Cab (1) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Cab (2) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Cab (3) | 86Trucks

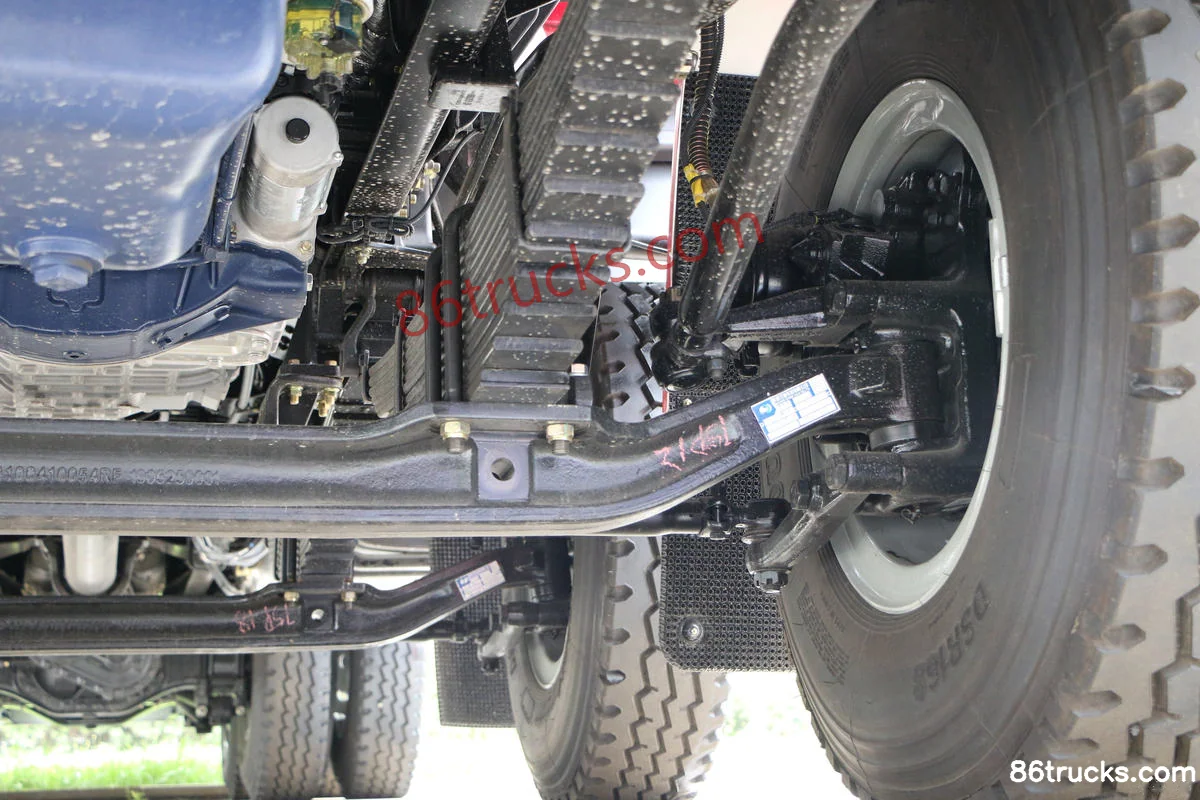

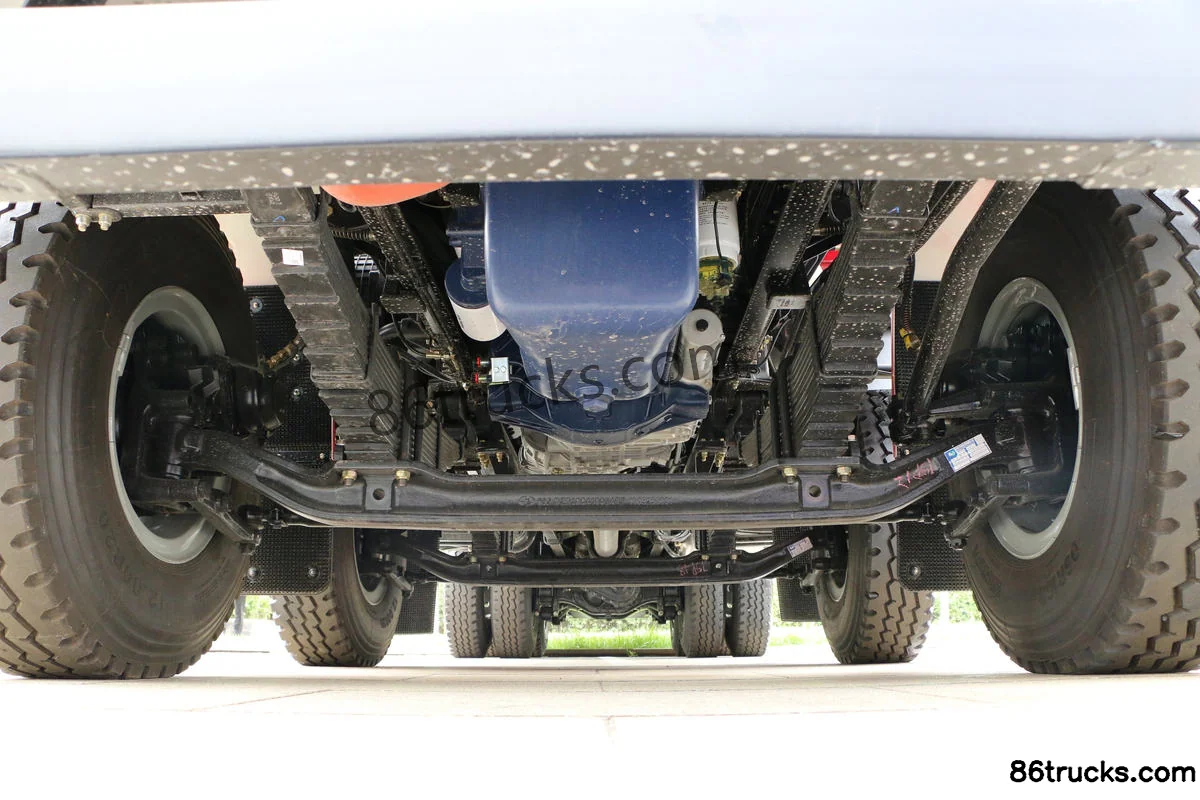

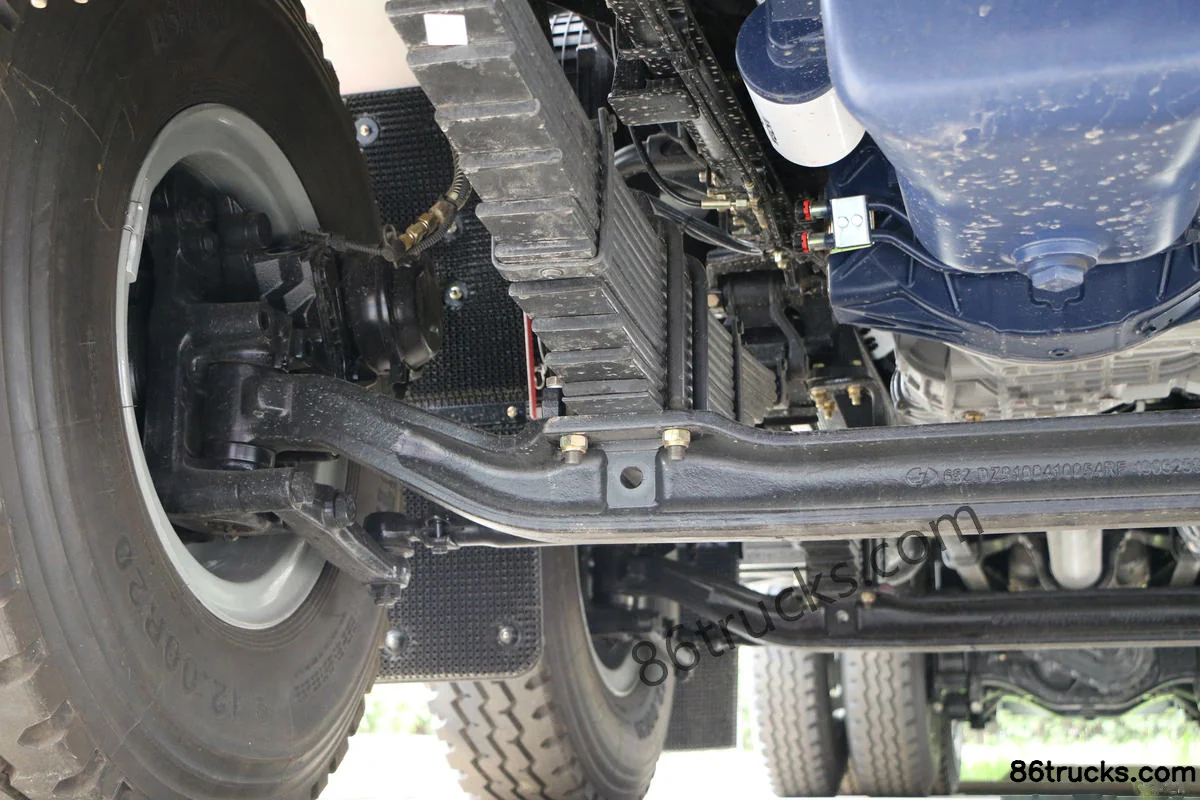

Chassis3

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Chassis (1) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Chassis (2) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Chassis (3) | 86Trucks

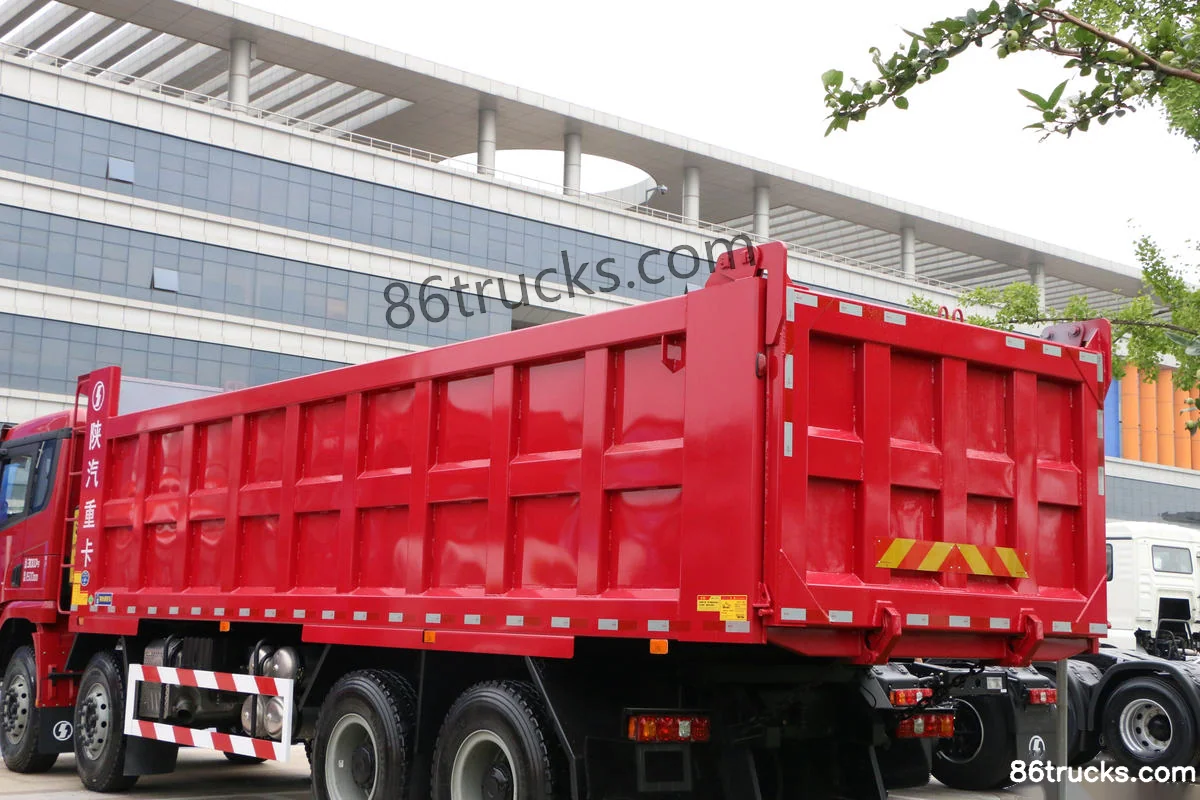

Body3

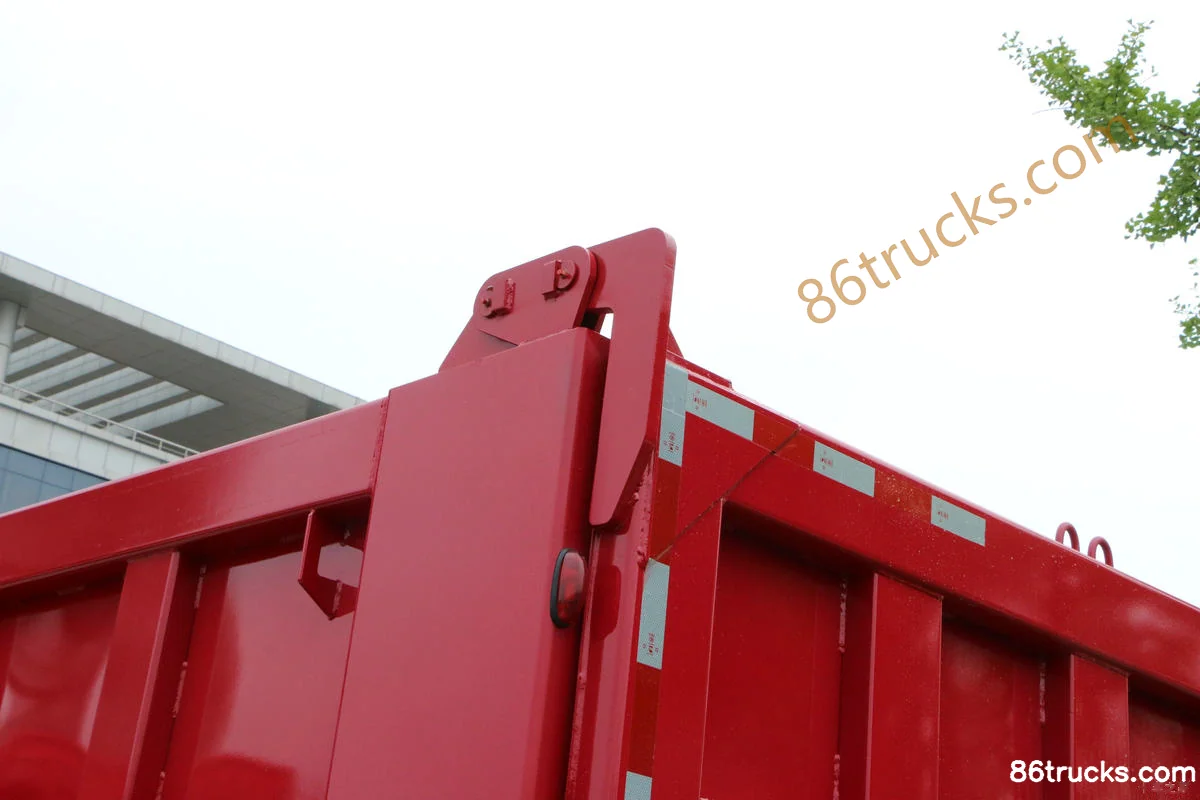

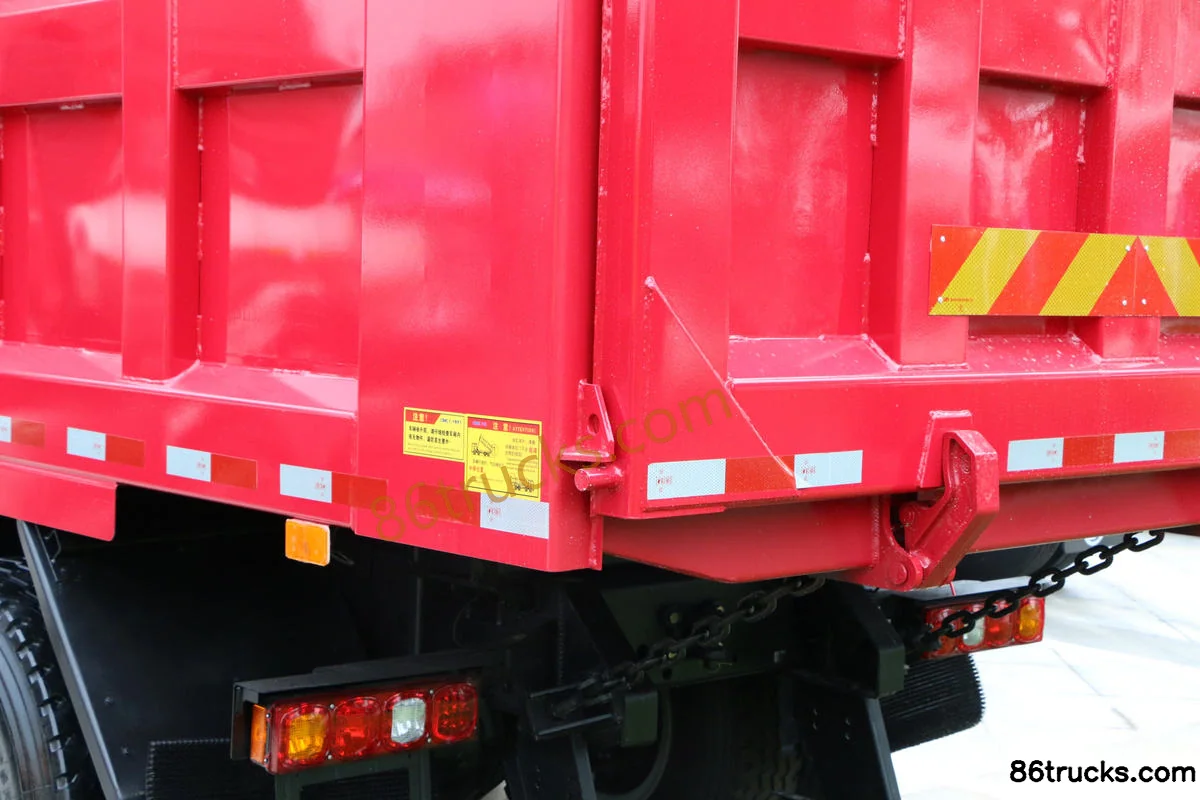

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Body (1) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Body (2) | 86Trucks SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck, and what does it include?

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck export reference is about From $51,542; MSRP is ¥37.11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck?

Key specs of SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck: Drive: 8x4; Horsepower: 430 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck suited for?

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck differ from other variants in the same series?

SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck belongs to SHACMAN Delong X3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X3000 Standard Edition 430hp 8X4(12 wheels) 8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
