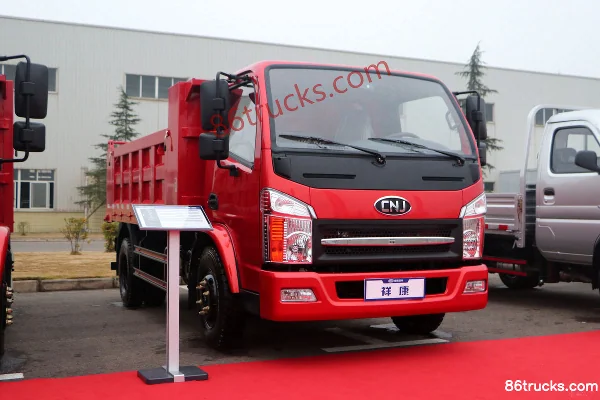

NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck

Export reference
From $14,556
MSRP ¥10.48M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.5ton
Wheelbase:: 3100mm
Tire Size:: 7.00R16 8PR
Model code (announced):: NJA3040EP31V
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box thickness: floor 3mm side 2mm

Overview

The NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck is a Light Truck featuring 1.495t payload, 4.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE2 engine, 102 hp, China V emissions and 5-speed transmission transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3040EP31V
Drive type: 4X2
Wheelbase: 3100mm
engine: Yunnei PowerYN33CRE2
transmission: 5-speed transmission
Rear Axle Ratio: 5.571
Cab length: 5.78m
Cab width: 2m
Cab height: 2.06m
Front track width: 1650mm
rear track: 1586mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 25°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 265N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 2TG/90×500
Cargo box thickness: floor 3mm side 2mm
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 1.9m
Cargo box height: 0.8m
Cab parameters
Cab width: 2080mm
Chassis Specs
Front axle description: 1068 axle
Front axle allowable load: 1325kg
Frame Dimensions: 200×65×(6.5+4)-800mm
rear axle description: 1069 rear axle
rear axle allowable load: 2800kg
Axle ratio: 5.571
Leaf spring count: 3/8+8
Tire
Tire Size: 7.00R16 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

0 photos

FAQ

What is the export price of NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck, and what does it include?

NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck export reference is about From $14,556; MSRP is ¥10.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck?

Key specs of NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck suited for?

NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck differ from other variants in the same series?

NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck belongs to NanJun Xiangkang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Xiangkang 102hp 4X2(6 wheels) 3.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
