Xinchufeng Man Tian Xing 4.5T 3.14 m electric self-loading garbage truck 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.9ton
Wheelbase:: 2700mm
Model code (announced):: HQG5040ZZZEV1
Truck Type:: electric self-loading type
Cab length:: 5.1m
GVWR:: 4.495ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Tongyu
Curb Weight: 3.465ton

Overview

The Xinchufeng Man Tian Xing 4.5T 3.14 m electric self-loading garbage truck 4X2(6 wheels) is a Electric Garbage Truck featuring CATL battery/range, Tongyu motor, 4X2 (6 wheels) drive and 0.9t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HQG5040ZZZEV1
Truck Type: electric self-loading type
Drive type: 4X2
Wheelbase: 2700mm
Cab length: 5.1m
Cab width: 1.9m
Cab height: 2.26m
Curb Weight: 3.465ton
Rated payload: 0.9ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Suizhou, Hubei
Energy Type: Electric
electric motor
Motor 1 Brand: Tongyu
Motor 1 Model: TZ210XSTY5308
Motor Type: Permanent magnet synchronous motor
total rated power: 55kW
Peak power: 110kW
Battery/Charging
Battery Brand: CATL
Battery Model: L173TB3
Chassis Specs
Front axle load: 1900ton
Rear Axle Load: 2595ton
Chassis Series: Starry Sky
Chassis Model: HQG1040EV5
Leaf spring count: 2/3,3/4
Body Parameters
Body Brand: Xinchufeng
Tire
Tire Size: 6.50R16LT 12PR
Number of tires: 6pcs

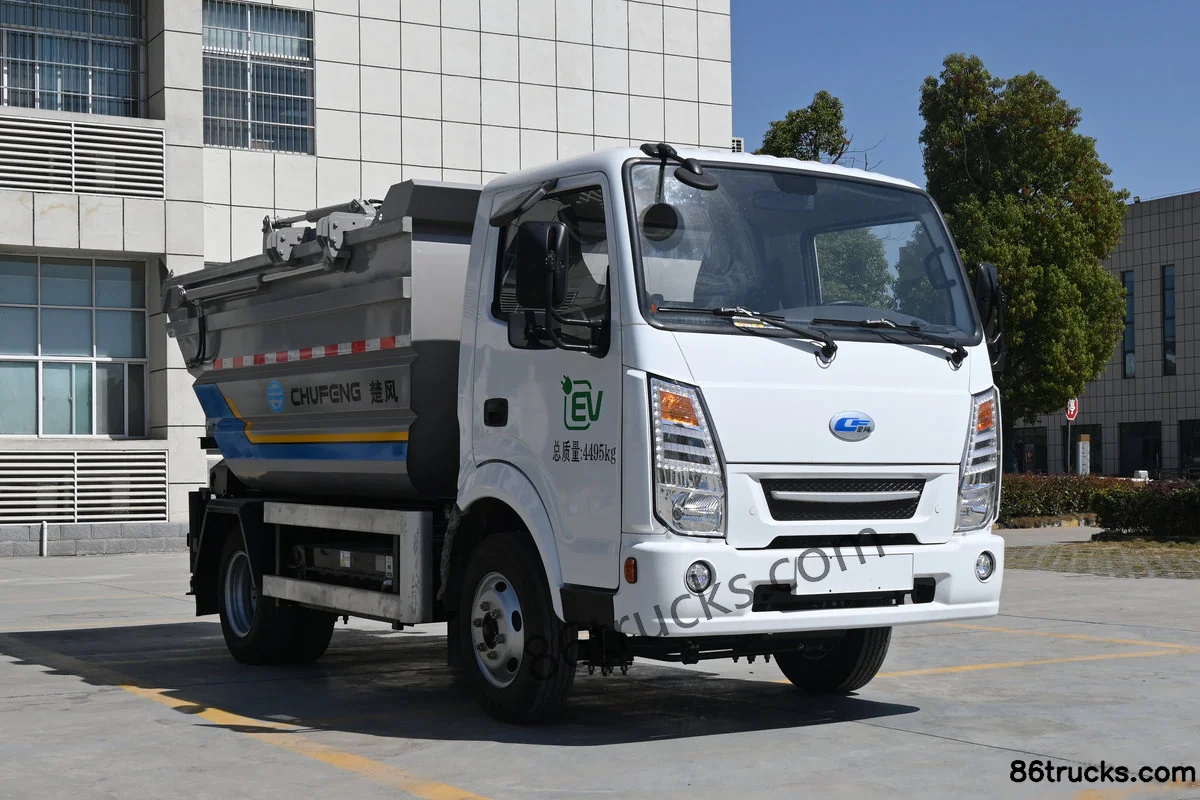

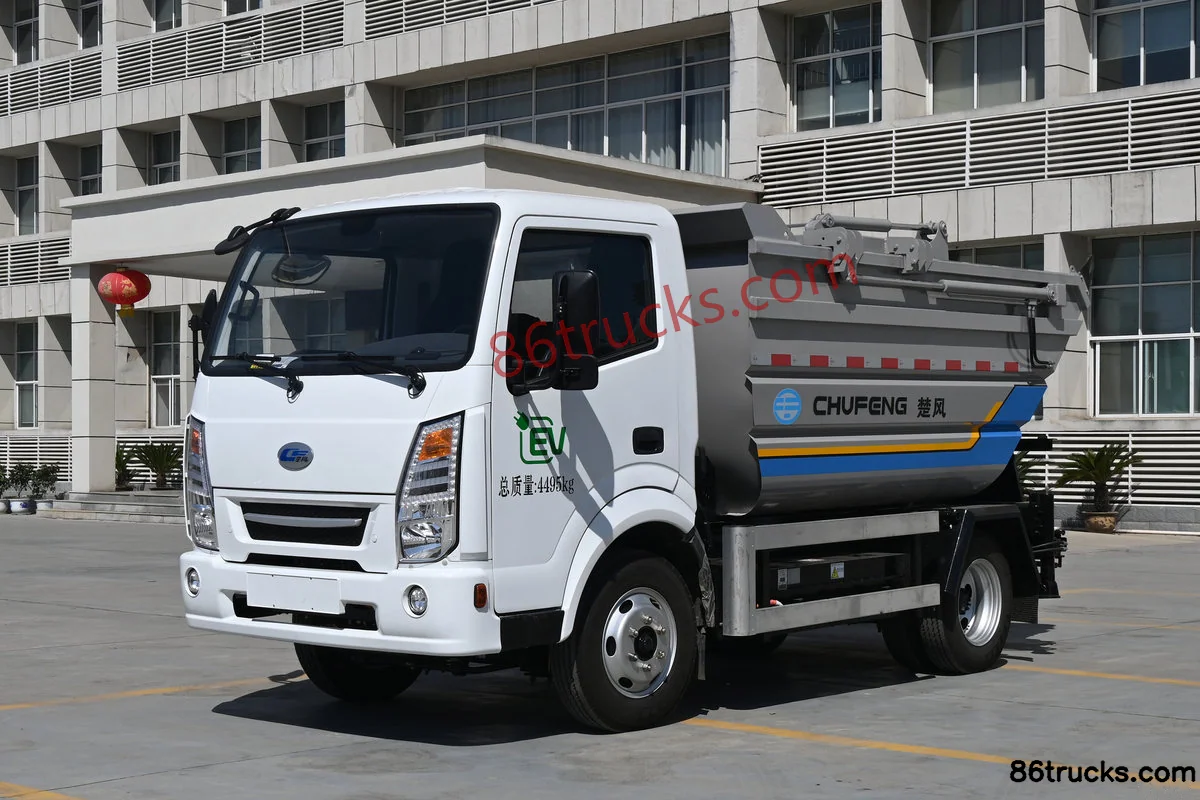

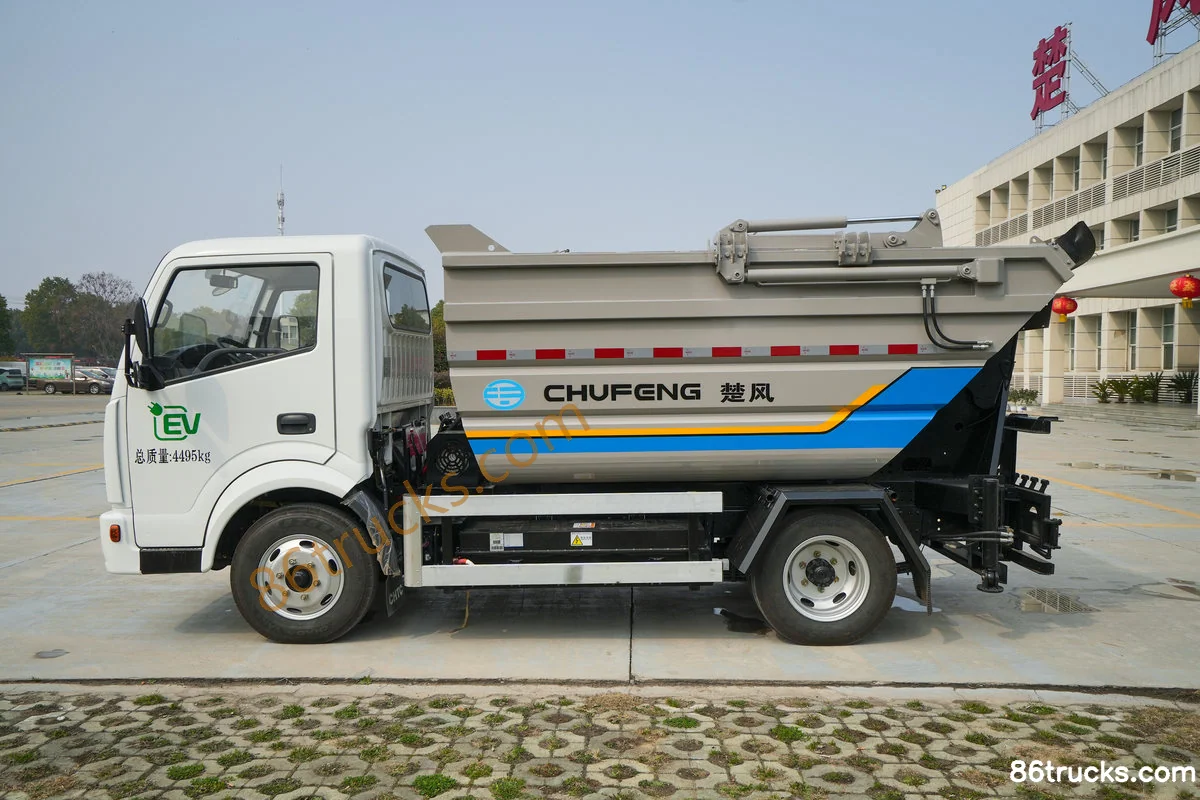

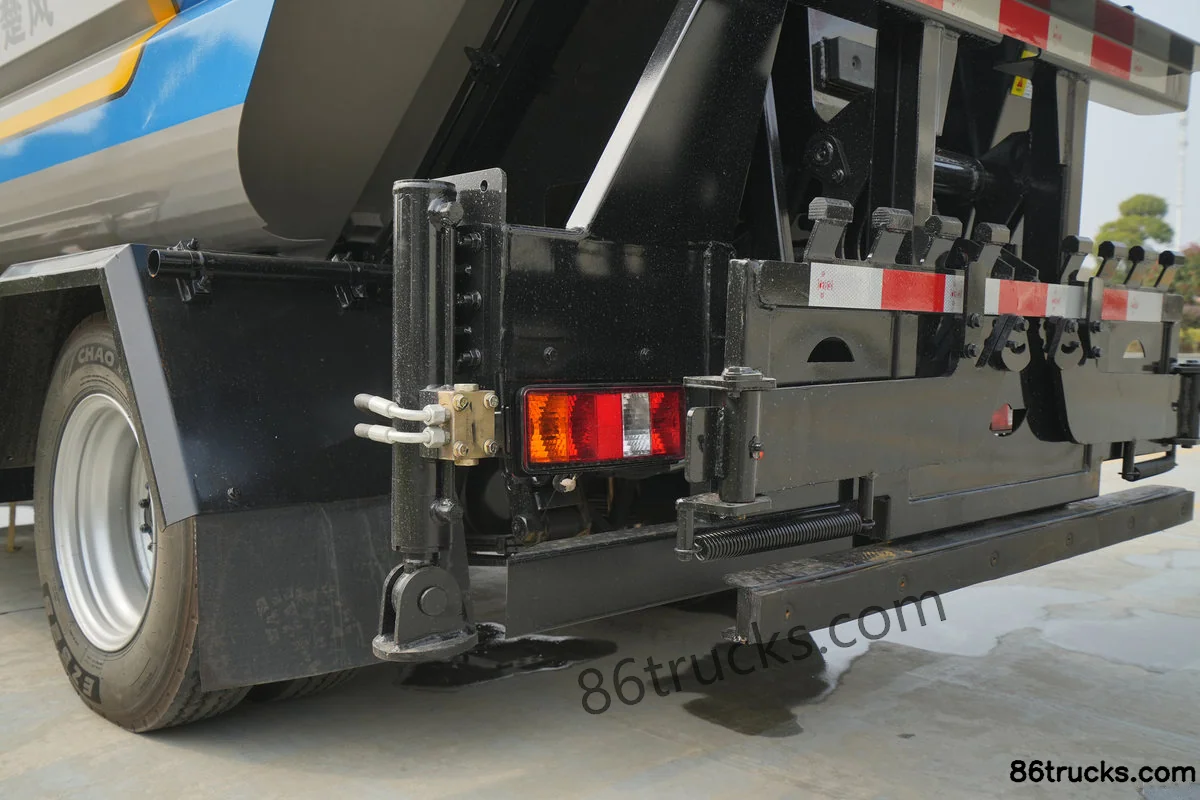

Photos

Exterior3

Cab1

4 photos
