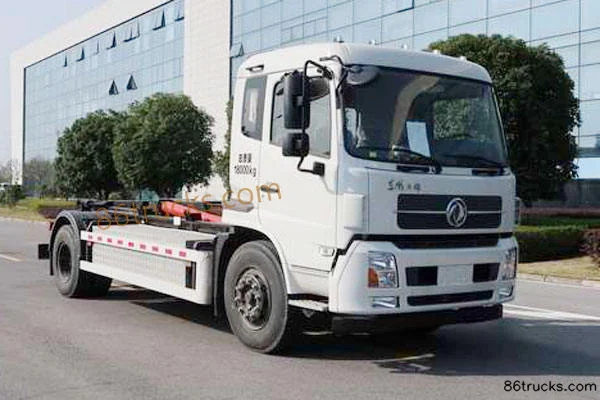

Dongfeng Commercial Vehicle Tianjin 18T 7.155m Electric Container Removable Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)
EXW
Export quote
CIMC Dongfeng Commercial Vehicle Chassis Electric
Main model photos
17 photos
Models
On sale
Inventory
Dongfeng Commercial Vehicle Tianjin 18T 8.95m Electric Flip Bucket Lift Bucket Compression Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 18T 8.82m Electric Flip Cover Flip Bucket Compression Garbage Truck (CIMC) 241.96kWh
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 18T 8.68m Electric Dump-Bucket Compression Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 18T 8.73m Electric Bucket-Lift Compression Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 18T 9m Electric Barrel-Lift Compression Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)
EXW
Export quote
Series Specs
Basic Info
Model code (announced): ZBH5180ZYSDFBEV / ZBH5180ZXXDFBEV
Truck Type: Battery Electric Bin-Lift Compactor Refuse Truck / Battery Electric Tipping Compactor Refuse Truck / Electric Hopper Compactor Garbage Truck / Battery Electric Rear-Loading Compactor Refuse Truck / electric basic compactor garbage truck / Battery Electric Hook-Lift Refuse Truck
Drive type: 4X2
Wheelbase: 4500mm
Cab length: 8.95 / 8.68 / 8.73 / 9 / 8.64 / 7.155 / 7.185m
Cab width: 2.5m
Cab height: 3.15 / 2.955m
CLTC range: 310km
Curb Weight: 12.88 / 12.73 / 12.58 / 12.3 / 9.3 / 9.55ton
Rated payload: 4.925 / 5.075 / 5.225 / 5.505 / 8.57 / 8.255ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Changsha, Hunan
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1103
Motor Type: Permanent magnet synchronous motor
Peak power: 160kW
total peak torque: 1100N·m
Body Parameters
Special Function Description: This vehicle uses a chassis with a 4500mm wheelbase. It is equipped with a garbage bin and loading mechanism to perform garbage collection, loading, and compaction/unloading functions. It has 6 configurations: A (no loading device, basic type), B (optional bin-tipping device), C (optional bucket-lifting device), D (optional skip-lifting device), E (optional lid-tipping bin device), F (optional tipping steel drum bucket device). / Through the hook arm device and hydraulic system, it achieves loading and unloading of garbage. Standard hook arm device: curb weight 9550kg, rated load 8255kg (for 3 persons); 8320kg (for 2 persons). Optional hook arm device: curb weight 9300kg, rated load 8505kg (for 3 persons); 8570kg (for 2 persons).
Body Brand: CIMC brand / ZOOMLION
Electronic Control
ECU Brand: Dongfeng Commercial Vehicle
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 241.96kWh
Energy Density: 141.5 / 140.7
Battery Model: L202C01
Chassis Specs
Front axle load: 6500ton
Rear Axle Load: 11500ton
Chassis Series: Dongfeng Tianjin
Chassis Model: DFH1180BEV1
Leaf spring count: 8/10+8
Tire
Tire Size: 10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR
Number of tires: 6pcs
FAQ
What kind of truck is CIMC CIMC Dongfeng Commercial Vehicle Chassis Electric Garbage Truck?
CIMC CIMC Dongfeng Commercial Vehicle Chassis is an export-oriented Electric Garbage Truck lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does CIMC Dongfeng Commercial Vehicle Chassis Electric cover?
CIMC Dongfeng Commercial Vehicle Chassis Electric mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in CIMC Dongfeng Commercial Vehicle Chassis Electric?
For CIMC Dongfeng Commercial Vehicle Chassis Electric: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is Electric Garbage Truck typically used for?
Electric Garbage Truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does CIMC Dongfeng Commercial Vehicle Chassis Electric include?
CIMC Dongfeng Commercial Vehicle Chassis Electric currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for CIMC Dongfeng Commercial Vehicle Chassis Electric?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
