Dongfeng Commercial Vehicle Tianjin 18T 7.185m Electric Container Removable Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 8.255ton
Wheelbase:: 4500mm
Model code (announced):: ZBH5180ZXXDFBEV
Truck Type:: Battery Electric Hook-Lift Refuse Truck
Cab length:: 7.185m
GVWR:: 18ton
Drive 4X2 (6 wheels)
CLTC range: 310km
Motor 1 Brand: Lv Kong
Curb Weight: 9.55ton

Overview

The Dongfeng Commercial Vehicle Tianjin 18T 7.185m Electric Container Removable Garbage Truck (CIMC) 241.96kWh 4X2(6 wheels) is a Electric Garbage Truck featuring 310km battery/range, Lv Kong motor, 4X2 (6 wheels) drive and 8.255t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZBH5180ZXXDFBEV
Drive type: 4X2
Truck Type: Battery Electric Hook-Lift Refuse Truck
Wheelbase: 4500mm
Cab length: 7.185m
Cab width: 2.5m
Cab height: 2.955m
CLTC range: 310km
Curb Weight: 9.55ton
Rated payload: 8.255ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Changsha, Hunan
Energy Type: Electric
electric motor
Motor 1 Brand: Lv Kong
Motor 1 Model: TZ370XS-LKM1103
Motor Type: Permanent magnet synchronous motor
Peak power: 160kW
total peak torque: 1100N·m
Body Parameters
Special Function Description: Through the hook arm device and hydraulic system, it achieves loading and unloading of garbage. Standard hook arm device: curb weight 9550kg, rated load 8255kg (for 3 persons); 8320kg (for 2 persons). Optional hook arm device: curb weight 9300kg, rated load 8505kg (for 3 persons); 8570kg (for 2 persons).
Body Brand: ZOOMLION
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 241.96kWh
Energy Density: 140.7
Chassis Specs
Front axle load: 6500ton
Rear Axle Load: 11500ton
Chassis Series: Dongfeng Tianjin
Chassis Model: DFH1180BEV1
Leaf spring count: 8/10+8
Tire
Tire Size: 10.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR
Number of tires: 6pcs

Photos

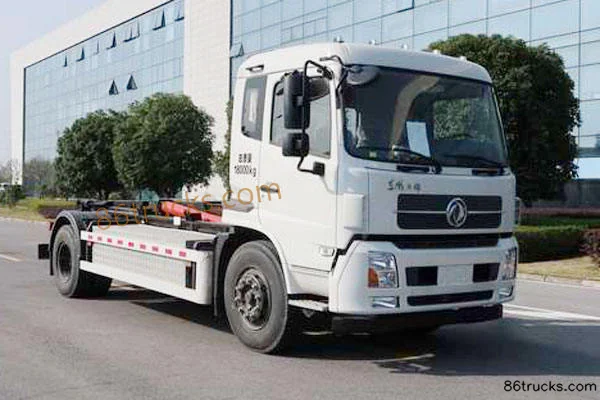

Exterior1
