SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)

Export reference
MSRP N/A
Drive: 6X4 (10 wheels)
Wheelbase:: 3750+1560mm
Model:: STL3601
Cab dimensions:: 8.62×3.25×3.95m
Front/rear track width:: Front track: 2370mm; Rear track: 2198/2198mm
Min turning radius:: 11m
Curb Weight: 23ton
Horsepower 375
Max output power: 276kW
Emission China II/Euro II

Overview

The SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) is a off-highway mining dump truck featuring 62t GVW, 375 hp, 276kW power and 6X4 (10 wheels) drive. On the powertrain side, it comes with China II/Euro II emissions.

China II/Euro II 375 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: STL3601
Cab dimensions: 8.62×3.25×3.95m
Drive type: 6X4
Wheelbase: 3750+1560mm
Front/rear track width: Front track: 2370mm; Rear track: 2198/2198mm
Min turning radius: 11m
Max climbing ability: 44%
Approach/departure angle: 35/52°
Min ground clearance: 380cm
Curb Weight: 23ton
Rated payload: 39ton
GVWR: 62ton
Max. speed: 45km/h
Body Parameters
Truck Brand: SHACMAN Tongli brand
Max dump angle: 51°
Lifting type: Yangzhou Haiwo Multi-stage Front Lift
Chassis Specs
Front/rear axle load: 12/25×2ton
Engine parameters
Engine Model: Weichai WD12.375
Displacement: 11.596L
Emission standard: China II/Euro II
Max output power: 276kW
Max hp: 375Horsepower
Max torque speed: 1350/1300-1500rpm
Cargo box parameters
Cargo box dimensions: 5.6×3×1.5m
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JSD180
Tire
Tire Size: 14.00-24
Number of tires: 10pcs

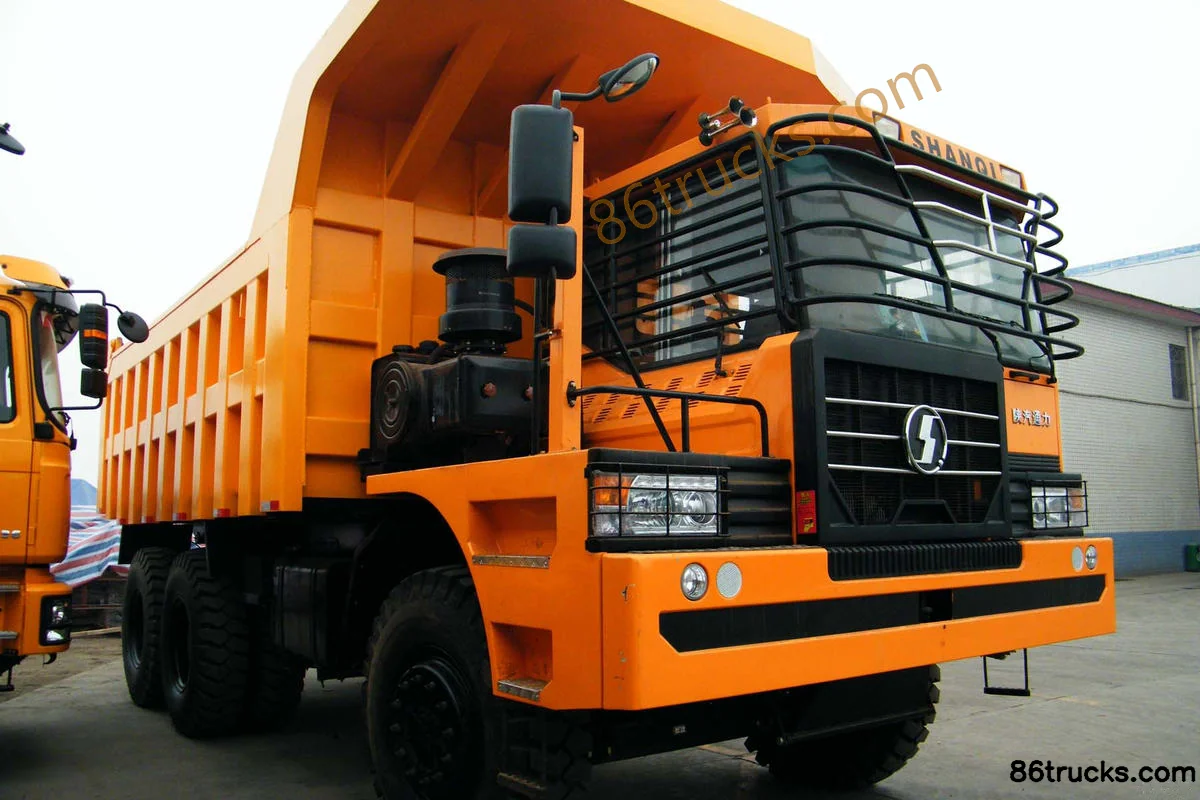

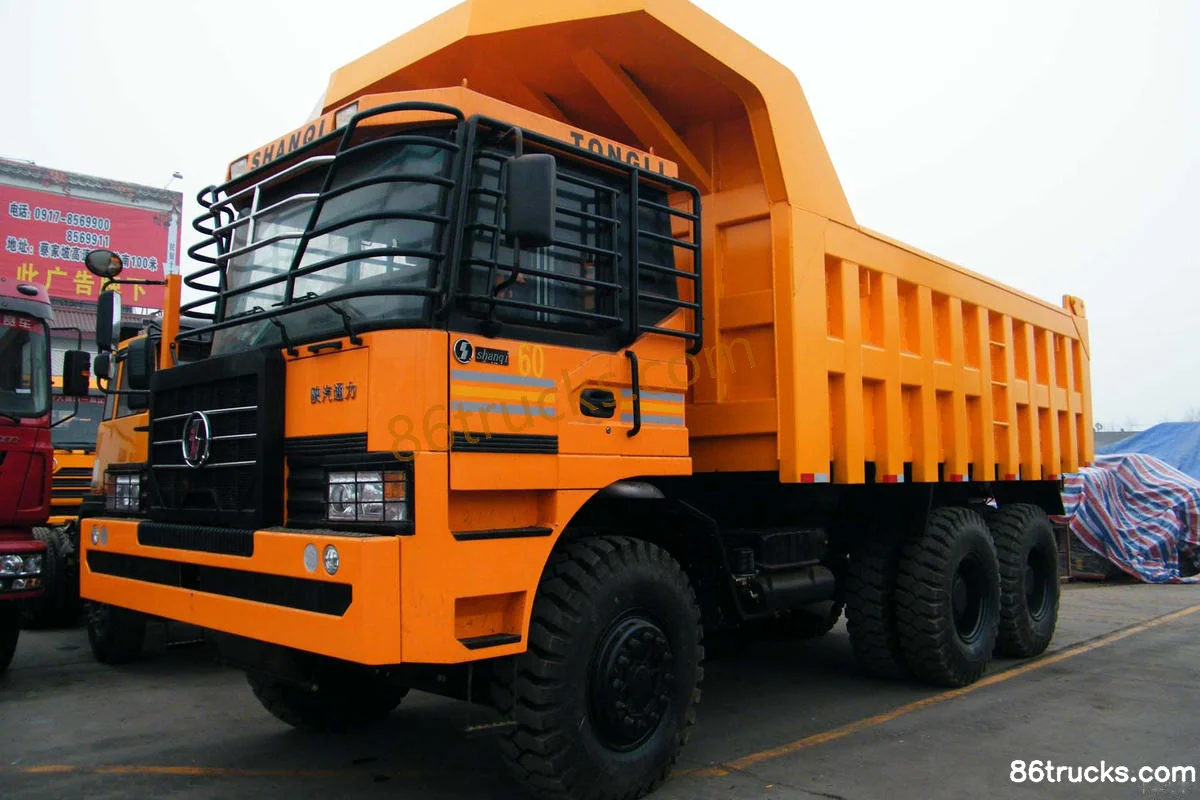

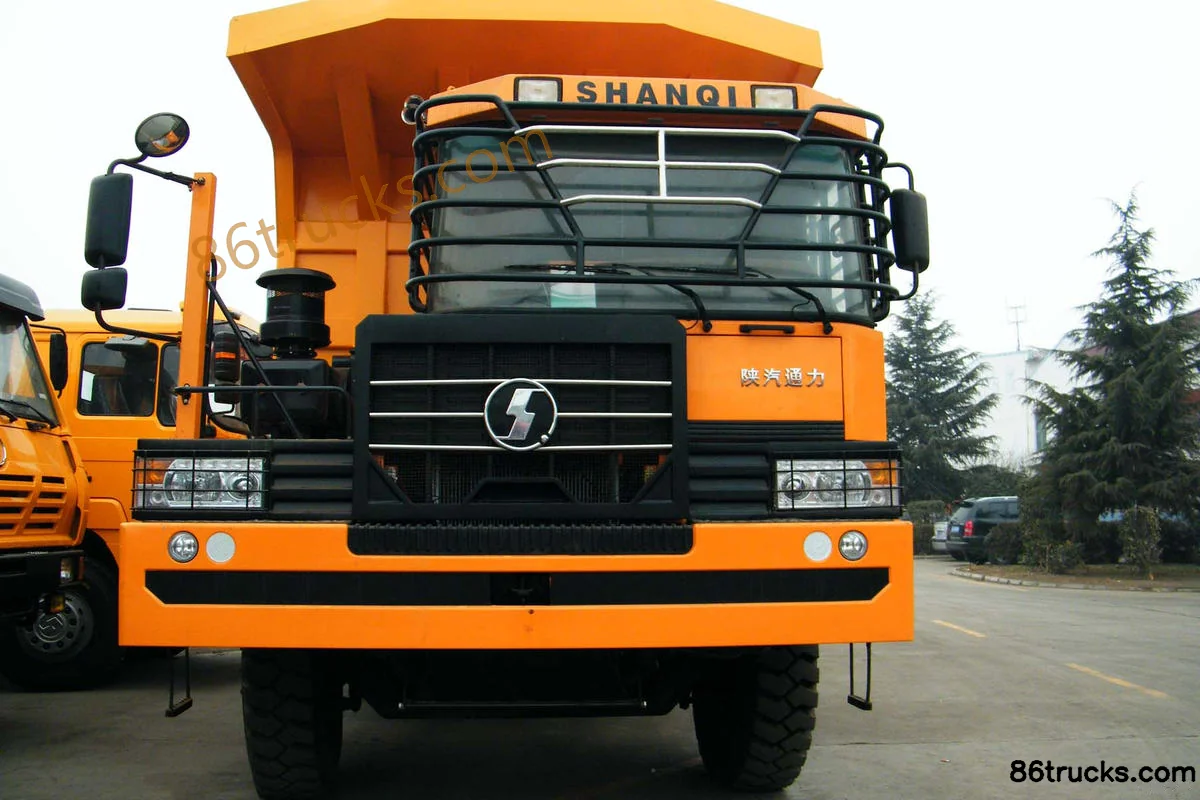

Photos

Exterior3

3 photos

FAQ

What emission standard does SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) use, and can it enter my country?

This model is listed as China II/Euro II. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Key specs of SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m): Drive: 6x4; Horsepower: 375 hp; Emission: China II/Euro II. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) suited for?

SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) is a off-highway mining dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) differ from other variants in the same series?

SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m) belongs to SHACMAN Tongli (off-highway mining dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Tongli 375 hp 6X4(10 wheels) Wide-body Mining Dump Truck (5.6m)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
