Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis

Export reference
From $45,833
MSRP ¥33M CNY
Fuel: Diesel
Wheelbase:: 5825+1350mm
Cab dimensions:: 12.0×2.496×3.95m
Type:: truck-mounted crane
GVWR:: 25ton
Remarks:: Optional ratio 4.875
Drive 6X4 (10 wheels)
Horsepower 280
Rated mass: 9.385ton
Emission China V

Overview

The Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 280 hp, China V emissions and Diesel fuel.

China V 280 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12.0×2.496×3.95m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5825+1350mm
Rated mass: 9.385ton
GVWR: 25ton
Remarks: Optional ratio 4.875
Front/rear suspension: 1.555/3.275m
Energy Type: Diesel
Body Parameters
Crane model: ST305
Vehicle certification code: ZZ1255N5843E1
Body Brand: Sinotruk牌
Engine parameters
Injection System: Common Rail
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan J5G
Chassis Model: ZZ1255N5843E1
rear axle description: 457 dual rear axle
Axle ratio: 3.73
Leaf spring count: 4/-,4/5,4/12,10/-,10/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

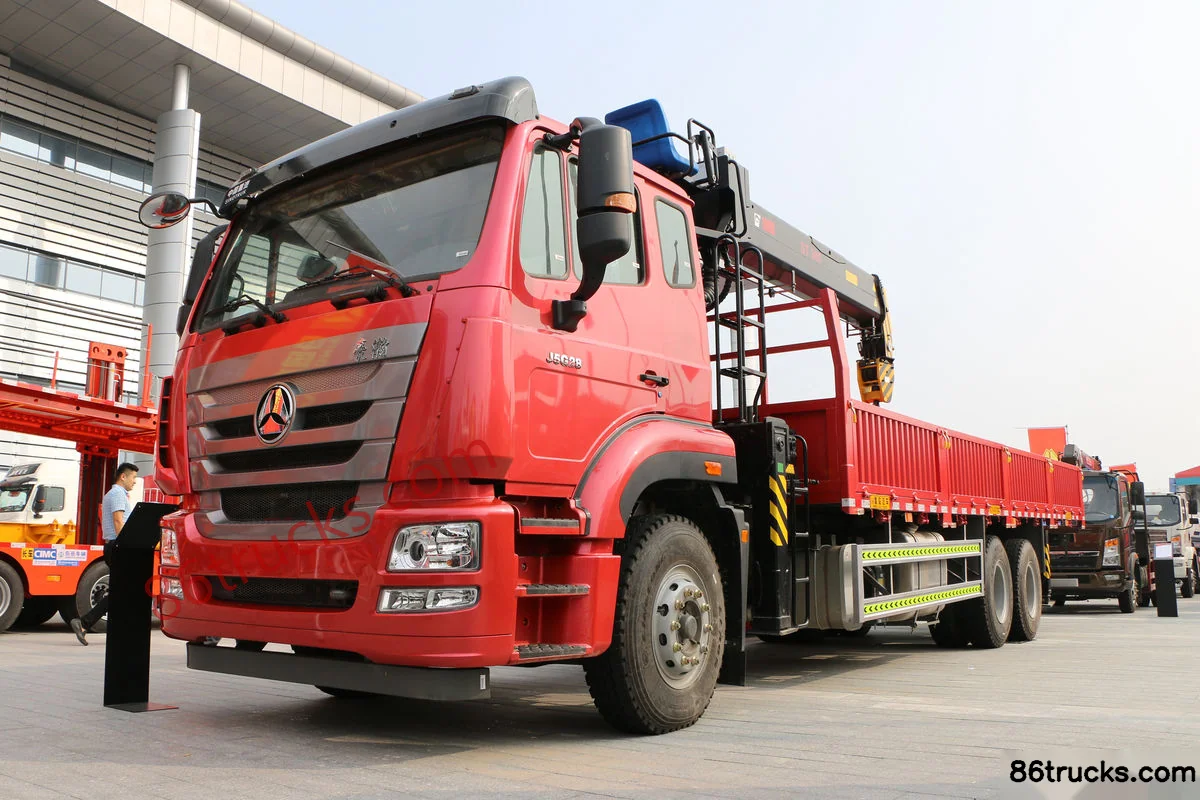

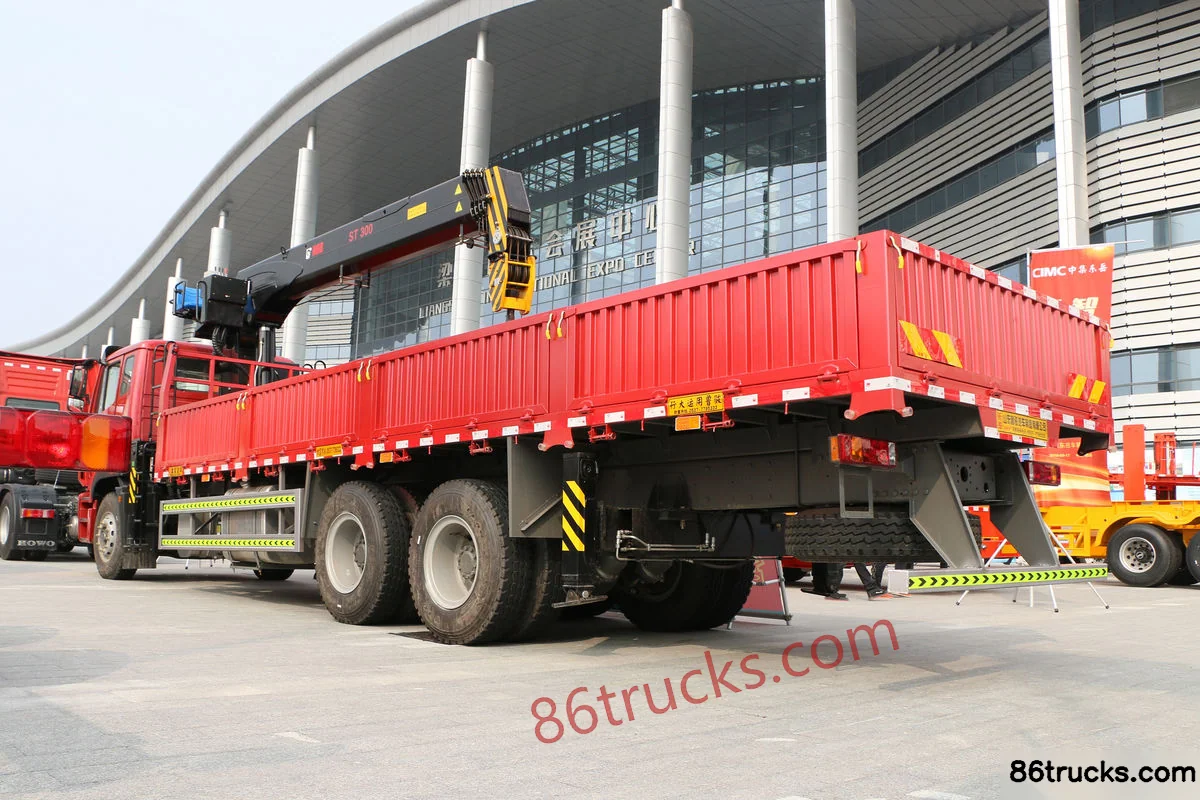

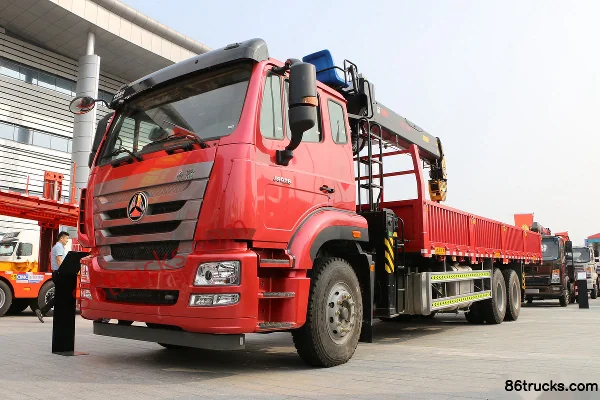

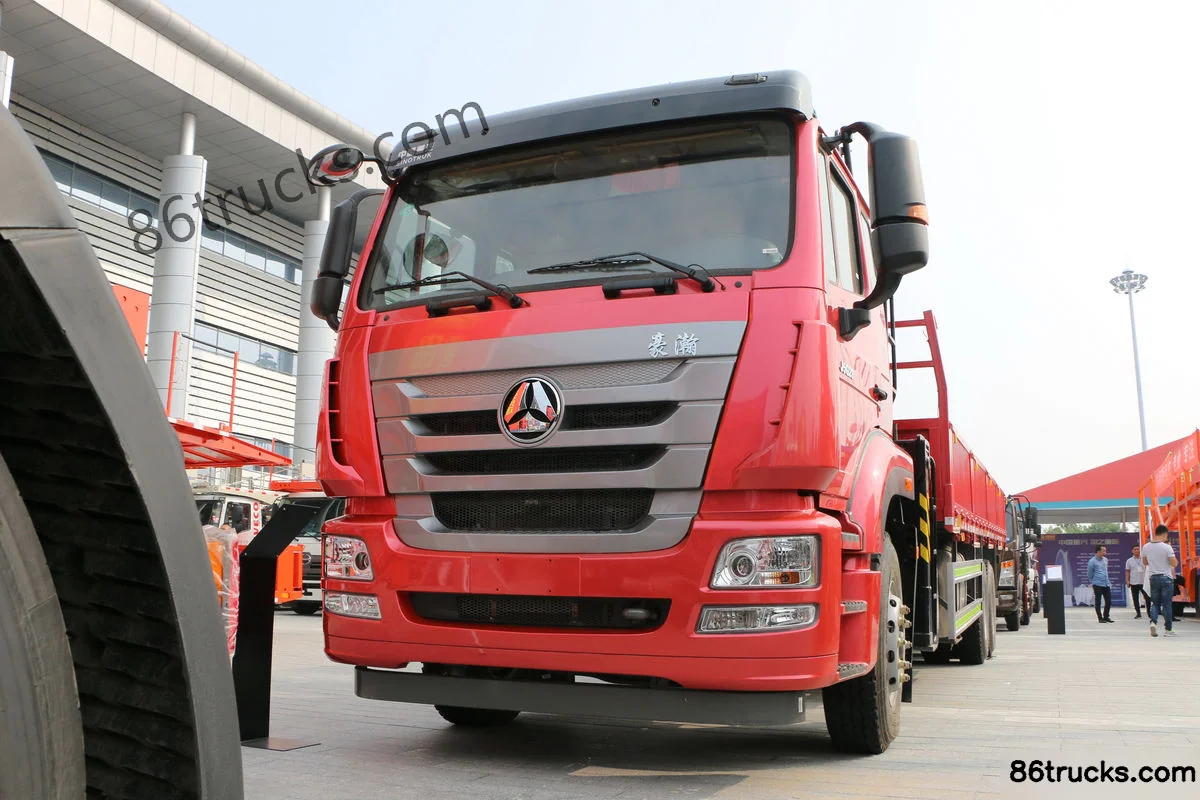

Exterior3

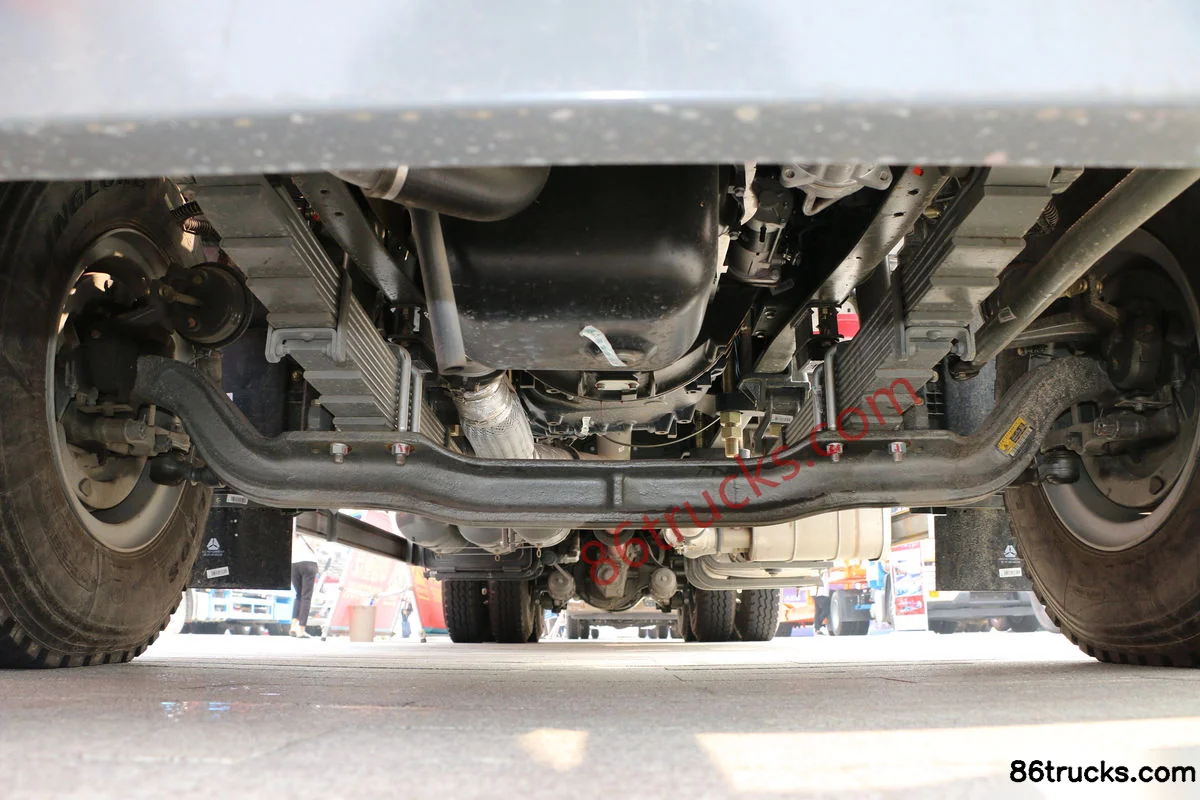

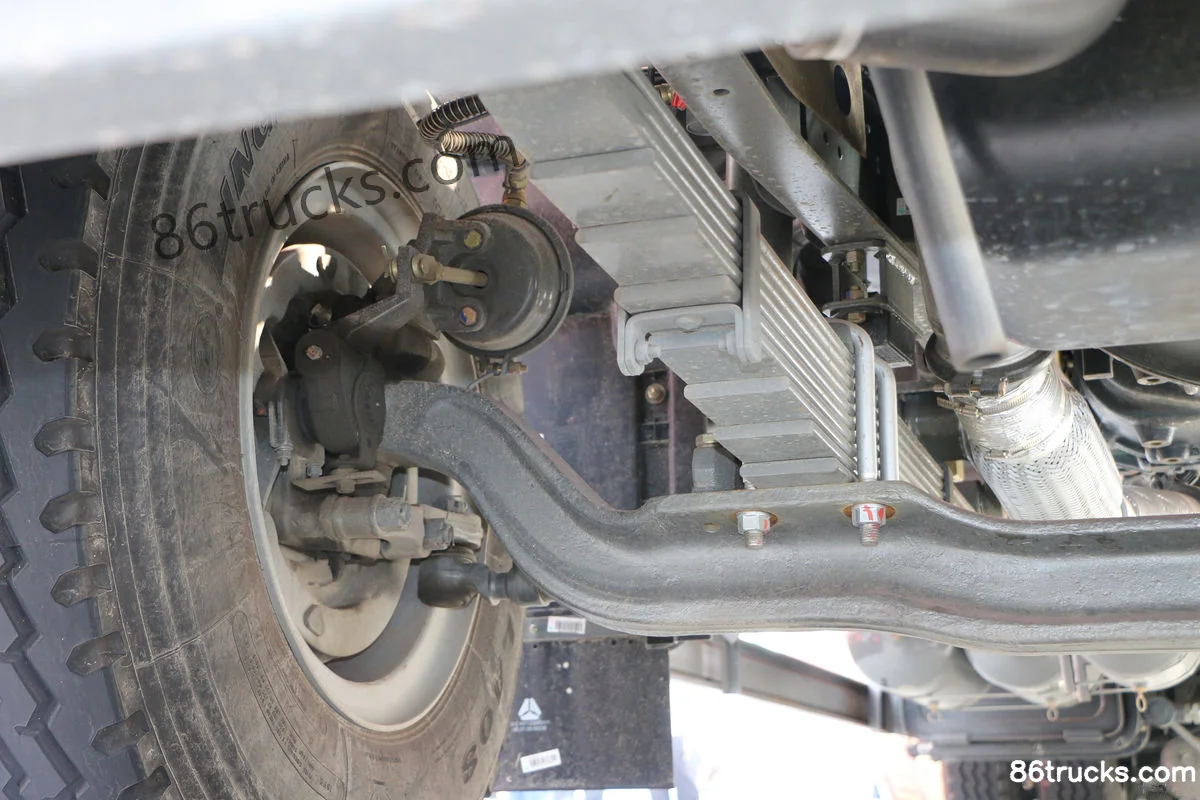

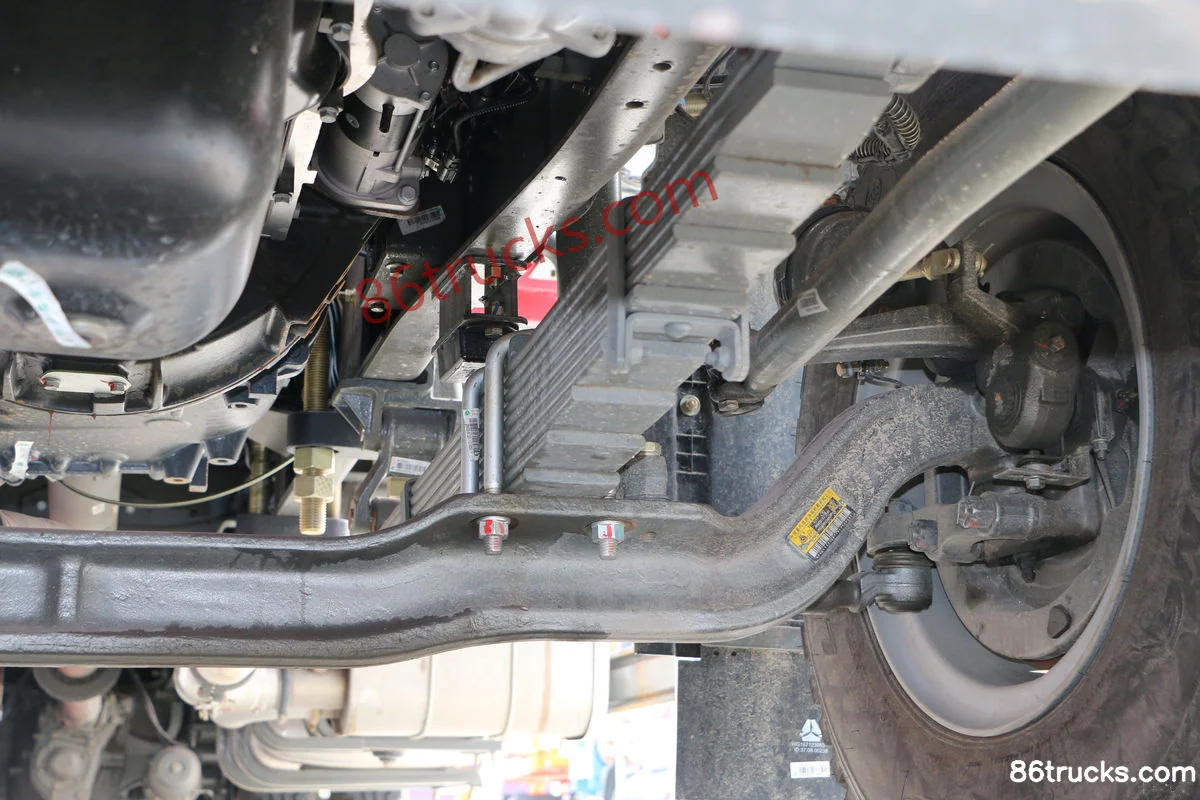

Chassis3

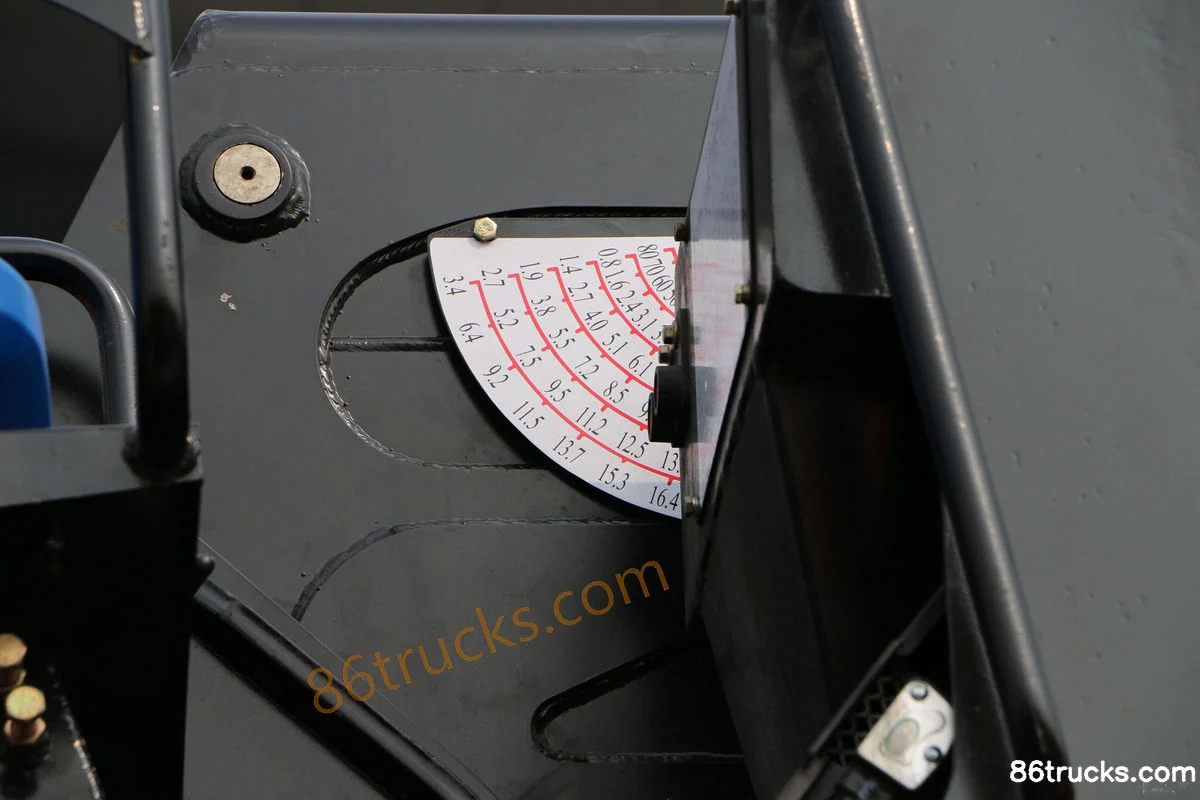

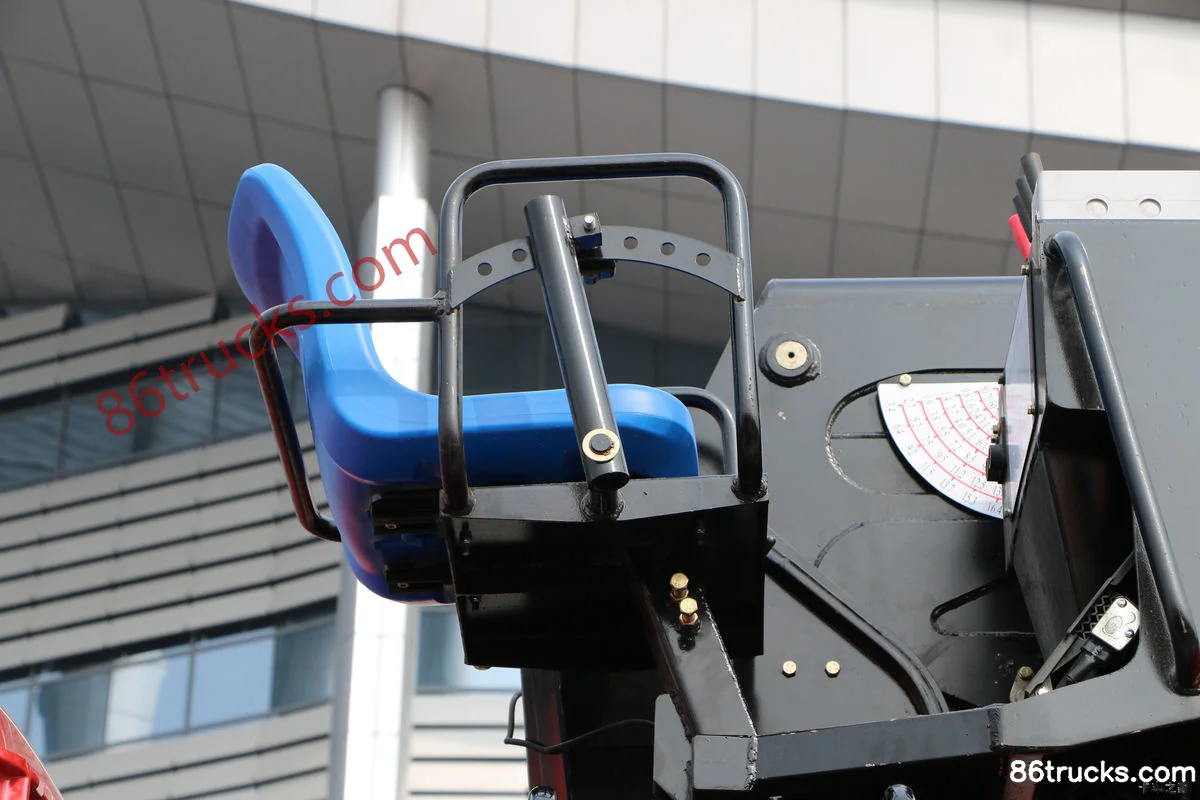

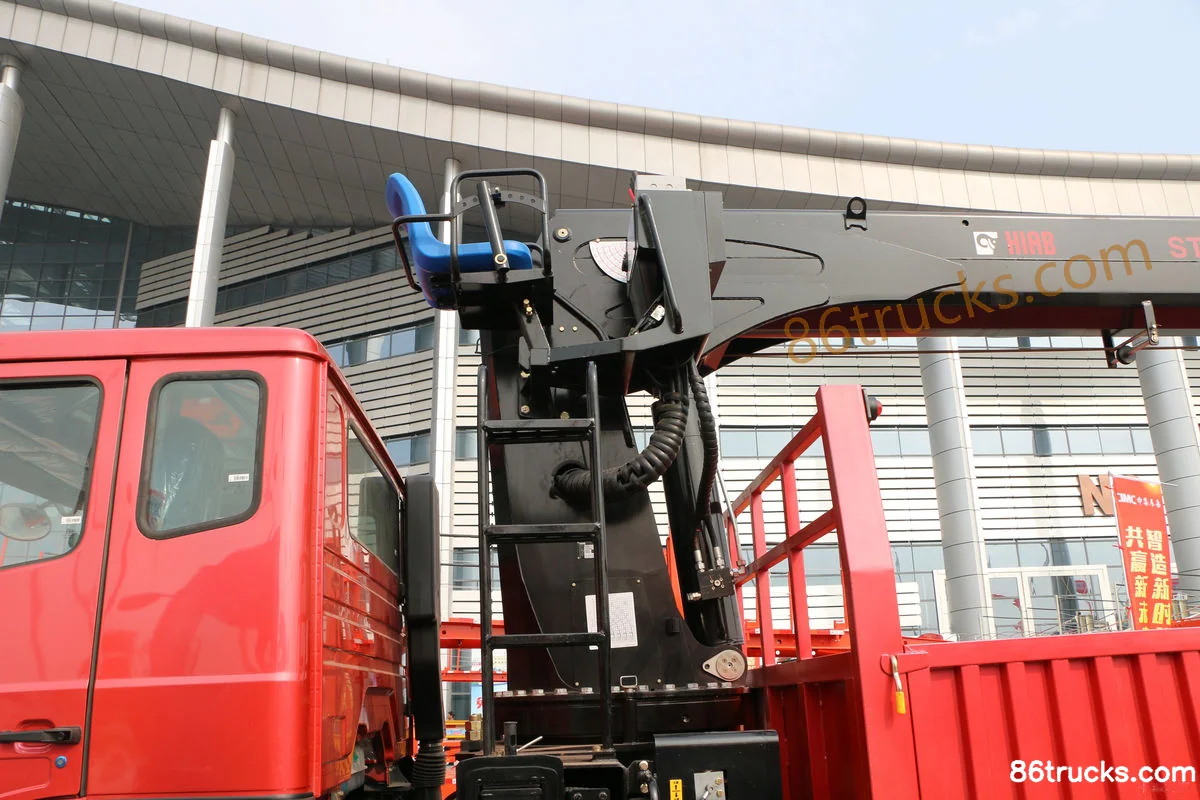

Body3

9 photos

FAQ

What is the export price of Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis, and what does it include?

Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis?

Key specs of Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis: Drive: 6x4; Horsepower: 280 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis suited for?

Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis differ from other variants in the same series?

Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis belongs to Sinotruk J5G Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 280 hp 6X4(10 wheels) crane truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
