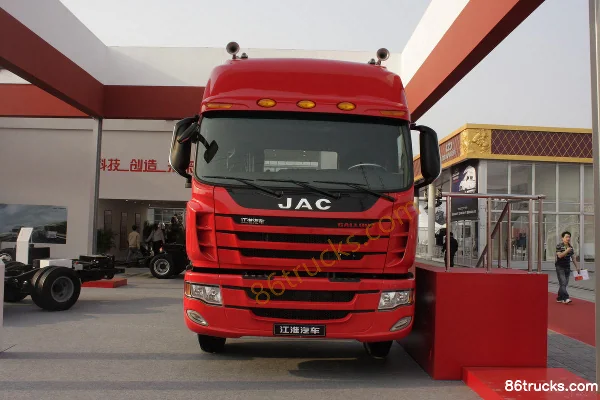

JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 336
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 11.85ton
seating capacity: 3Personnel
Rated payload: 18.97ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 3Personnel volume and 18.97t payload. On the powertrain side, it comes with a WeichaiWP10 engine, 336 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1314K2R1F
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: WeichaiWP10.336E40
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 4.44
Cab length: 11.99m
Cab width: 2.495m
Cab height: 3.83m
Front track width: 2050/2050mm
rear track: 1850/1850mm
Curb Weight: 11.85ton
Rated payload: 18.97ton
GVWR: 30.95ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 22°
departure angle: 15°
Front/rear suspension: 1.495/2.745m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6050/6050kg
Frame Dimensions: 302x90x(8+4)mm
rear axle description: 457 rear axle
rear axle allowable load: 17950 (tandem axle)kg
Axle ratio: 4.44
Leaf spring count: 9/9/12
Suspension (front/rear): Leaf spring
Tire
Tire Size: 11.00R20,12R22.5,12.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck?

Key specs of JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck suited for?

JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck differ from other variants in the same series?

JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck belongs to JAC Gallop K3 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC GallopKW Heavy Truck 336hp 8X4(12 wheels) 9.5m Crew Cab Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
