JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck

Export reference
From $21,500
MSRP ¥15.48M CNY
Horsepower: 160
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.12ton
Wheelbase:: 2950mm
Tire Size:: 6.50R16LT 8PR
Fuel tank capacity: 80L
Rated payload: 1.245ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 3.8×2.01×2.1m

Overview

The JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck is a Refrigerated Truck featuring 3.8×2.01×2.1m cargo body, 80L volume, 1.245t payload and Junling A3 cab. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.64×2.17×3.3m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Hefei, Anhui
Wheelbase: 2950mm
Front track width: 1440mm
rear track: 1560mm
Curb Weight: 3.12ton
Rated payload: 1.245ton
GVWR: 4.495ton
Max. speed: 100km/h
Front/rear suspension: 1.11/1.58m
Energy Type: Diesel
Engine parameters
Engine Model: QuanchaiQ25A-160E60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.496L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Max torque: 400N·m
Cargo box parameters
Cargo box dimensions: 3.8×2.01×2.1m
Cargo box width: 2.01m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: HFC5041XLCB33K1C7S
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Junling A3
Chassis Model: HFC1041B33K1C7S
Axle ratio: 4.33
Leaf spring count: 4/5+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: ML540A
Cab parameters
Cab: Junling A3
fuel tank
Fuel tank capacity: 80L
Tire
Tire Size: 6.50R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Power interface:
Seat material: Fabric
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

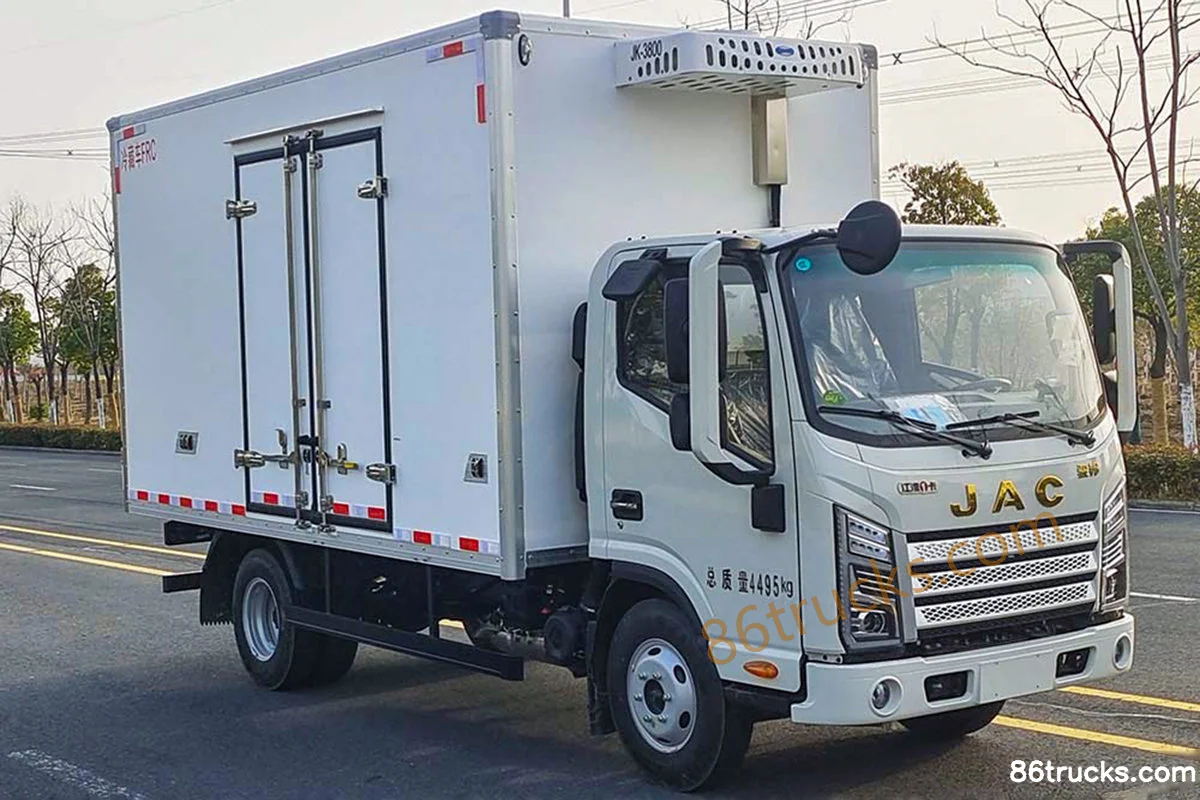

Exterior1

1 photos

FAQ

What is the export price of JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck, and what does it include?

JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck export reference is about From $21,500; MSRP is ¥15.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck?

Key specs of JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck suited for?

JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck differ from other variants in the same series?

JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck belongs to JACA3 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC A3 160 hp 4X2(6 wheels) 3.8m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
