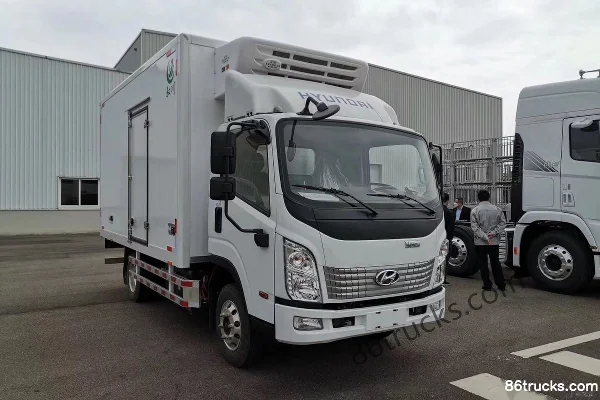

Hyundai Commercial Vehicle Hongtu 500 154 hp 4X2(6 wheels) 4.05m Refrigerated Truck
EXW
From $34,722
Export quote
Hyundai Commercial Vehicle Sichuan Hyundai Hongtu
Main model photos
126 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hyundai Commercial Vehicle Hongtu 500 154 hp 4X2(6 wheels) 4.05m Refrigerated Truck | 4x2 / 154hp / China V | From $34,722 | |
| Hyundai Commercial Vehicle Hongtu 500 130hp 4X2(6 wheels) 4.165m Refrigerated Truck | 4x2 / 130hp / China V | From $27,500 | |
| Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Hongtu 500 130hp 4X2(6 wheels) 4.065m refrigerated truck | 4x2 / 130hp / China V | From $27,500 | |
| Hyundai Commercial Vehicle Hongtu 500 170 hp 4X2(6 wheels) 4.065m Refrigerated Truck | 4x2 / 170hp / China V | From $33,333 | |
| Hyundai Commercial Vehicle Hongtu 500 156 hp 4X2(6 wheels) 4.065m refrigerated truck | 4x2 / 156hp / China V | From $33,333 |
Hyundai Commercial Vehicle Hongtu 500 130hp 4X2(6 wheels) 4.165m Refrigerated Truck
EXW
From $27,500
Export quote

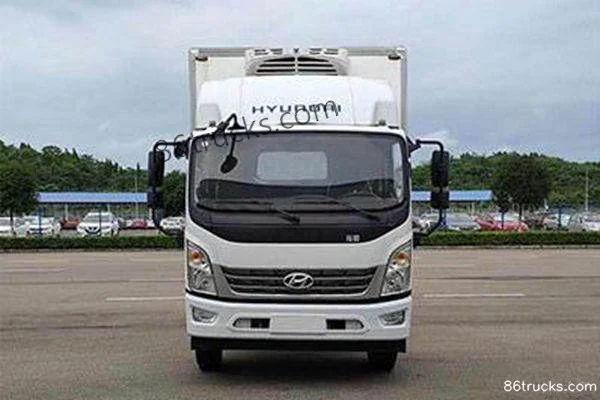

Hyundai Commercial Vehicle (formerly Sichuan Hyundai) Hongtu 500 130hp 4X2(6 wheels) 4.065m refrigerated truck
EXW
From $27,500
Export quote
Hyundai Commercial Vehicle Hongtu 500 170 hp 4X2(6 wheels) 4.065m Refrigerated Truck
EXW
From $33,333
Export quote
Hyundai Commercial Vehicle Hongtu 500 156 hp 4X2(6 wheels) 4.065m refrigerated truck
EXW
From $33,333
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.485×3.475 / 5.995×2.26×3.27 / 5.995×2.26×3.19 / 5.995×2.46×3.27 / 5.995×2.46×3.47 / 5.995×2.46×3.1m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Ziyang, Sichuan
Wheelbase: 3300mm
Front track width: 1775 / 1755 / 1650mm
rear track: 1785 / 1640 / 1604 / 1800 / 1540mm
Curb Weight: 3.21ton
Rated payload: 1.09ton
Max. speed: 100 / 110km/h
Front/rear suspension: 1.125/1.57 / 1.12/1.575 / 1.120/1.575 / 1.11/1.585m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF3.8s5154 / YuchaiYC4FA130-50 / Yunnei PowerYNF40E1 / Yunnei PowerYNF40E2 / Yunnei PowerD30TCIE1
Number of cylinders: 4cylinder
Displacement: 3.76 / 2.982 / 3.92 / 2.977L
Emission standard: China V
Max output power: 115 / 95 / 125kW
Max hp: 154 / 130 / 170 / 156Horsepower
Max torque: 491 / 340 / 600 / 500 / 400N·m
Rated speed: 2600 / 3200rpm
Engine Type: Electronically controlled high-pressure common rail / Vertical, inline, water-cooled, four-stroke / 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train / 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Cargo box parameters
Cargo box dimensions: 4.05×2.3×2.3 / 4.165×2.3×2.1 / 4.065×2.3×2.3 / 4.165×2.3×2.3 / 4.065×2.3×2.1/2.3 / 4.065×2.3×2.1m
Cargo box width: 2.3m
Cargo box height: 2.3 / 2.1 / 2.1/2.3m
Body Parameters
Vehicle certification code: CHM5040XLCGDC33V / CHM5042XLCQDA33V / CNJ5042XLCQDA33V
Body Brand: Hyundai Commercial Vehicle
Chassis Specs
Chassis Brand: Hyundai Commercial Vehicle
Chassis Series: Hongtu 500
Chassis Model: CHM1043GDC33V / CHM1041QDA33V / CNJ1041QDA33V
rear axle description: 5.5T / 6.5T
Axle ratio: 4.875 / 4.333
Leaf spring count: 3/9+7
Transmission Parameters
Number of gears: 6 / 8 / 10 / 5Gear
Transmission Model: WLYWLY6-50CY1K / WLY 6-speed / WLYWLY5-35CY2K / 8-speed gearbox / 10-speed transmission / WLY6-50CY1K / Fast Gear8-85CY6K / WLYWLY6-38CY3K
Tire
Tire Size: 7.50R16LT 8PR / 7.00R16 10PR / 7.00R16 10PR/7.50R16 8PR / 7.50R16 8PR / 7.00R16 10PR，7.50R16 8PR
Number of tires: 6pcs
FAQ
What kind of truck is Hyundai Commercial Vehicle Sichuan Hyundai Hongtu 500 Light Truck Refrigerated Truck?
Hyundai Commercial Vehicle Sichuan Hyundai Hongtu 500 Light Truck is an export-oriented Refrigerated Truck lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hyundai Commercial Vehicle Sichuan Hyundai Hongtu?
Hyundai Commercial Vehicle Sichuan Hyundai Hongtu export reference is about $25,944 – $34,722. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hyundai Commercial Vehicle Sichuan Hyundai Hongtu cover?
Hyundai Commercial Vehicle Sichuan Hyundai Hongtu mainly covers: Drive: 4x2; Horsepower: 130 hp / 154 hp / 156 hp / 170 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hyundai Commercial Vehicle Sichuan Hyundai Hongtu?
For Hyundai Commercial Vehicle Sichuan Hyundai Hongtu: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Hyundai Commercial Vehicle Sichuan Hyundai Hongtu include?
Hyundai Commercial Vehicle Sichuan Hyundai Hongtu currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hyundai Commercial Vehicle Sichuan Hyundai Hongtu?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
