Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 0.82ton
Wheelbase:: 3490mm
Cargo box type:: stake body
Model code (announced):: FD1043W78BEV-1
Type:: Cargo Trucks
Box length class:: 4.2m
Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) exterior
View more photos (9)
Drive 4X2 (6 wheels)
CLTC range: 330km
Motor 1 Brand: Feidi
Curb Weight: 3.48ton

Overview

The Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) is a Light Truck featuring 330km battery/range, Feidi motor, 4X2 (6 wheels) drive and 0.82t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD1043W78BEV-1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3490mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.41m
CLTC range: 330km
Curb Weight: 3.48ton
Rated payload: 0.82ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Feidi
Motor 1 Model: TZ230XSHD005
Motor Type: Permanent magnet synchronous motor
total rated power: 90kW
Peak power: 185kW
Battery/Charging
Battery Brand: CATL
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 120.27kWh
fast charge time: 0.67h
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
Cab width: 2120mm
seating capacity: 3Personnel
Seat rows: Single Row
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 1950kg
rear axle description: 5-ton Hande electric drive axle
rear axle allowable load: 2545kg
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Steering Wheel Material: ABS plastic
steering wheel adjustment:
Multifunction steering wheel:
AC control type: Electric
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

Exterior3

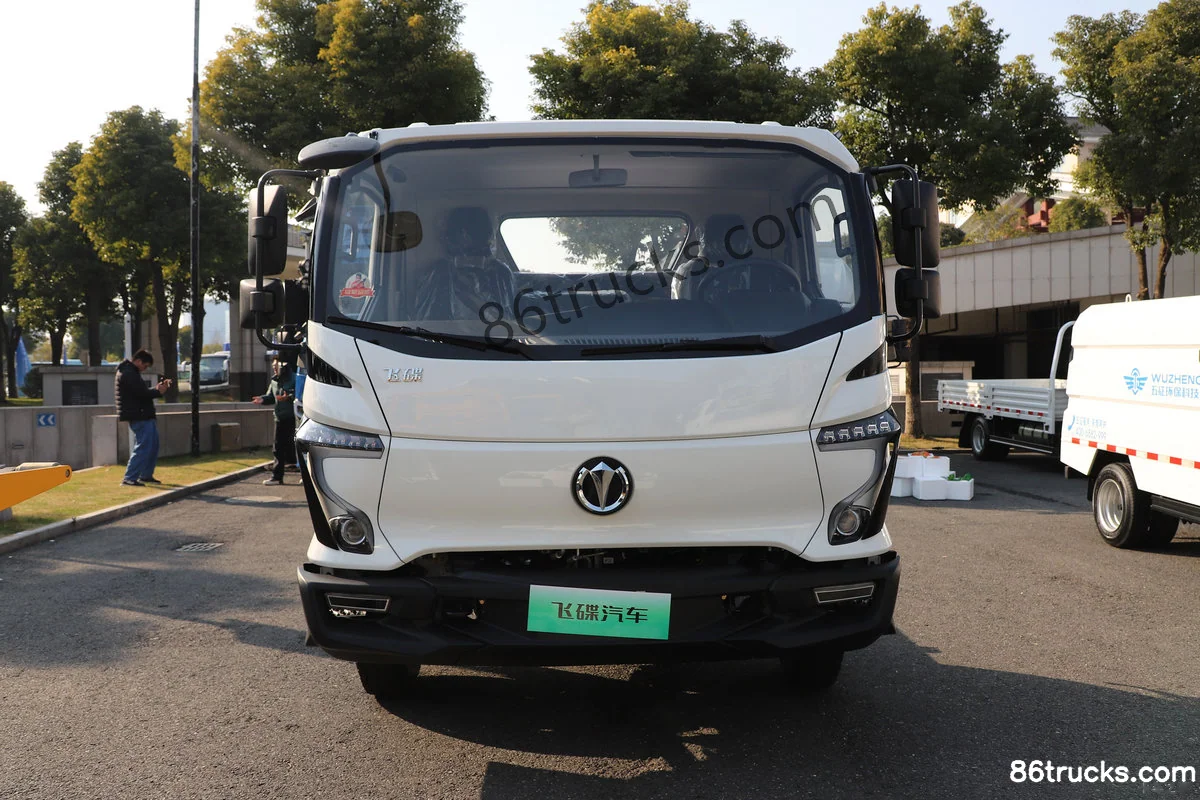

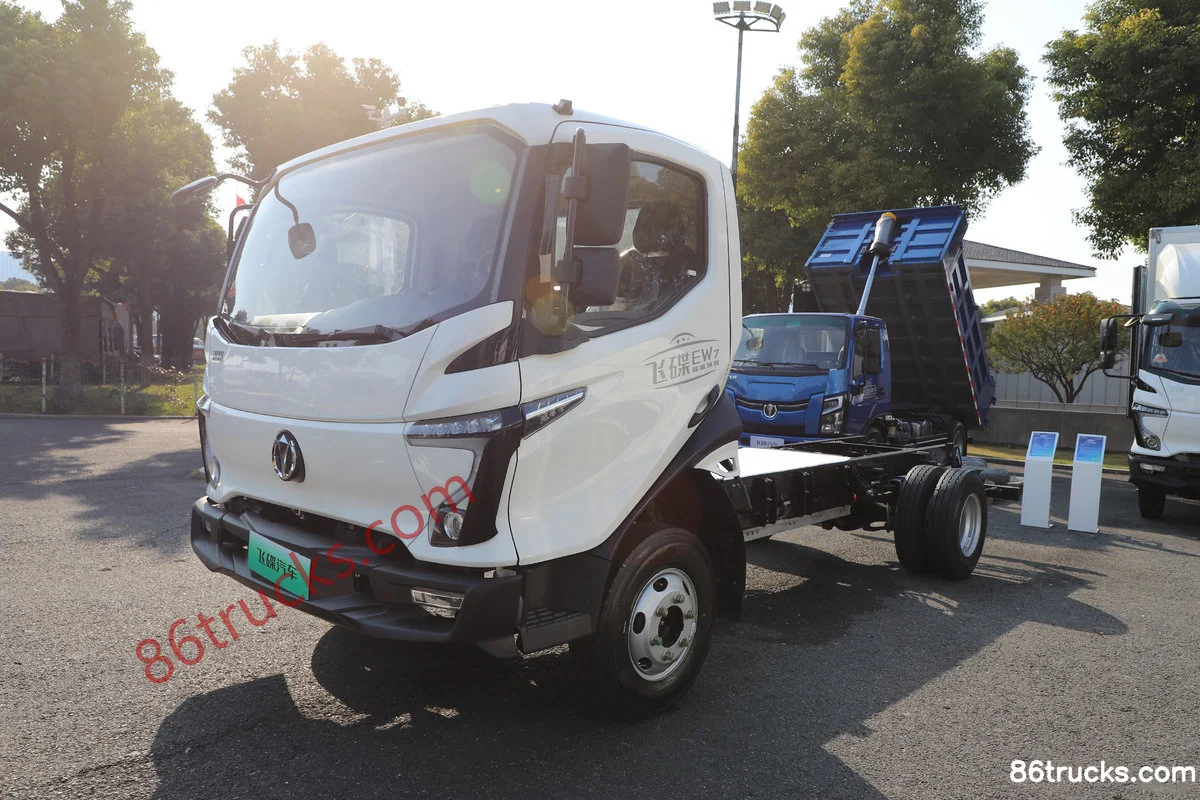

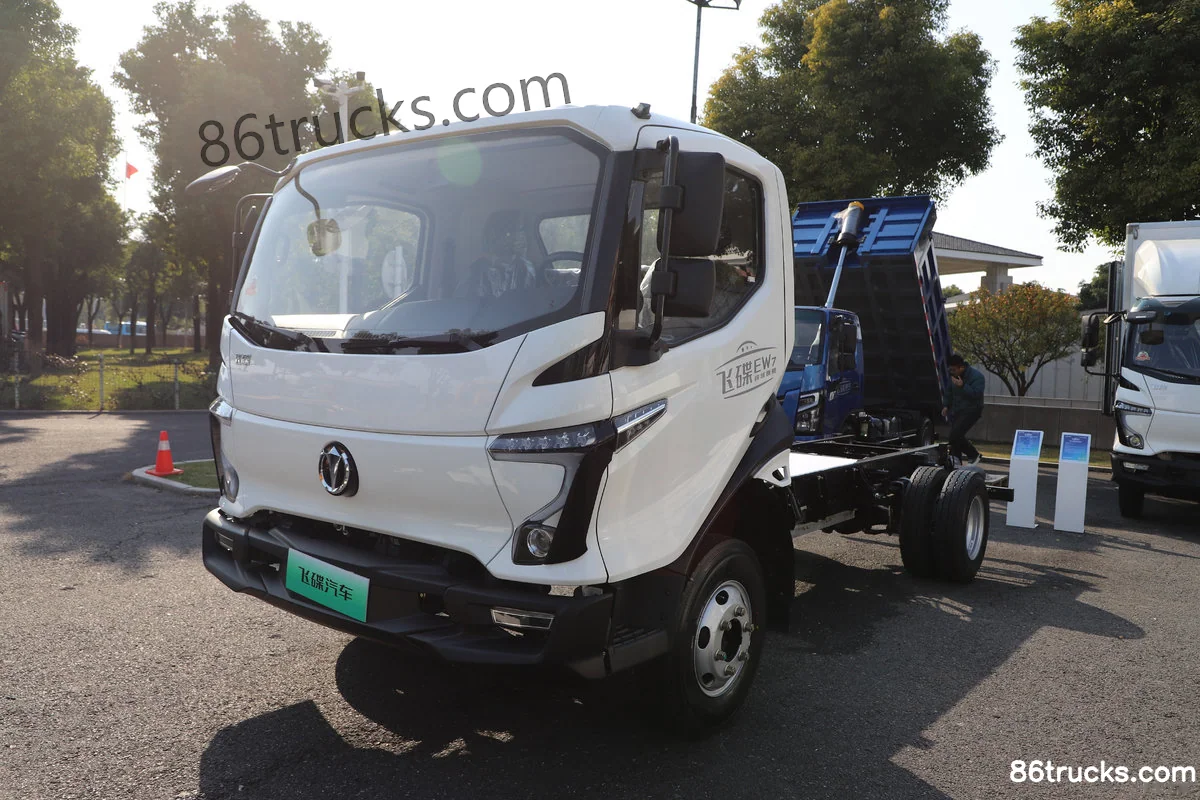

Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Exterior (1) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Exterior (2) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Exterior (3) | 86Trucks

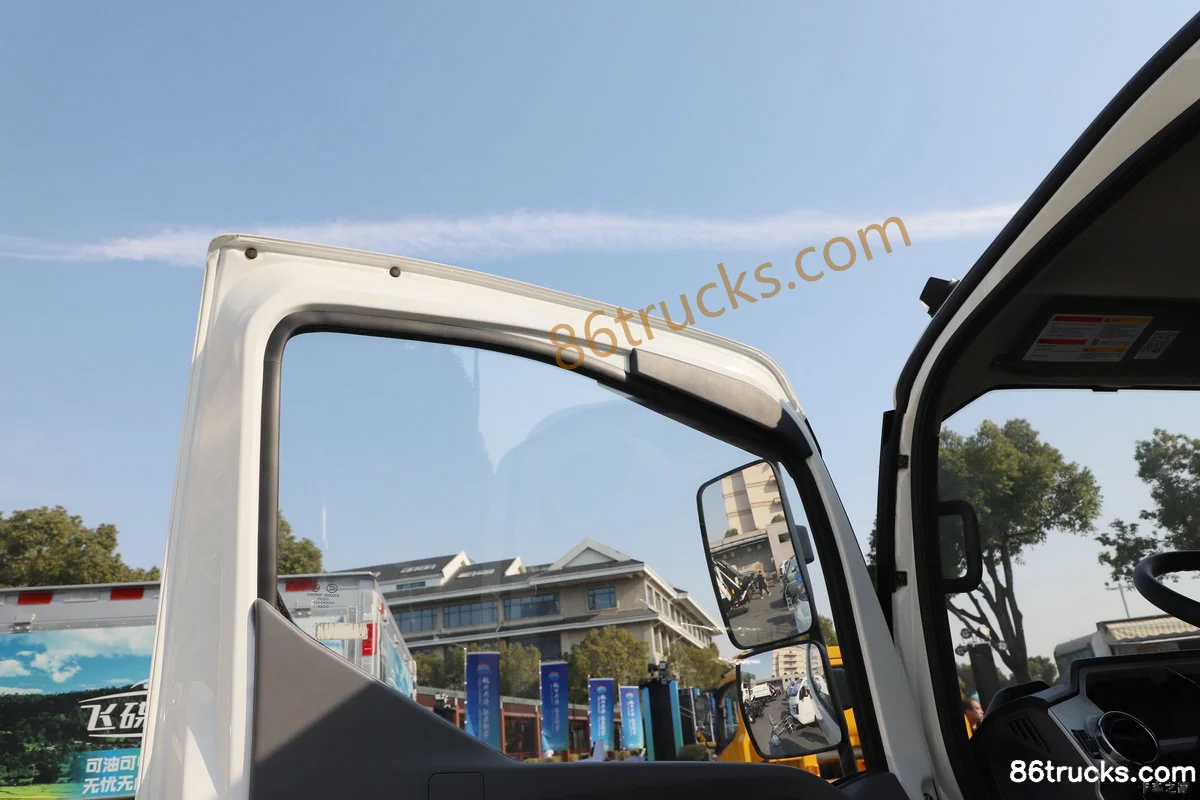

Cab3

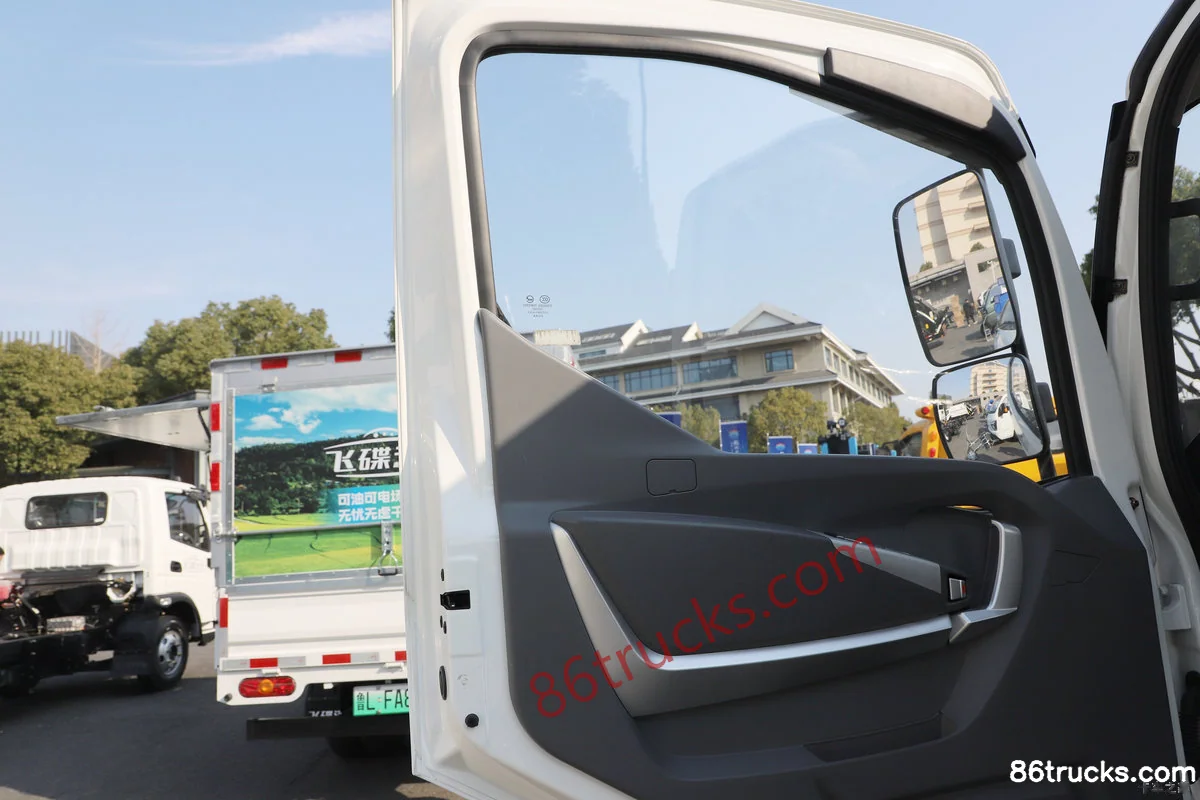

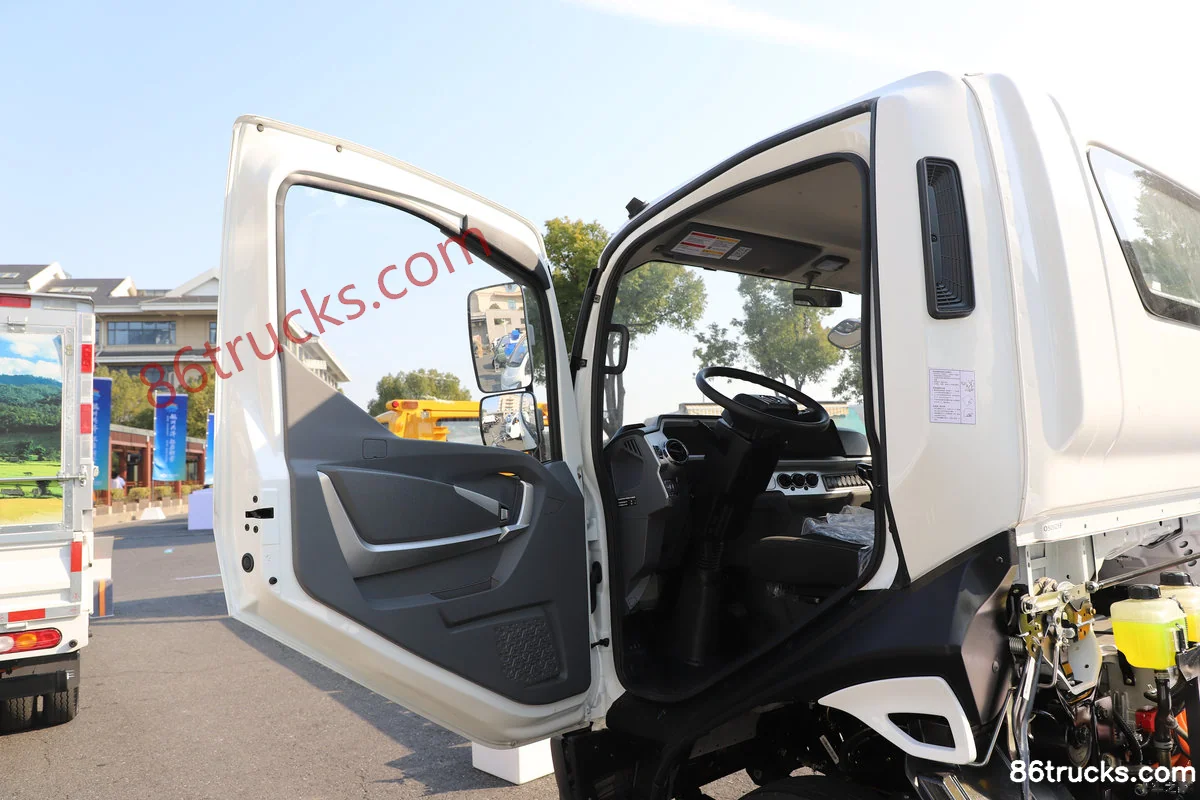

Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Cab (1) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Cab (2) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Cab (3) | 86Trucks

Chassis3

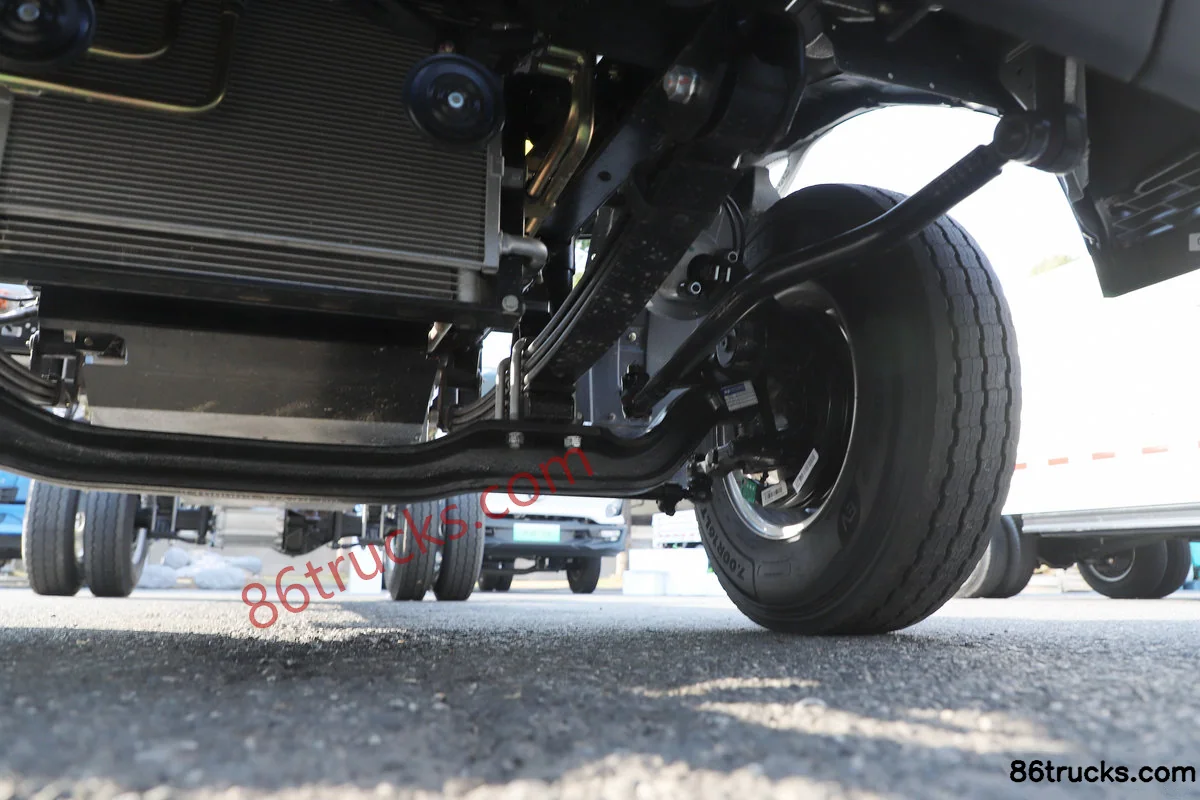

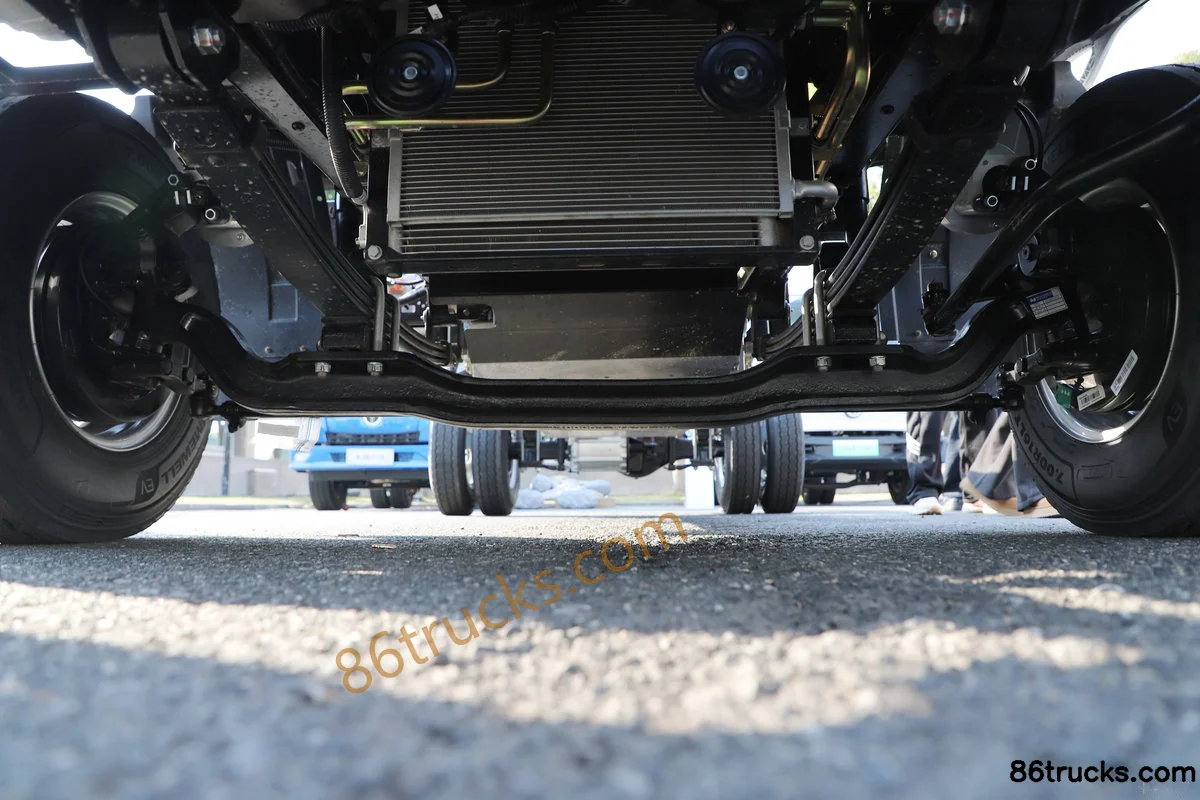

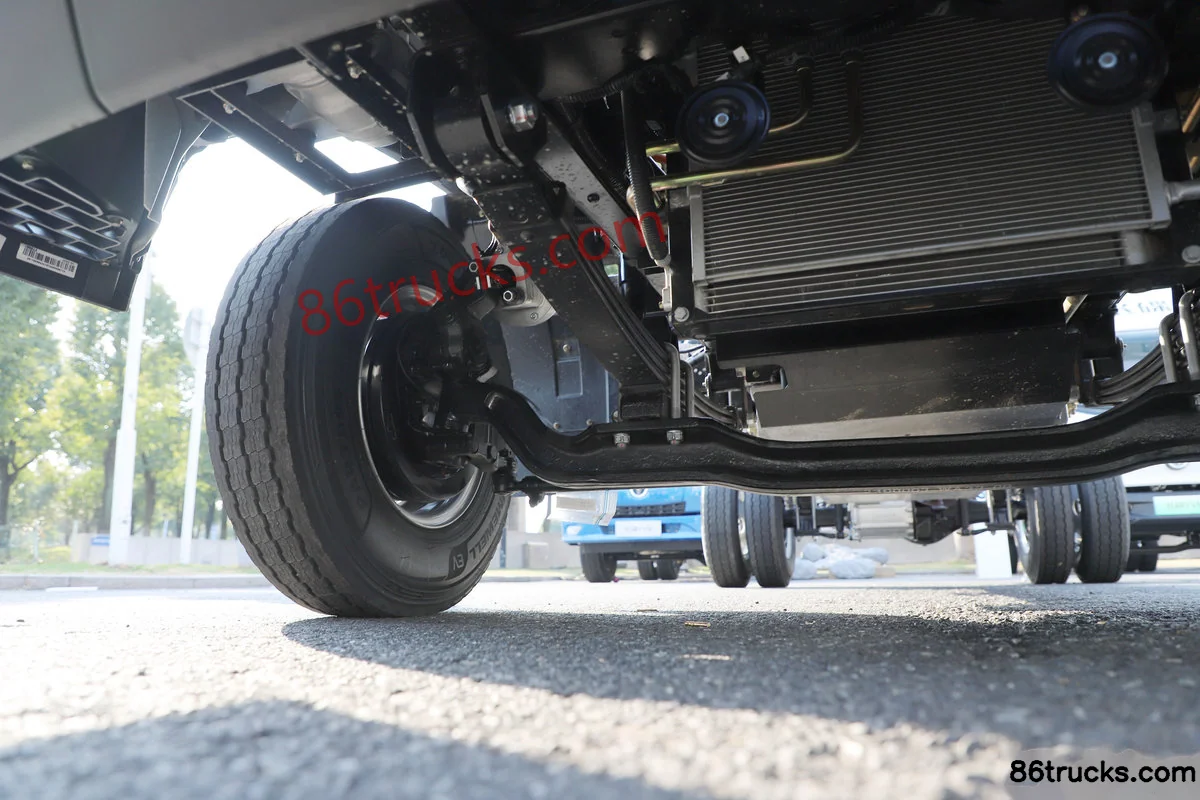

Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Chassis (1) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Chassis (2) | 86Trucks Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Key specs of Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) suited for?

Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) differ from other variants in the same series?

Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels) belongs to FeidiEW7 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi EW7 Air Brake 4.18m Single Row Electric Flatbed Light Truck CATL 120.27kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
