Sinotruk Xinglan Max Air Brake 4.15m Single Row Pure Electric Panel Van Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $34,097
Export quote

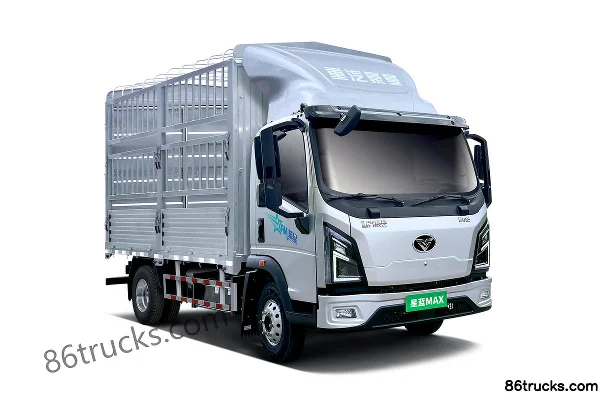

Sinotruk Star Blue Max electric cargo truck
Main model photos
82 photos
Models
On sale
Sinotruk Xinglan EM3 Tianxing Edition 4X2(6 wheels) 3360 Wheelbase 4.18m Single Row Pure Electric Flatbed Light Truck CATL 140.41kWh
EXW
From $33,333
Export quote
Sinotruk Xinglan EM3 Tianxing Edition 3360 Wheelbase 4.18m Single Row Pure Electric Cargo Van Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $34,722
Export quote

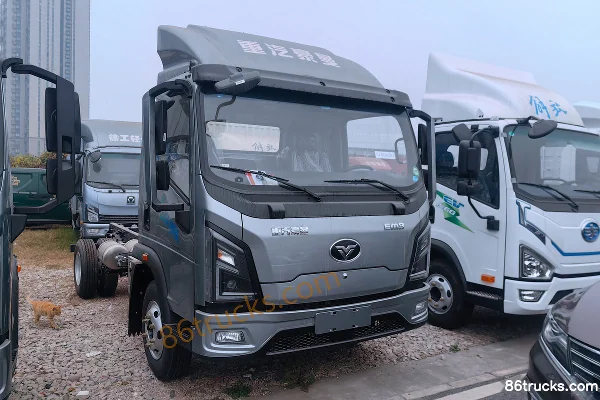

Sinotruk Xinglan EM3 Tianxing Edition 3360 Wheelbase 4.18m Single Row Pure Electric Box Van Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $34,722
Export quote
Sinotruk Xinglan EM3 Tianxing Edition 4.18m Single Row Pure Electric Flatbed Light Truck CATL 140.41kWh 4X2(6 wheels)
EXW
From $34,028
Export quote
Series Specs
Basic Info
Model code (announced): ZZ5048XXYG17ZBEVD / ZZ1048G17ZBEVD / ZZ5048CCYG17ZBEVD / ZZ1048G17ZBEVC / ZZ5048CCYG17ZBEVC / ZZ5048XXYG17ZBEVC / ZZ5048CCYG17ZBEVB / ZZ5048XXYG17ZBEVB / ZZ1048G17ZBEVB
Type: enclosed cargo truck / Cargo Trucks / stake truck
Drive type: 4X2
Wheelbase: 3360 / 3650mm
Box length class: 4.2m
Cab length: 5.995m
Cab width: 2.2 / 2080m
Cab height: 3.15 / 2.47 / 3.38 / 3.1m
CLTC range: 400 / 280 / 360km
Curb Weight: 3.23 / 3.21 / 3.48 / 3.5 / 2.75 / 3.36ton
Rated payload: 1.135 / 1.155 / 1.07 / 0.82 / 0.865 / 1.55 / 1.005 / 1.09ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Yong'an, Fujian
tonnage class: Light Truck
Version: EM3
electric motor
Motor 1 Brand: Fujian Haixi / Sinotruk / Inovance
Motor 1 Model: TZ230XSZZHX001 / TZ220XS-ZQV22 / TZ228XS032 / TZ230XS-ZQRM140V11
Motor Type: Permanent magnet synchronous motor
Energy Type: Electric
total rated power: 90 / 95 / 65 / 60kW
Peak power: 160 / 190 / 120 / 140kW
total peak torque: 360N·m
total rated torque: 172N·m
Electronic Control
ECU Brand: 依思普林
Battery/Charging
Battery Brand: CATL / CATL Tianxing Edition / FinDreams
Charging method: Fast Charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 140.41 / 150.83 / 140.95 / 100.46 / 132kWh
Cargo box parameters
Cargo box volume: 18.4m³
Cargo box type: Van body / stake body / Stake type
Cargo box length: 4.15 / 4.18m
Cargo box width: 2.1m
Cargo box height: 2.1 / 0.4 / 0.5m
Cab parameters
Cab: Star Blue MAX / Single Row / Wide-body Star Blue cab / Wide-body Cab
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1785kg
rear axle description: Hande5T / Hande5.5T / 5T / 4.5T Hande electric drive axle
rear axle allowable load: 2710kg
FAQ
What kind of truck is Sinotruk Sinotruk Star Blue Max electric cargo truck?
Sinotruk Sinotruk Star Blue Max is an export-oriented electric cargo truck lineup with about 17 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Star Blue Max electric cargo truck?
Sinotruk Star Blue Max electric cargo truck export reference is about $28,472 – $48,611. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Star Blue Max electric cargo truck cover?
Sinotruk Star Blue Max electric cargo truck mainly covers: Drive: 4x2. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Star Blue Max electric cargo truck?
For Sinotruk Star Blue Max electric cargo truck: confirm local charging and registration first, then filter by range/power and payload, and quote with your operating route.
What is electric cargo truck typically used for?
electric cargo truck focuses on lower-emission work where charging is available. Confirm local charging and registration before purchase.
How many models does Sinotruk Star Blue Max electric cargo truck include?
Sinotruk Star Blue Max electric cargo truck currently lists about 17 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Star Blue Max electric cargo truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
