JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed)

Export reference
From $13,208
MSRP ¥9.51M CNY
Horsepower: 152
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.5L
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) is a Light Truck featuring 3.8m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a Quanchai2.5L engine, 152 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 152 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1043P31K1C4NS
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 3.8m
engine: QuanchaiQ25-152E60
transmission: WLYWLY8G45B
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.11m
Cab height: 2.48m
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Suining, Sichuan
tonnage class: Light Truck
Approach angle: 24°
departure angle: 16°
Remarks: Standard MP3, dual battery; optional ratio 5.375, 6.50R16 tubeless tires, aluminum side guard, plastic fuel tank.
Front/rear suspension: 1.1/1.53m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ25-152E60
Engine info: Quanchai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.5L
Emission standard: China VI
Max output power: 112kW
Max hp: 152Horsepower
Max torque: 440N·m
Max torque speed: 1400rpm
Rated speed: 3000rpm
Transmission Parameters
Transmission Model: WLYWLY8G45B
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 2.01m
Cargo box height: 0.4m
*Cargo box interior width: 2.0099999904633
Cab parameters
Cab: J5
Cab width: 1950mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 100L
Chassis Specs
Front axle description: 2T
Front axle allowable load: 1620kg
Frame Dimensions: 180×65×4.5mm
rear axle description: 4T/5T
rear axle allowable load: 2875kg
Axle ratio: 4.875
Leaf spring count: 4/5+6,4/4+2
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
lighting configuration
Headlight brand: Zhucheng Dirui
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 18 months or 50,000 km
Rescue service: none

Photos

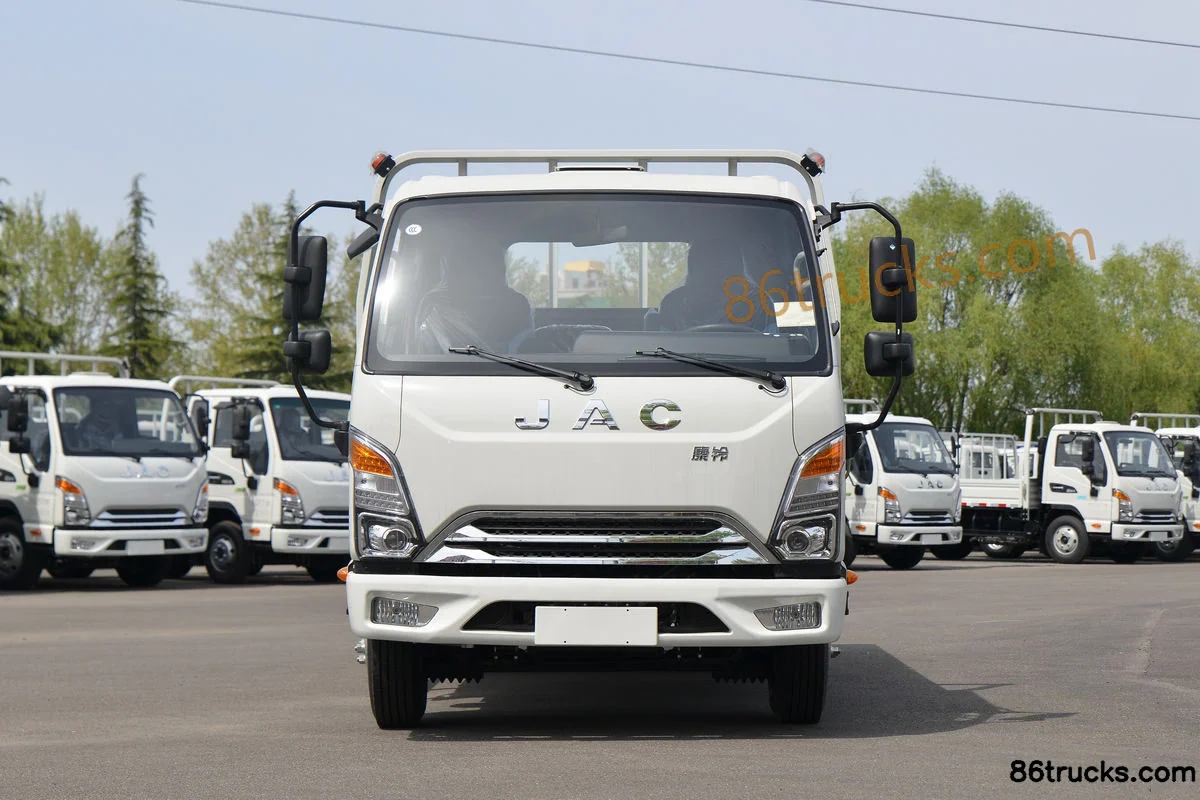

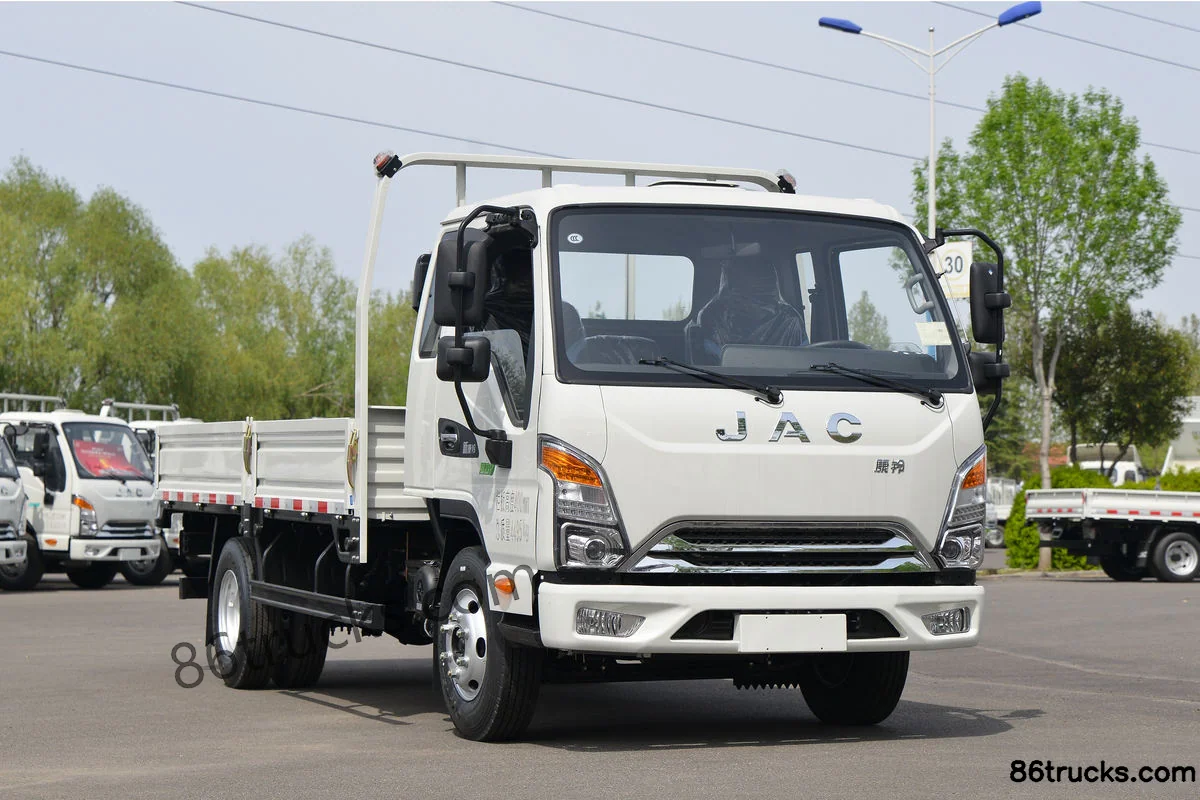

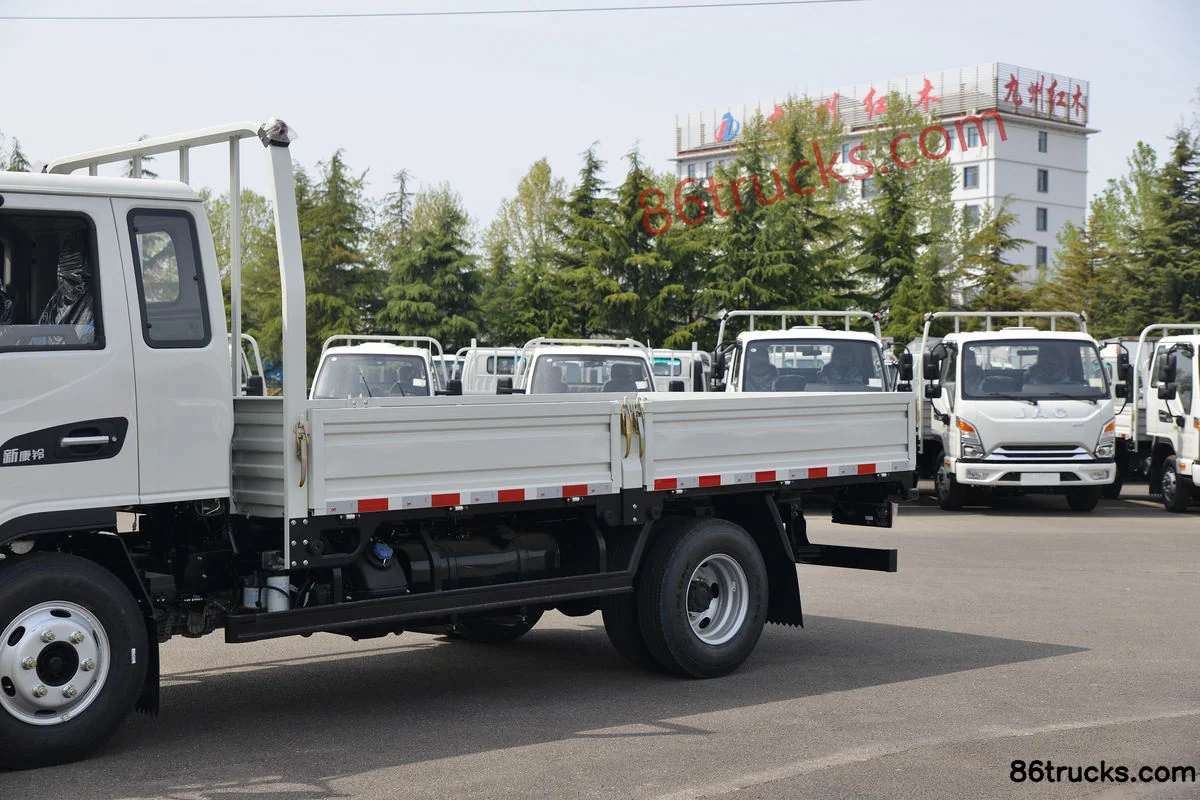

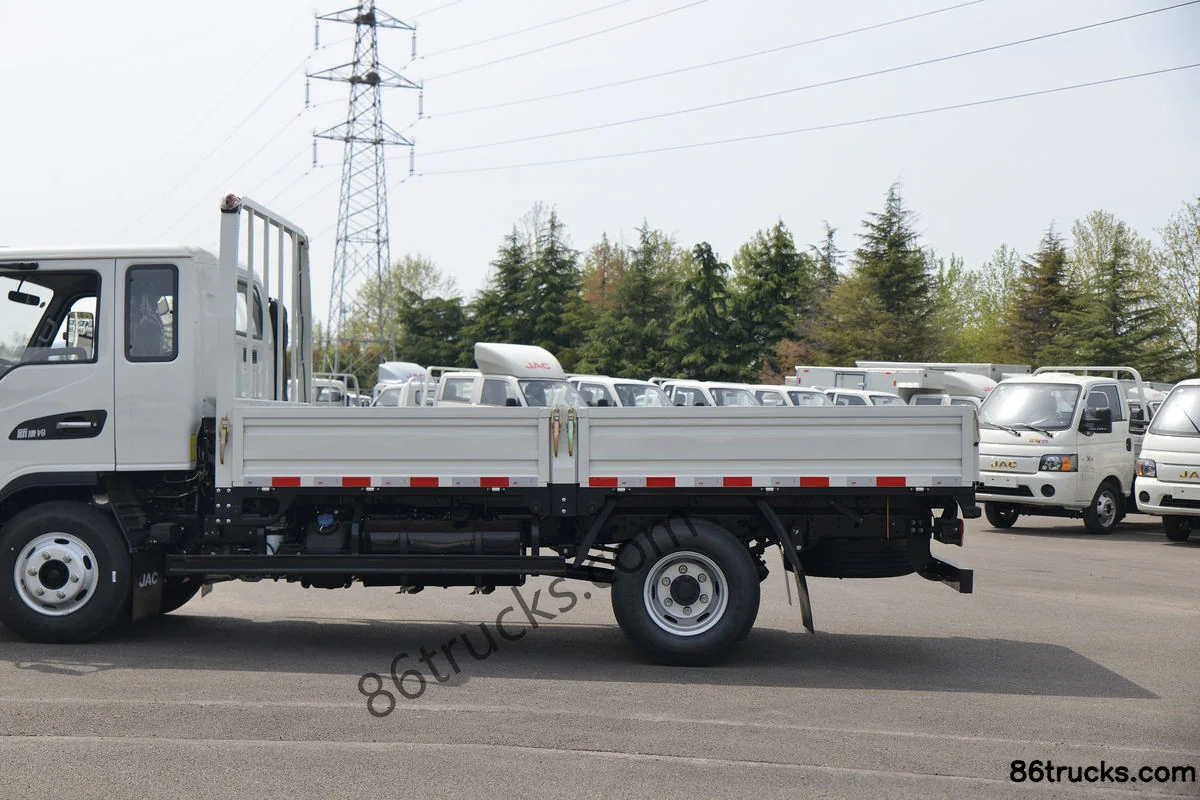

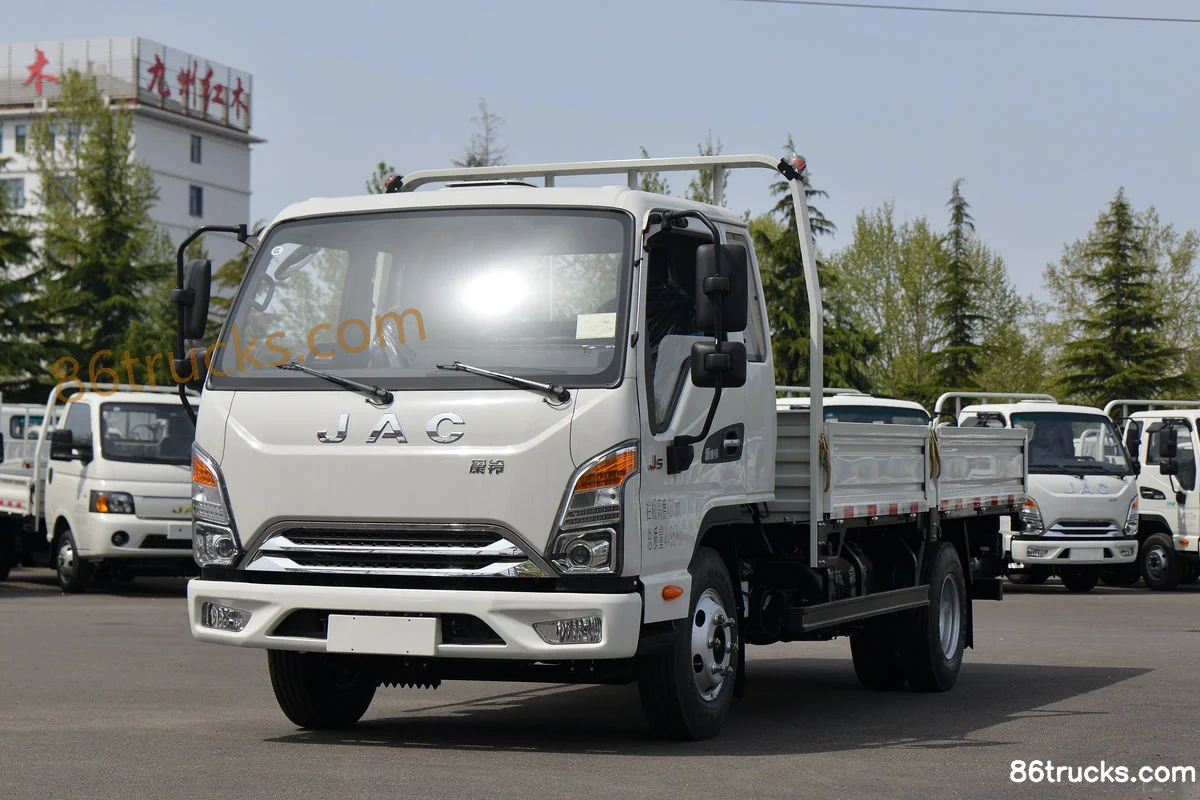

Exterior3

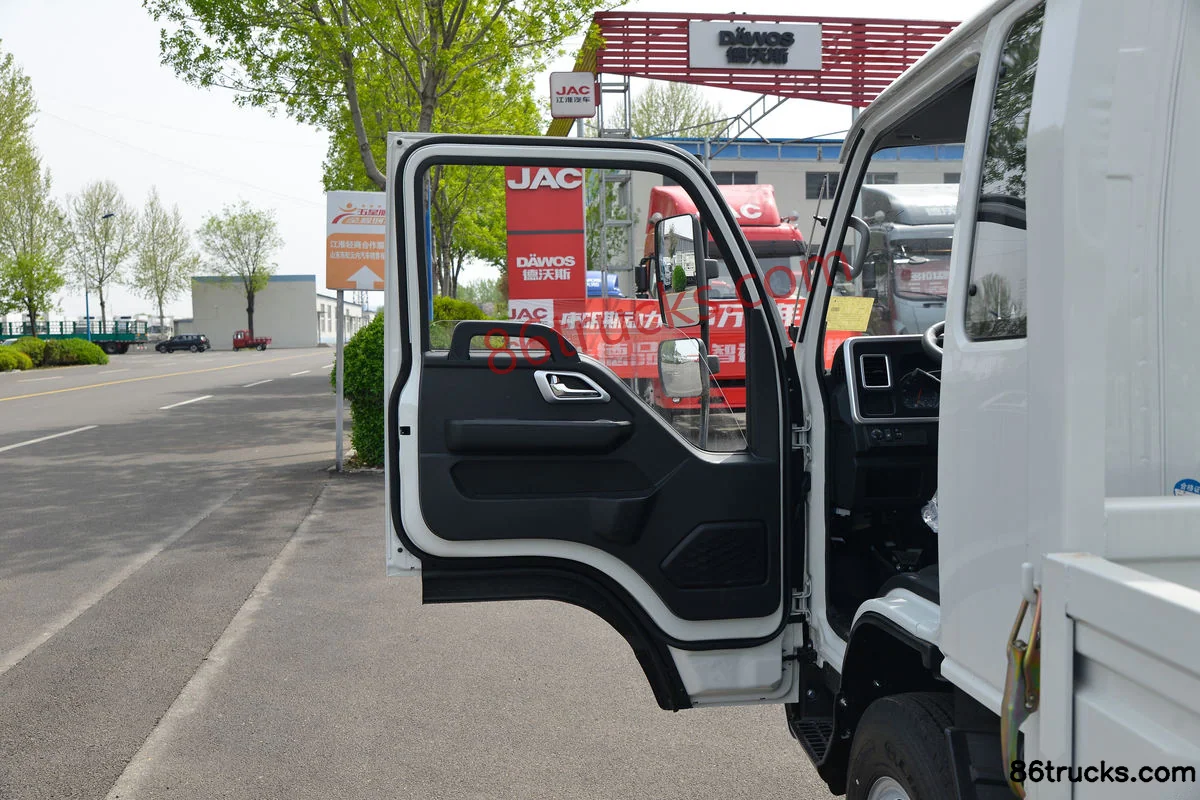

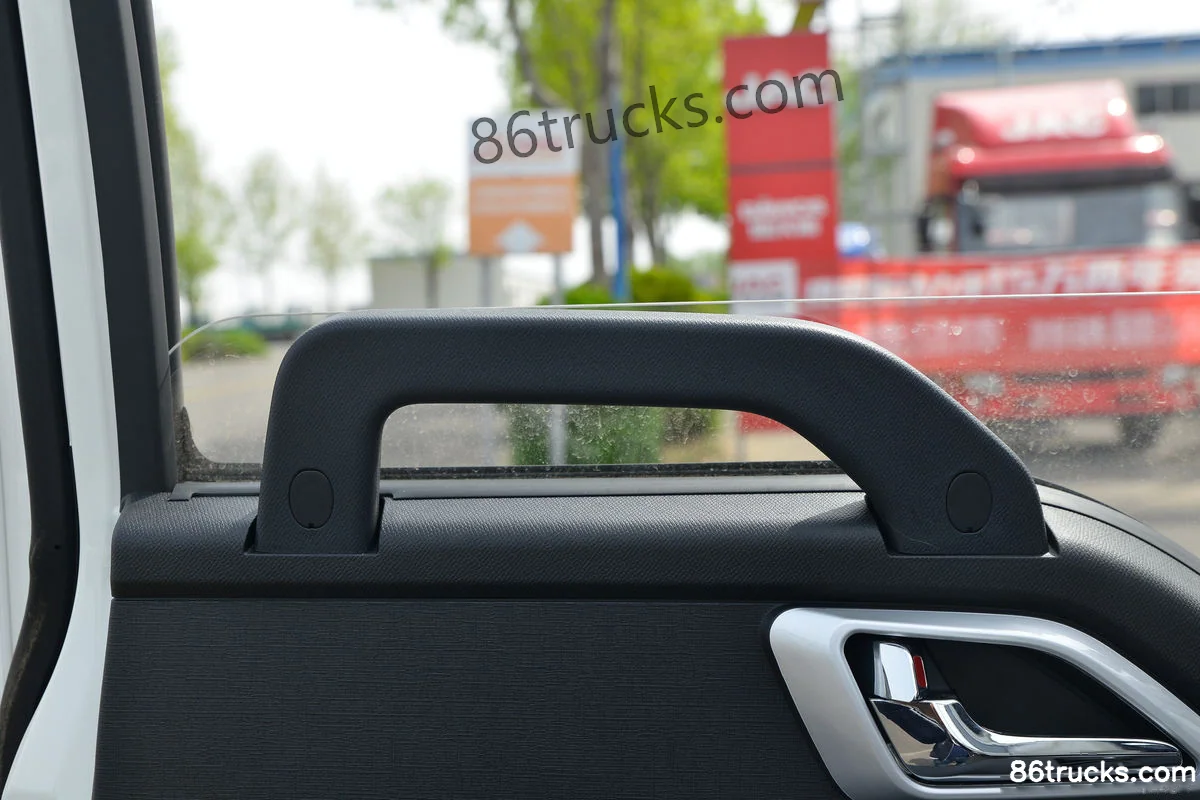

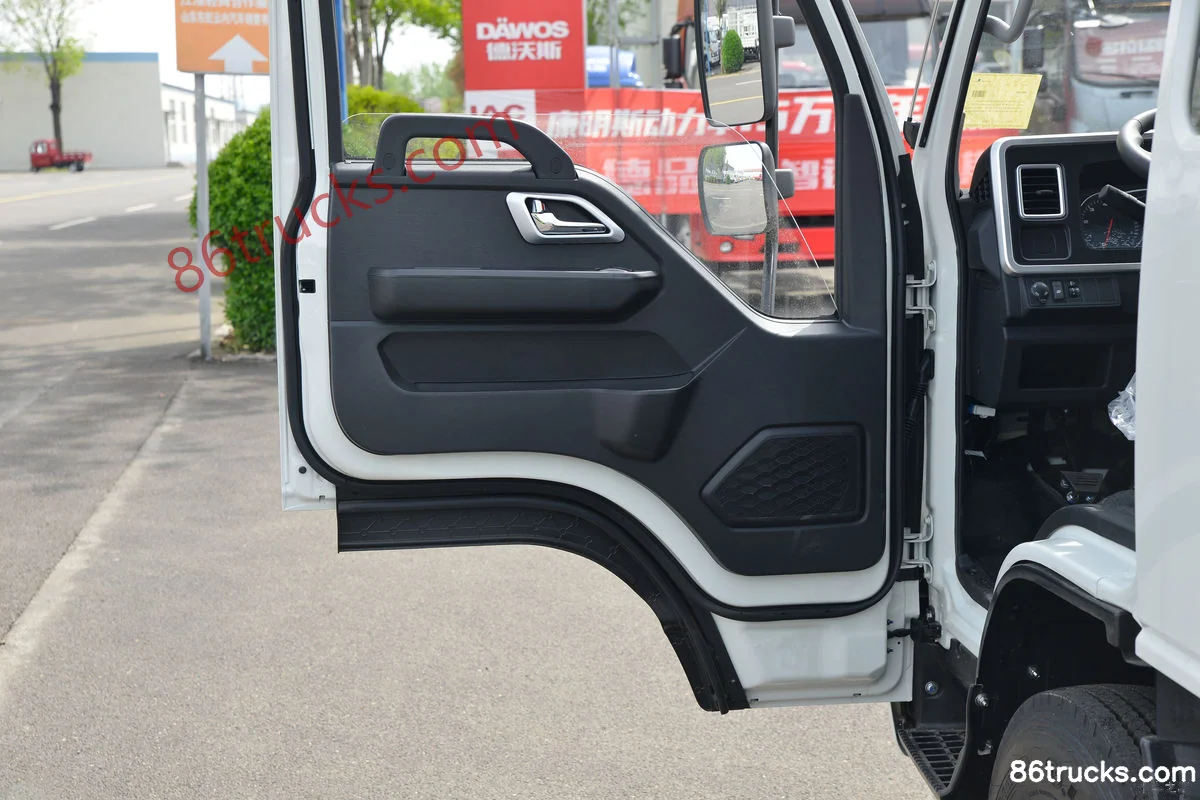

Cab3

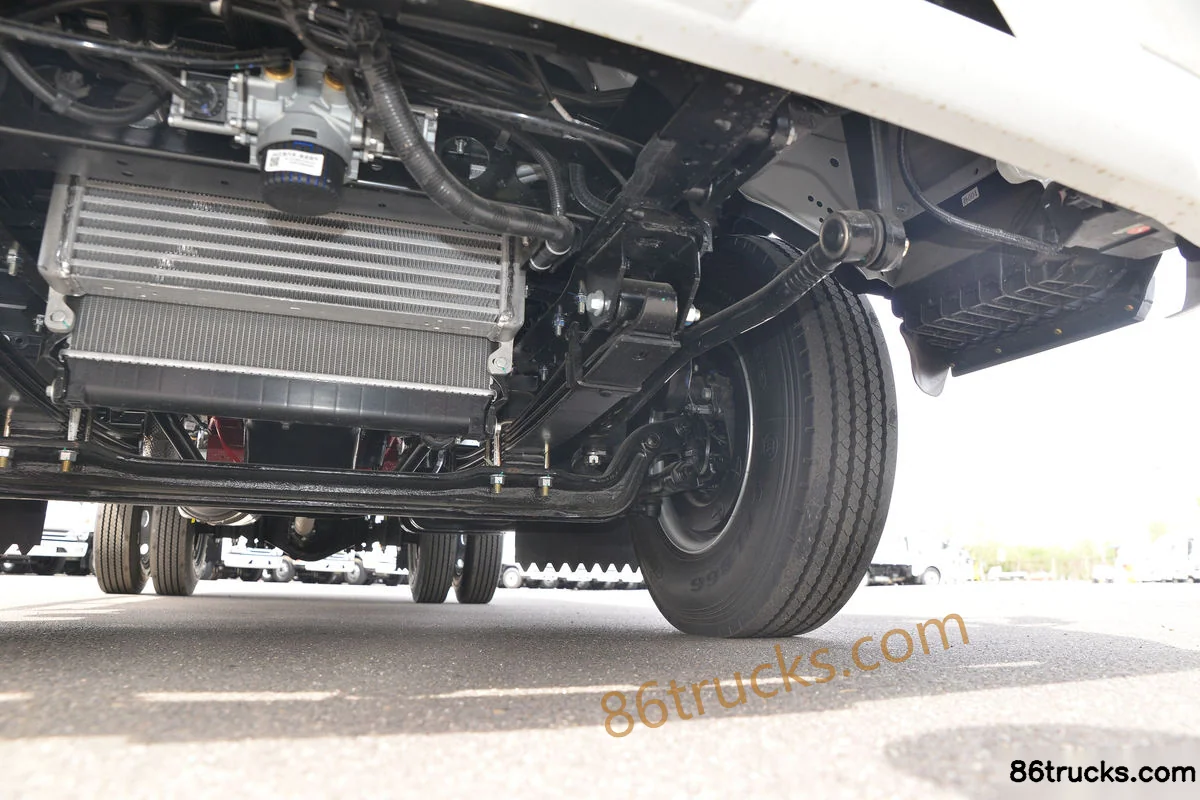

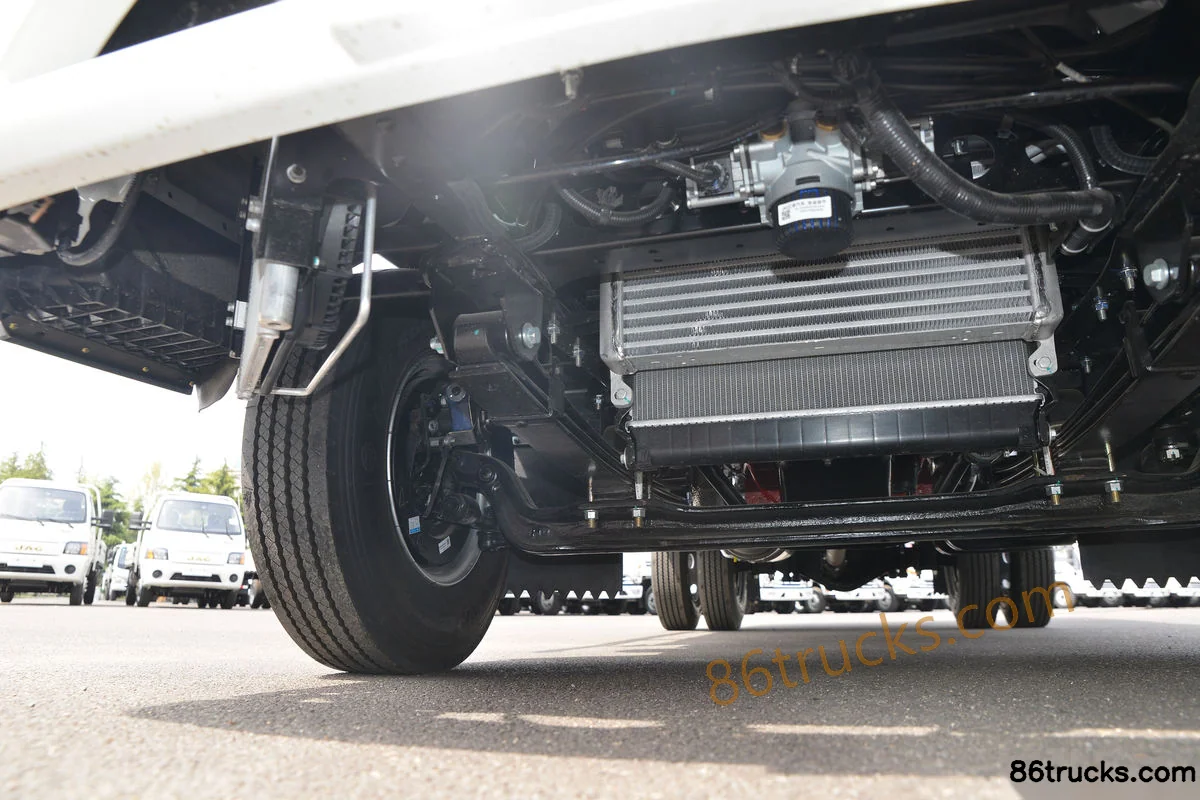

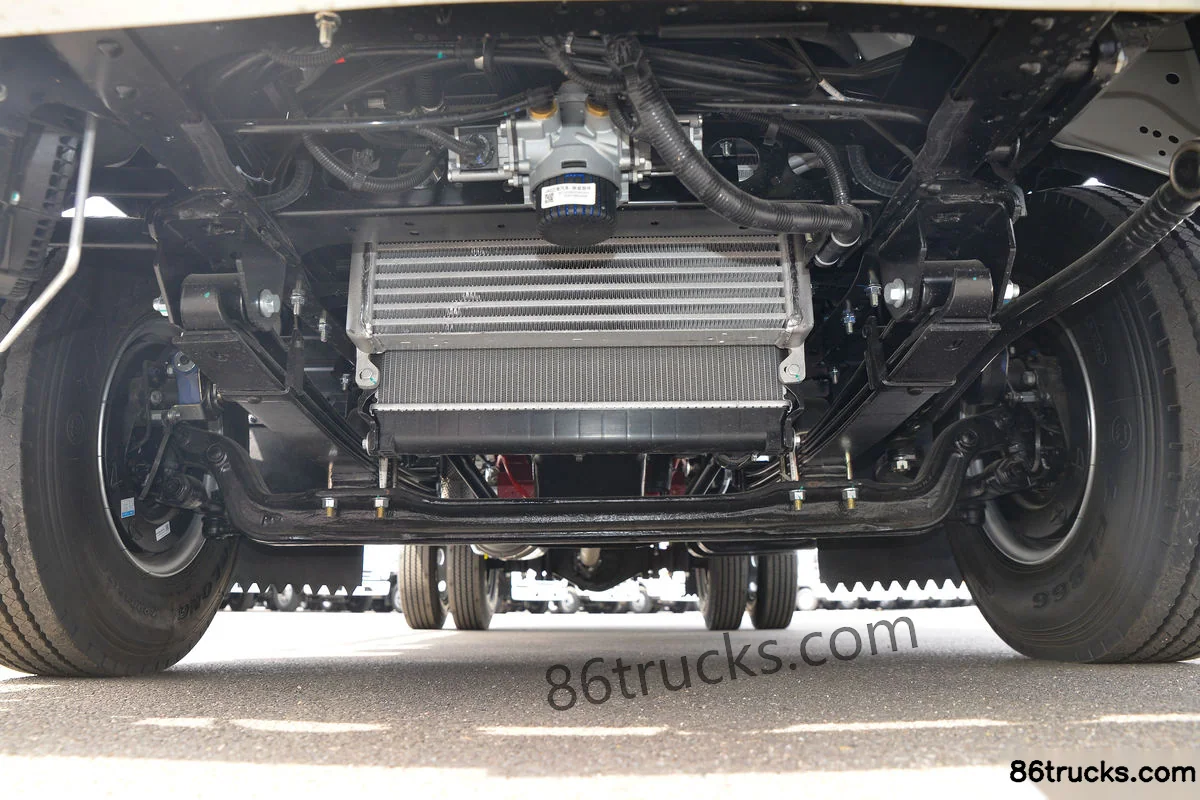

Chassis3

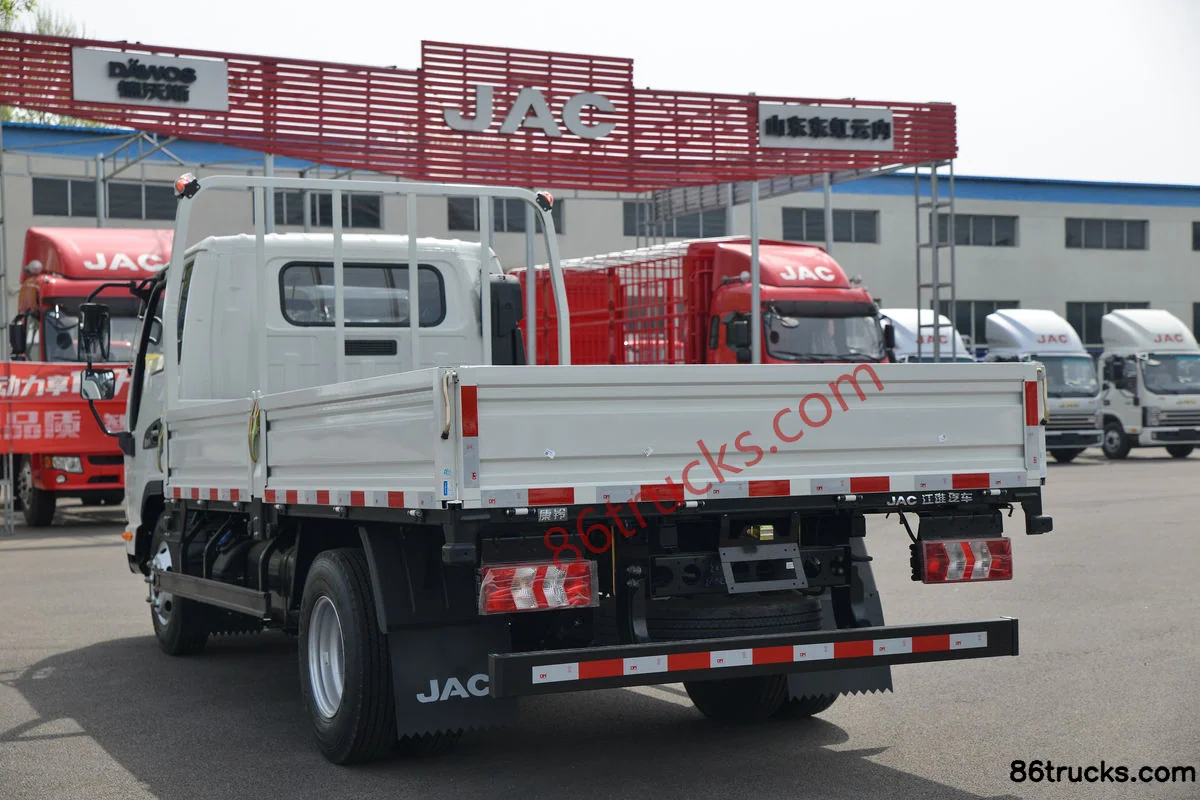

Body3

12 photos

FAQ

What is the export price of JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed), and what does it include?

JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) export reference is about From $13,208; MSRP is ¥9.51M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed)?

Key specs of JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed): Drive: 4x2; Horsepower: 152 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.5L; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) suited for?

JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) differ from other variants in the same series?

JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed) belongs to JAC J5 light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling J5 152 hp 4X2(6 wheels) 3.85m Cab-over Flatbed Light Truck (China VI)(WLY 8-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
