SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels)

Export reference
From $24,000
MSRP ¥17.28M CNY
Rated payload:: 1.285ton
Wheelbase:: 3800mm
Cargo box type:: Stake type
Model code (announced):: JKC5034CCYD0X1BEV
Type:: stake truck
Box length class:: 3.8m
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: Jingjin
Curb Weight: 2.08ton

Overview

The SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) is a mini truck featuring 280km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.285t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5034CCYD0X1BEV
Type: stake truck
Drive type: 4X2
Wheelbase: 3800mm
Box length class: 3.8m
Cab length: 5.975m
Cab width: 1.85m
Cab height: 2.54m
CLTC range: 280km
Curb Weight: 2.08ton
Rated payload: 1.285ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Chongqing Fuling
tonnage class: mini truck
Version: 2024 City Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ180XSA09
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 42kW
Peak power: 105kW
Battery/Charging
Battery Brand: CATL
Charging method: Standard: fast charge; Optional: slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 55.7kWh
Energy Density: 146.3
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 1.76m
Cab parameters
Cab width: 1680mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1200kg
rear axle allowable load: 2295kg
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

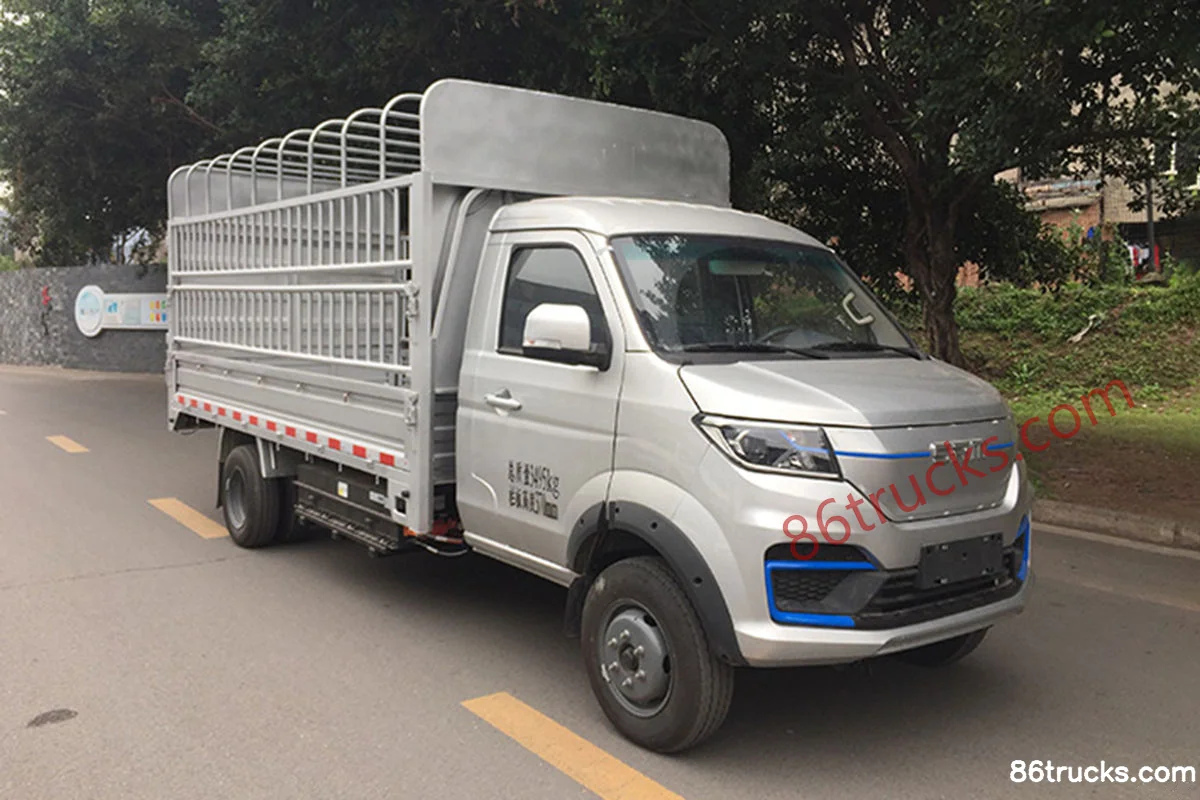

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels), and what does it include?

SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) export reference is about From $24,000; MSRP is ¥17.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels)?

Key specs of SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) suited for?

SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) differ from other variants in the same series?

SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels) belongs to SRM Xinyuan New Energy T5L EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan T5LEV 2024 City Edition 3.5T 3.8m Single Row Pure Electric Cage Cargo Mini Truck 55.7kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
