JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 2.795ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Cab dimensions:: 5.99×2.27×3.2m
Rated payload: 1.5ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.08×2.1×2.1m
Horsepower 146

Overview

The JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) is a Refrigerated Truck featuring 4.08×2.1×2.1m cargo body, 1.5t payload, Sleeper cab with medium width cab and 3360mm wheelbase. On the powertrain side, it comes with 146 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 146 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.99×2.27×3.2m
Truck Type: Insulated truck
Drive type: 4X2
Wheelbase: 3360mm
Vehicle origin: Shandong Zhucheng
Front track width: 1615mm
rear track: 1570mm
Curb Weight: 2.795ton
Rated payload: 1.5ton
GVWR: 4.49ton
Max. speed: 100km/h
Front/rear suspension: 1.115/1.515m
Energy Type: Diesel
Engine parameters
Engine Model: JMCJX4D25B6H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.478L
Emission standard: China VI
Max output power: 107kW
Max hp: 146Horsepower
Max torque: 350N·m
Rated speed: 3200rpm
Cargo box parameters
Cargo box dimensions: 4.08×2.1×2.1m
Cargo box width: 2.1m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: SFD5040XBW-6A
Body Brand: Refrigerated
Chassis Specs
Chassis Brand: JMC
Chassis Series: New Kaiyun
Chassis Model: JX1044TGA26
Leaf spring count: 3/3+2
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Cab parameters
Cab: Sleeper cab with medium width

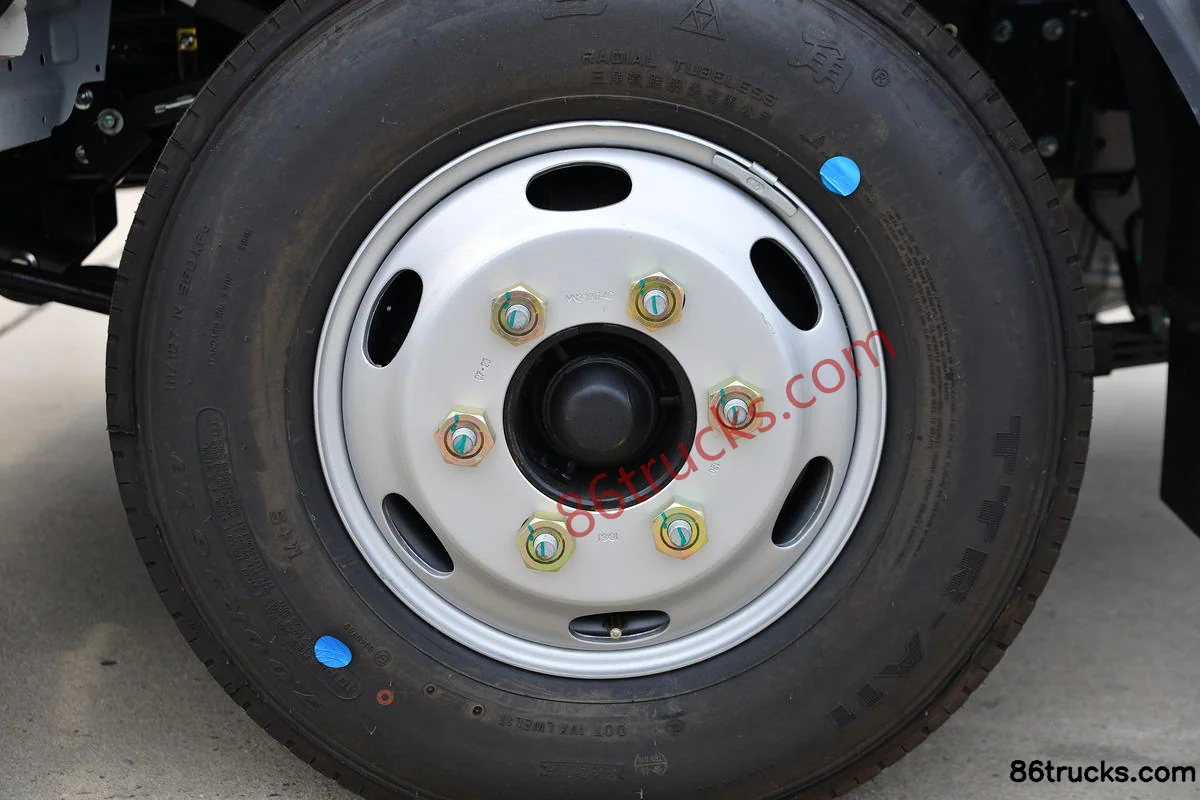

Tire

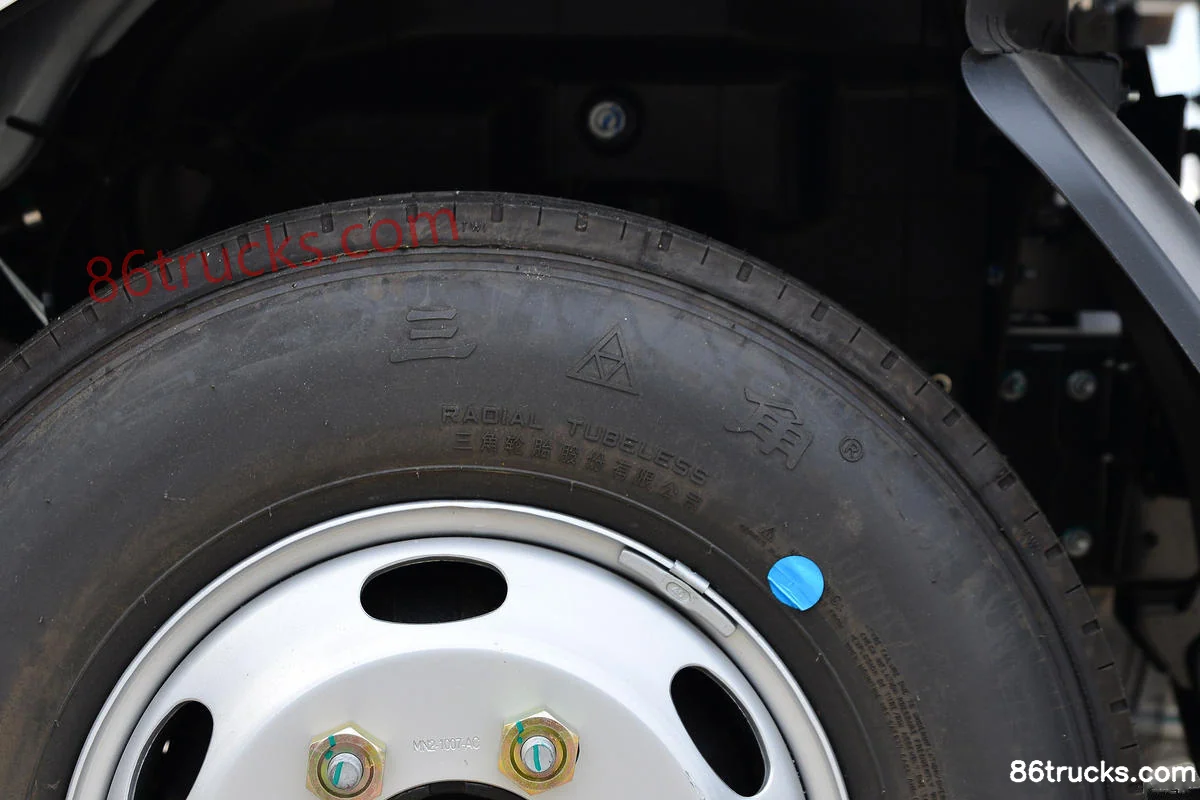

Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

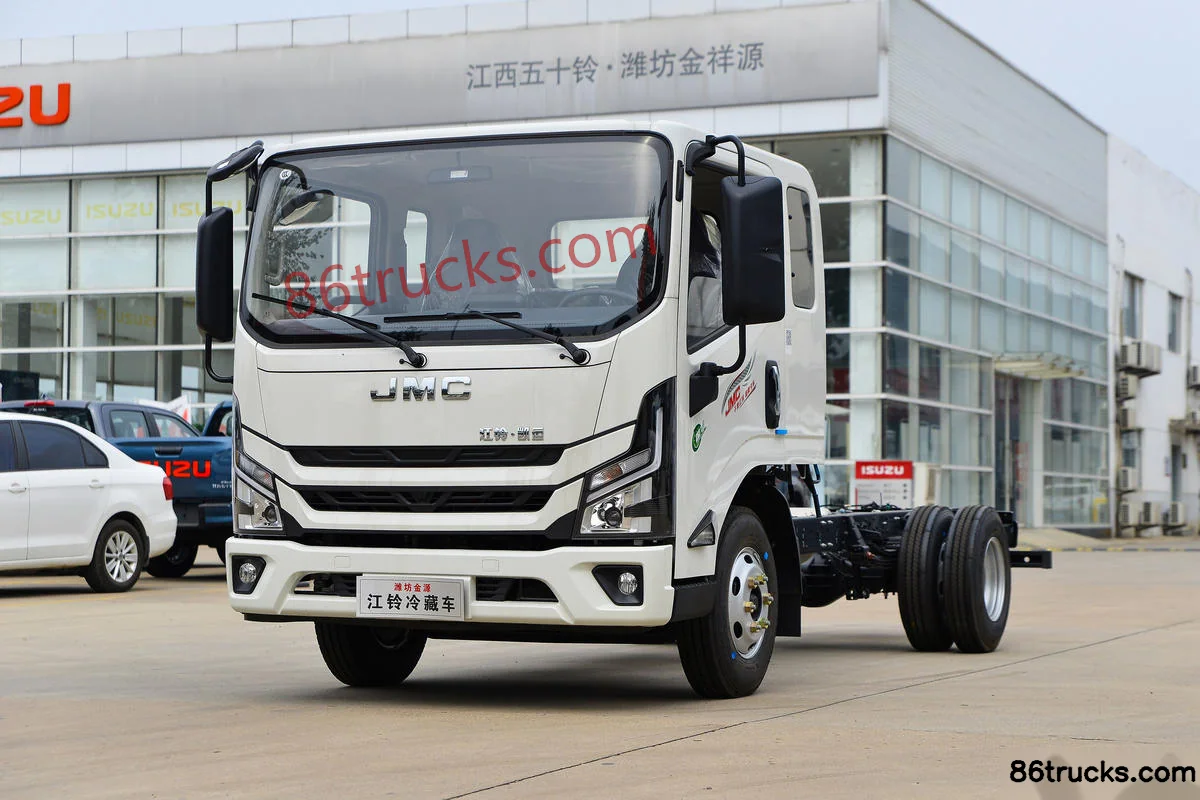

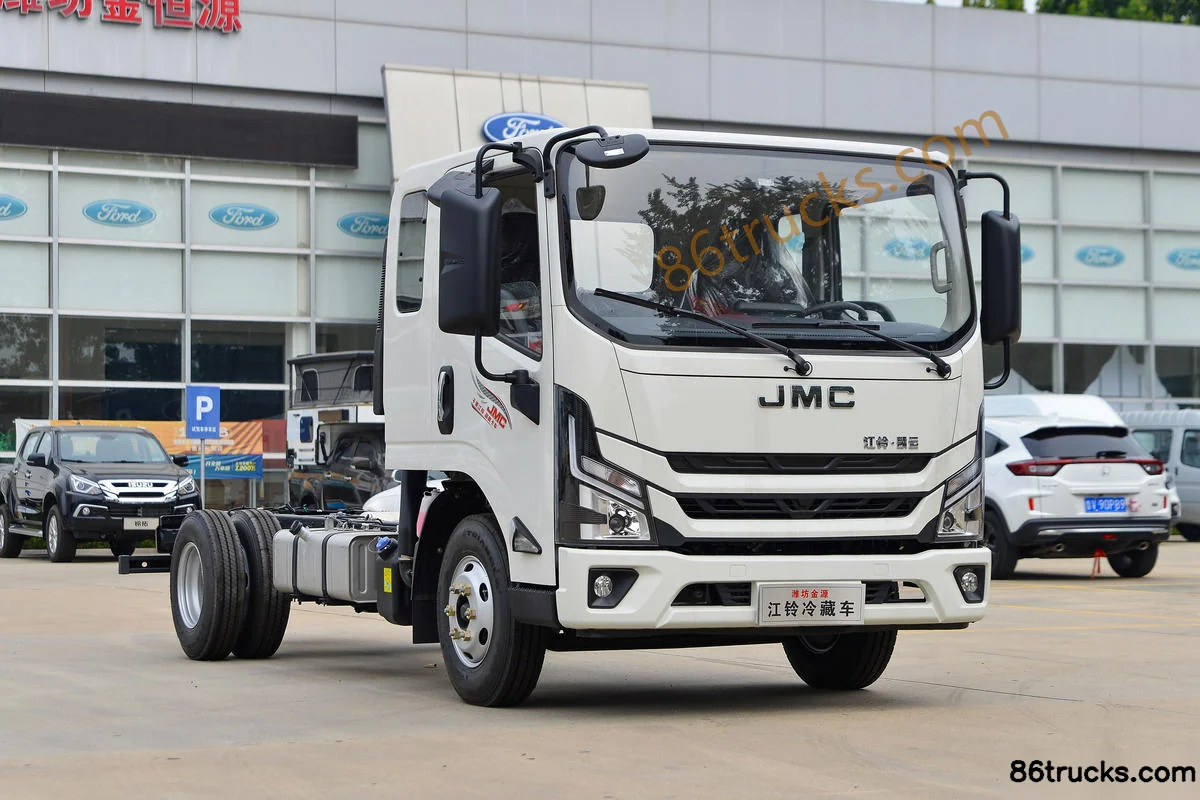

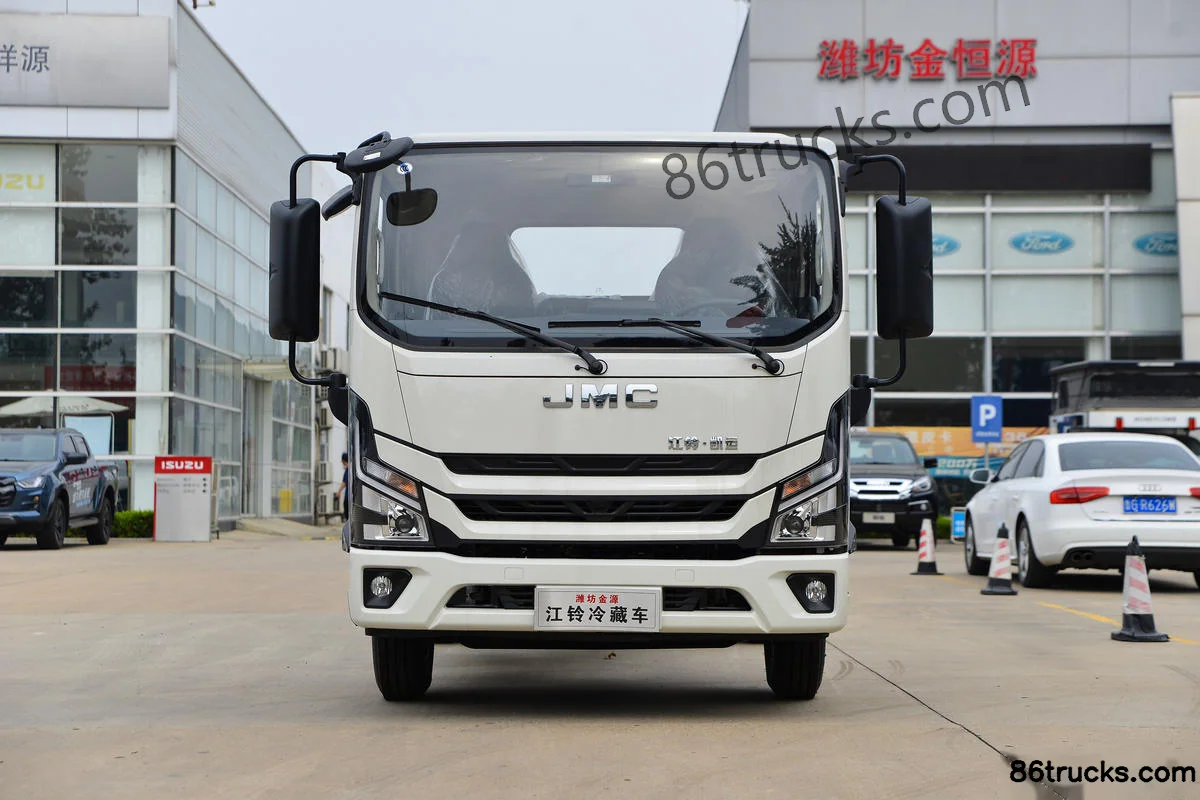

Exterior3

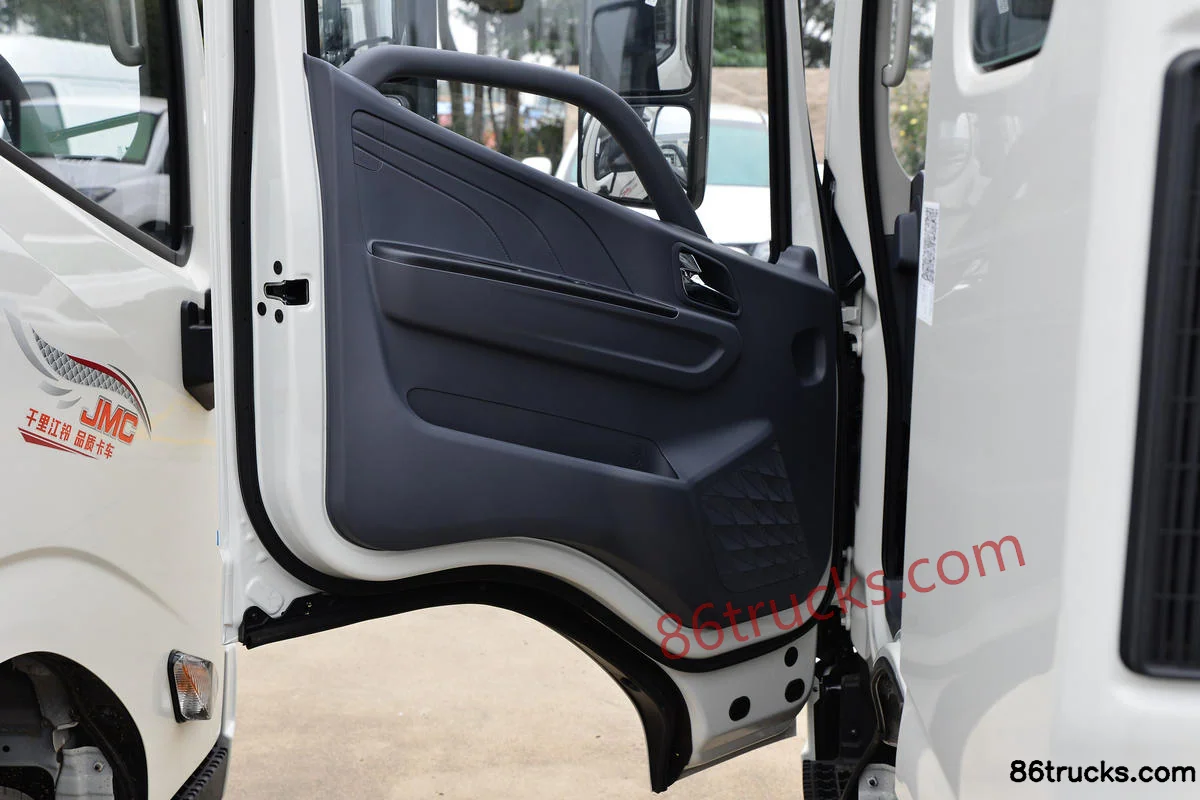

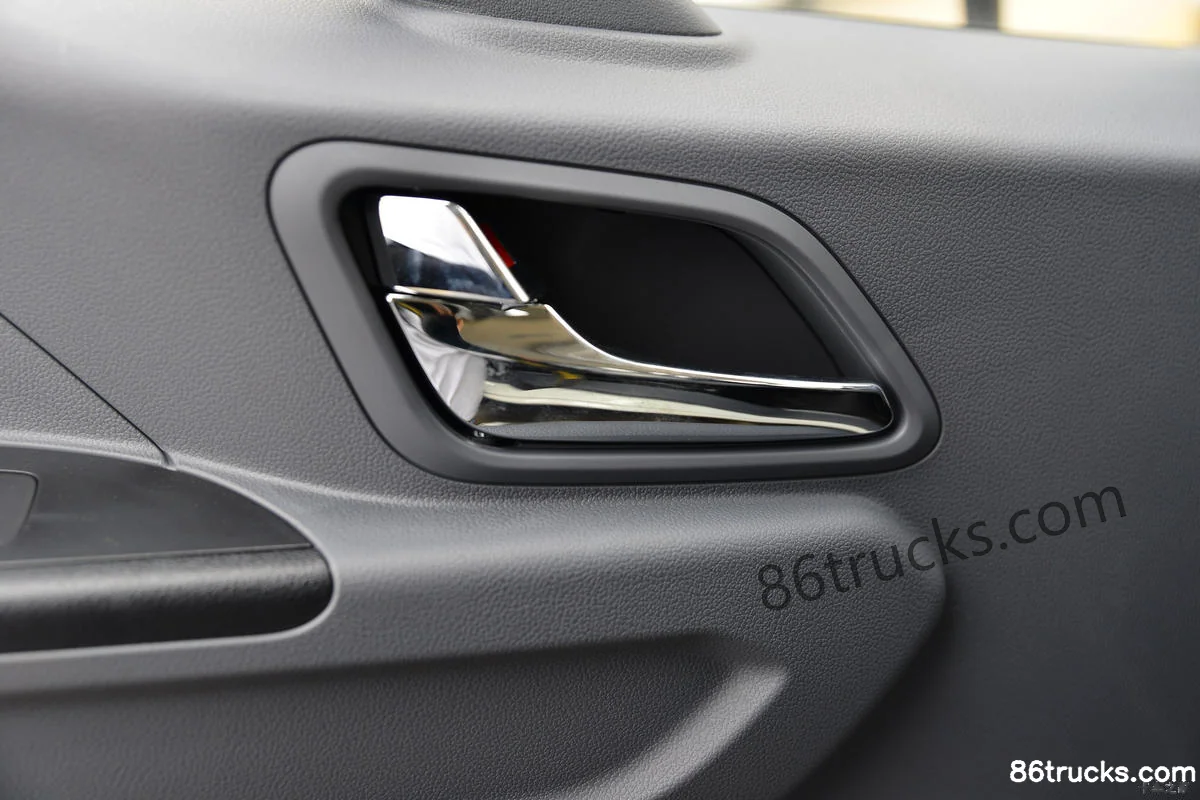

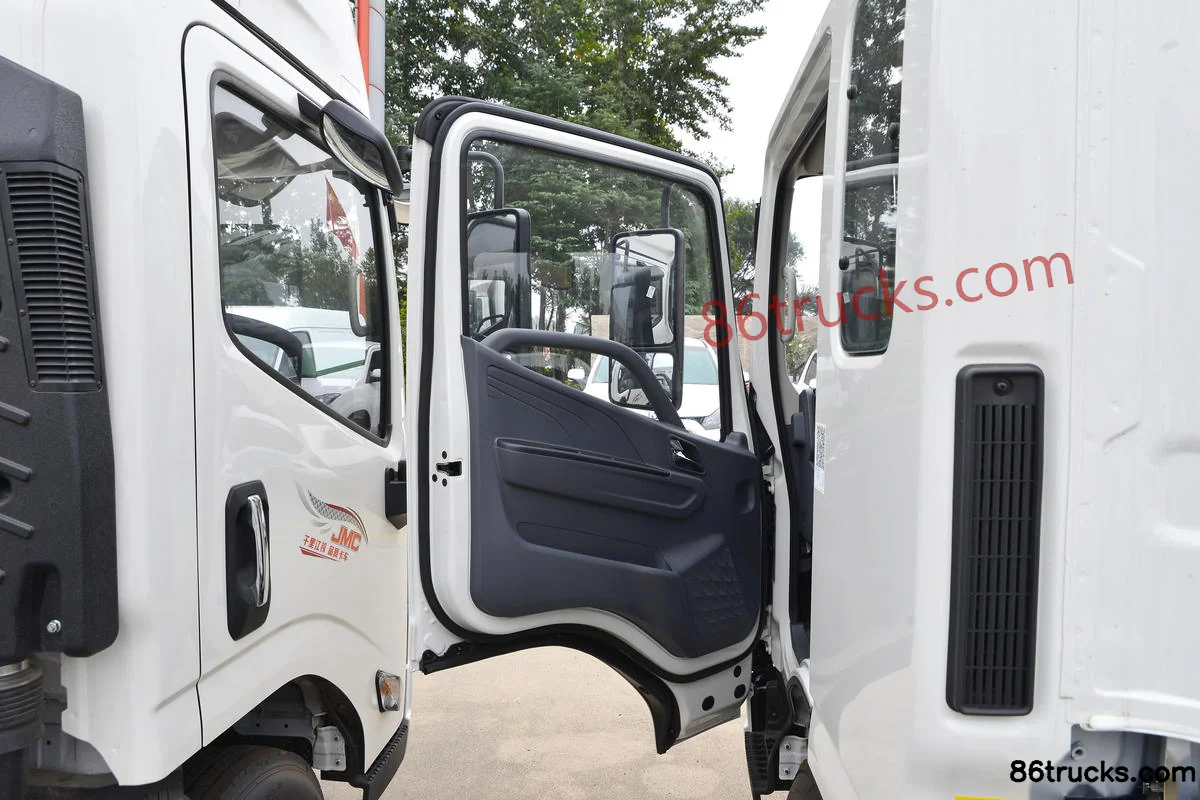

Cab3

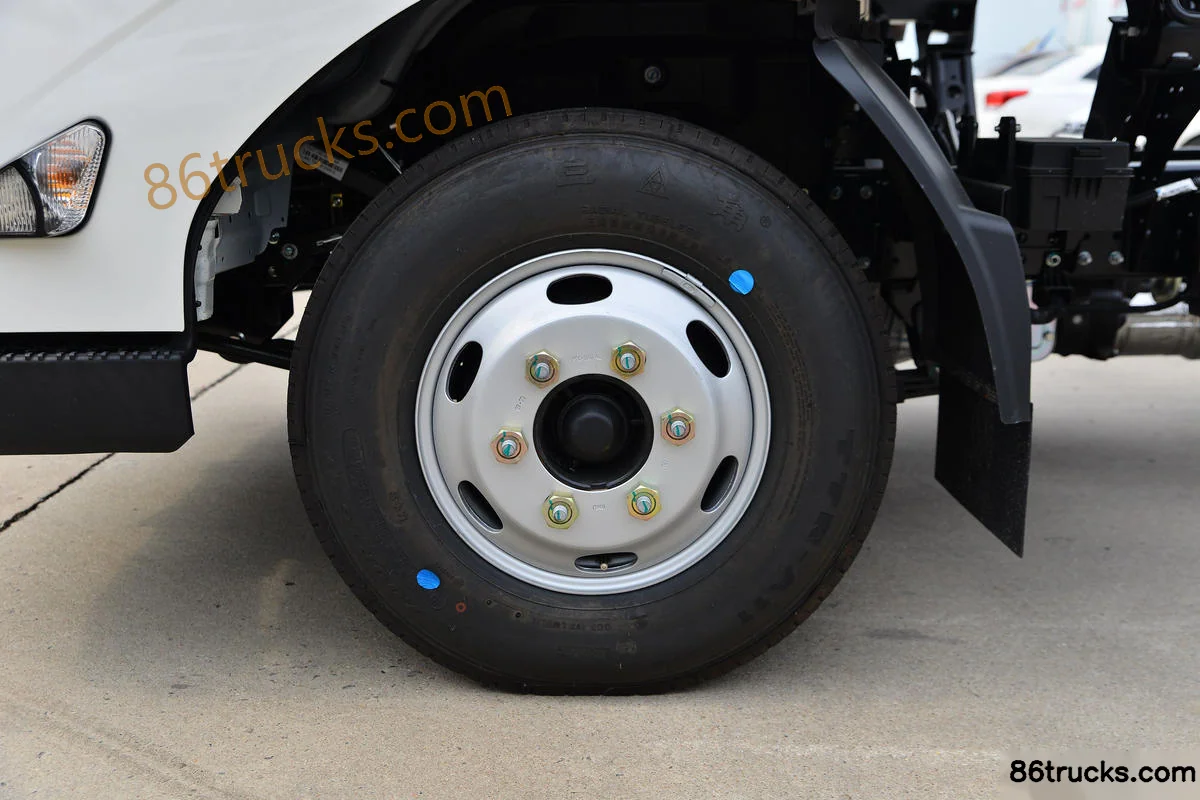

Chassis3

9 photos

FAQ

What emission standard does JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand)?

Key specs of JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand): Drive: 4x2; Horsepower: 146 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) suited for?

JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) differ from other variants in the same series?

JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand) belongs to JMC Kaiyun+ (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun+ 146 hp 4X2(6 wheels) 3.685m Semi-row Insulated Truck (Lenghang Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
