JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck
EXW
From $18,028
Export quote

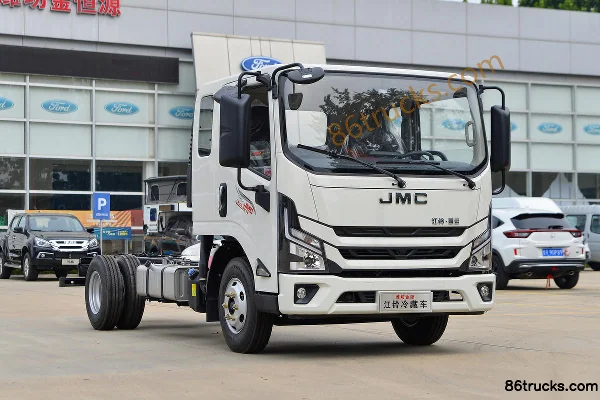

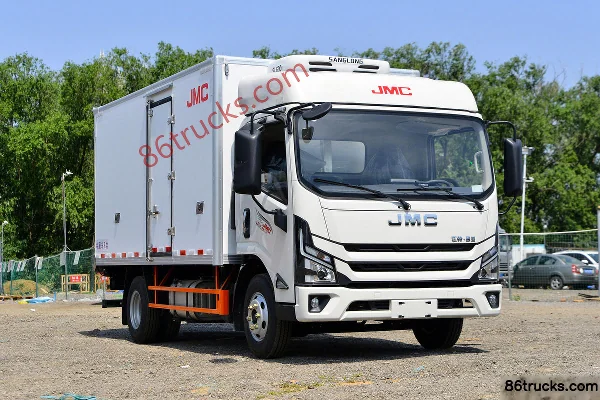

JMC Kaiyun+ Refrigerated Truck
Main model photos
559 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck | 4x2 / 152hp / China VI | From $18,028 | |
| JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 3.62m Refrigerated Truck | 4x2 / 152hp / China VI | From $18,028 | |
| JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck | 4x2 / 152hp / China VI | From $18,028 | |
| JMC Kaiyun + Blue Whale Medium Body 152hp 4X2(6 wheels) 3.62m Refrigerated Truck | 4x2 / 152hp / China VI | From $17,611 | |
| JMC Kaiyun + Blue Whale Medium Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck | 4x2 / 152hp / China VI | From $17,611 |
JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 3.62m Refrigerated Truck
EXW
From $18,028
Export quote
JMC Kaiyun+ Blue Whale Wide Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck
EXW
From $18,028
Export quote
JMC Kaiyun + Blue Whale Medium Body 152hp 4X2(6 wheels) 3.62m Refrigerated Truck
EXW
From $17,611
Export quote
JMC Kaiyun + Blue Whale Medium Body 152hp 4X2(6 wheels) 4.02m Refrigerated Truck
EXW
From $17,611
Export quote
Series Specs
Basic Info
Cab dimensions: 5.99×2.26×3.355 / 5.995×2.26×3.11 / 5.99×2.26×3.115 / 5.99×2.2×3.16 / 5.99×2.27×3.255 / 5.99×2.27×3.2 / 6.99×2.52/2.27×3.595 / 5.99×2.13/2.22/2.27×3.115 / 5.99×2.13/2.22/2.26×3.115 / 5.99×2.13/2.22/2.276×3.115 / 5.99×2.05/2.13/2.22/2.27×3.115 / 5.99×2.22×3.115m
Truck Type: Refrigerated Truck / Insulated truck
Drive type: 4X2
Wheelbase: 3360 / 3815mm
Vehicle origin: Nanchang, Jiangxi / Shandong Zhucheng
Front track width: 1770 / 1585 / 1695 / 1615 / 1460mm
rear track: 1680 / 1570 / 1800 / 1475mm
Curb Weight: 3.2 / 2.795 / 4.2 / 2.975 / 3.12ton
Rated payload: 1.095 / 1.1 / 1.5 / 4.995 / 0.995 / 1.24ton
GVWR: 4.49 / 4.495 / 9.39 / 4.165ton
Max. speed: 100 / 110km/h
Remarks: Optional 4.222 ratio. / Optional 5.571 ratio. / Driver seat fore/aft adjustment (backrest & slide rail), driver armrest, frame-style mirrors, headlamp delay-off, auto headlamps, driver overhead storage box. / Driver seat fore/aft adjustment (backrest & slide rail), driver armrest, frame-style mirrors, headlamp delay-off, auto headlamps. / Driver seat fore/aft adjustment (backrest & slide rail), driver armrest, frame-style mirrors, auto headlamps.
Front/rear suspension: 1.115/1.515 / 1.15/1.485 / 1.115/2.06m
Energy Type: Diesel
Engine parameters
Engine Model: JMCJX4D256H / JMCJX493ZLQ6F / JMCJX4D30F6H / JMCJX4D25B6H
Number of cylinders: 4cylinder
Displacement: 2.478 / 2.499 / 2.9 / 2.892L
Emission standard: China VI
Max output power: 112 / 95 / 120 / 107kW
Max hp: 152 / 129 / 163 / 146Horsepower
Max torque: 400 / 350 / 450N·m
Rated speed: 2800 / 3200rpm
Cargo box parameters
Cargo box dimensions: 4.02×2.1×2.1 / 3.62×2.1×2.1 / 3.6×2.1×2.1 / 4.02×2.1×2.3 / 4.08×2.1×2.1 / 5×2.35/2.1×2.35/2.1 / 4.02×1.96/2.05/2.1×2.1 / 3.62×1.96/2.05/2.1×2.1 / 4.02×1.88×1.96 / 3.62×2.1×2.3m
Cargo box width: 2.1 / 2.35/2.1 / 1.96/2.05/2.1 / 1.88m
Cargo box height: 2.1 / 2.3 / 2.35/2.1 / 1.96m
Body Parameters
refrigeration unit brand: Kaixue
Vehicle certification code: JX5046XLCTGE26 / JX5045XLCTG26 / JX5044XLCTGA26 / JX5049XLCTGA26 / SFD5040XBW-6A / JX5099XLCTKH26 / JX5049XLCTGB26 / JX5040XLCTGA26
Body Brand: JMC / Refrigerated
Chassis Specs
Chassis Brand: JMC
Chassis Series: Kaiyun+ Blue Whale / Kaiyun+ Little Blue Whale / Kaiyun+ / New Kaiyun / New Kaiyun+
Chassis Model: JX1046TGE26 / JX1045TG26 / JX1044TGA26 / JX1049TGA26 / JX1099TKH26 / JX1040TGA26
Axle ratio: 5.286 / 6.142 / 4.222
Leaf spring count: 3/8+2,3/8+3 / 7/5+6 / 3/3+2 / 3/5+2,3/5+3,3/8+2,3/8+3
Transmission Parameters
Number of gears: 6 / 5 / 8Gear
Transmission Model: WLYWLY6G45 / WLYWLY6G40 / Getrag 5MTI280S / 6-speed transmission / Fast GearC8J45T
Cab parameters
Cab: 2060 Wide Body Single Row / 2060 Wide Body One-and-a-Half Row / 1890 medium-width single row / 2060 One-and-a-Half Row / 2060 Single Row / Single Row / Sleeper cab with medium width / 1890 medium-width semi-sleeper cab / 1890 semi-sleeper cab / 1890 single row / 1780 single row / Sleeper cab
fuel tank
Fuel tank capacity: 120 / 100L
Tire
Tire Size: 7.00R16LT 10PR,7.00R16LT 8PR / 7.00R16LT 8PR,7.00R16LT 10PR / 7.00R16LT 8PR / 8.25R16LT 16PR / 7.00R16LT 8PR,7.00R16LT 10PR,6.50R16LT 10PR / 7.00R16LT
Number of tires: 6pcs
Control configuration
ABS:
FAQ
What kind of truck is JMC JMC Kaiyun+ Refrigerated Truck?
JMC JMC Kaiyun+ is an export-oriented Refrigerated Truck lineup with about 49 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JMC Kaiyun+ Refrigerated Truck?
JMC Kaiyun+ Refrigerated Truck export reference is about $15,111 – $29,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JMC Kaiyun+ Refrigerated Truck cover?
JMC Kaiyun+ Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 152 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JMC Kaiyun+ Refrigerated Truck?
For JMC Kaiyun+ Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does JMC Kaiyun+ Refrigerated Truck include?
JMC Kaiyun+ Refrigerated Truck currently lists about 49 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JMC Kaiyun+ Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
