JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3360mm
Tire Size:: 7.00R16LT 8PR
Cab dimensions:: 5.99×2.27×3.255m
Rated payload: 1.095ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 4.02×2.1×2.3m
Horsepower 163

Overview

The JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) is a Refrigerated Truck featuring 4.02×2.1×2.3m cargo body, 1.095t payload, Single Row cab and 3360mm wheelbase. On the powertrain side, it comes with 163 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 163 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.99×2.27×3.255m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Nanchang, Jiangxi
Wheelbase: 3360mm
Front track width: 1770mm
rear track: 1680mm
Curb Weight: 3.2ton
Rated payload: 1.095ton
GVWR: 4.49ton
Max. speed: 100km/h
Front/rear suspension: 1.115/1.515m
Energy Type: Diesel
Engine parameters
Engine Model: JMCJX4D30F6H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.9L
Emission standard: China VI
Max output power: 120kW
Max hp: 163Horsepower
Rated speed: 2800rpm
Cargo box parameters
Cargo box dimensions: 4.02×2.1×2.3m
Cargo box width: 2.1m
Cargo box height: 2.3m
Body Parameters
refrigeration unit brand: Kaixue
Vehicle certification code: JX5049XLCTGA26
Chassis Specs
Chassis Brand: JMC
Chassis Series: Kaiyun+
Chassis Model: JX1049TGA26
Leaf spring count: 3/3+2
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Cab parameters
Cab: Single Row
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Multifunction steering wheel:
Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Radio:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

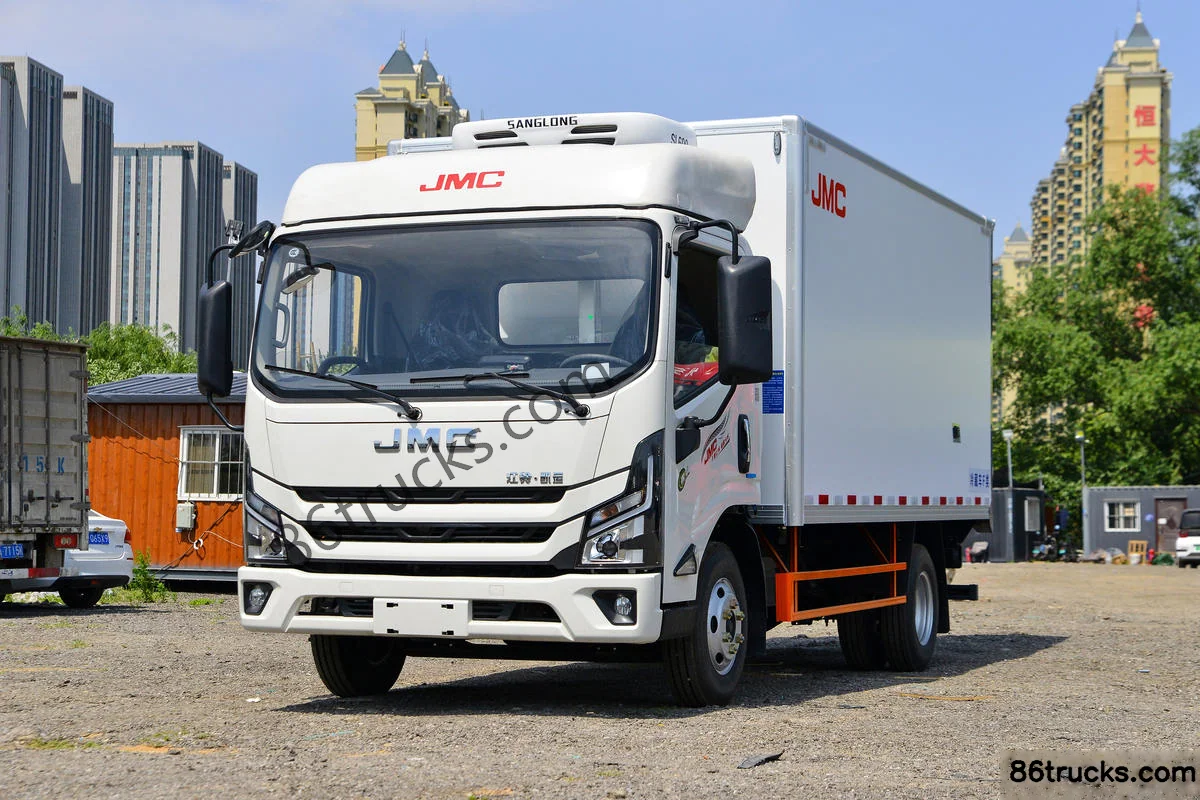

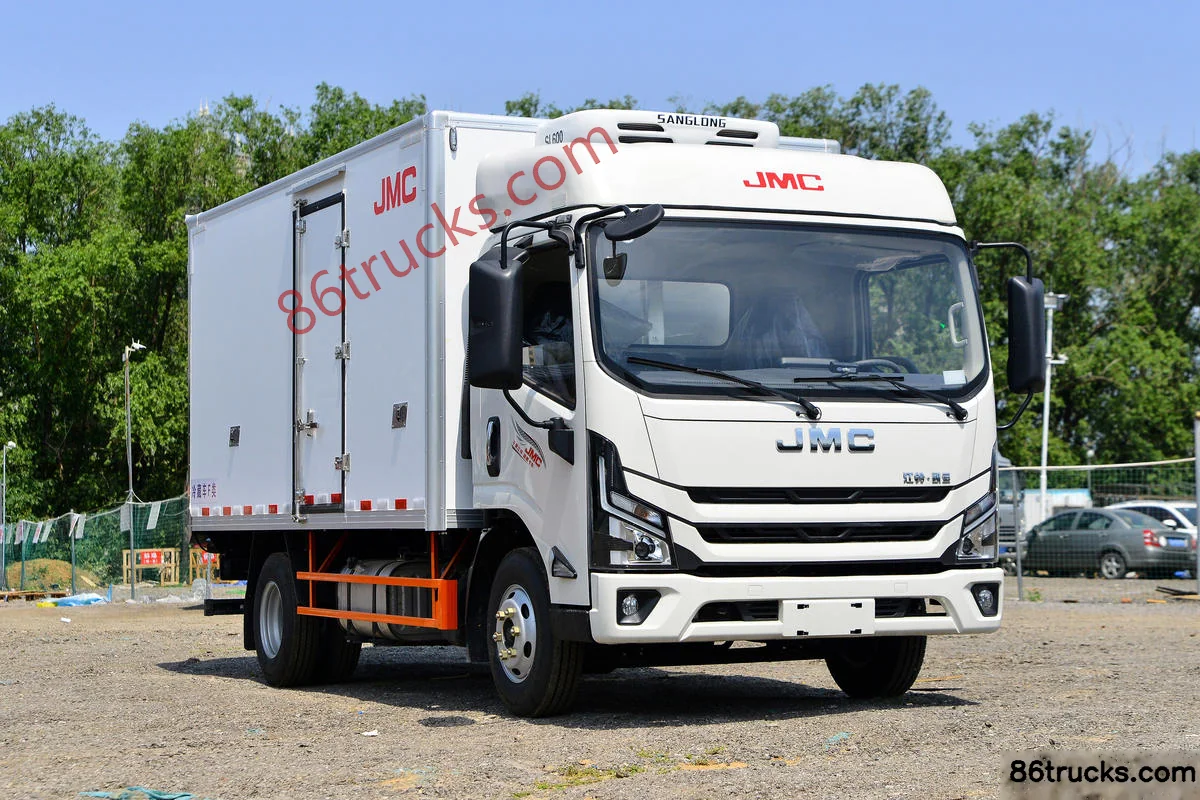

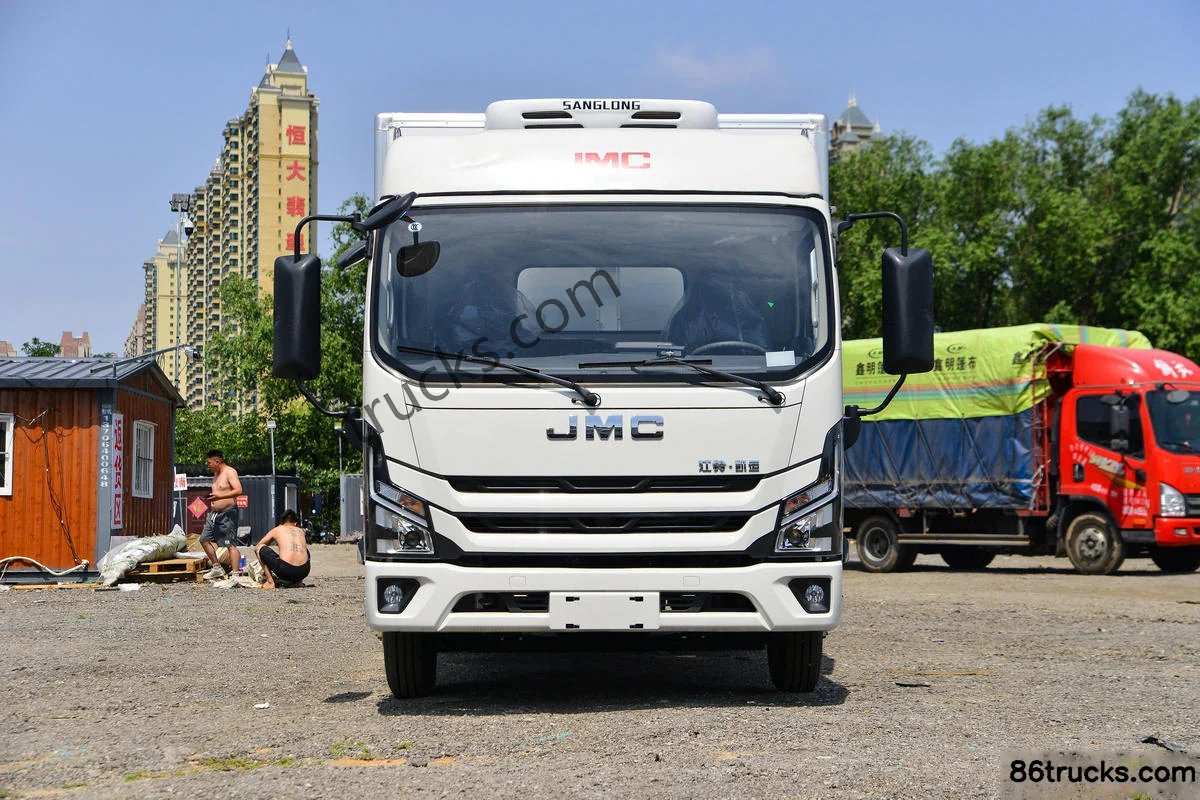

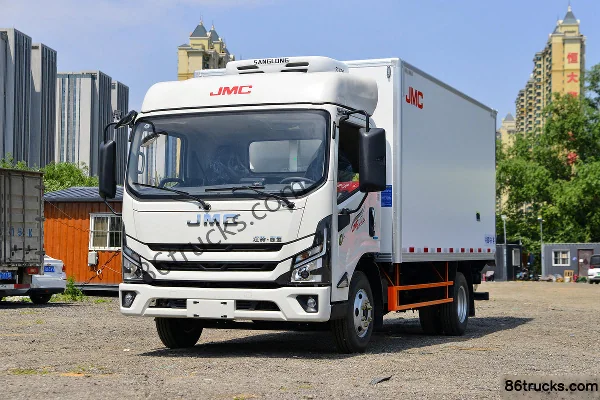

Exterior3

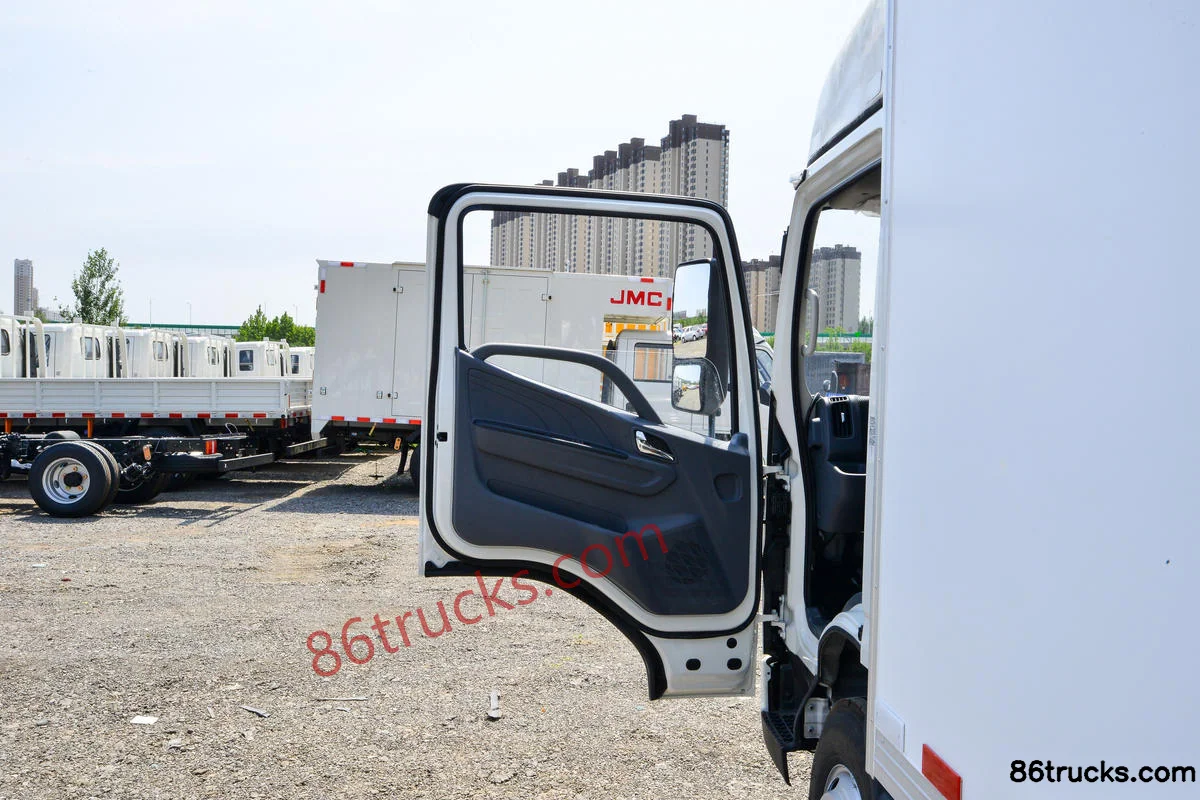

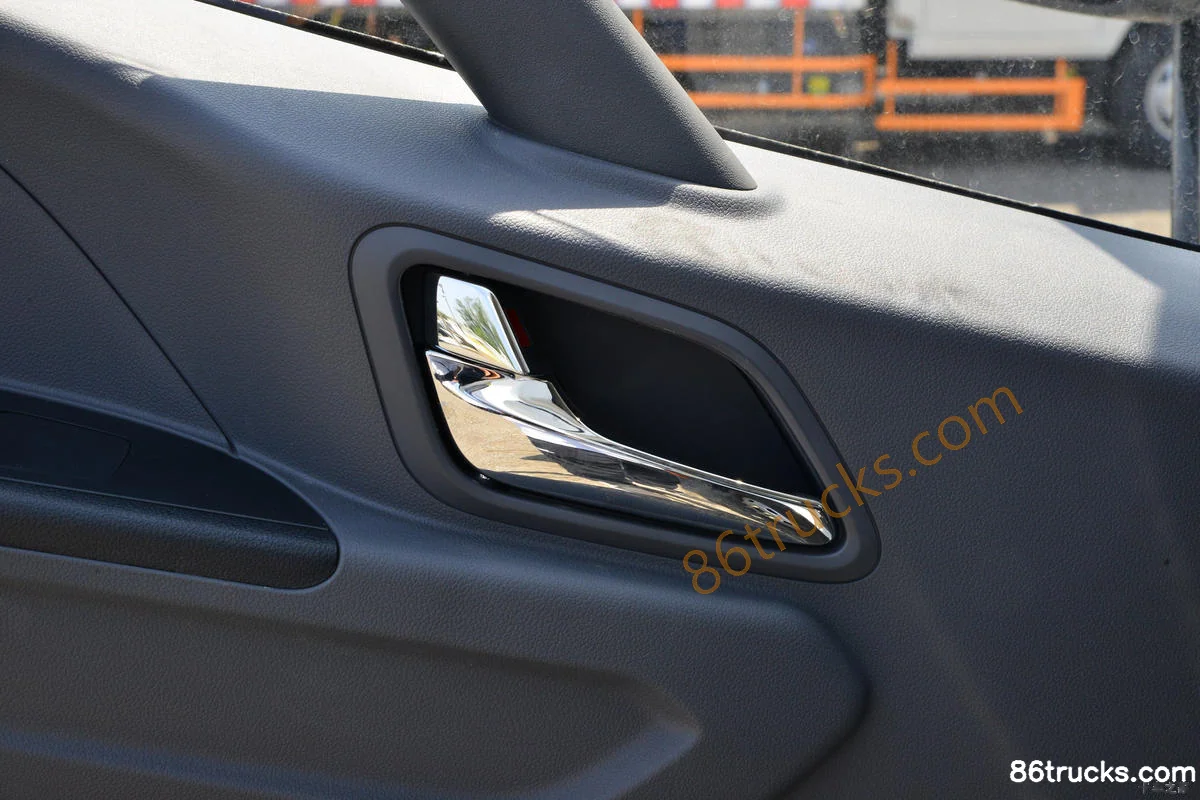

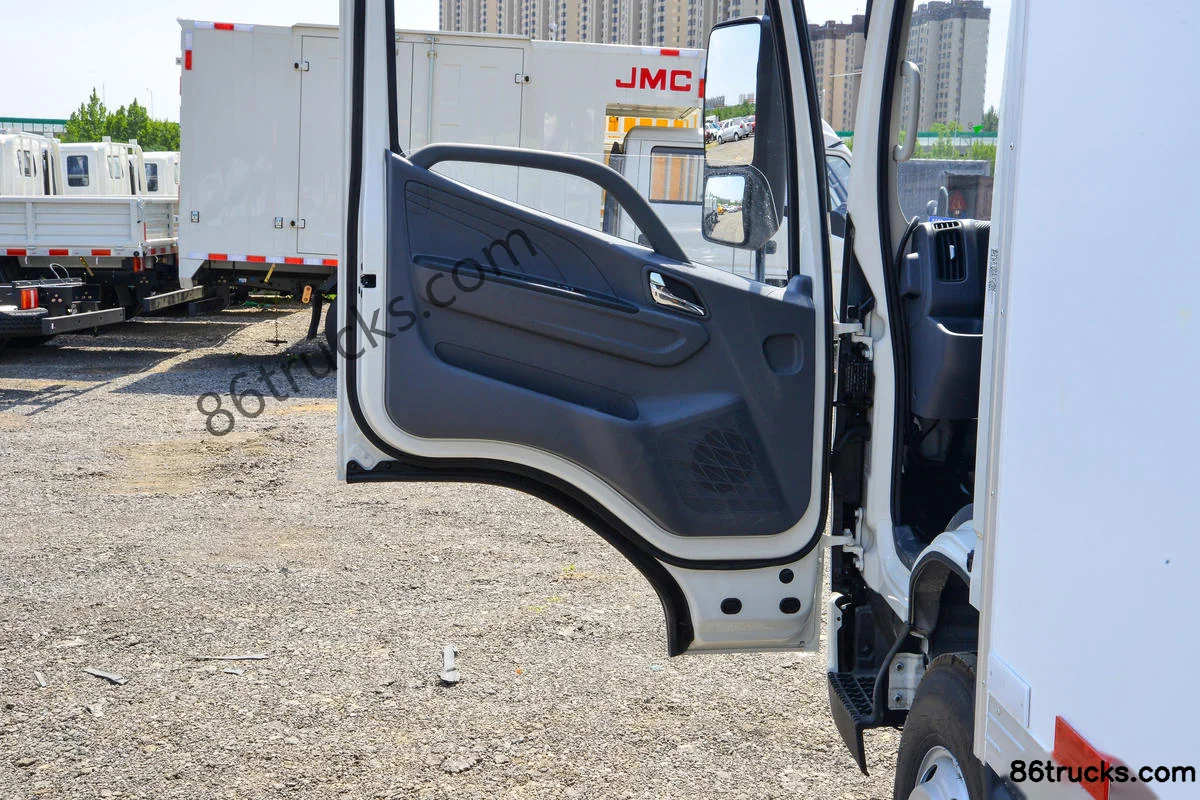

Cab3

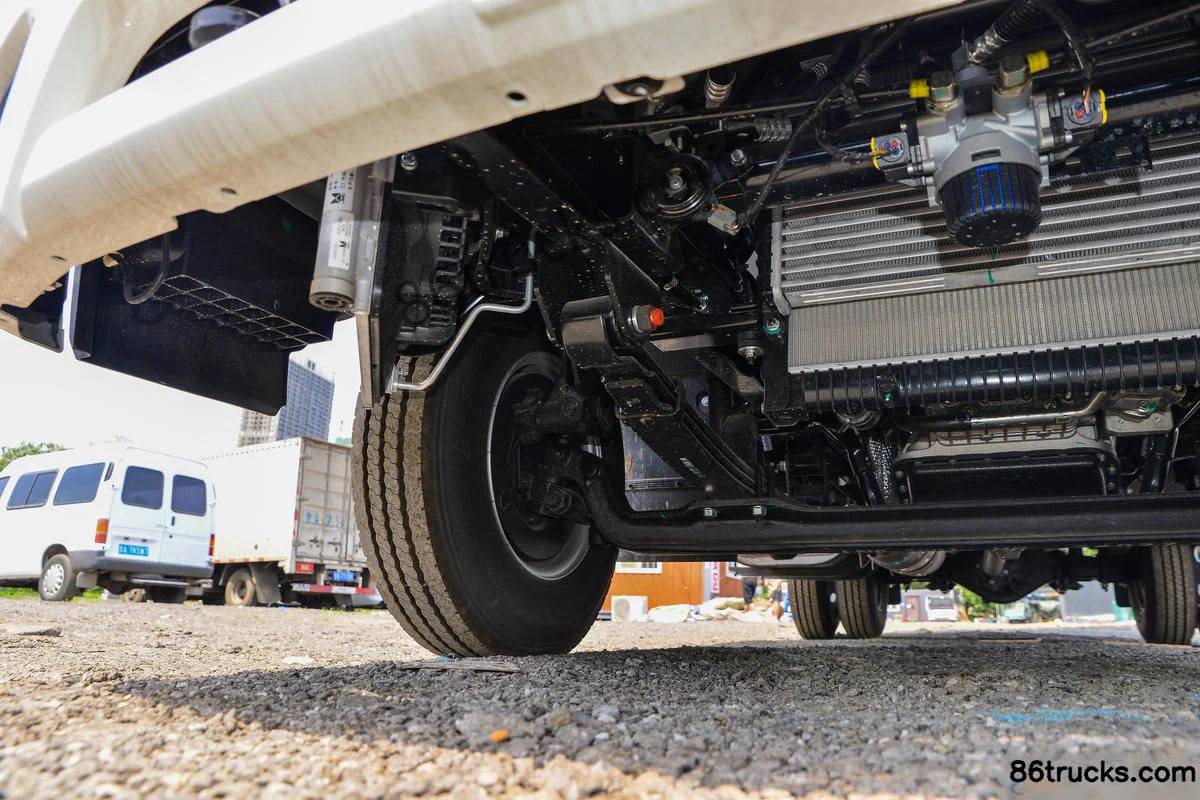

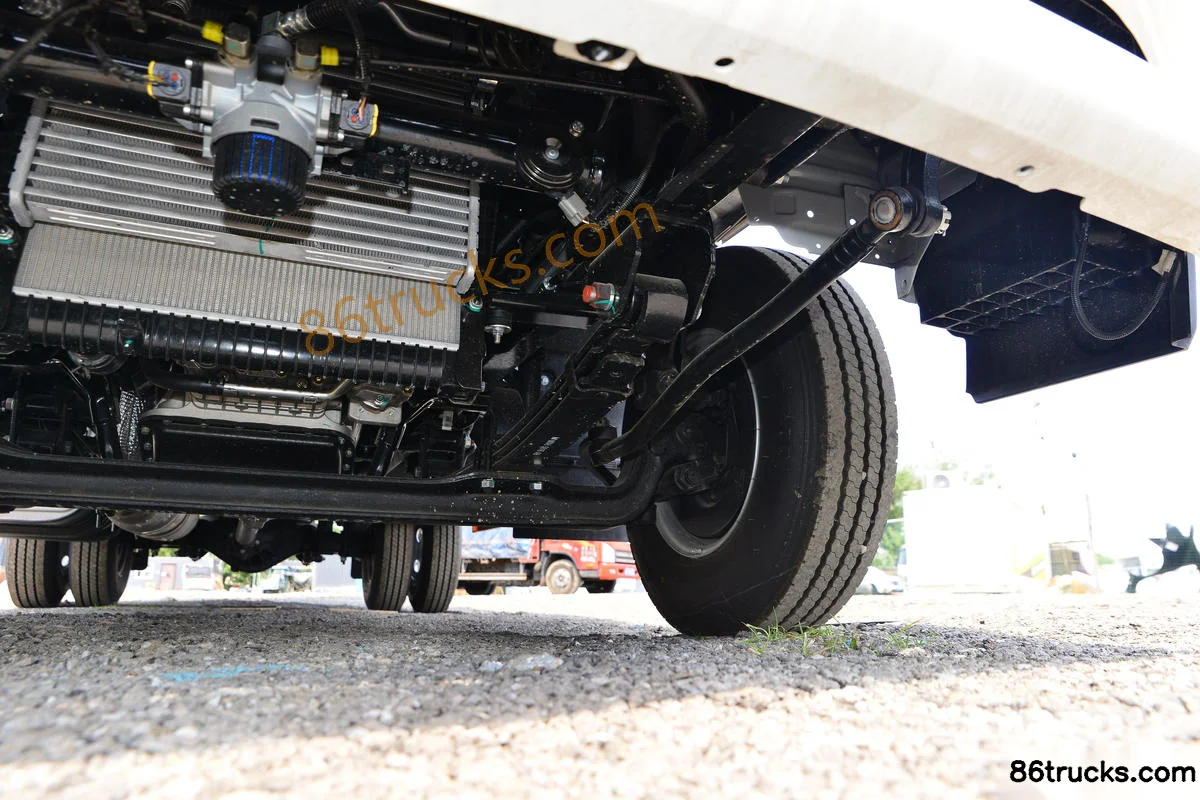

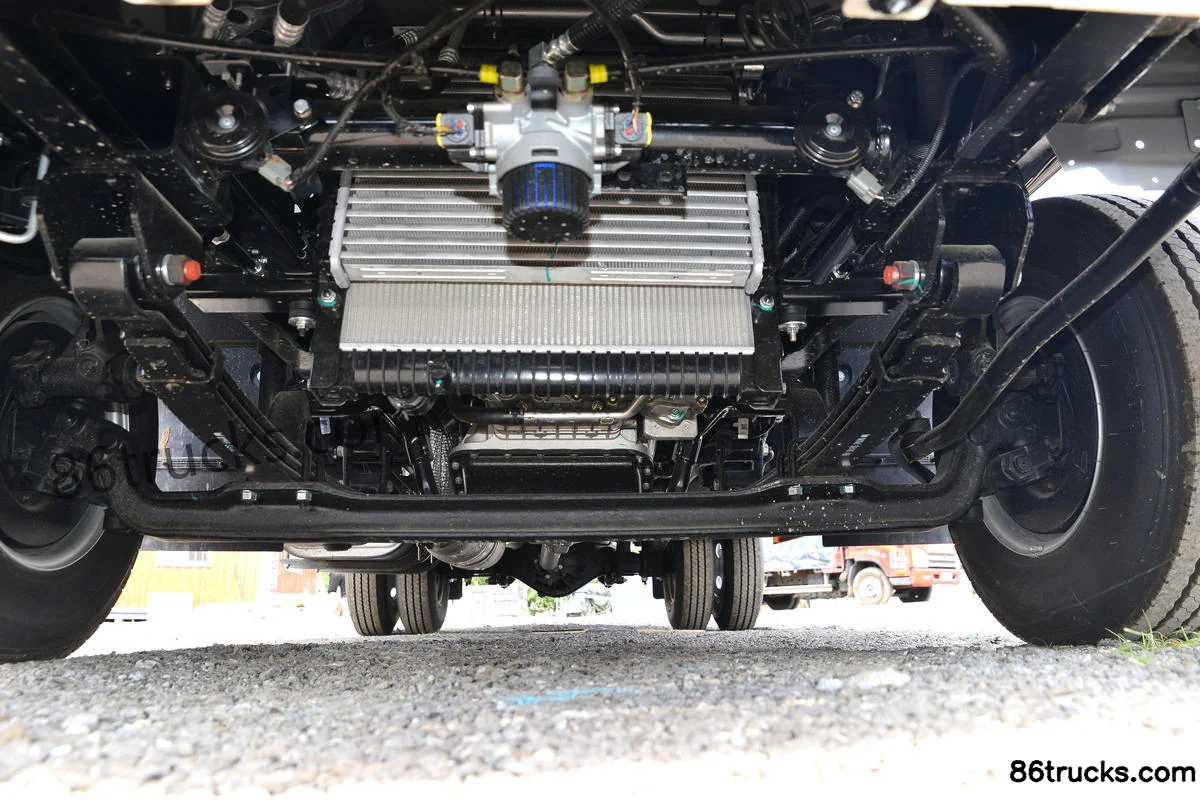

Chassis3

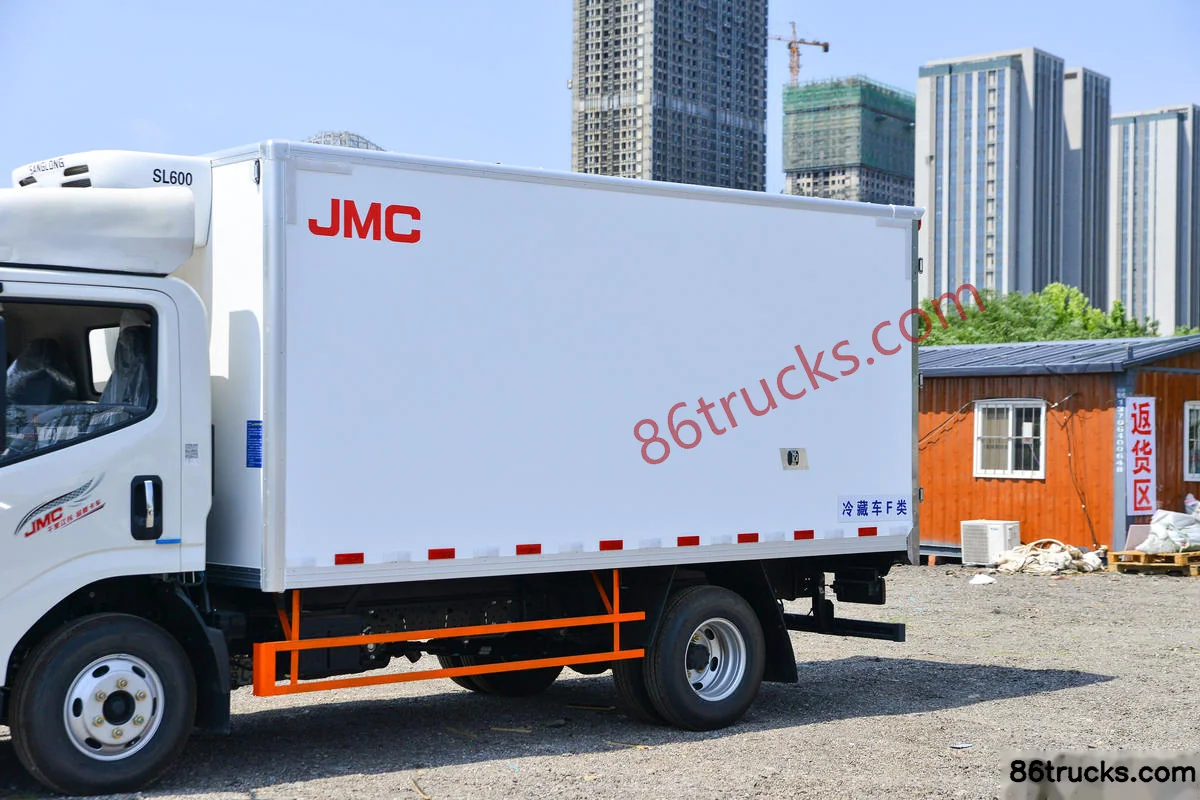

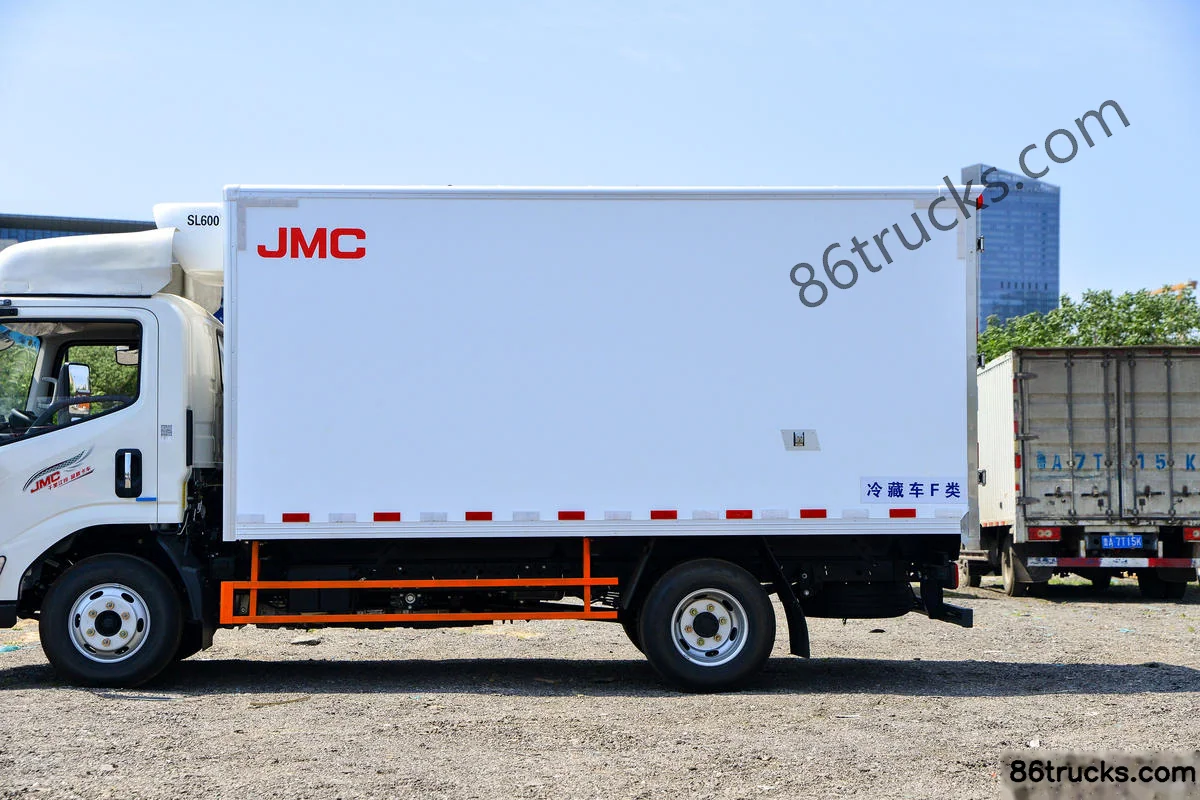

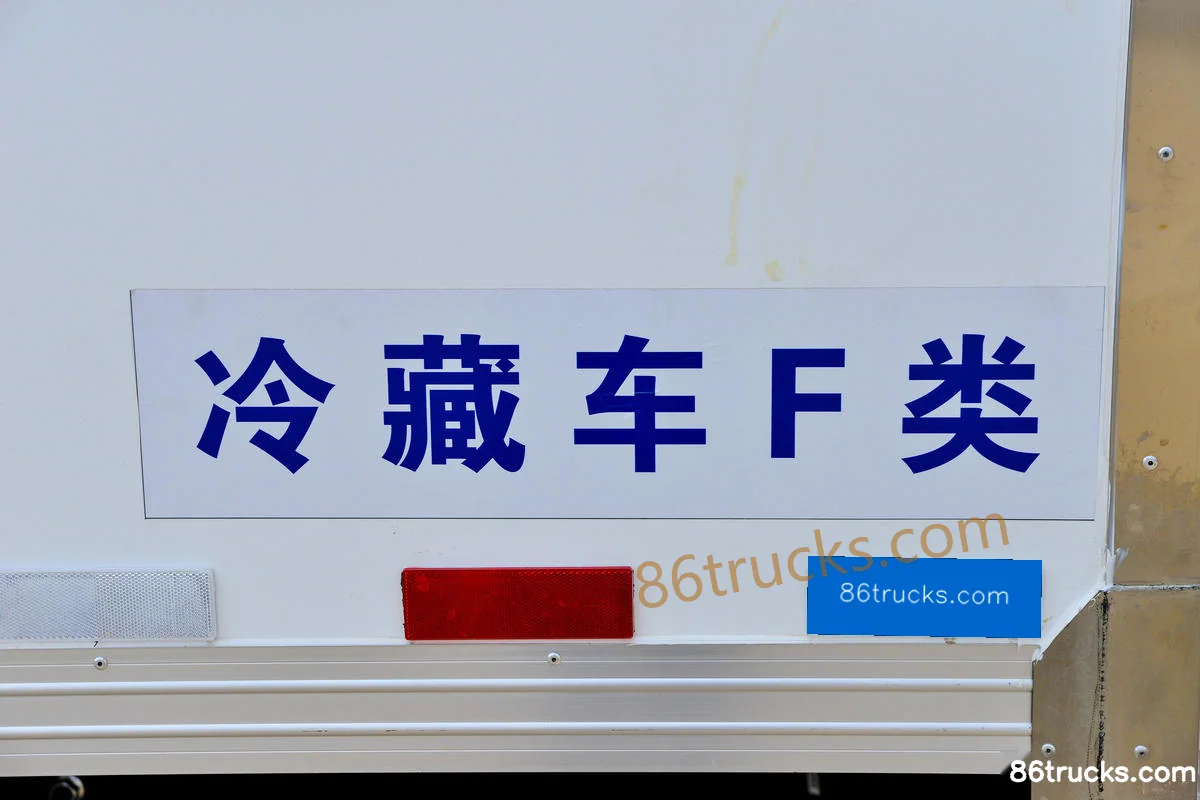

Body3

12 photos

FAQ

What emission standard does JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI)?

Key specs of JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI): Drive: 4x2; Horsepower: 163 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) suited for?

JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) differ from other variants in the same series?

JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI) belongs to JMC Kaiyun+ (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Kaiyun+ 163 hp 4X2(6 wheels) 4.02m Single-Cab Refrigerated Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
