FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh

Export reference
From $48,556
MSRP ¥34.96M CNY
Rated payload:: 8.77ton
Wheelbase:: 5600mm
Cargo box type:: Wing Van
Model code (announced):: CA5180XYKP28L5BEVA80
Type:: enclosed cargo truck
Box length class:: 7.8m
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: FAW Jiefang
Curb Weight: 9.1ton

Overview

The FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh is a Medium-duty truck featuring CATL battery/range, FAW Jiefang motor, 4X2 (6 wheels) drive and 8.77t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XYKP28L5BEVA80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5600mm
Box length class: 7.8m
Cab length: 10m
Cab width: 2.55m
Cab height: 3.995m
Curb Weight: 9.1ton
Rated payload: 8.77ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Changchun
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM365PT51
Motor Type: Permanent magnet synchronous motor
total rated power: 90kW
Peak power: 171kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 246.68kWh
Transmission Parameters
Transmission Model: Tebest TS-0412
shift method: AMT manual/auto
Forward gears: 4Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 7.75m
Cargo box width: 2.48m
Cargo box height: 2.65m
Cab parameters
Cab tilting: Electric tilting
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Aluminum wheels:
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Radar:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

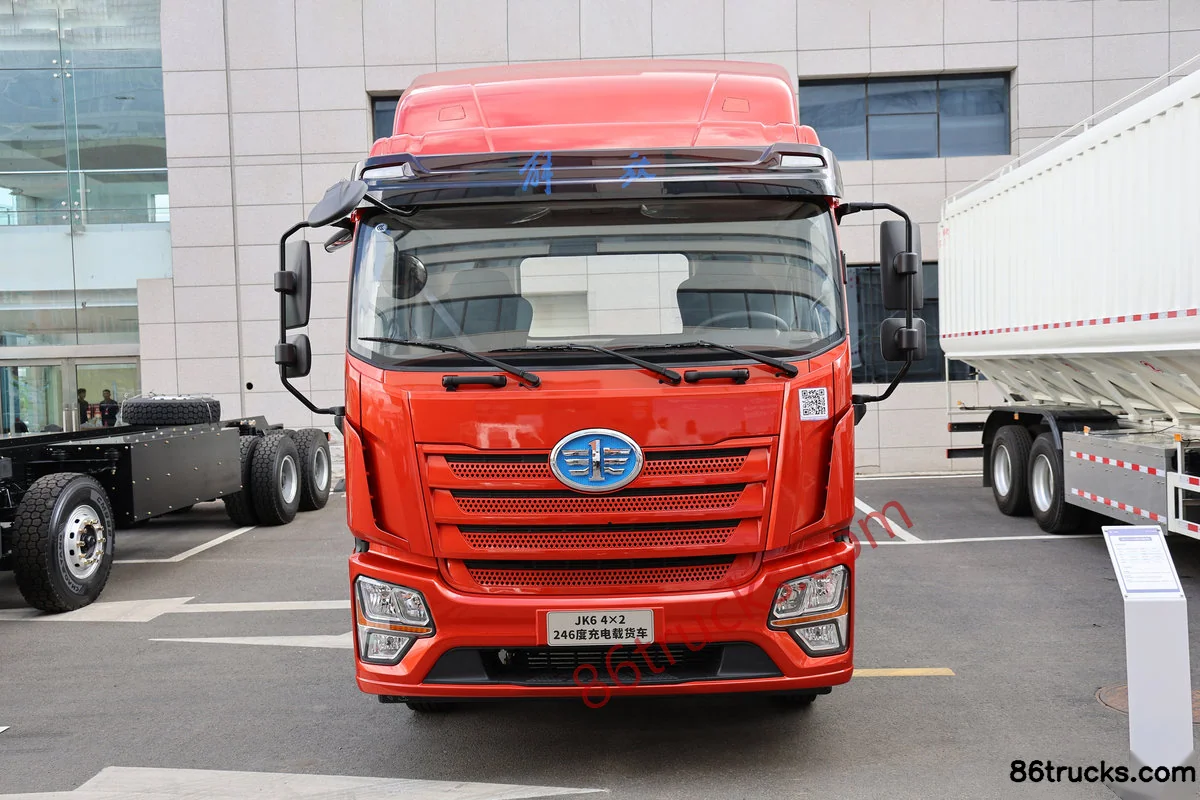

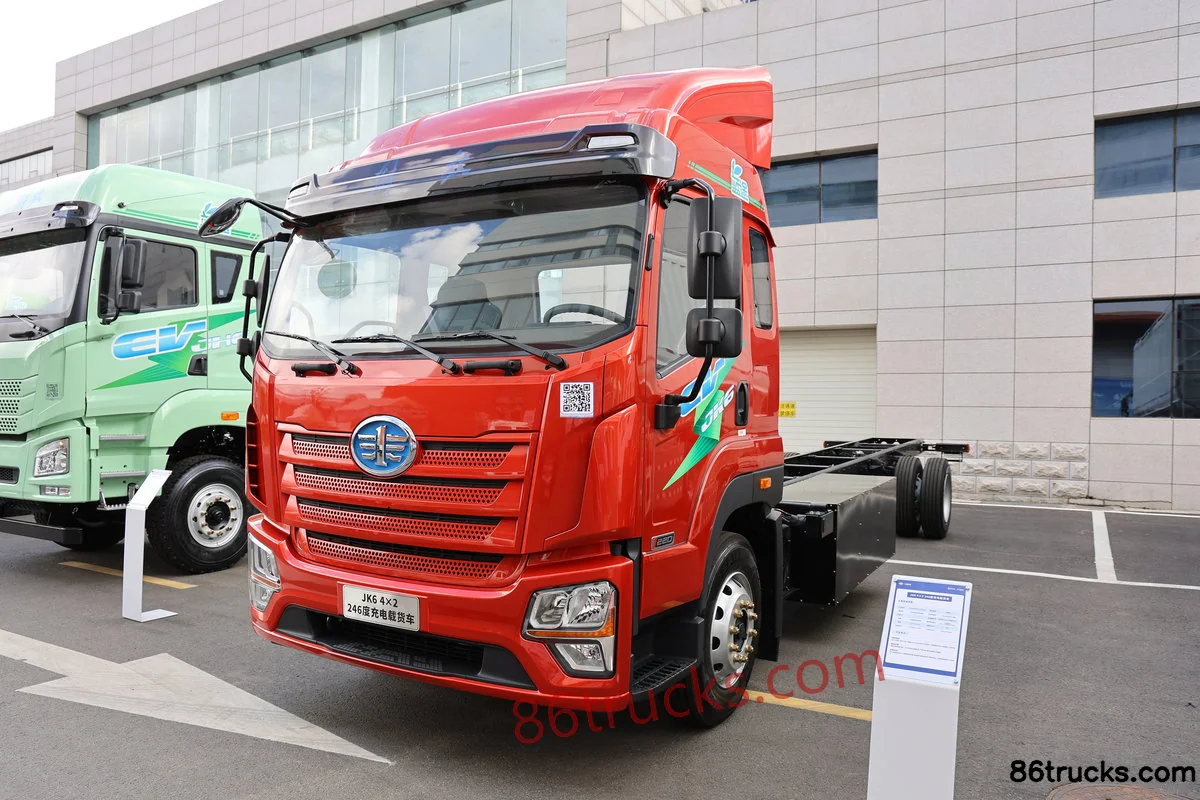

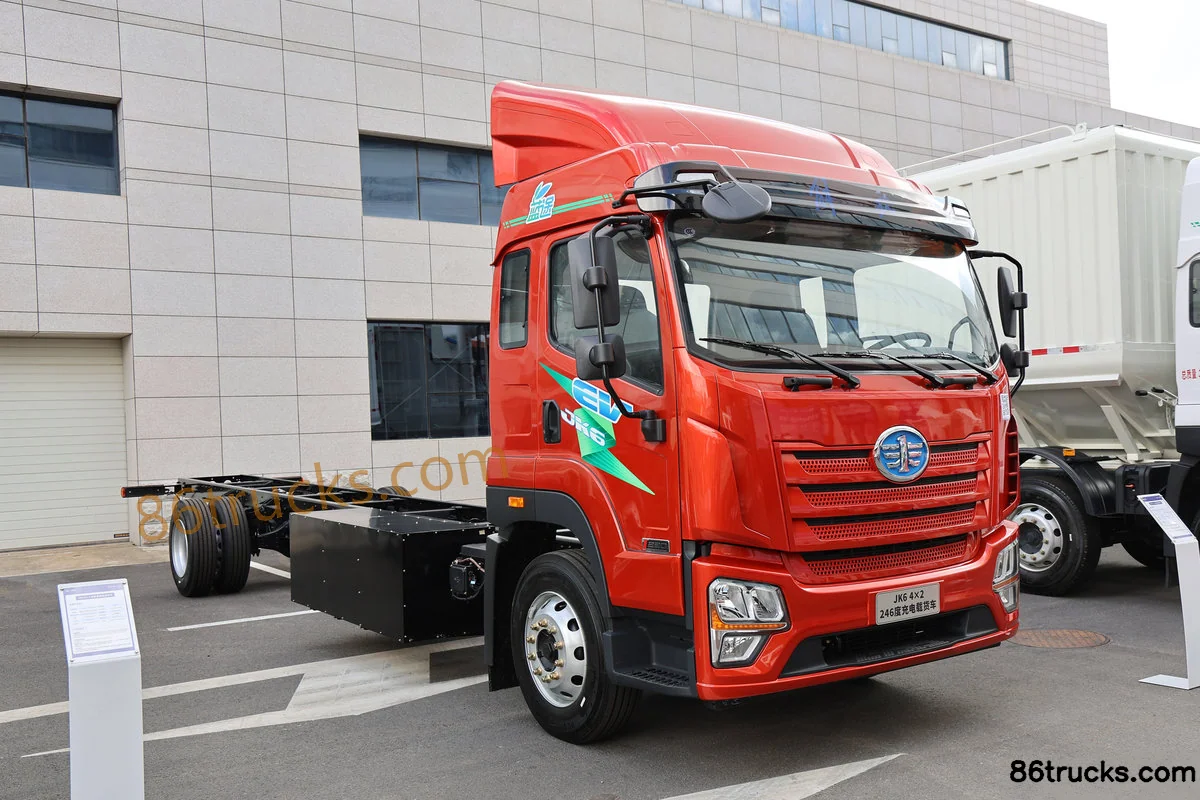

Exterior3

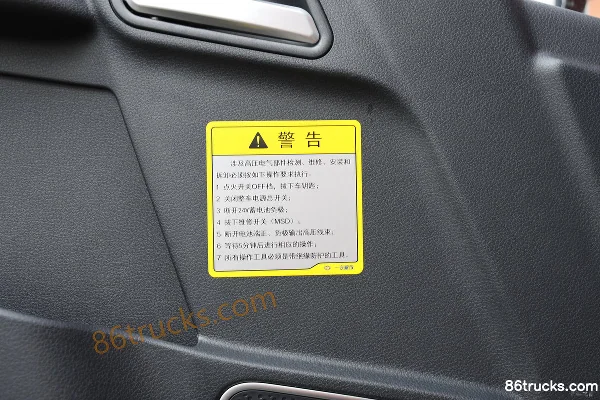

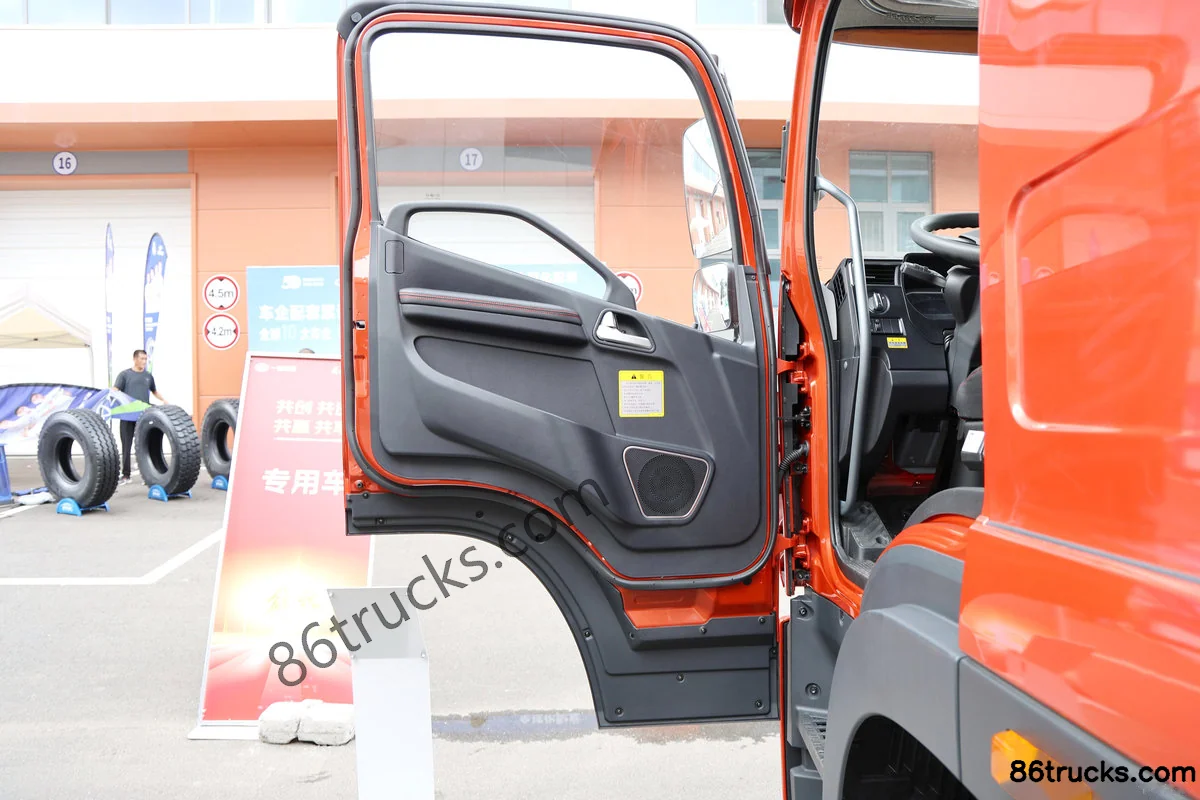

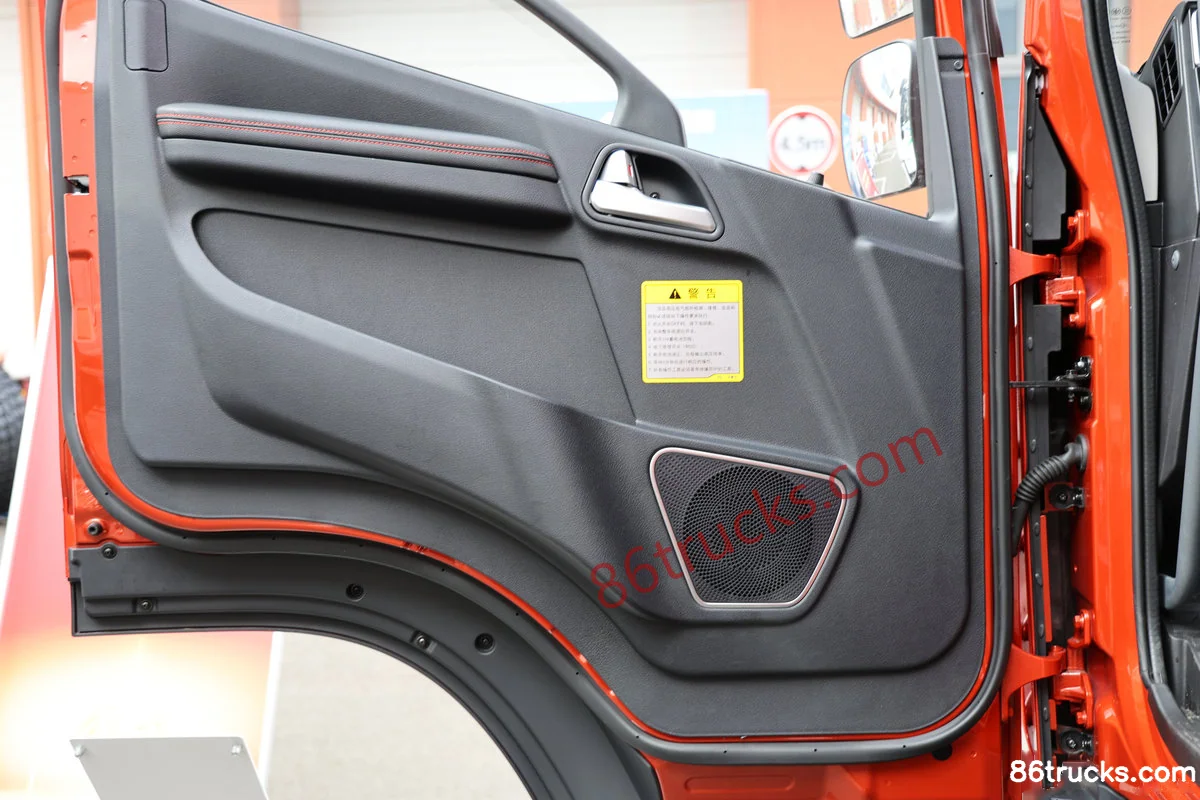

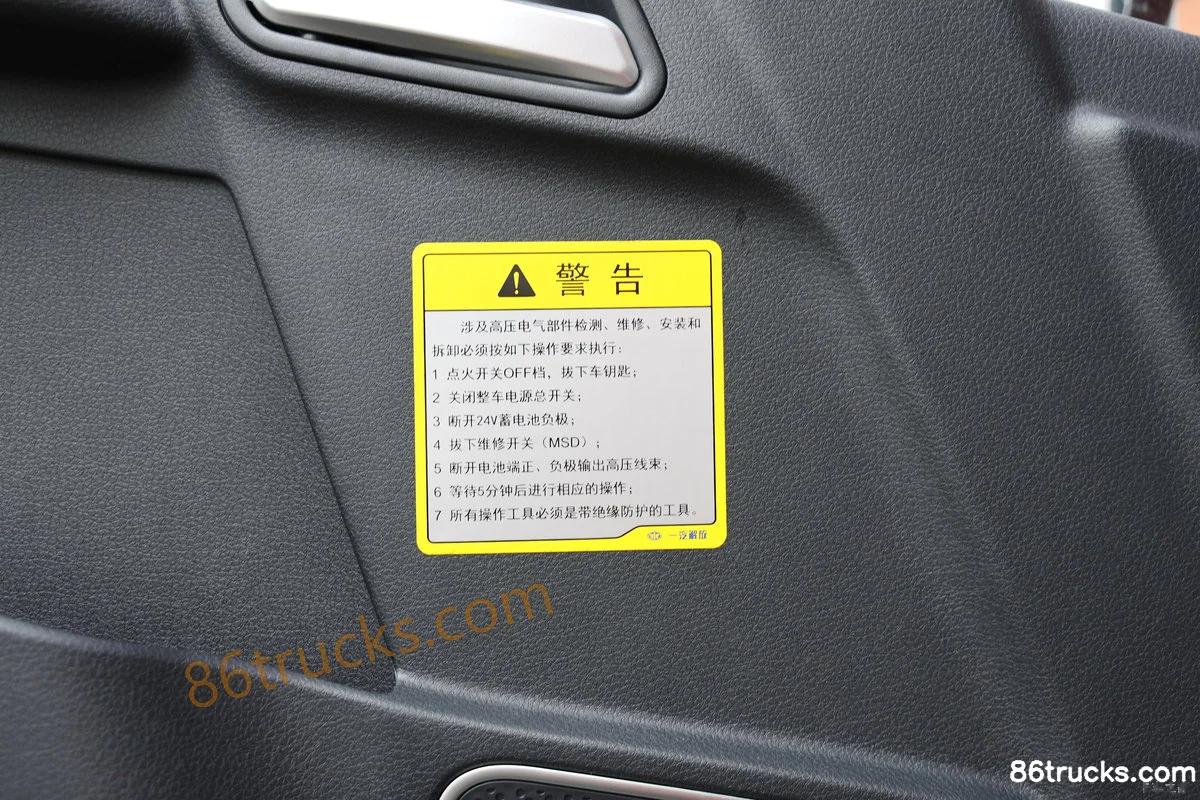

Cab3

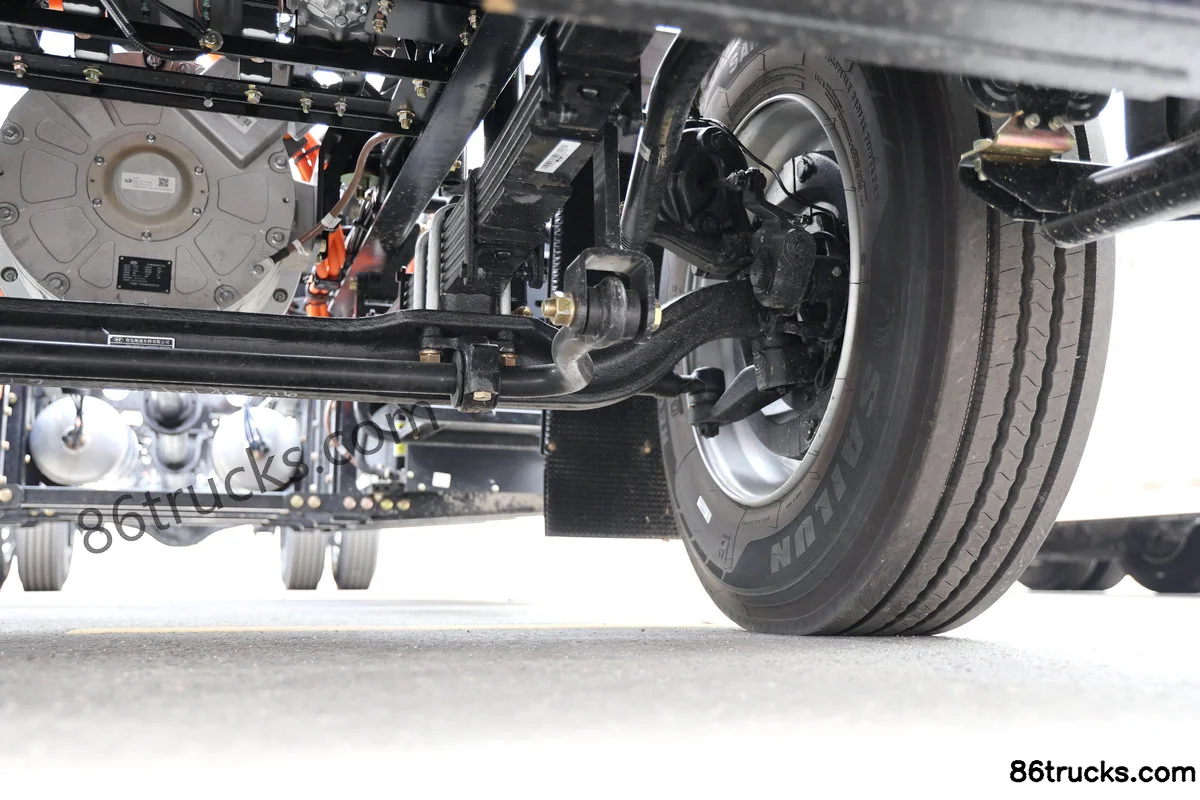

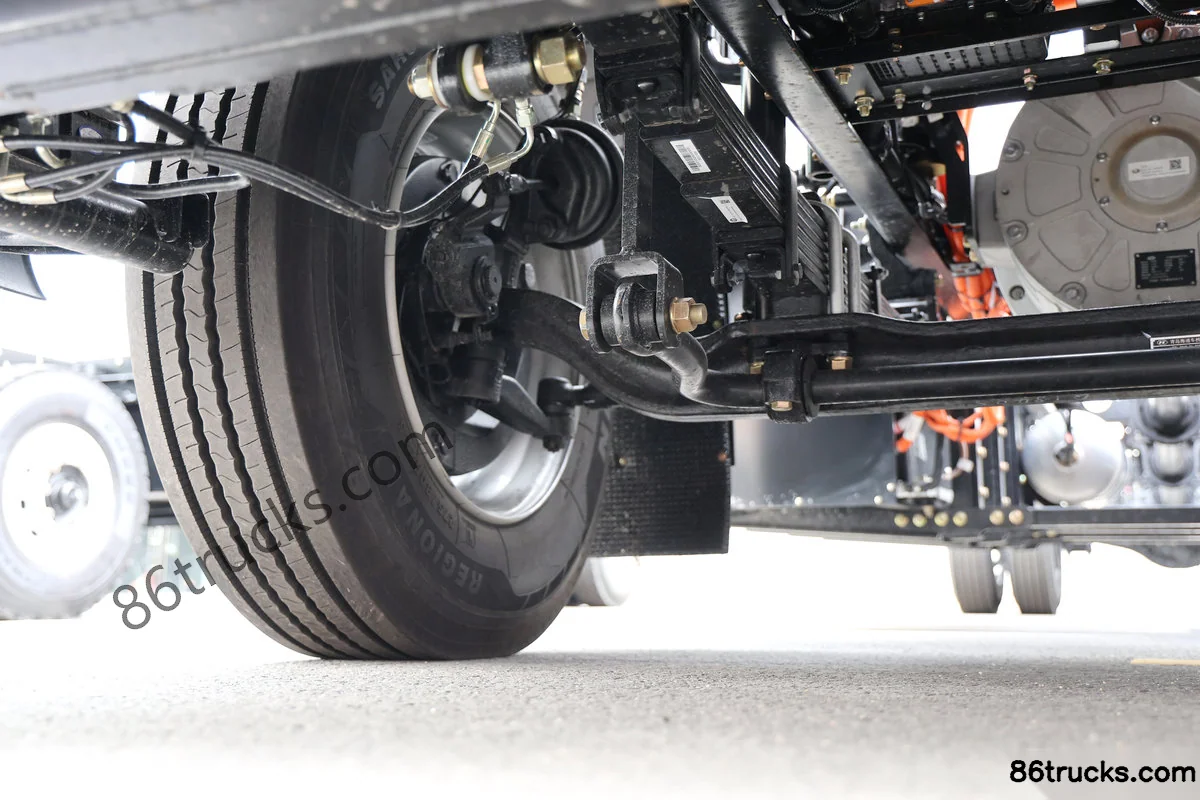

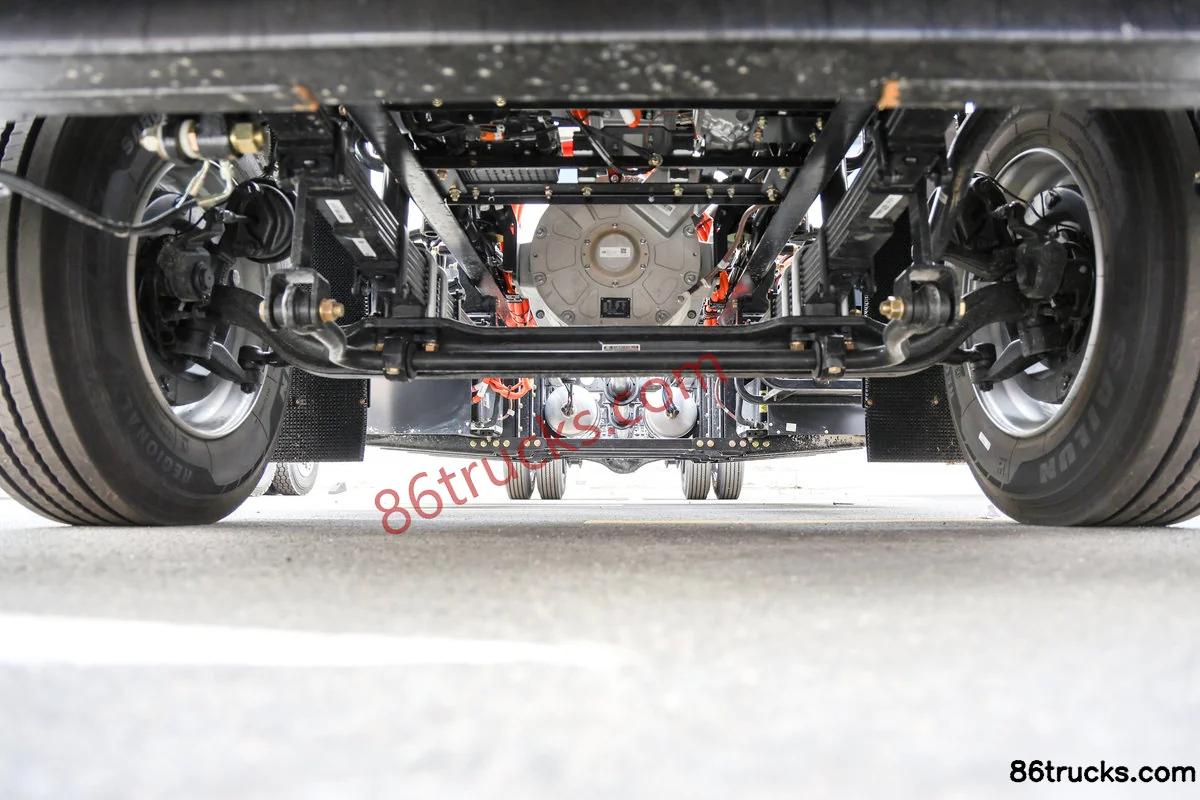

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh, and what does it include?

FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh export reference is about From $48,556; MSRP is ¥34.96M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh?

Key specs of FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh suited for?

FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh differ from other variants in the same series?

FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh belongs to FAW Jiefang QingdaoJK6 (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 4X2(6 wheels) 7.75m Electric Wing Opening Van Cargo Truck CATL 246.68kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
