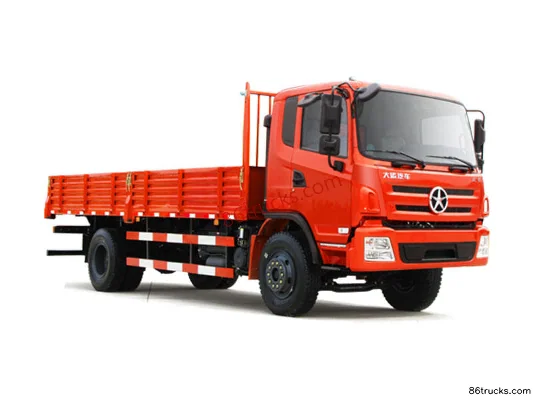

Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: Yuchai496
Transmission: WLY
Curb Weight:: 4.1ton
seating capacity: 3Personnel
Rated payload: 4.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck is a Medium-duty truck featuring 5.75m cargo length, stake body cargo body, 3Personnel volume and 4.99t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai496 engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CGC1090HBC39D
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4400mm
Box length class: 5.8m
engine: YuchaiYC4FA120-40
transmission: WLYWLY6T100
Rear Axle Ratio: 6.33
Cab length: 7.995m
Cab width: 2.4m
Cab height: 2.39m
Front track width: 1740mm
rear track: 1640mm
Curb Weight: 4.1ton
Rated payload: 4.99ton
GVWR: 9.285ton
Max. speed: 85km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 30°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.3/2.295m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA120-40
Engine info: Yuchai496
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.982L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 345N·m
Max torque speed: 1600-2400rpm
Rated speed: 2800rpm
Engine Type: BOSCH common rail EGR+POC+DOC
Transmission Parameters
Transmission Model: WLYWLY6T100
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.75m
Cargo box width: 2.2m
Cargo box height: 0.6m
*Cargo box interior width: 2.2000000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 140 axle
Front axle allowable load: 3715kg
rear axle description: 145 axle
rear axle allowable load: 5570kg
Axle ratio: 6.33
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25R20 12PR,9.00R20 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck?

Key specs of Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai496; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck suited for?

Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck differ from other variants in the same series?

Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck belongs to Dayun Fengdu Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Fengdu 120 hp 4X2(6 wheels) 5.8m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
