JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane

Export reference
From $24,722
MSRP ¥17.8M CNY
Fuel: Diesel
Wheelbase:: 5300mm
Type:: truck-mounted crane
GVWR:: 15.6ton
Engine Brand:: Weichai
Displacement:: 6.75L
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.25ton
Emission China IV

Overview

The JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane is a truck-mounted crane featuring 15.6t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Weichai engine, 180 hp, China IV emissions and Diesel fuel.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5300mm
Rated mass: 6.25ton
GVWR: 15.6ton
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.180E40
fuel type: Diesel
Displacement: 6.75L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Body Parameters
Vehicle certification code: HFC5161JSQP3K2A53F
Body Brand: JAC Gallop
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopA3
Chassis Model: HFC1161P3K2A47F
Axle ratio: 5.12
Leaf spring count: 9/9+7,3/4+3,3/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Cab parameters
Cab: A3L
Tire
Tire Size: 9.00-20 16PR,9.00R20 16PR,10.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs

Photos

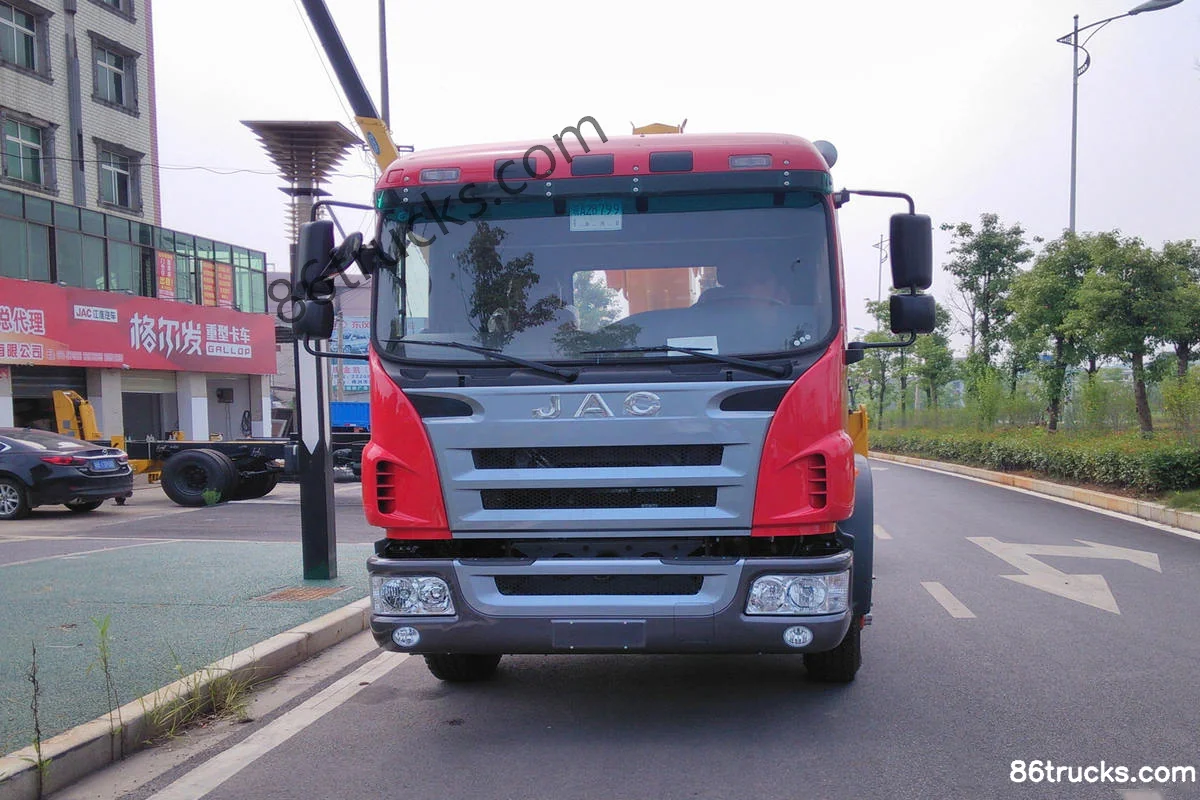

Exterior1

1 photos

FAQ

What is the export price of JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane, and what does it include?

JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane export reference is about From $24,722; MSRP is ¥17.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane?

Key specs of JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane suited for?

JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane differ from other variants in the same series?

JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane belongs to JAC Gallop A3 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A3L 180 hp 4X2(6 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
