JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck

Export reference
From $71,111
MSRP ¥51.2M CNY
Fuel: Diesel
Curb Weight:: 14.56ton
Wheelbase:: 1800+3050+1350mm
Tire Size:: 11.00R20
Cab dimensions:: 10.1×2.55×3.95m
Truck Type:: concrete mixer truck
Rated payload: 16.245ton
Drive 8X4 (12 wheels)
Horsepower 336
Emission China V

Overview

The JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck is a concrete mixer truck featuring 16.245t payload, 14.56ton GVW, 8X4 (12 wheels) drive and K5W cab. On the powertrain side, it comes with 336 hp, China V emissions and Diesel fuel.

China V 336 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.1×2.55×3.95m
Drive type: 8X4
Truck Type: concrete mixer truck
Vehicle origin: Hefei, Anhui
Front/rear track width: Front: 2080/2080mm; Rear: 1900/1900
Wheelbase: 1800+3050+1350mm
Curb Weight: 14.56ton
Rated payload: 16.245ton
Max. speed: 85km/h
Front/rear suspension: 1.495/2.405m
Body Parameters
Mixing drum capacity: 7.4m³
Vehicle certification code: HFC5311GJBP1K6H30S3V
Body Brand: JAC Gallop
Engine parameters
Engine Model: WeichaiWP10.336E55
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Rated speed: 1900rpm
Engine Type: Turbocharged Air-to-Air Intercooling
Chassis Specs
Chassis Series: GallopK5
Chassis Model: HFC5311GJBP1K6H30S3V
Front axle description: 9T
Frame Dimensions: 322×80×(10+8)mm
rear axle description: Ankai459
Axle ratio: 4.8
Leaf spring count: 9/9/12
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD160T
Cab parameters
Cab: K5W
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

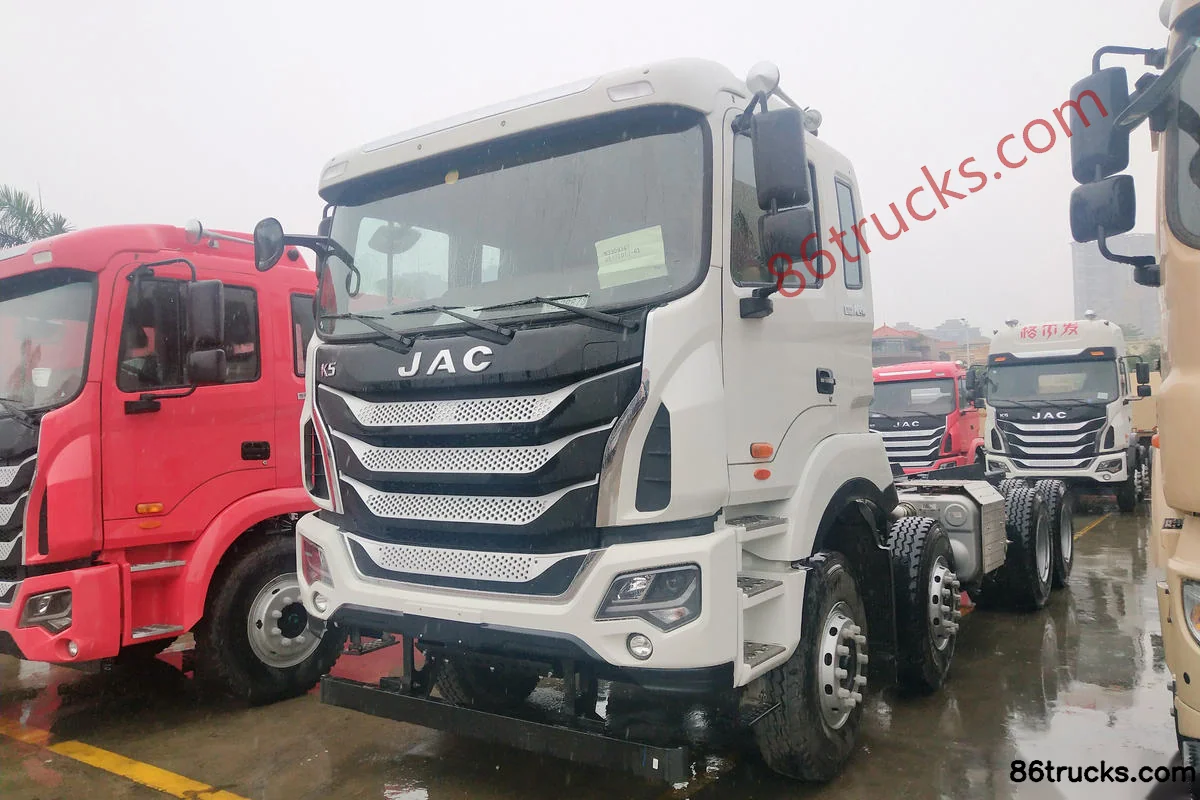

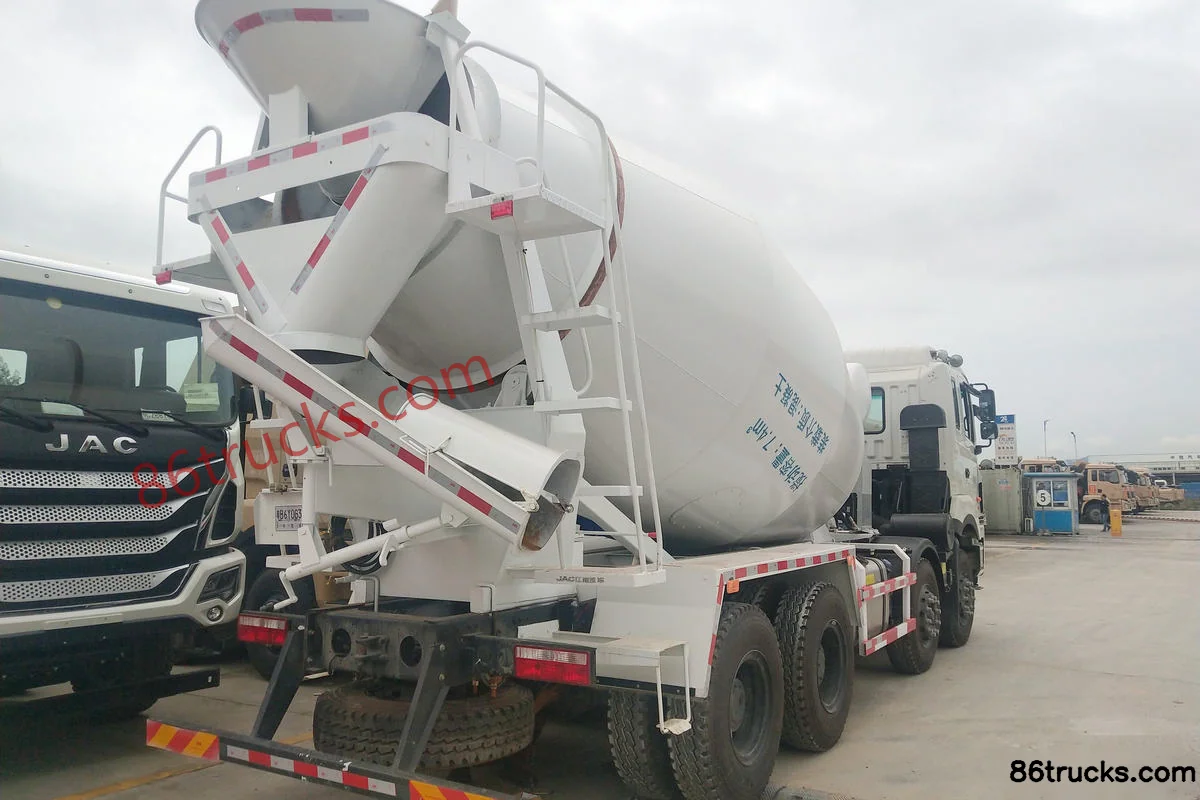

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck, and what does it include?

JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck export reference is about From $71,111; MSRP is ¥51.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck?

Key specs of JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck: Drive: 8x4; Horsepower: 336 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck suited for?

JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck differ from other variants in the same series?

JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck belongs to JAC Gallop K5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W 336 hp 8X4(12 wheels) 7.4 cubic meter Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
