SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.34ton
Wheelbase:: 3200mm
Cargo box type:: Van body
Model code (announced):: JKC5031XXYD0X0BEV
Type:: enclosed cargo truck
Box length class:: 3m
SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Inovance
Curb Weight: 1.58ton

Overview

The SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) is a mini truck featuring CATL battery/range, Inovance motor, 4X2 (6 wheels) drive and 1.34t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JKC5031XXYD0X0BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 3m
Cab length: 5.15m
Cab width: 1.635m
Cab height: 2.49m
Curb Weight: 1.58ton
Rated payload: 1.34ton
GVWR: 3.05ton
Max. speed: 80km/h
Origin: Chongqing Fuling New City
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance
Motor 1 Model: TZ180XSIN102
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 30kW
Peak power: 60kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 46.36kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.03m
Cargo box width: 1.56m
Cargo box height: 1.6m
Cab parameters
Cab width: 1540mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1015kg
rear axle allowable load: 2035kg
Tire
Tire Size: 175/70R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

Exterior3

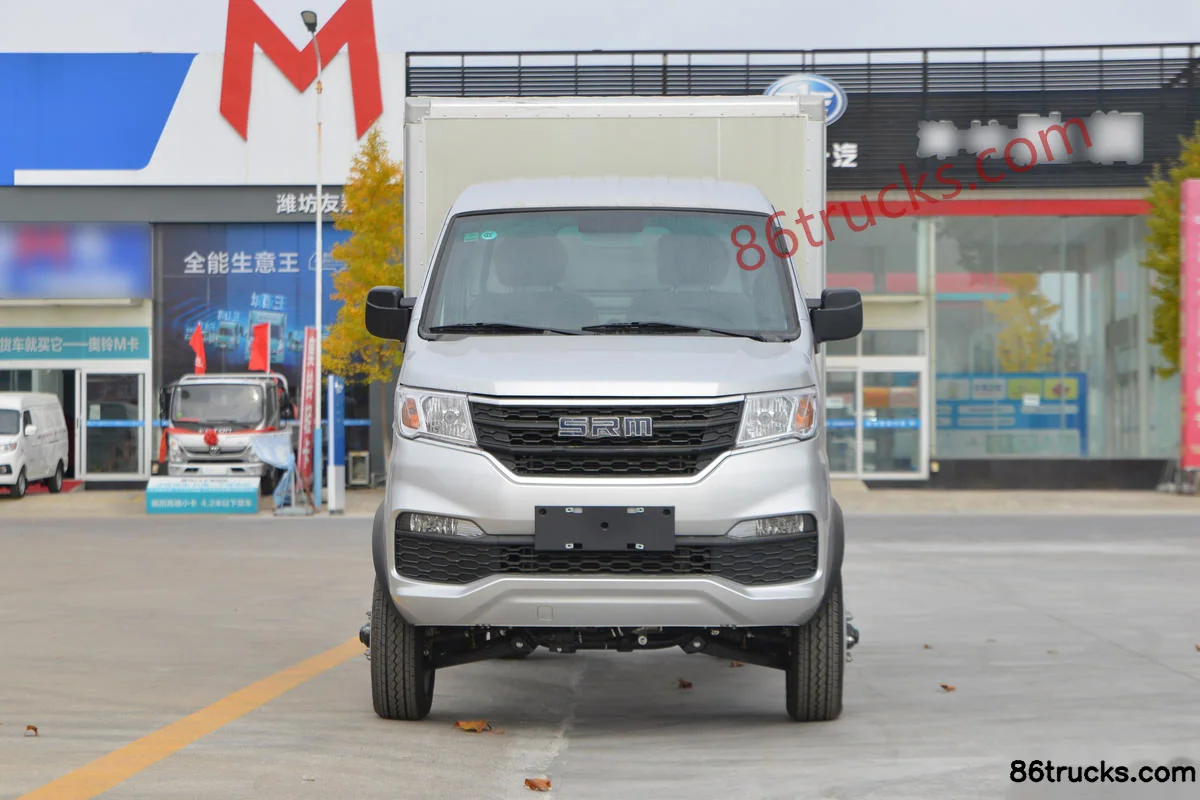

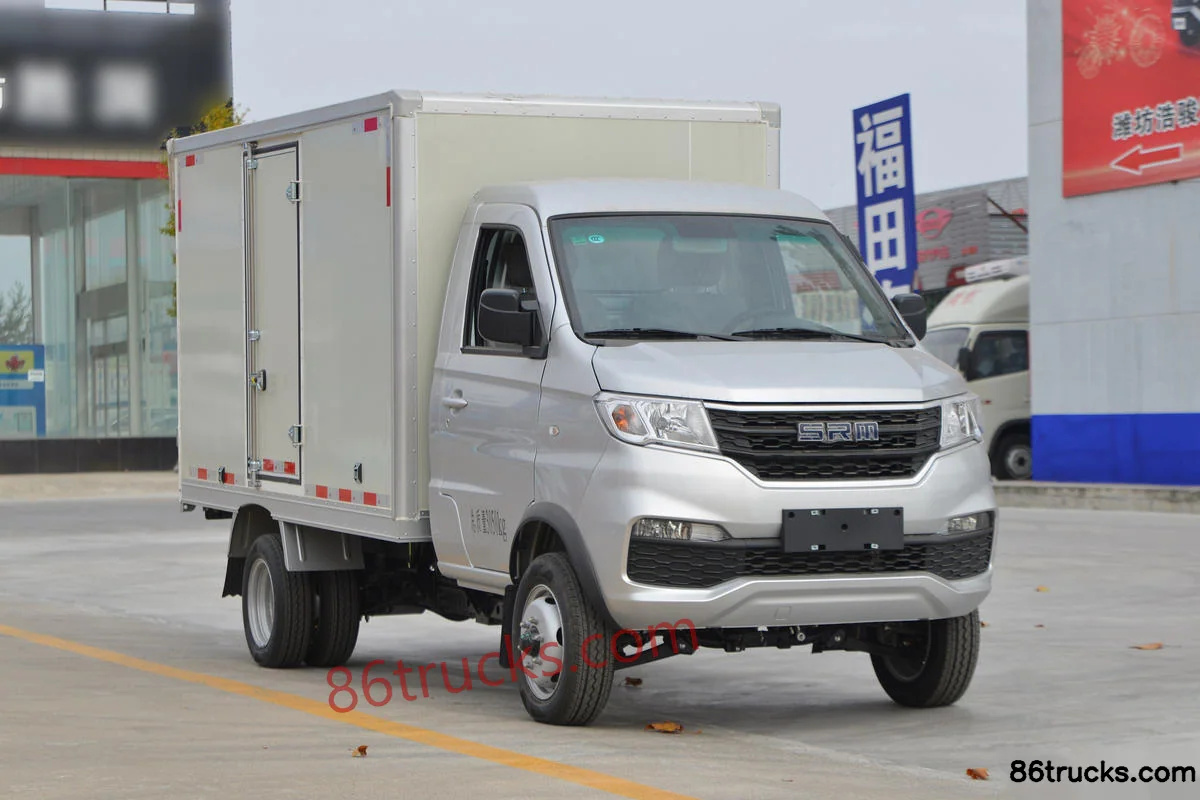

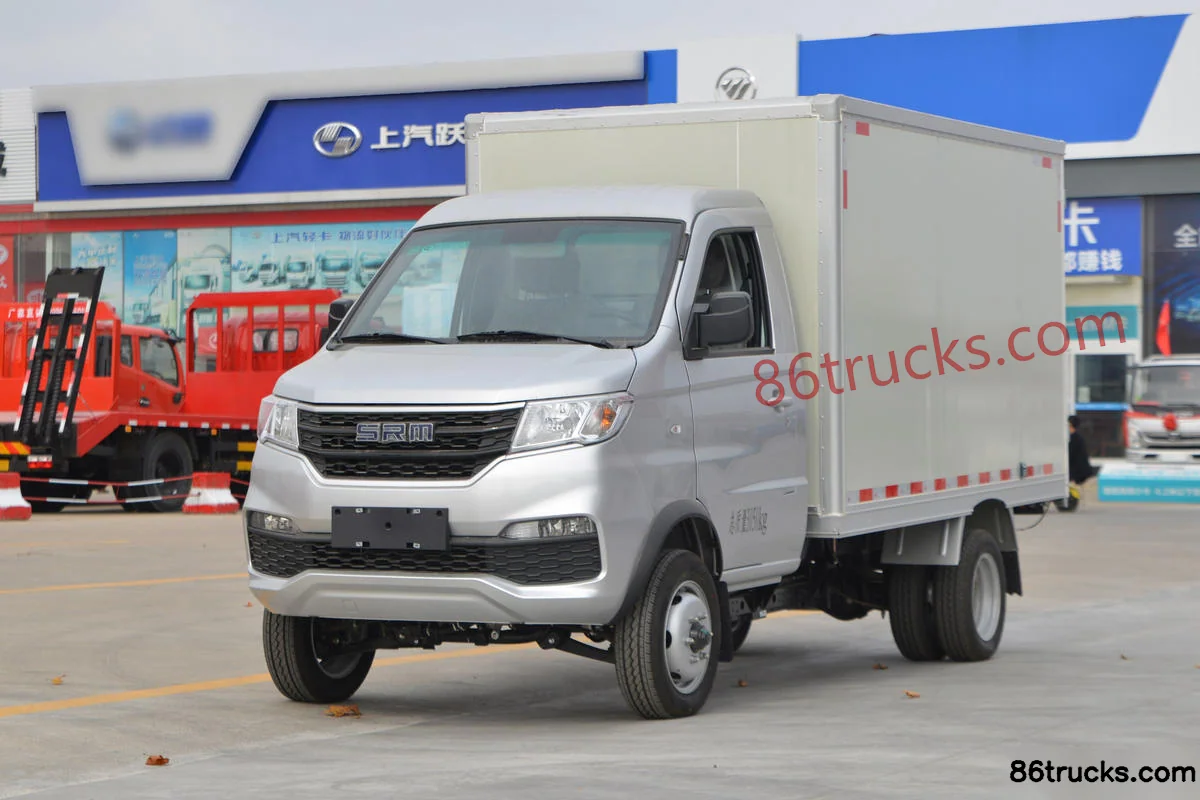

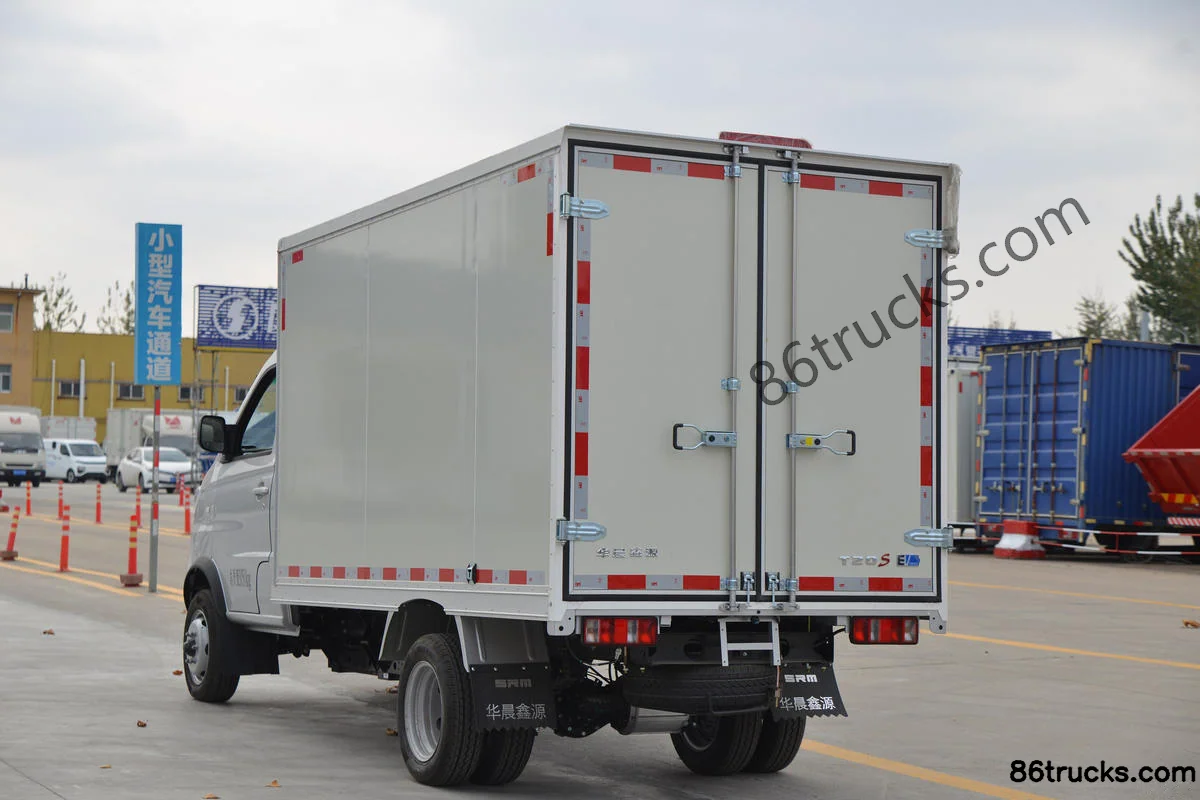

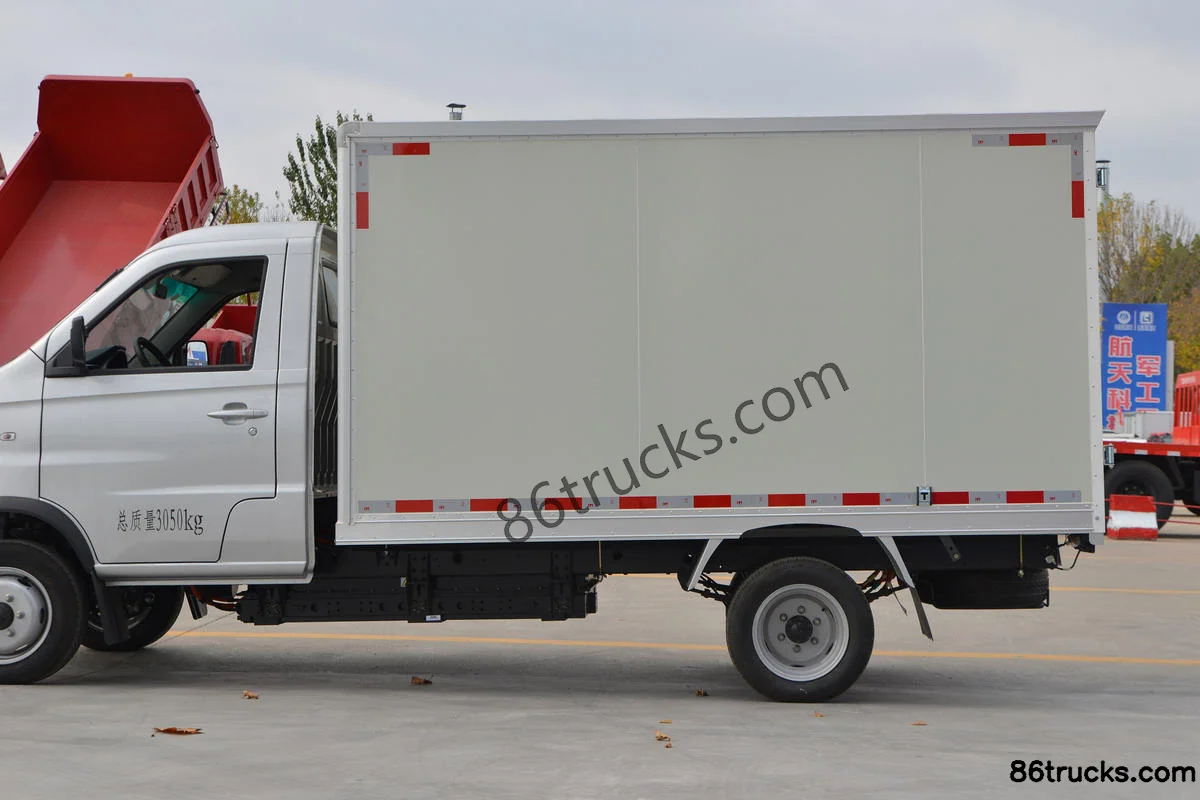

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Exterior (1) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Exterior (2) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Exterior (3) | 86Trucks

Interior3

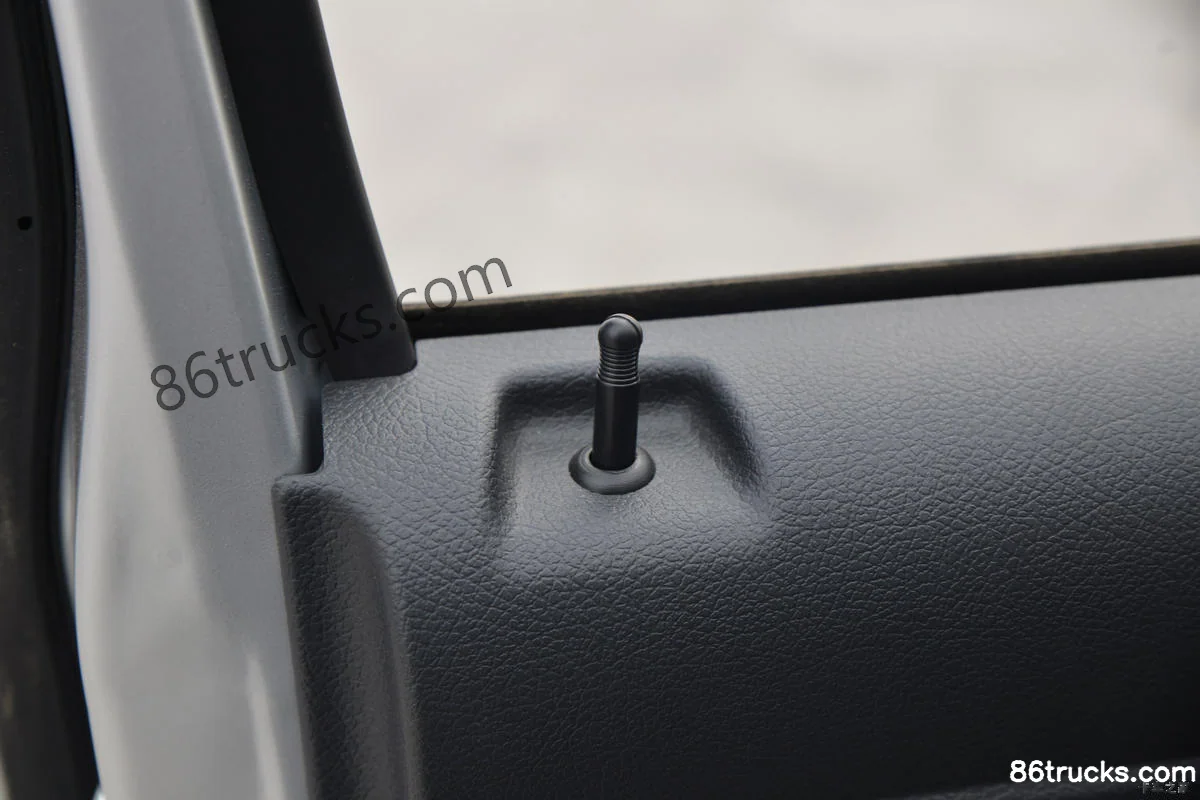

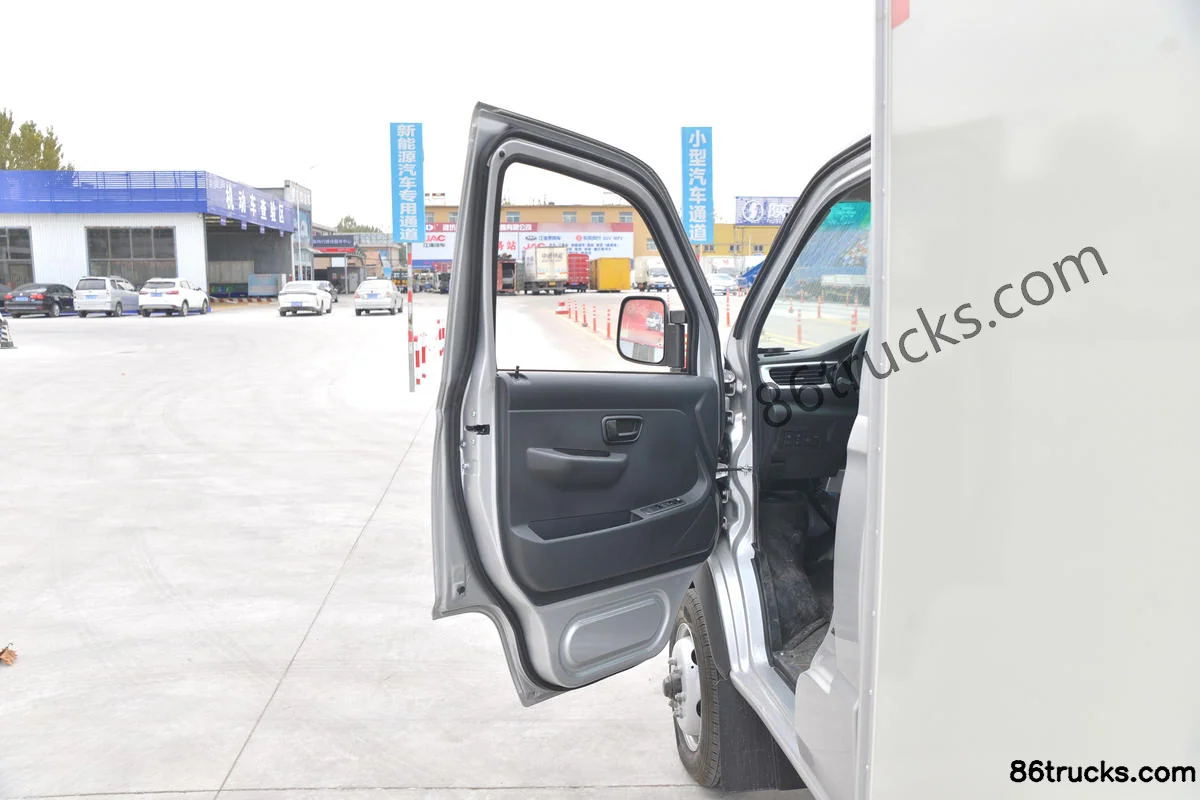

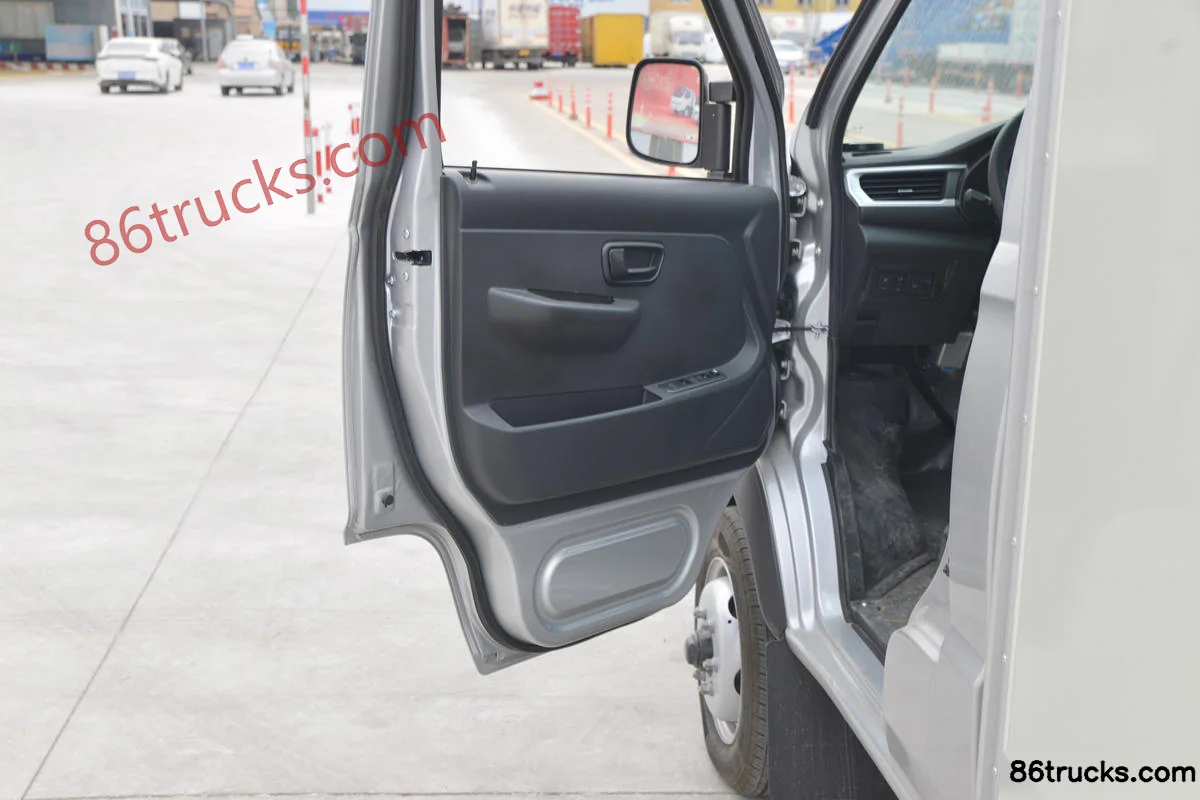

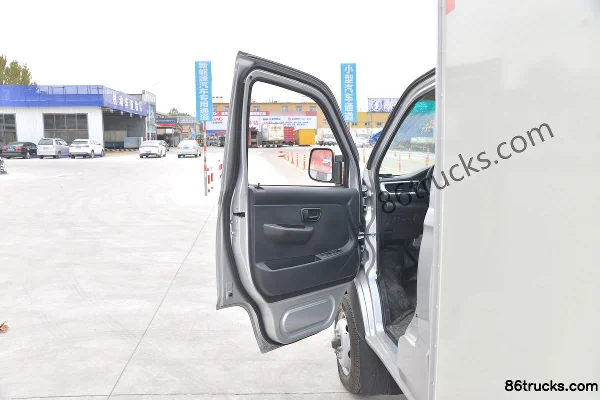

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Interior (1) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Interior (2) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Interior (3) | 86Trucks

Chassis3

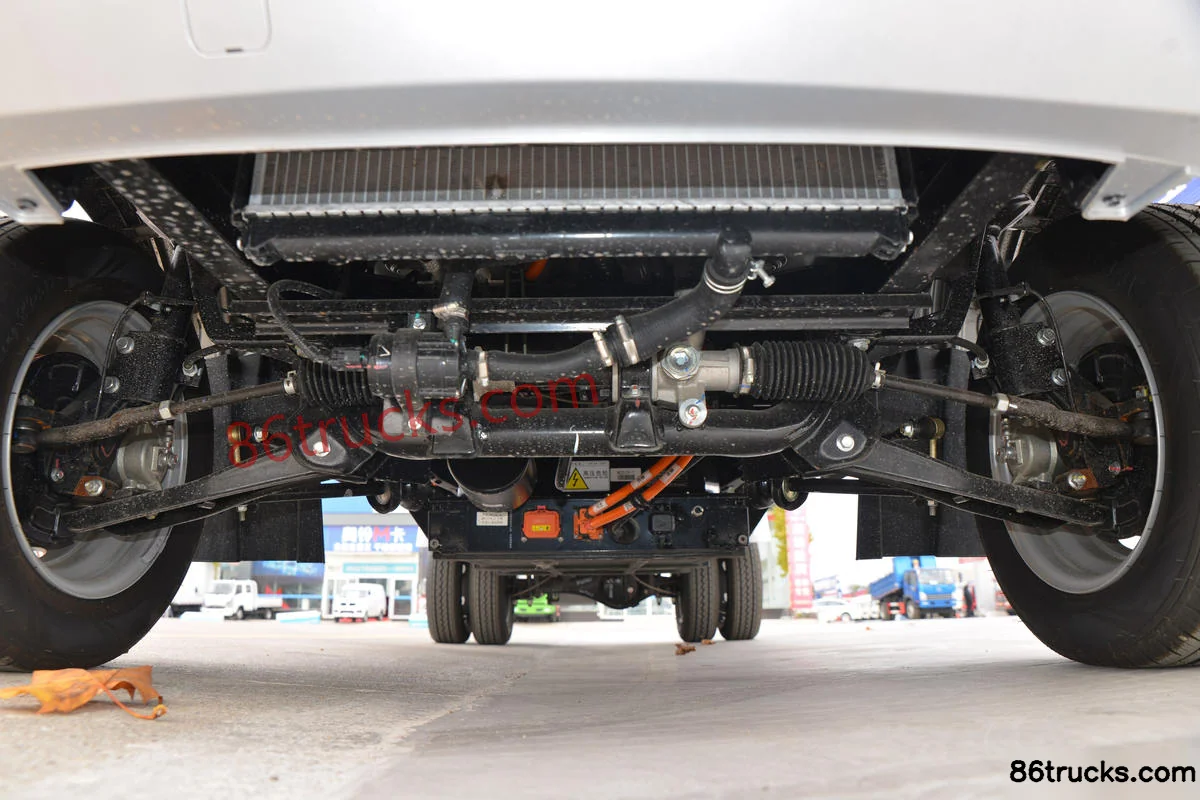

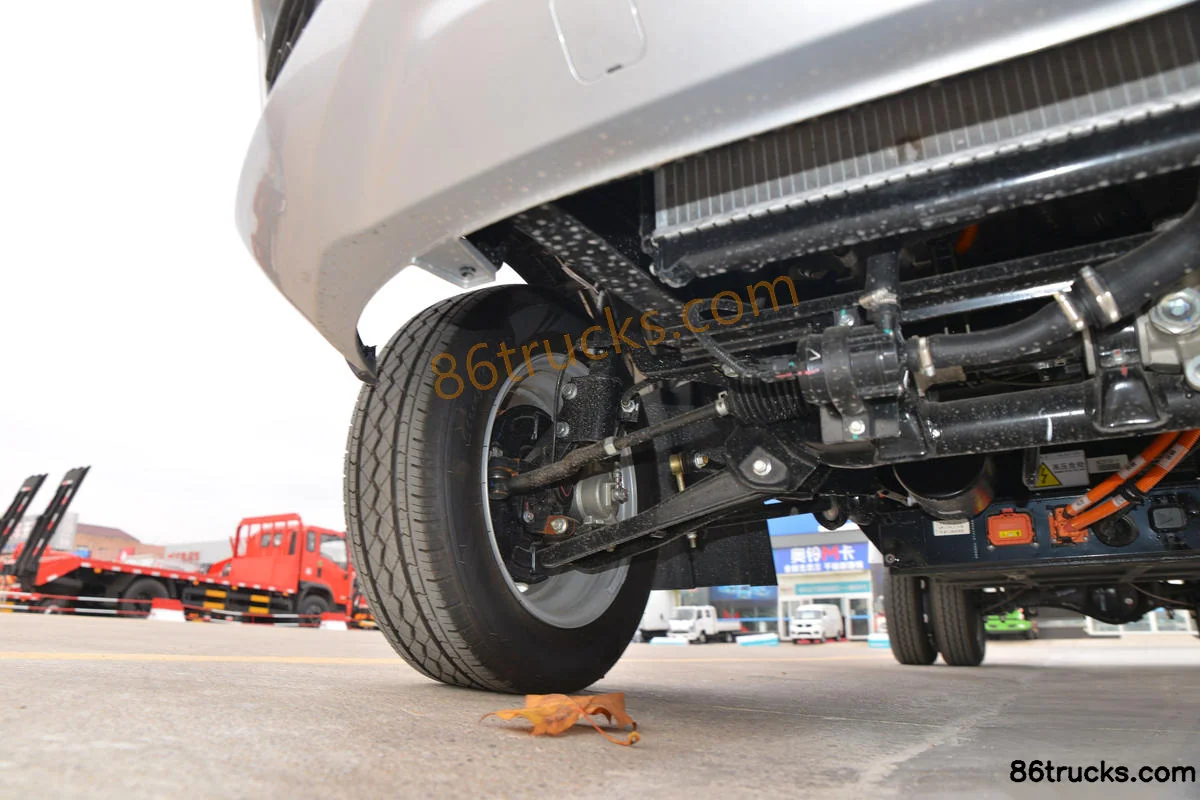

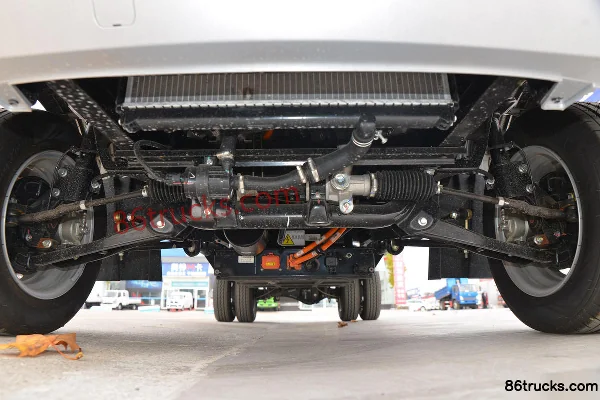

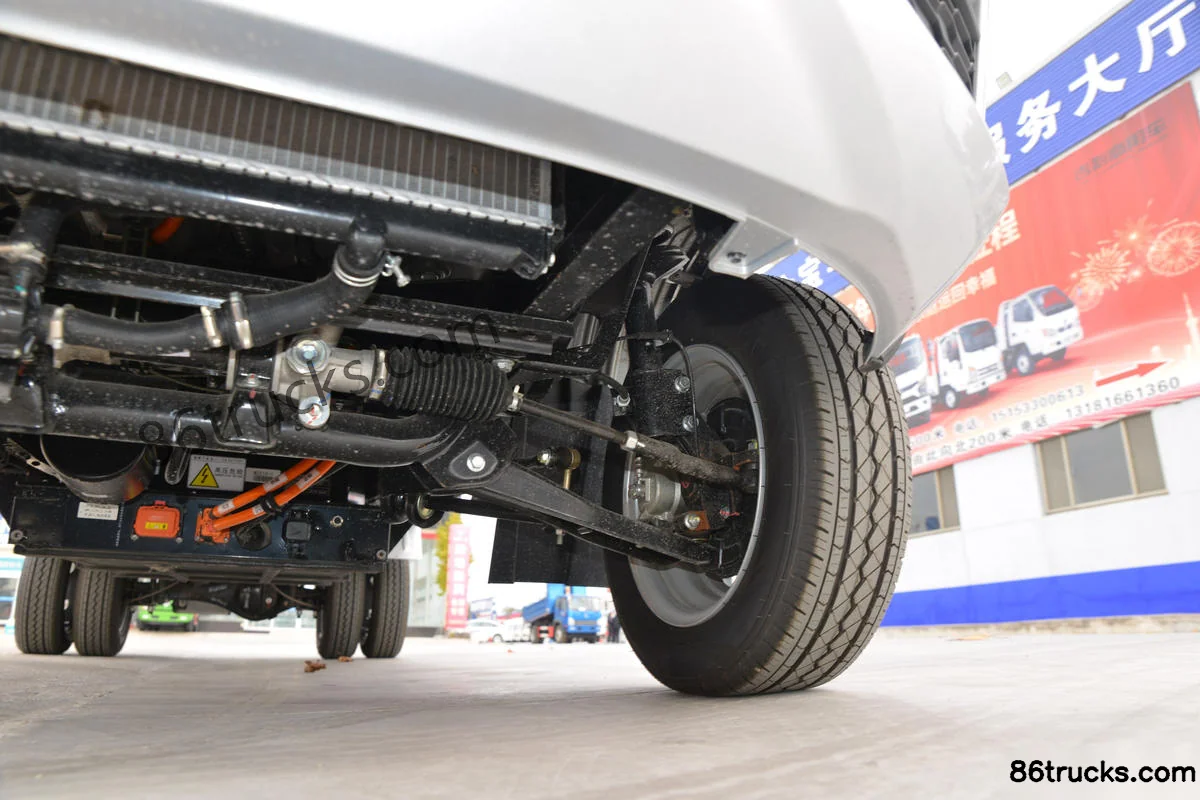

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Chassis (1) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Chassis (2) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Chassis (3) | 86Trucks

Body3

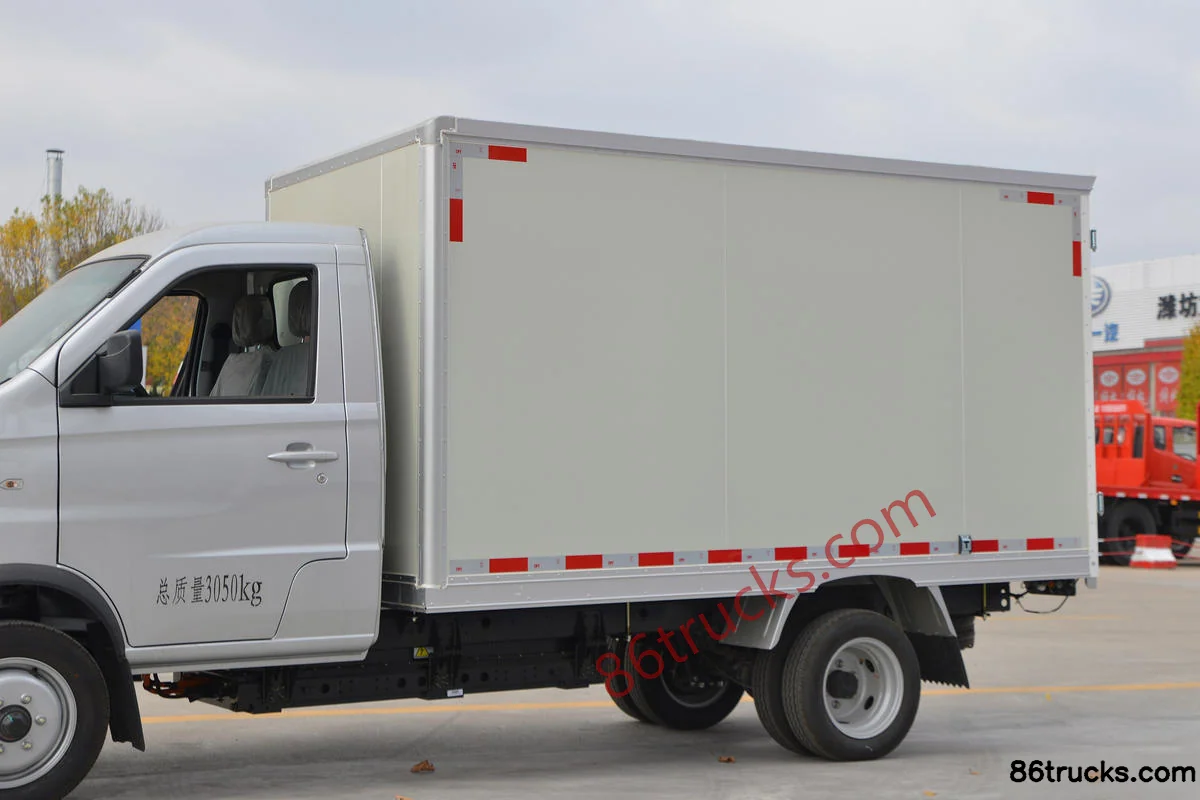

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Body (1) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Body (2) | 86Trucks SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels)?

Key specs of SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) suited for?

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) differ from other variants in the same series?

SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels) belongs to Huajin Xinyuan T20S EV (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan T20SEV 3.05T 3.03m Single Row Pure Electric Van Mini Truck 46.36kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
