Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh

Export reference
MSRP N/A
Rated payload:: 17.27ton
Wheelbase:: 1995+3200+1350mm
Cargo box type:: stake body
Model code (announced):: DFH3310EEV
Cab length:: 9.925m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Suzhou Green Control
Curb Weight: 13.6ton

Overview

The Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh is a Heavy truck featuring CATL battery/range, Suzhou Green Control motor, 8X4 (12 wheels) drive and 17.27t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFH3310EEV
Drive type: 8X4
Wheelbase: 1995+3200+1350mm
Cab length: 9.925m
Cab width: 2.55m
Cab height: 3.25m
Curb Weight: 13.6ton
Rated payload: 17.27ton
GVWR: 31ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ460XS-LKM3101
Motor 1 Peak Power: 450kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 281kWh
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 11R22.5 18PR
Number of tires: 12pcs
Control configuration
ABS:

Photos

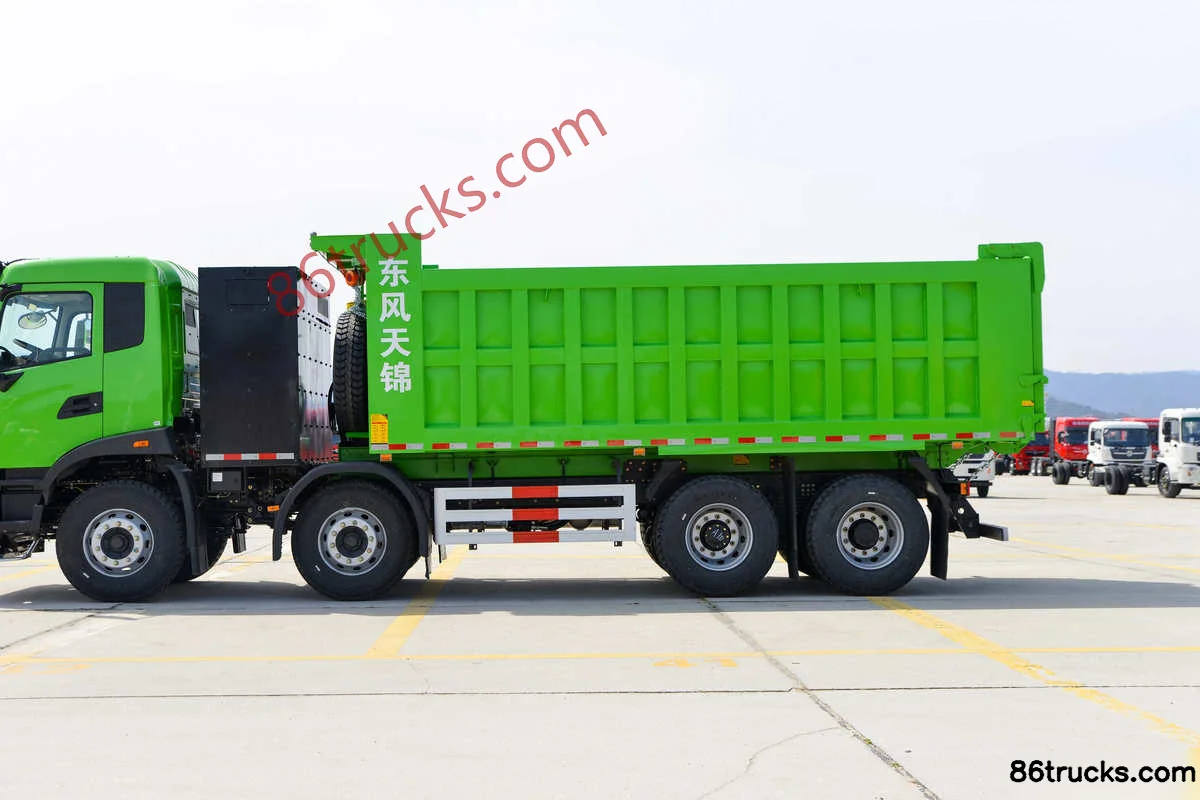

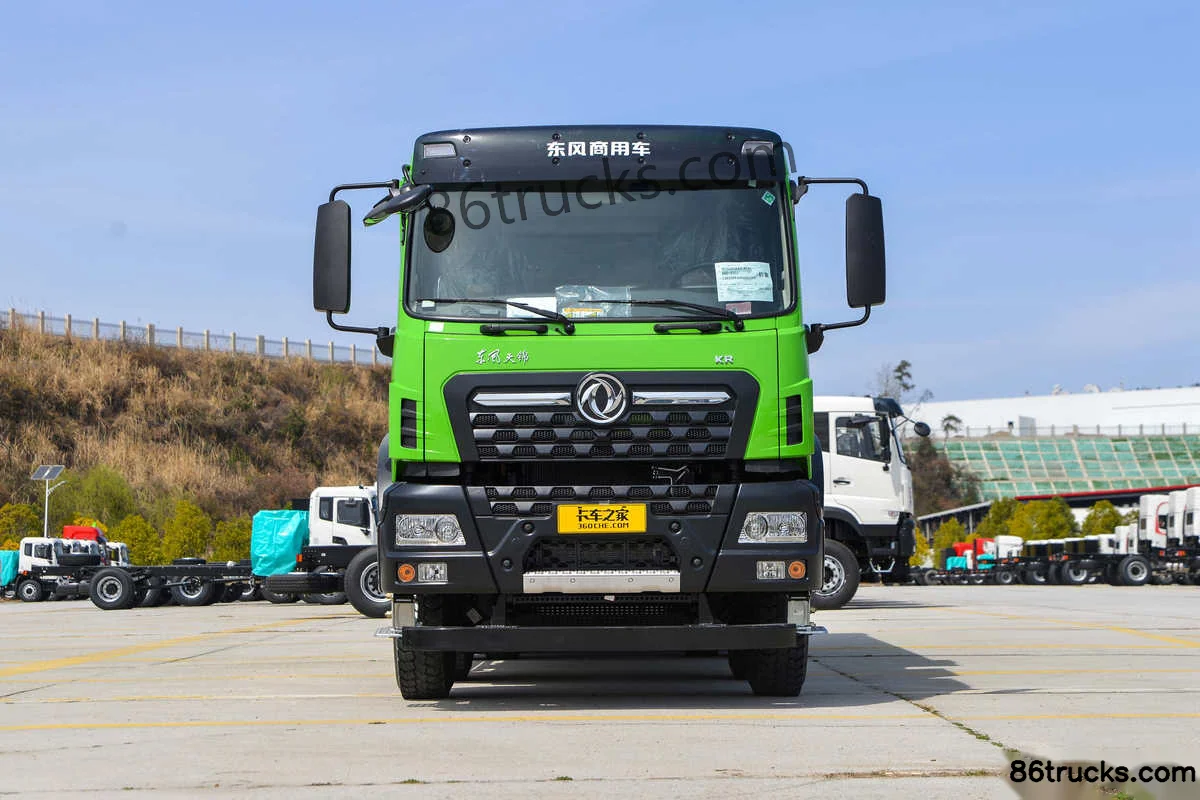

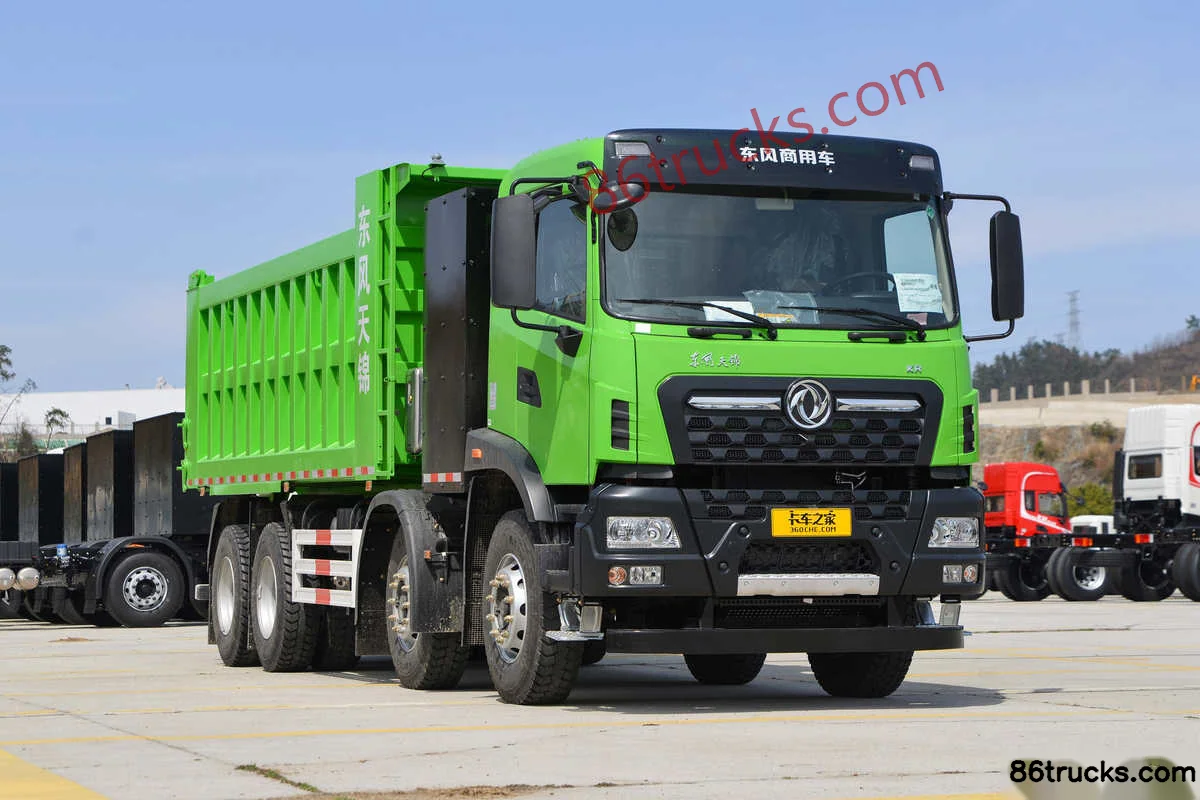

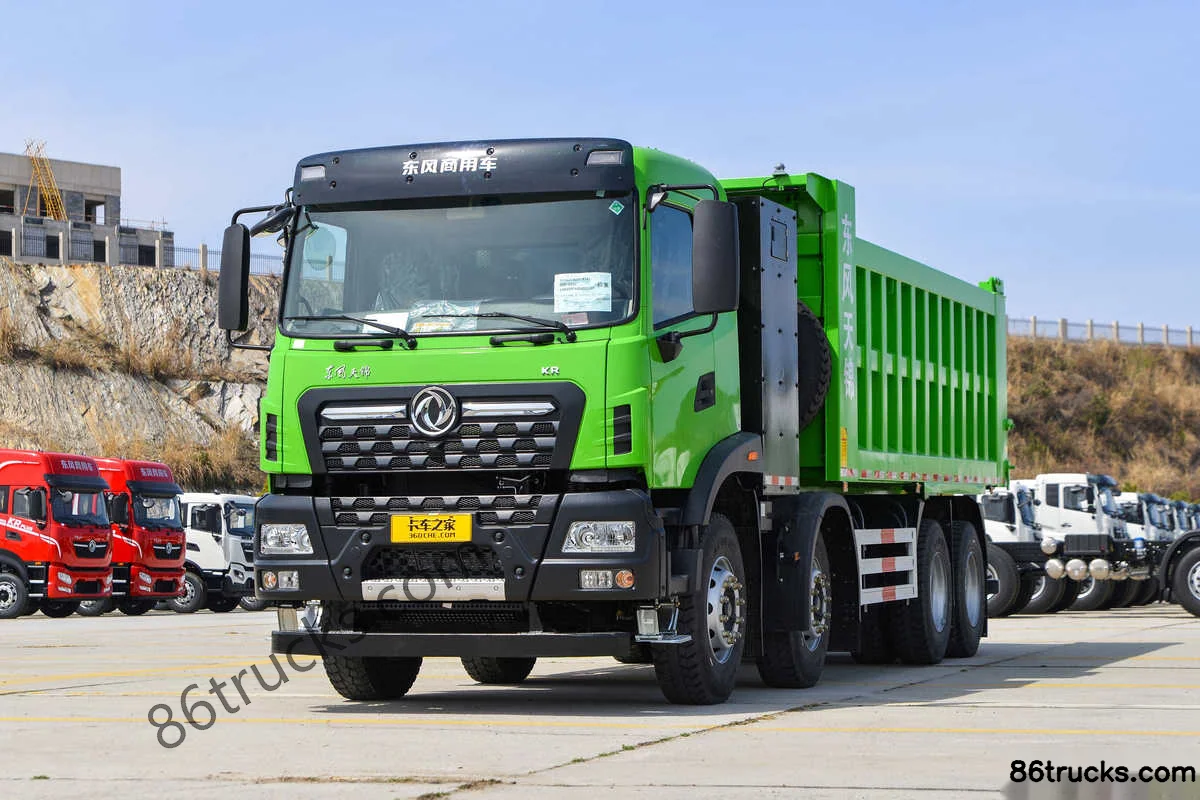

Exterior3

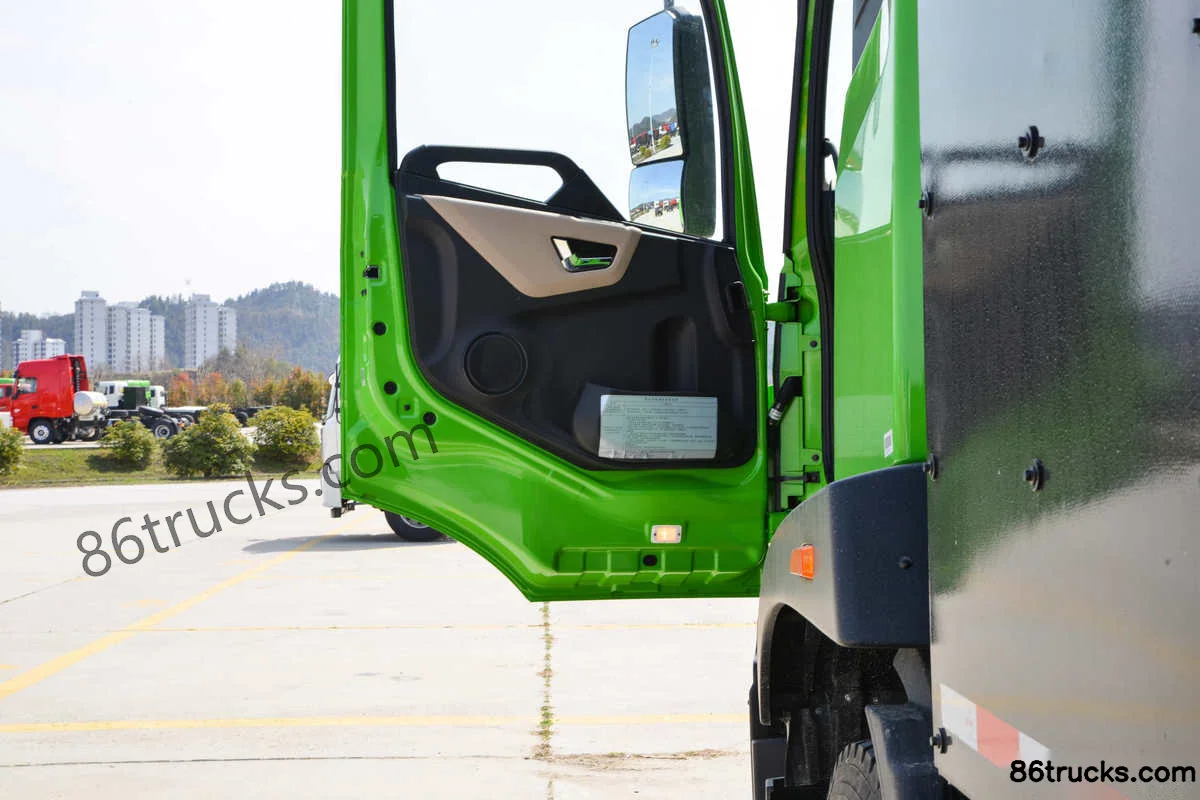

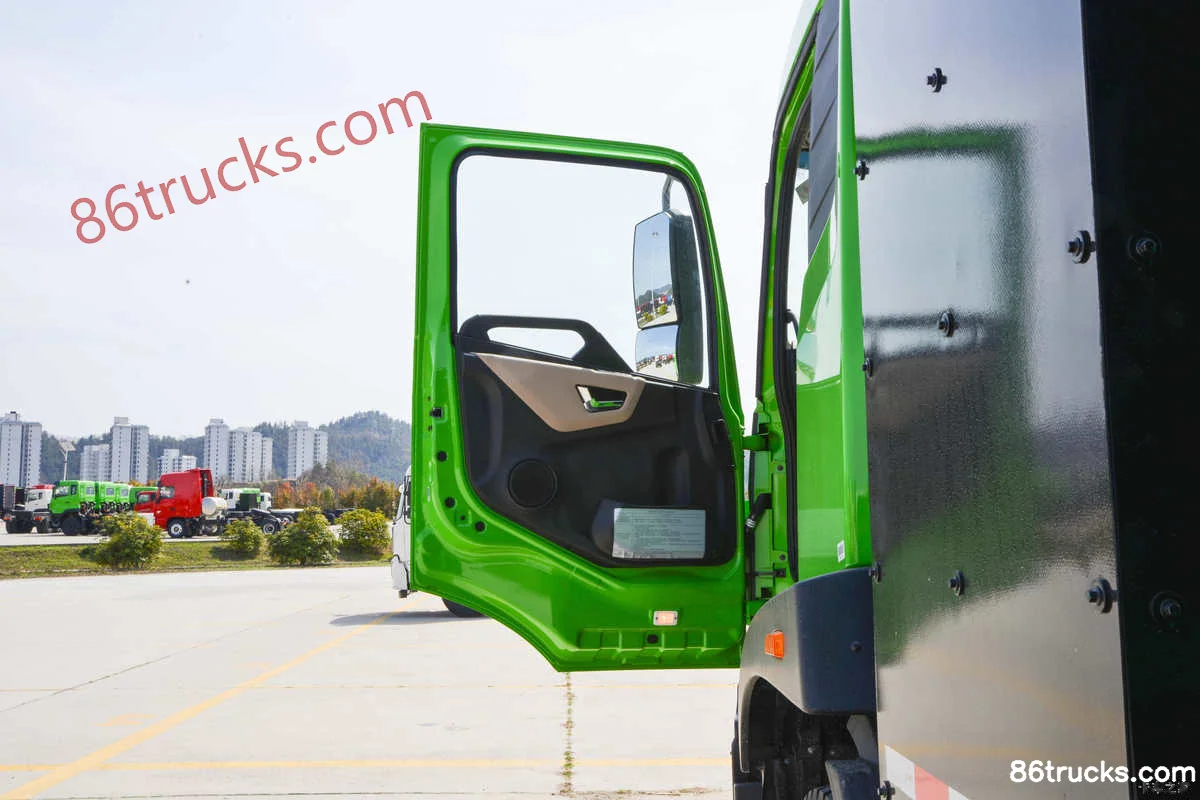

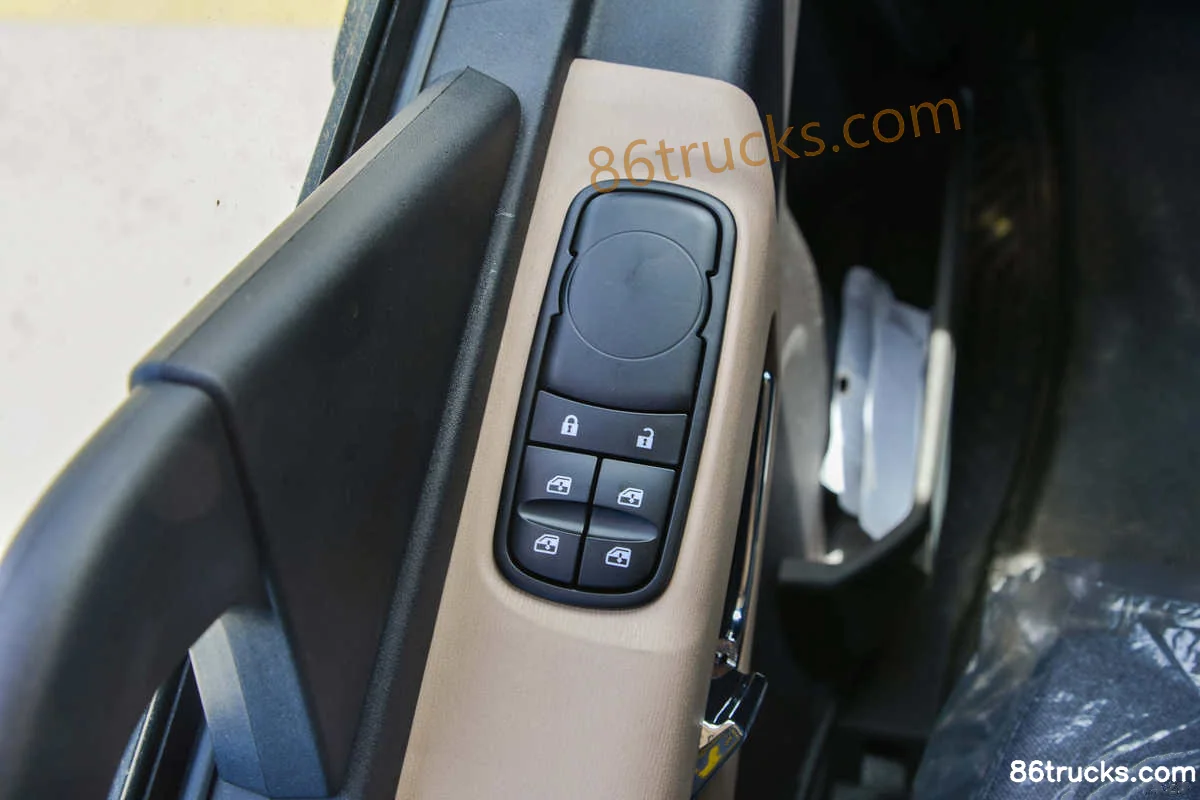

Cab3

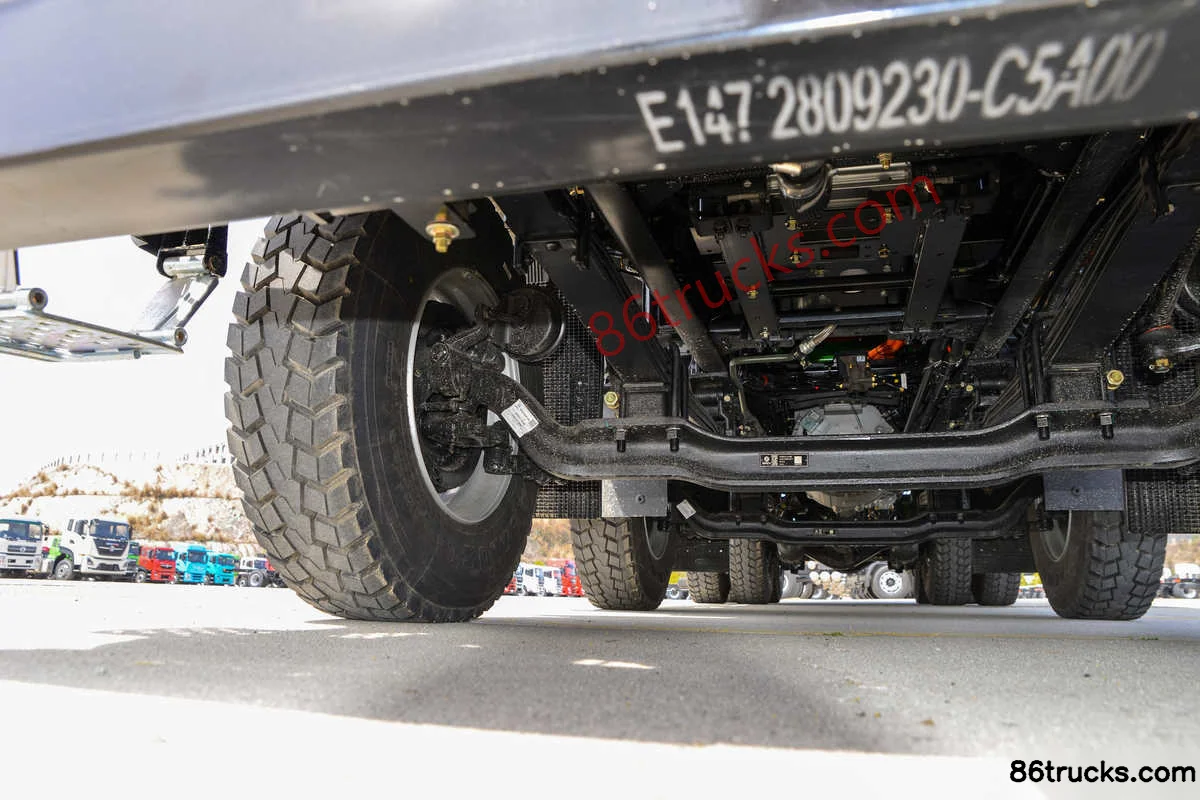

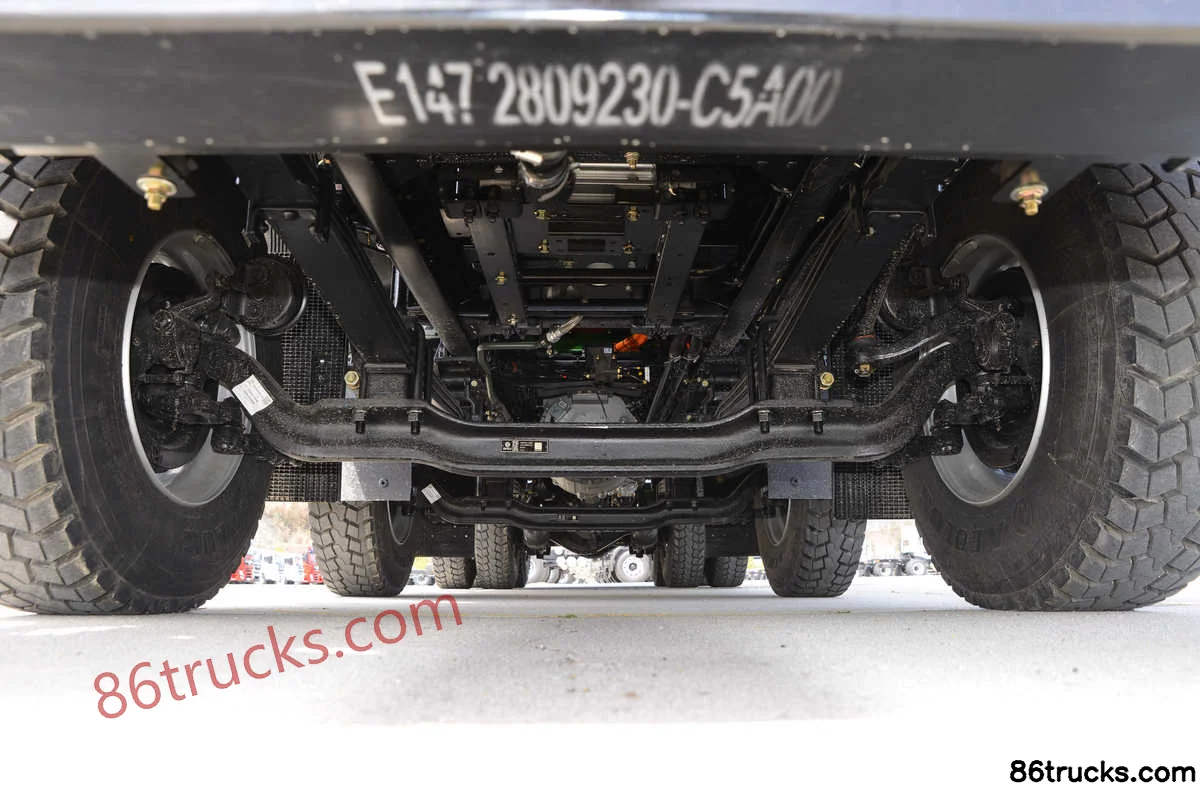

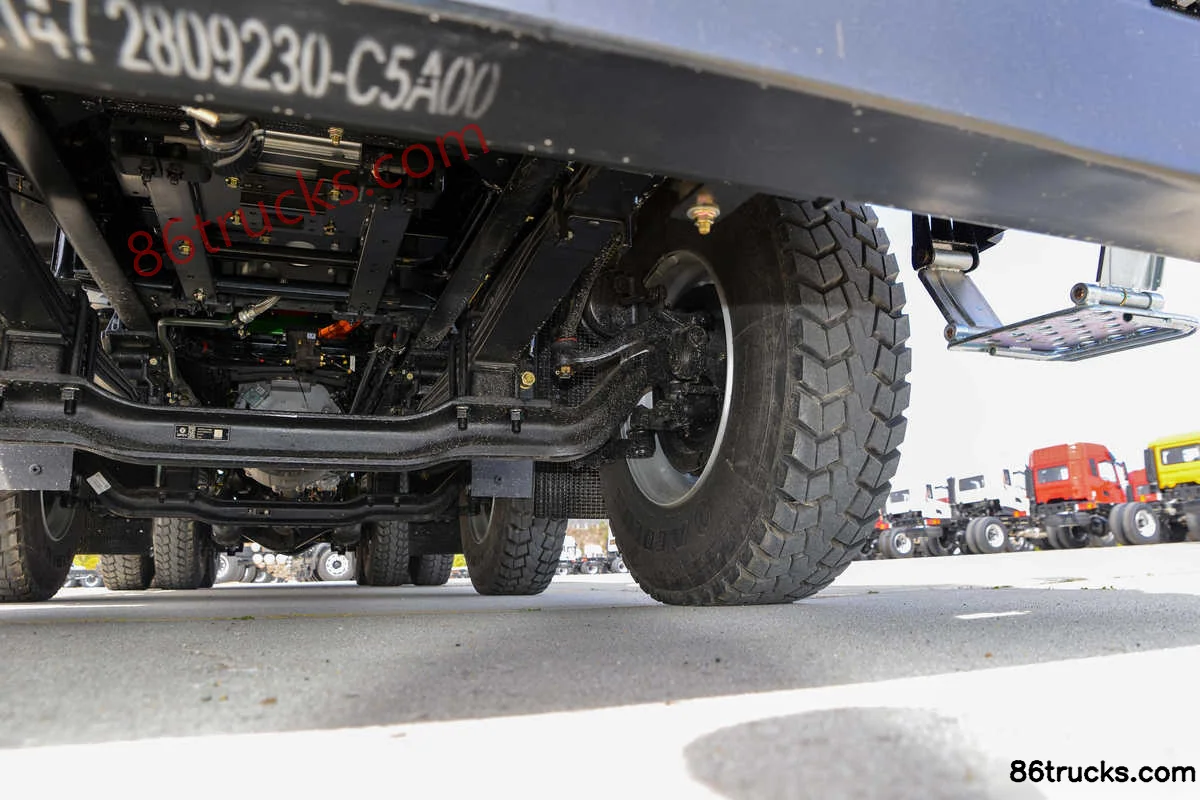

Chassis3

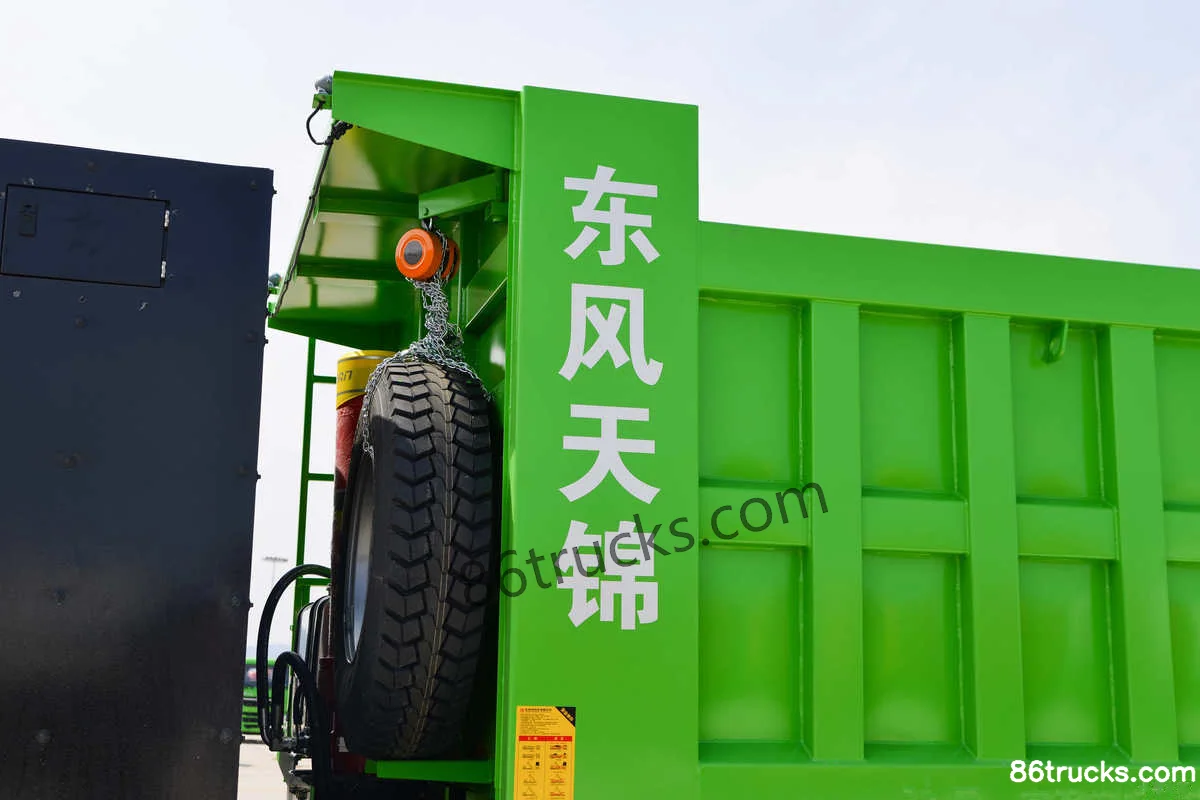

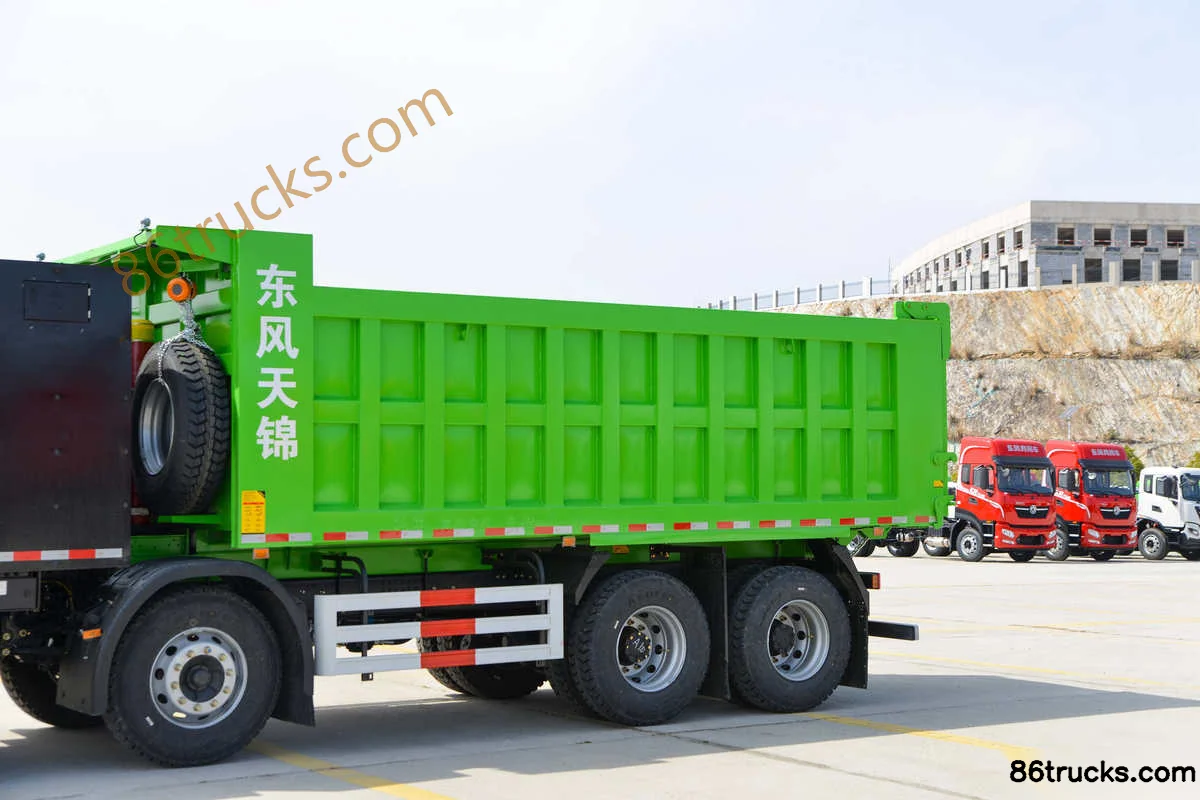

Body3

12 photos

FAQ

What are the key specs of Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh?

Key specs of Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh suited for?

Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh belongs to Dongfeng Tianjin KR (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin KR 8X4(12 wheels) 5.8m Electric Dump Truck CATL 281kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
